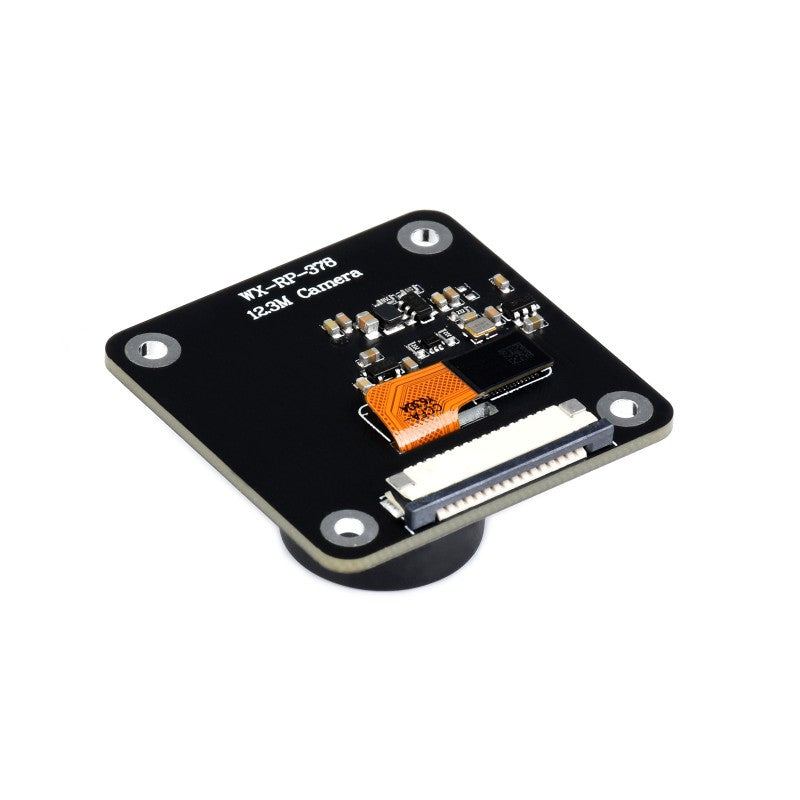

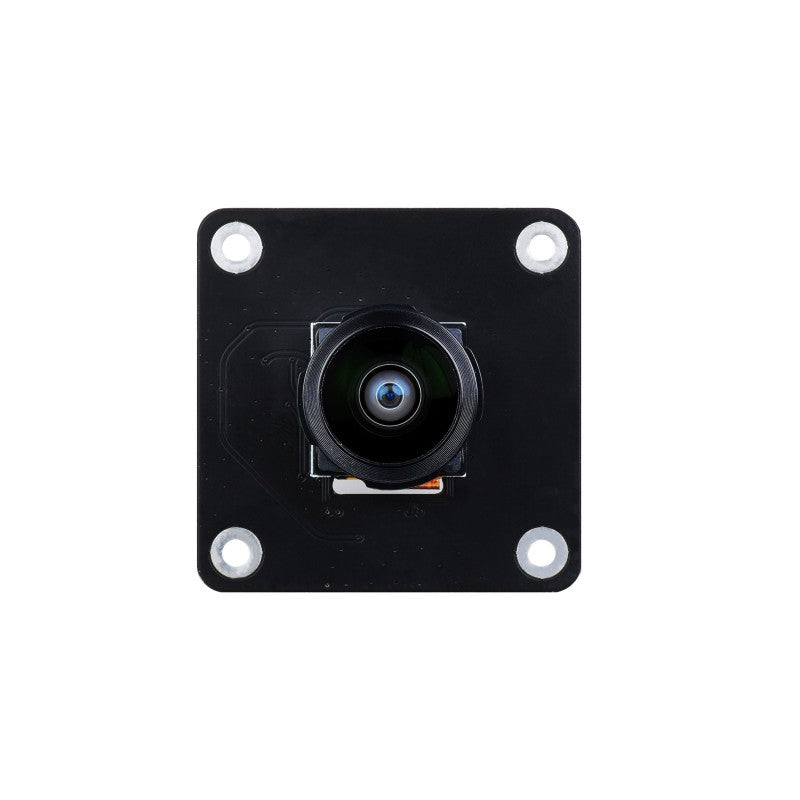

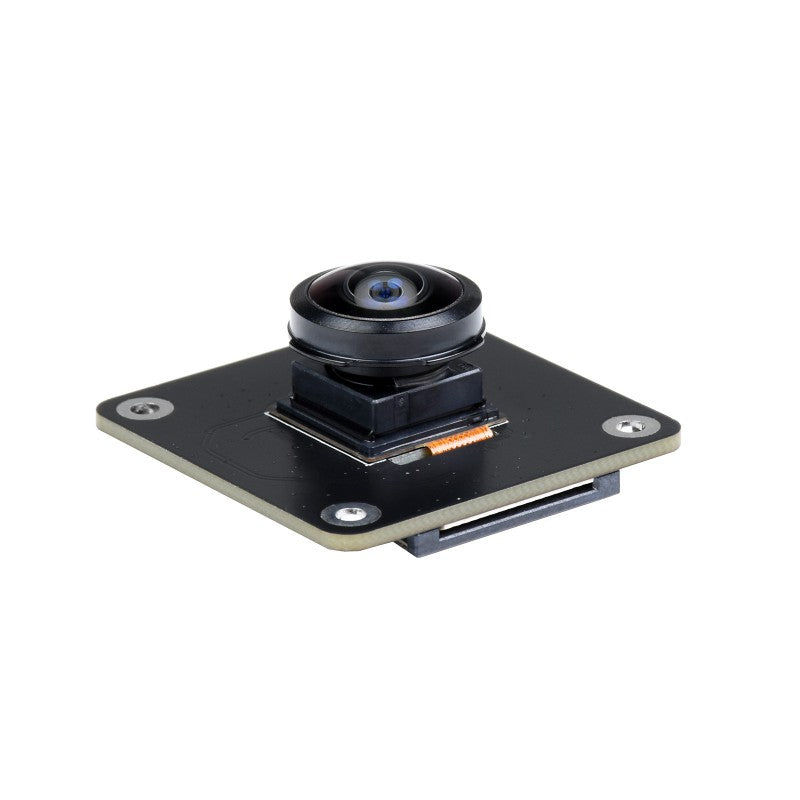

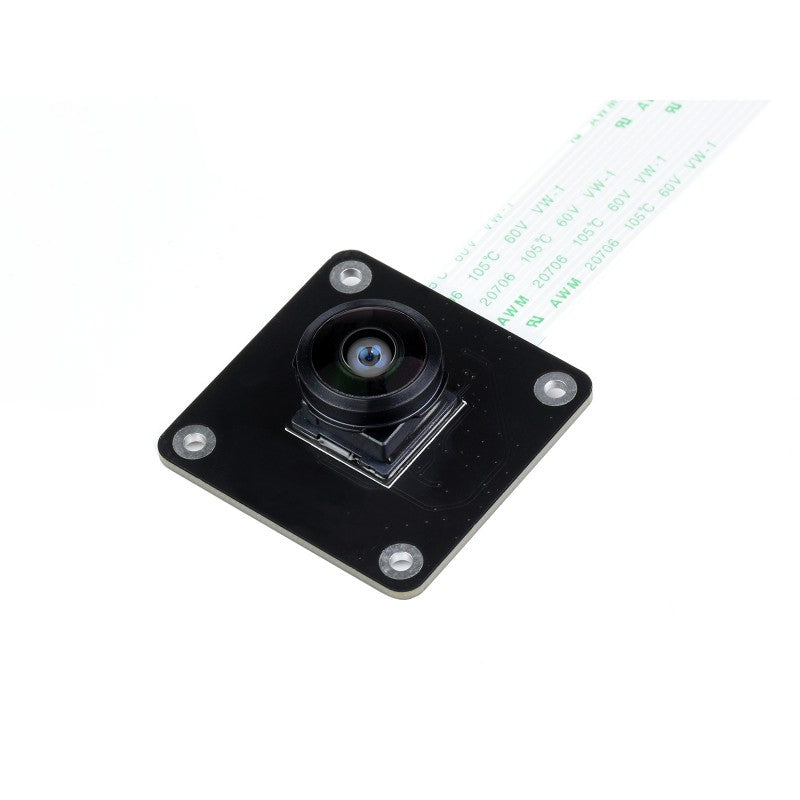

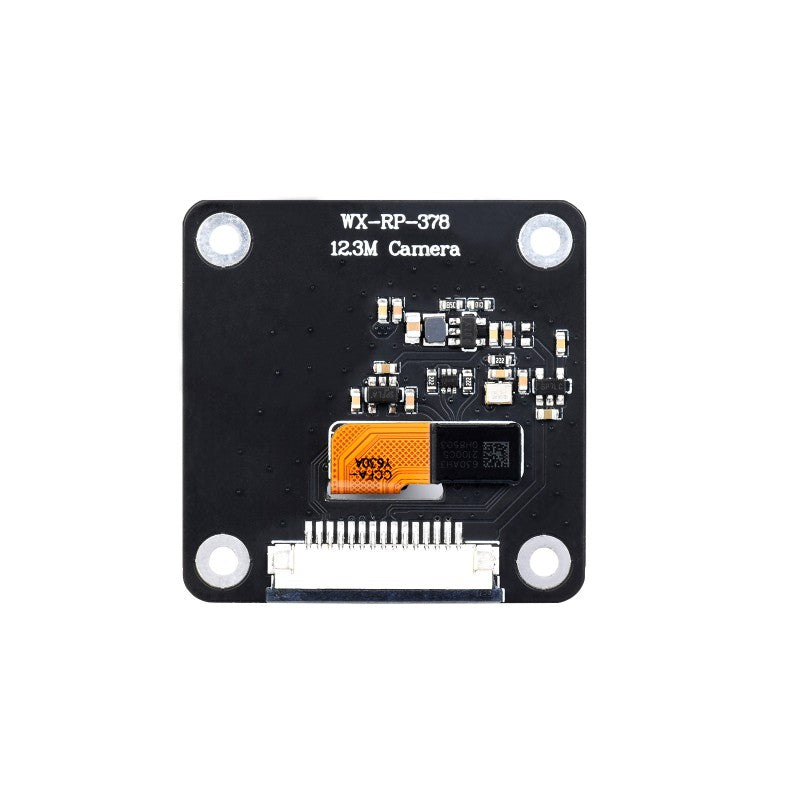

IMX378-190 Fisheye Lens 12.3MP Camera for Raspberry Pi - Wider Field Of View
IMX378-190 Fisheye Lens Camera
12.3MP, Fisheye, 190°FOV
Compatible with Raspberry Pi series boards
Device Support
Raspberry Pi series
Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W,
and CM3/3+/4 (extra adapter board required)
Specifications
SENSOR
IMX378
CMOS SIZE
1/2.3 inch
CAMERA TYPE
color
PIXELS
12.3MP (4056 × 3040)
SHUTTER
Rolling Shutter
APERTURE
F2.4
DISTORTION
< 58%
FIELD OF VIEW
190°
FOCAL LENGTH
6.5mm
FOCUSING
fixed focus distance
High Definition, Wide Angle
12.3MP HD, More Clear Imaging
Working With Raspberry Pi
Direct Connect To Raspberry Pi Different Variants Including 4B/3B+/3A+/3B/2B/B+/A+,
* for reference only, Raspberry Pi and yellow FPC are NOT included.
Dimensions
