Industrial 6-Channel Relay Module

Designed for Raspberry Pi Zero WH

RS485/CAN bus, power supply isolation & photocoupler isolation

Ā

Features

  • RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
  • CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock proof performance
  • High quality relay, contact rating: ā‰¤10A 250V AC or ā‰¤10A 30V DC
  • ABS protection enclosure with rail-mount support, easy to install, safe to use
  • Comes with development resources and manual (wiringPi and python examples)

Ā

SpecificationsĀ

Operating voltage 7V~36V (industrial input voltage compatible) Relay channel 6 ch
Communication protocol RS485, CAN Contact form 1NO 1NC

Ā

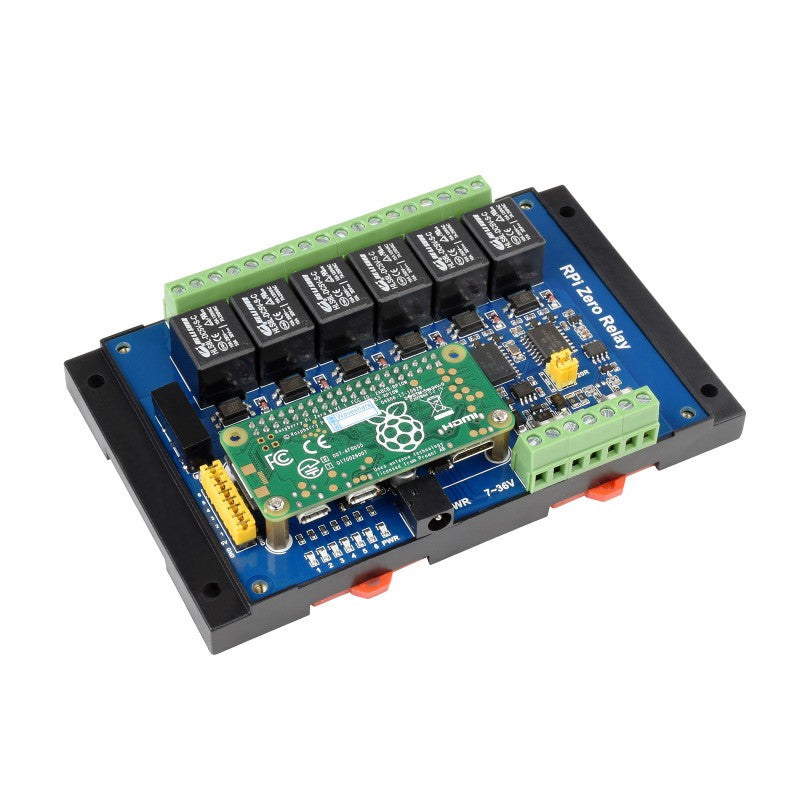

Tailored for Raspberry Pi Zero series

suitable for Raspberry Pi Zero with pre-soldered pinheader

Raspberry Pi Zero WHĀ is NOT included.

Ā

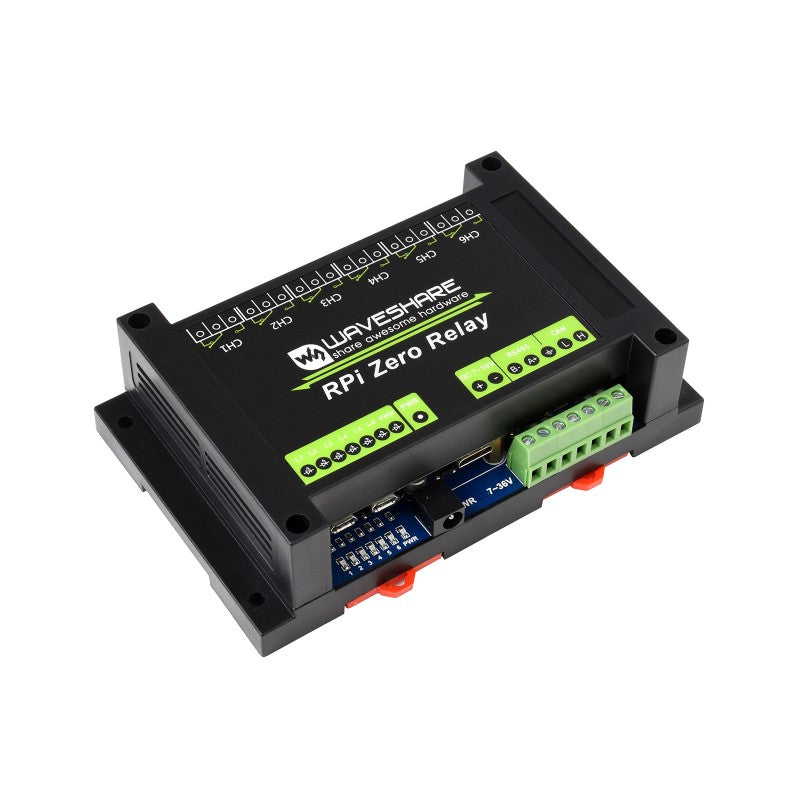

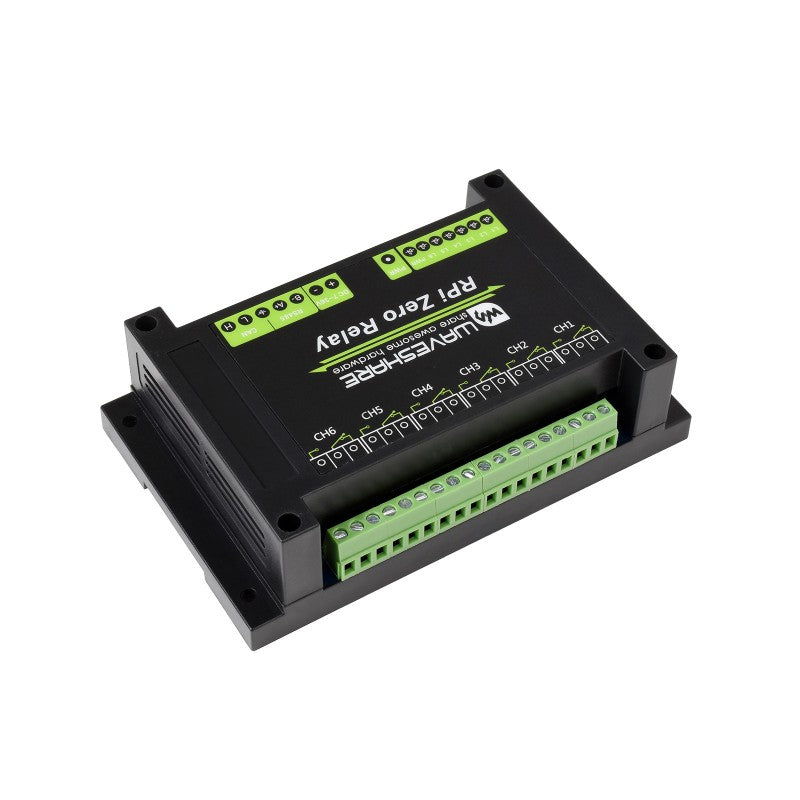

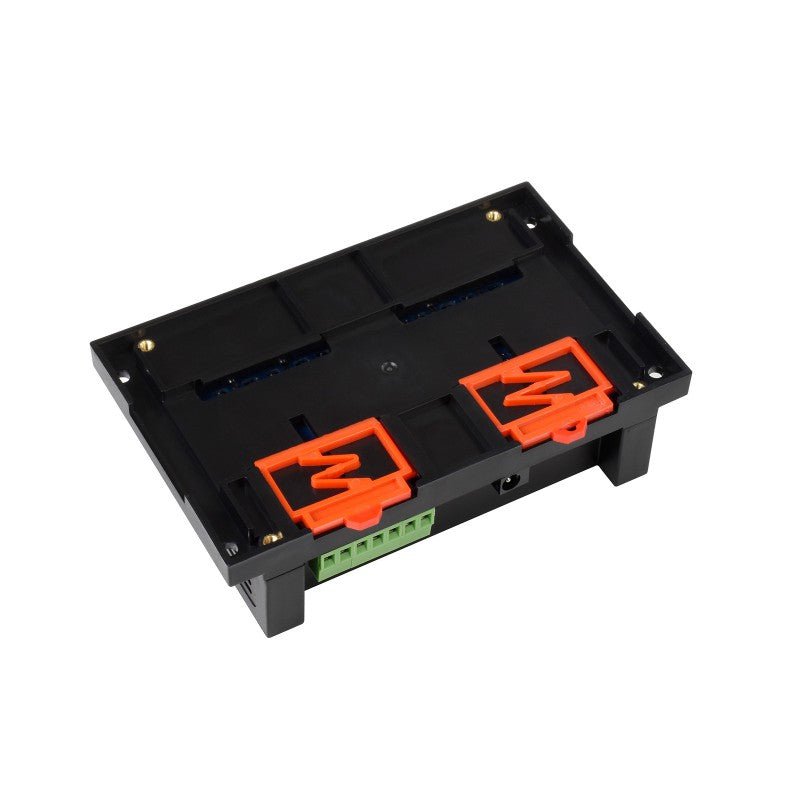

Enclosure design

ABS protection enclosure with rail-mount support, easy to install, safe to use

Ā

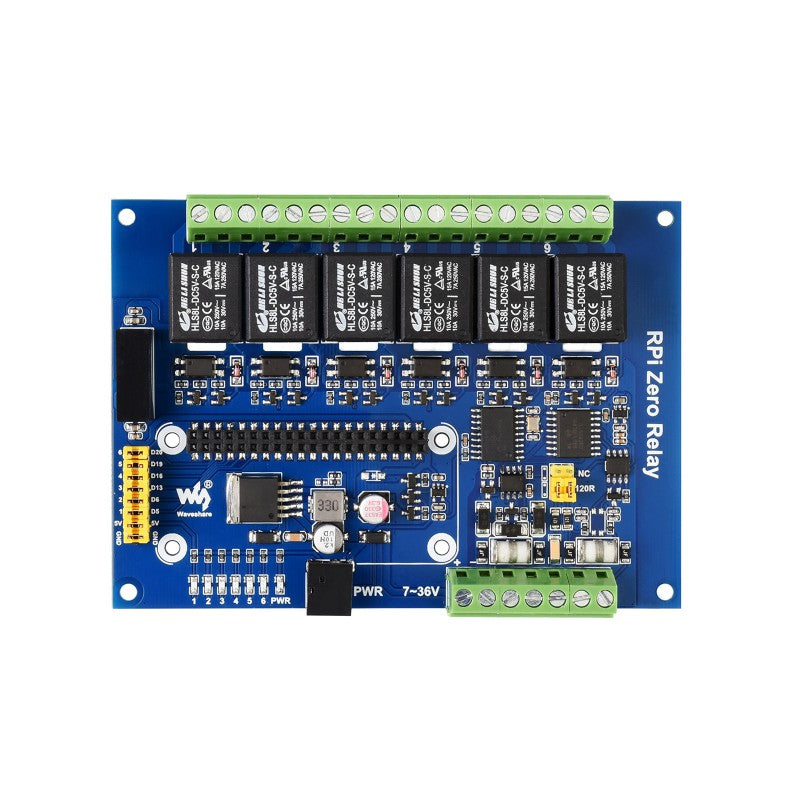

What's On Board

  1. MCP2515
    CAN controller
  2. SI8642ED-B-IS
    digital isolator
  3. SN65HVD230
    CAN transceiver
  4. SP3485EN
    RS485 transceiver
  5. LM2596 voltage regulator
    providing stable 5V voltage
  6. Photocoupler isolation
    prevent interference from external high-voltage circuit connected to the relay
  7. 6-channel quality relays
    contact rating per channel: ā‰¤10A 250V AC or ā‰¤10A 30V DC
  8. Power supply isolation
    provides stable isolated voltage, needs no extra power supply for the isolated terminal
  9. Resettable fuses
  10. TVS diodes
  11. Relay and power indicators
  12. 40PIN GPIO header
    suitable for Raspberry Pi Zero with pre-soldered pinheader
  13. Relay screw terminals
    for connecting with user devices
  14. Power supply screw terminals
  15. RS485 bus interface
  16. CAN bus interface
  17. RS485 120Ī© terminal resistor switch
  18. CAN 120Ī© terminal resistor switch
  19. Relay control pins
  20. External power supply jack

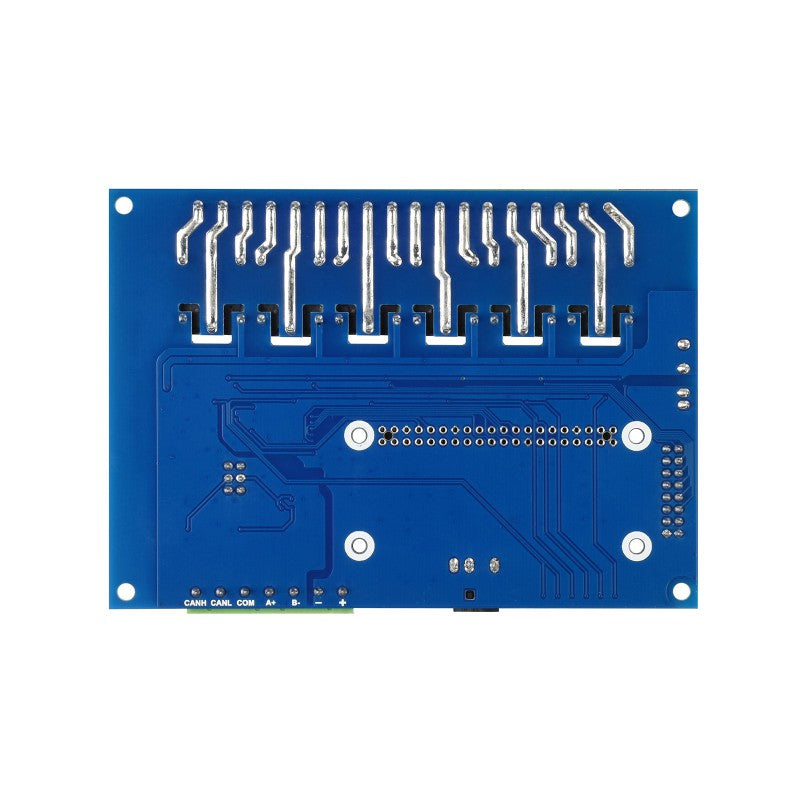

  21. Thickened tracks
    allows large current devices

Ā

Pinout definition

Ā

Outline dimensions

Ā

Ā

Resources

WIKI:Ā RPi_Zero_Relay

Ā

Ā

Package Contains:

Weight:Ā 0.339 kg

  1. ABS protection enclosure (top and bottom) x1
  2. RPi Zero Relay x1
  3. Screwdriver x1
  4. 12V 1A power adapter x1
  5. Screws pack x1
Is this module compatible with the Raspberry Pi Zero WH?
It is tailored for the Raspberry Pi Zero series and includes a pre soldered pin header; the Raspberry Pi Zero WH board is not included.
What voltage does the module require and does it provide its own isolated power?
It operates from 7V to 36V and has onboard isolation with a stable 5V supply, so no extra power supply is needed for the isolated terminal.
What communication interfaces does it support for controlling the relays?
It supports RS485 half duplex via SP3485 with UART control and auto RX TX switch, and CAN half duplex via MCP2515 and SN65HVD230 with SPI control.
What protection features are included to prevent interference and faults?
It includes onboard photocoupler isolation, TVS diodes, resettable fuses and protection diodes, and power supply isolation to stabilize outputs.
What is included in the package and where can I find documentation?
The package includes the ABS enclosure, the 6 channel relay module, a screwdriver, a 12V 1A power adapter, and screws; development resources and a manual with wiringPi and python examples are provided.
