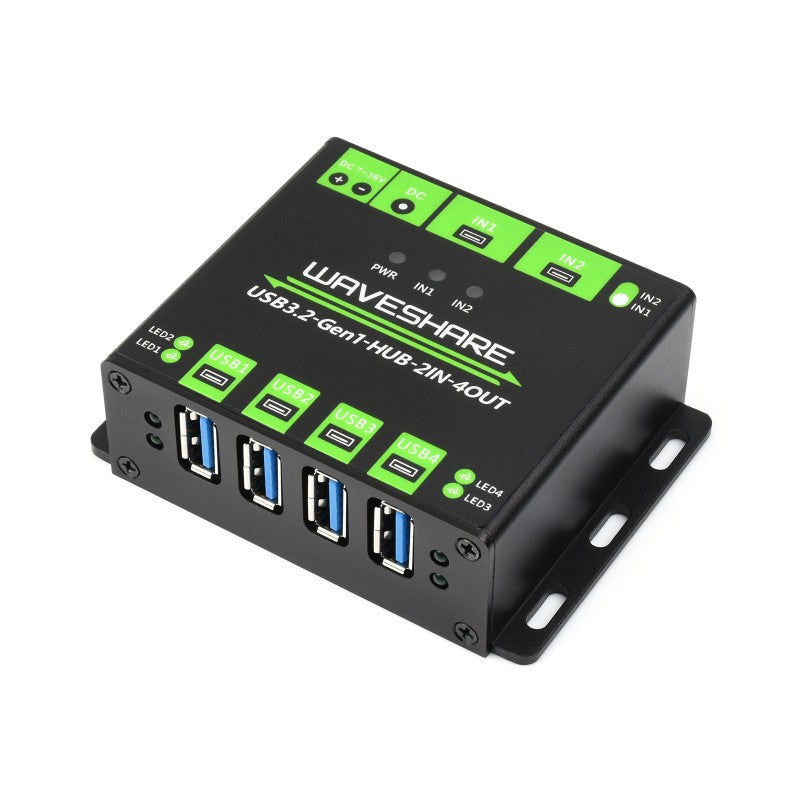

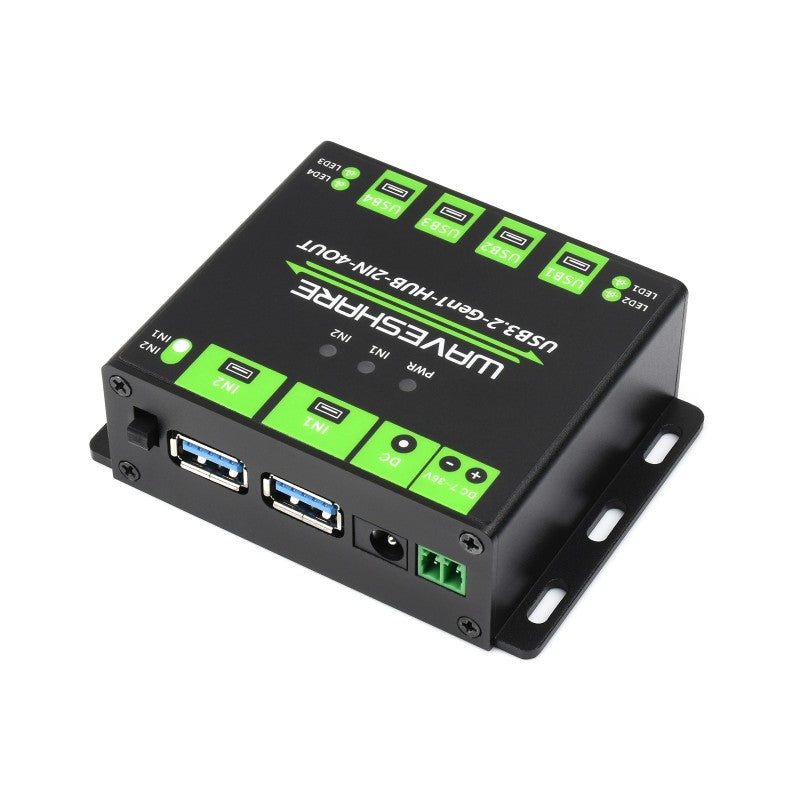

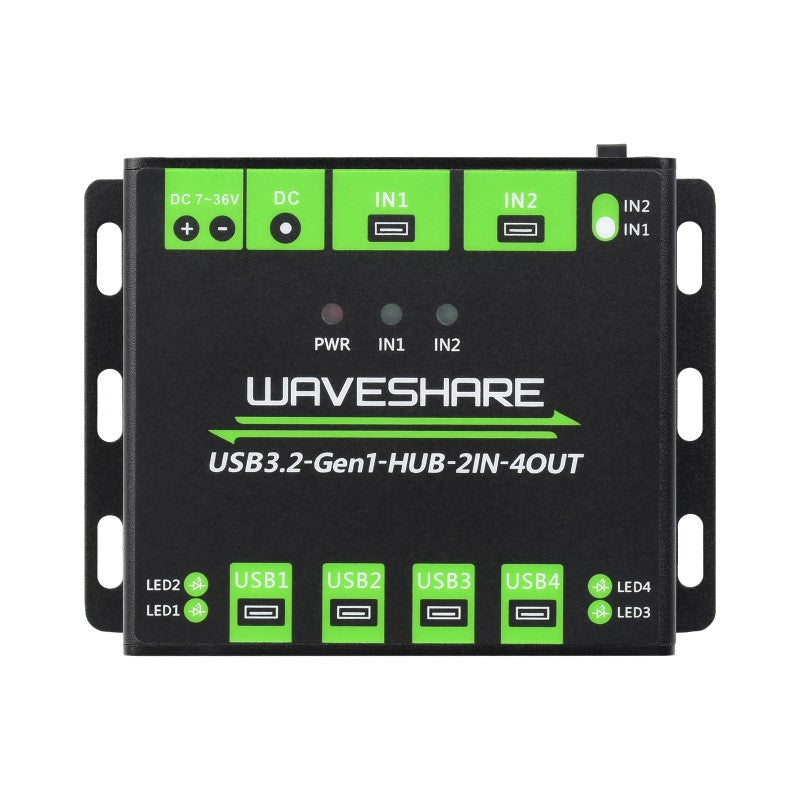

Industrial grade USB HUB, Extending 4x USB 3.2 Ports
Industrial USB 3.2 HUB, Switchable
Sharing USB devices for two hosts, free up the crowded desktop
Features
4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
ESD protection for each USB port, preventing electric surge damage and data loss
Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.

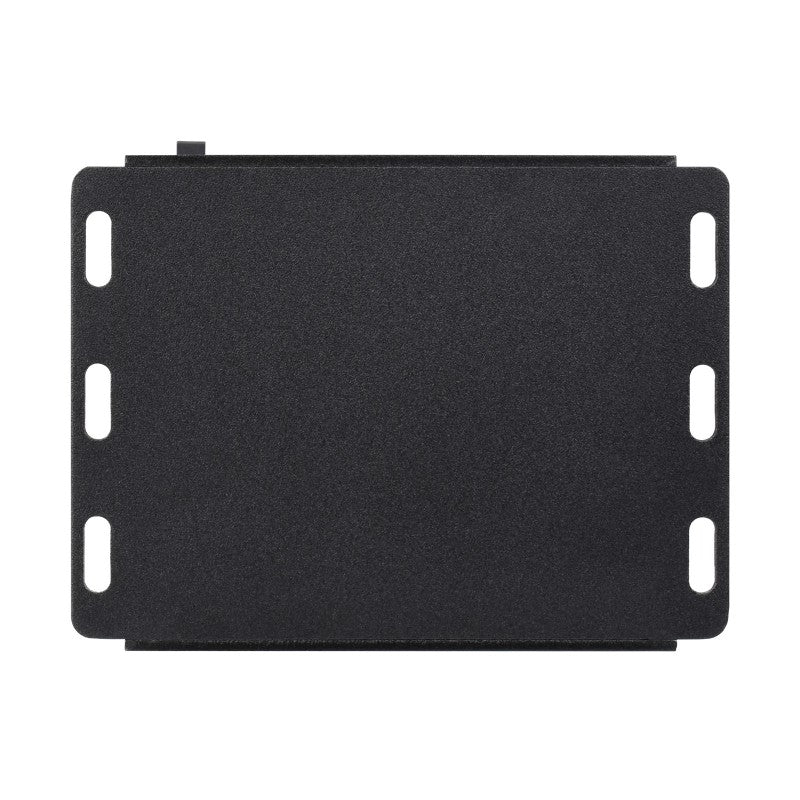

Industrial grade metal case, rugged & durable, with mounting holes for easy installation
Specifications
Standard
high speed USB 3.2 Gen 1
Data rate
up to 5Gbps
USB output
5V@Imax:1.2A, USB-A connector
USB HUB input
5V, switchable dual USB-A connectors (standalone power supply, no crossed power)
External power
DC power supply terminal 7~36V
Operating environment
-40℃ ~ 85℃
OS support
Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

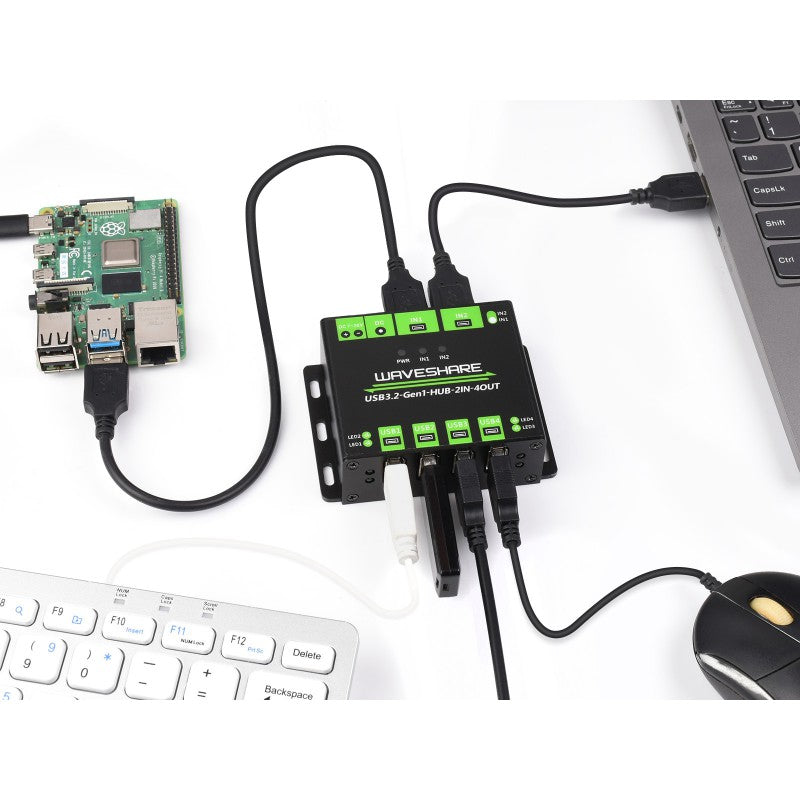

Sharing USB devices for two hosts
Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.
Multiple protections, more safe
over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection...
Multiple OS support, plug & play
compatible with OS including: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP...
