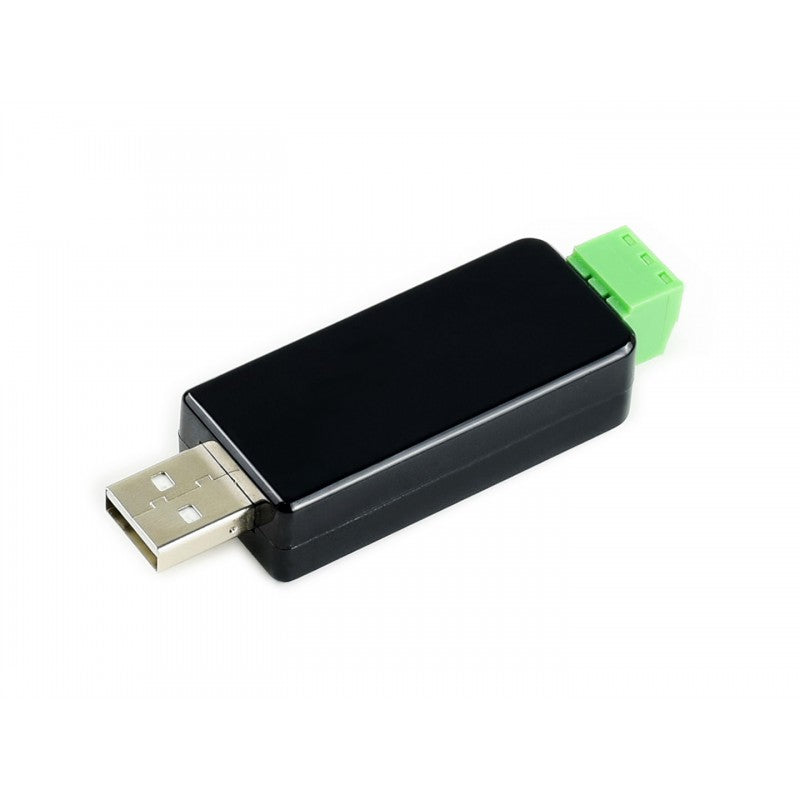

Industrial USB to RS485 Bidirectional Converter

SKU: WVSH0134

₹ 1,249.99 ₹ 1,499.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
Industrial USB to RS485 Bidirectional Converter₹ 1,249.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini



USB TO RS485 Bidirectional Converter

Industrial USB to RS485 bidirectional converter with original FT232RL and SP485EEN chip. Due to its stable communication, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.



Features At A Glance

  • Support USB to RS485 bidirectional conversion
  • Onboard Original FT232RL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • 3 LEDs for indicating the power and transceiver status




Specifications

PRODUCT TYPE Industrial Grade USB to RS485 converter
HOST PORT USB
DEVICE PORT RS485
BAUDRATE 300bps ~ 921600bps
USB Operating voltage 5V
Connector USB-A
Protection 200mA self-recovery fuse, ESD protection
Transmission distance About 5m
RS485 Connector Screw terminal
Pins A+, B-, GND
Direction control Hardware automatic control
Protection 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance About 1.2km(low rate)
Transmission mode Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
LED INDICATORS PWR Red power indicator, light up when there is USB connection and voltage is detected
TXD Red TX indicator, light up when the USB port sends data
RXD Red RX indicator, light up when the device ports send data back
OPERATING ENVIRONMENT Temperature -15℃ ~ 70℃
Humidity 5%RH ~ 95%RH
OPERATING SYSTEM Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7


Onboard Original Chips

Onboard Original FT232RL And SP485EEN Chips, Providing Better Stability And Compatibility, Built-In Lightningproof Tube, Resettable Fuse, ESD And TVS Protection Circuits, Etc.



Transmission Distance Up To 1.2km

The USB Signal Can Be Converted Into A Balanced Differential RS485 Signal And The Transmission Rate Is Stable. The Reliable Speed Is 300-921600bps, The Transmission Distance Is About 1.2km For RS485, And About 5 Meters For USB.




Multi System Support

Supports Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP, Etc.

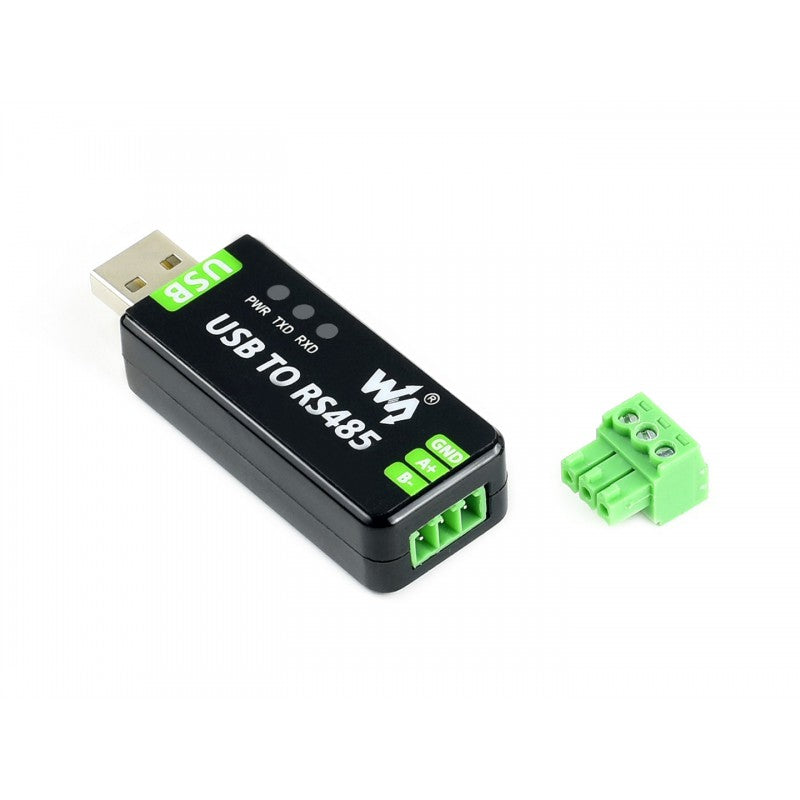

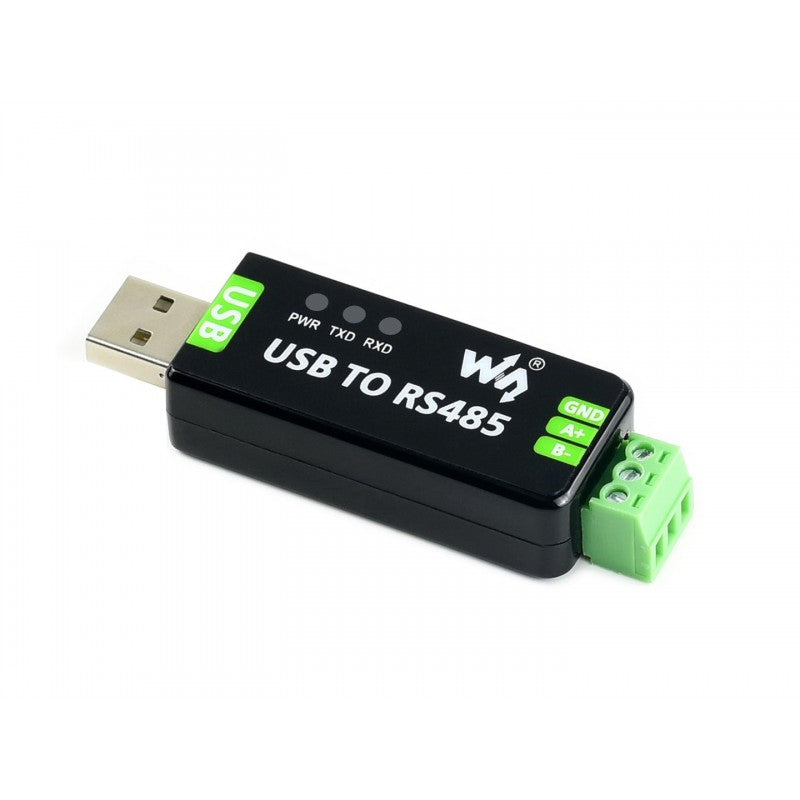

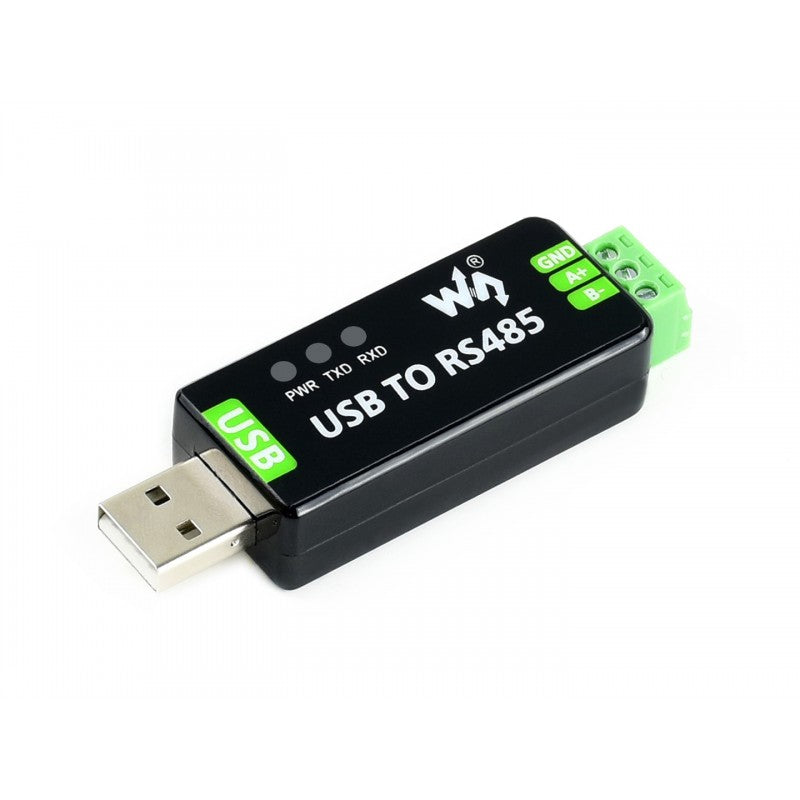

Working Status Indicators

Onboard 3 LEDs For Indicating The Power And Transceiver Status





Outline Dimensions



Resources

WIKI: www.waveshare.com/wiki/USB_TO_RS485



Package Contains:

Weight: 0.104 kg

  1. USB TO RS485 x1
  2. USB-A male to female cable x1
  3. Screwdriver x1
123
What operating systems and host platforms are supported by this USB to RS485 converter?
It supports Mac, Linux, Android, WinCE, and Windows 11/10/8.1/8/7/XP.
What is the baud rate range and typical RS485 distance for this device?
Baud rates from 300 bps to 921600 bps; RS485 distance up to about 1.2 km at low rate and about 5 meters for USB.
What protections are built into the board?
Onboard TVS, resettable fuse and protection diodes; 600 W surge protection and 15 kV ESD protection with a 120 ohm balancing resistor.
How do the status LEDs indicate operation?
PWR indicates power when USB is connected; TXD lights when data is sent; RXD lights when data is received.
What is included in the package contents?
Package contains USB to RS485 converter x1, USB A male to female cable x1, and a screwdriver x1.
