The Intel® RealSense™ D415 has a standard field of view well suited for high accuracy applications such as 3D scanning. With a rolling shutter on the depth sensor, the D415 offers our highest depth quality per degree.
When accuracy is the most important factor for your solution, the D415 is the perfect choice. The D415 has a tightly focused field of view, which offers higher quality depth per degree. Featuring an integrated RGB sensor, the D415 is perfect for facial authentication, 3D scanning or volumetric capture.
 |
Ideal for Development & ProductizationWith the Intel® RealSense™ depth camera D415, Intel maintains its track record of bringing exciting new vision sensing products to market. This camera puts an Intel module and vision processor into a small form factor ideal for development and productization. Lightweight, powerful, and low‑cost, it pairs with customizable software to enable a one‑stop shop for assembly and creation of a new generation of sensing solutions and devices that are better able understand and interact with their surroundings. |
Ideal for Precise MeasurementThe D415 has a standard field of view and uses rolling shutter sensors. This field of view results in higher depth resolution for smaller objects or when more precise measurements are required. The rolling shutter sensors and smaller lenses allow for a lower cost, yet highly capable depth camera. |
|
 |
Complete Suite for Simple IntegrationThe D415 is part of the Intel® RealSense™ D400 series of cameras, a lineup that takes Intel’s latest depth‑sensing hardware and software and packages them into easy‑to‑integrate products. Intel’s complete suite of solutions includes vision processors, turnkey modules, cameras, and SDKs and computer vision libraries. Perfect for developers, makers, and innovators looking to bring depth‑sensing vision to devices, Intel® RealSense™ D400 series cameras offer simple out‑of‑the‑box integration and enable a whole new generation of intelligent vision‑equipped devices. |
| Features |
Use environment: Indoor/Outdoor Image sensor technology: Rolling Shutter |
Ideal range: .5 m to 3 m |
| Depth |
Depth technology: Stereoscopic Minimum depth distance (Min‑Z) at max resolution: ~45 cm Depth Accuracy: <2% at 2 m1 |
Depth Field of View (FOV): 65° × 40° Depth output resolution: Up to 1280 × 720 Depth frame rate: Up to 90 fps |
| RGB |
RGB frame resolution: 1920 × 1080 RGB frame rate: 30 fps RGB sensor technology: Rolling Shutter |
RGB sensor FOV (H × V): 69° × 42° RGB sensor resolution: 2 MP |
| Major Components |
Camera module: Intel RealSense Module D415 |
Vision processor board: Intel RealSense Vision Processor D4 |
| Physical |

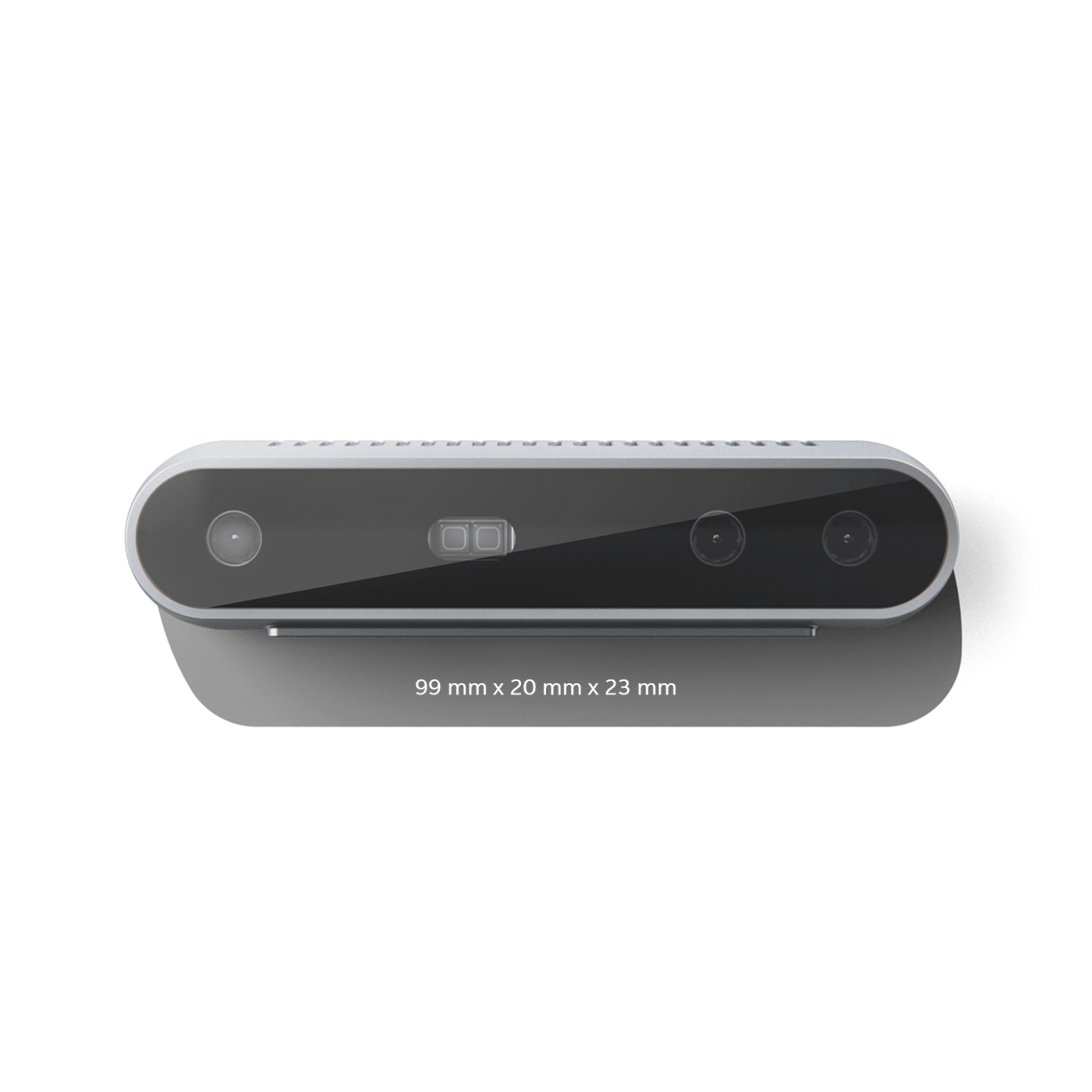

Form factor: Camera Peripheral Length × Depth × Height: 99 mm × 20 mm × 23 mm |
Connectors: USB‑C* 3.1 Gen 1* Mounting mechanism: – One 1/4‑20 UNC thread mounting point. – Two M3 thread mounting points. |
1 Z-accuracy as measured as out of the factory
