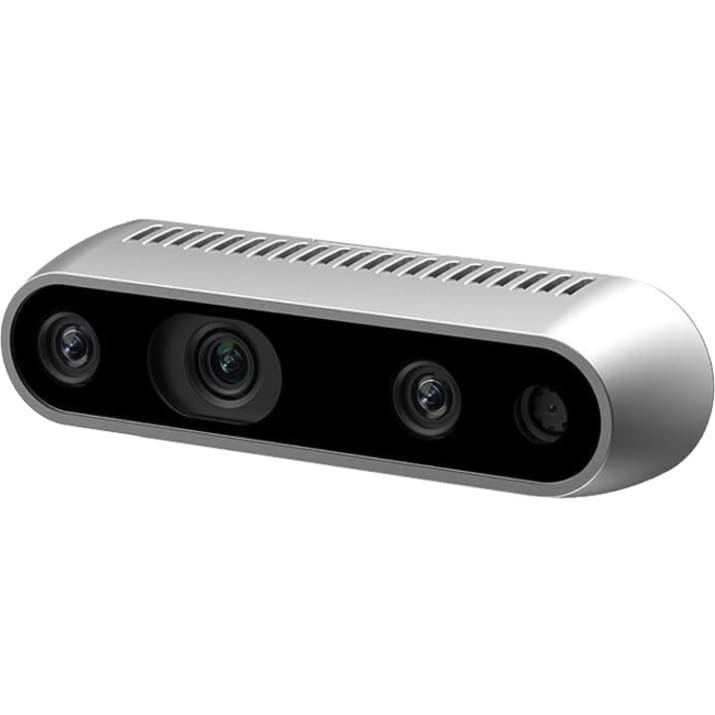

The Intel® RealSense™ D435 offers the widest field of view of all our cameras, along with a global shutter on the depth sensor that is ideal for fast moving applications.
The Intel® RealSense™ depth camera D435 is a stereo solution, offering quality depth for a variety of applications. It's wide field of view is perfect for applications such as robotics or augmented and virtual reality, where seeing as much of the scene as possible is vitally important. With a range up to 10m, this small form factor camera can be integrated into any solution with ease, and comes complete with our Intel RealSense SDK 2.0 and cross-platform support.
 |
Combined Solution for Development & ProductizationThe D435 continues our commitment to developing cutting-edge vision sensing products. Combining an Intel module and vision processor together into a small form factor yields a solution ideal for both development and rapid product creation. Paired with highly customizable software, the D435 provides a low cost solution that is lightweight and powerful, enabling development of next-generation sensing solutions that can understand and interact with their surroundings. |
Ideal for Low Light and Wide Field of ViewThe combination of a wide field of view and global shutter sensor on the D435 make it the preferred solution for applications such as robotic navigation and object recognition. The global shutter sensors provide great low‑light sensitivity allowing robots to navigate spaces with the lights off. |
 |
 |
Complete Suite for Simple IntegrationDepth camera D435 is part of the Intel® RealSense™ |
| Features |
Use environment: Indoor/Outdoor |
Ideal range: .3 m to 3 m |
| Depth |
Depth technology: Stereoscopic Minimum depth distance (Min‑Z) at max resolution: ~28 cm Depth Accuracy: <2% at 2 m1 Image sensor technology: Global Shutter |
Depth Field of View (FOV): 87° × 58° Depth output resolution: Up to 1280 × 720 Depth frame rate: Up to 90 fps |
| RGB |
RGB frame resolution: 1920 × 1080 RGB frame rate: 30 fps RGB sensor technology: Rolling Shutter |
RGB sensor FOV (H × V): 69° × 42° RGB sensor resolution: 2 MP |
| Major Components |

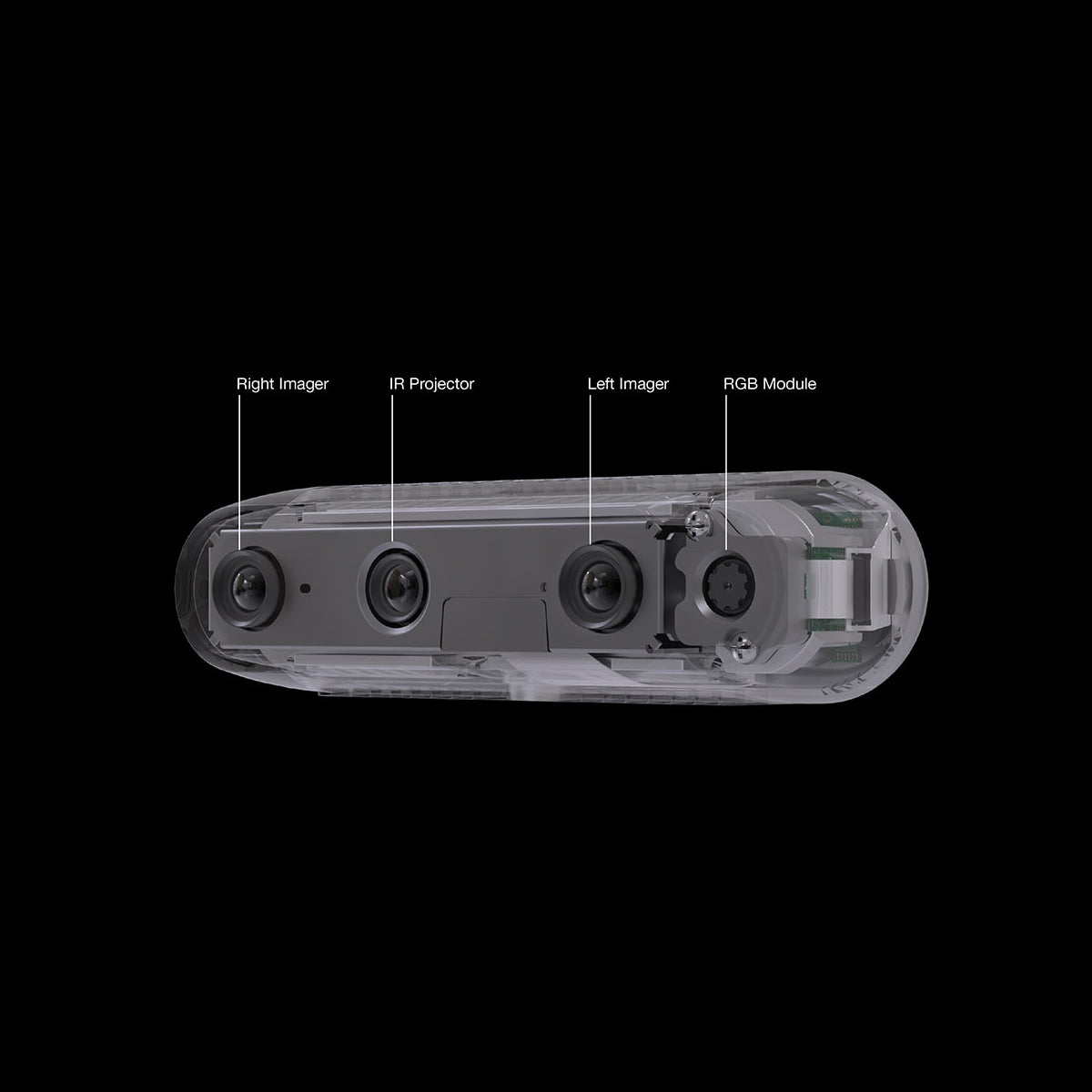

Camera module: Intel RealSense Module D430 + RGB Camera |
Vision processor board: Intel RealSense Vision Processor D4 |
| Physical |
Form factor: Camera Peripheral Length × Depth × Height: 90 mm × 25 mm × 25 mm |
Connectors: USB‑C* 3.1 Gen 1* Mounting mechanism: – One 1/4‑20 UNC thread mounting point. – Two M3 thread mounting points. |
1 Z-accuracy as measured as out of the factory
