JC Antenna

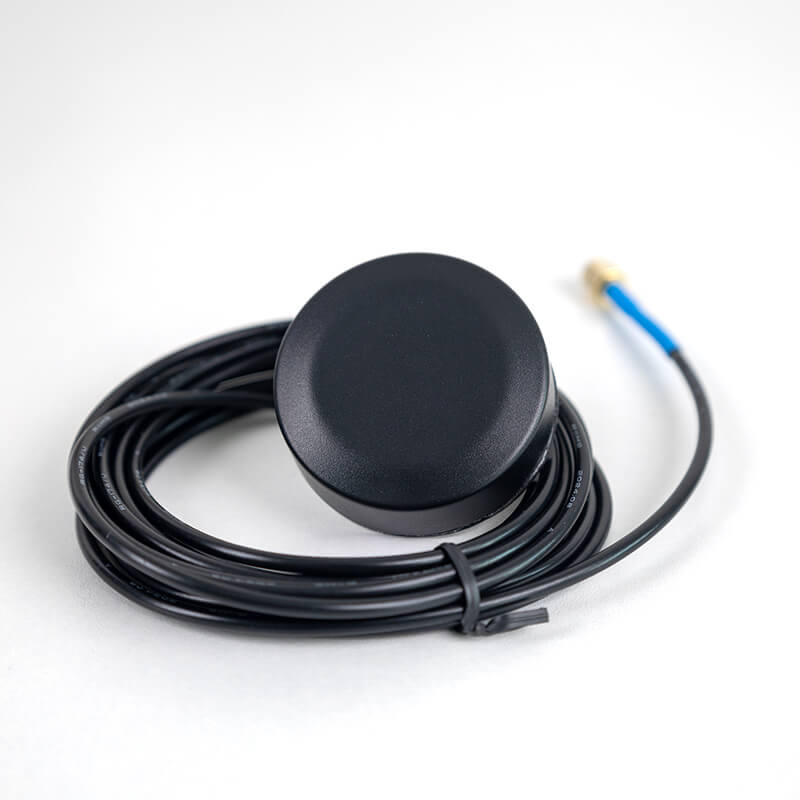

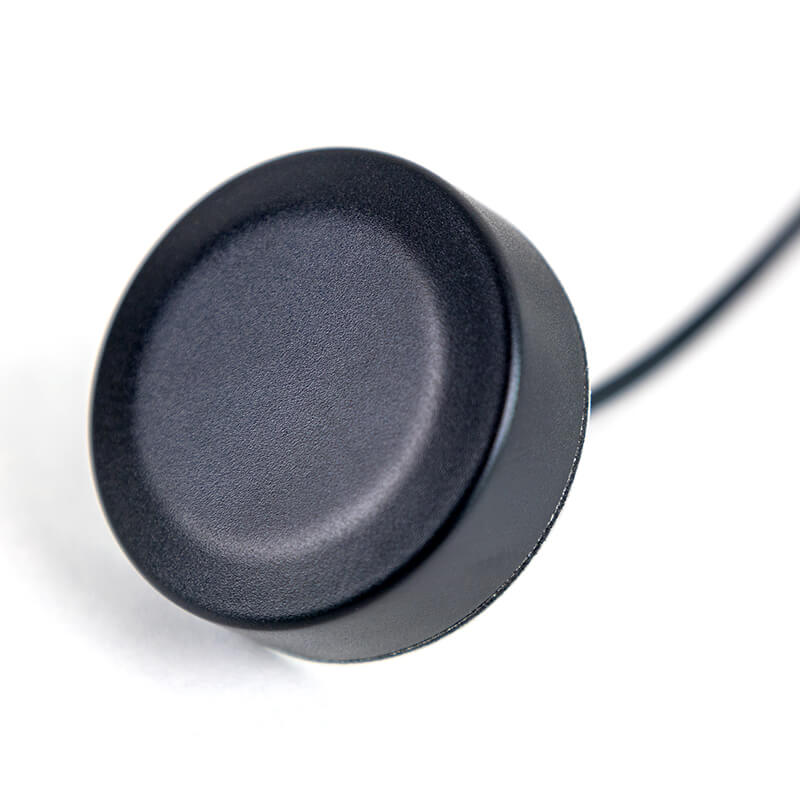

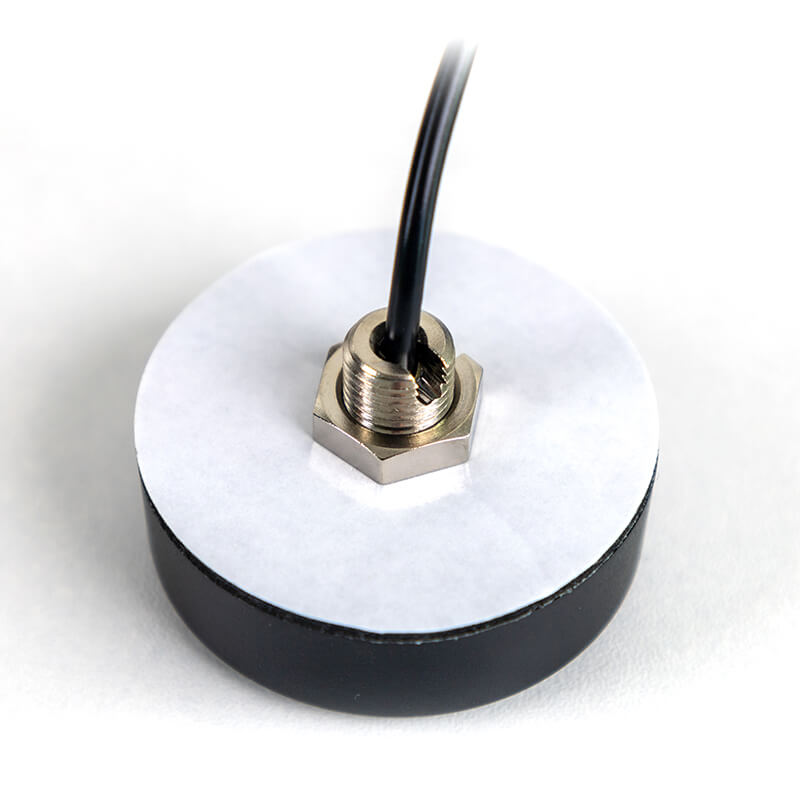

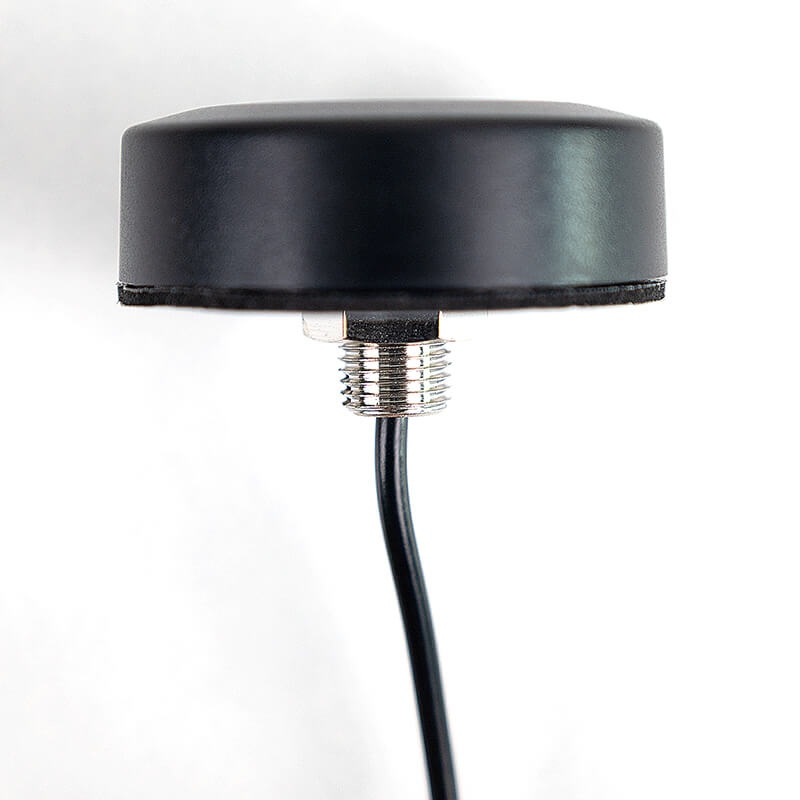

JCA033 GNSS Active Antenna

SKU: ELC8903

₹ 349.99 ~~₹ 499.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCA033 GNSS Active Antenna₹ 349.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

JCA033 GNSS Active Antenna

Fully supports GPS and BDS satellite navigation systems

Powerful anti-interference performance: The antenna LNA has excellent out-of-band suppression performance, which can suppress useless electromagnetic wave signals and effectively reduce the risk of system loss of lock.

Sturdy and reliable structure: unique waterproof and dustproof design, the core components are completely sealed, and the protection level reaches IP67.

Excellent star collection effect: The antenna has high gain and good star collection effect at low elevation angles. It can stably output GNSS navigation signals in complex environments such as woods and building obstructions.

Specifications

Parameter	Specification
Antenna
Operating Frequency	1575.42 ± 3 MHz
Polarization	RHCP (Right Hand Circular Polarization)
Impedance	50 Ω
V.S.W.R	≤ 1.5
LNA / Amplifier
Gain	28 ± 2 dB
Noise Figure	≤ 1.5 dB

Package Includes

1 × GPS Active Antenna

Which satellite navigation systems are supported by the antenna?

It fully supports GPS and BDS satellite navigation systems.

What are the key electrical specifications?

Operating frequency is 1575.42 +/- 3 MHz, polarization RHCP (Right Hand Circular Polarization), impedance 50 ohm, LNA gain 28 +/- 2 dB, and noise figure <= 1.5 dB.

How rugged is the antenna for outdoor use?

The core components are completely sealed and the unit has IP67 waterproof and dustproof protection, enabling stable GNSS output in challenging environments such as woods and buildings.

How does it perform at low elevation angles?

The antenna has high gain and excellent star collection at low elevation angles, providing reliable GNSS signals in complex environments.

What is included in the package and what should I know about the hardware?

The package includes 1 x GPS Active Antenna. The product features 50 ohm impedance and RHCP polarization.
