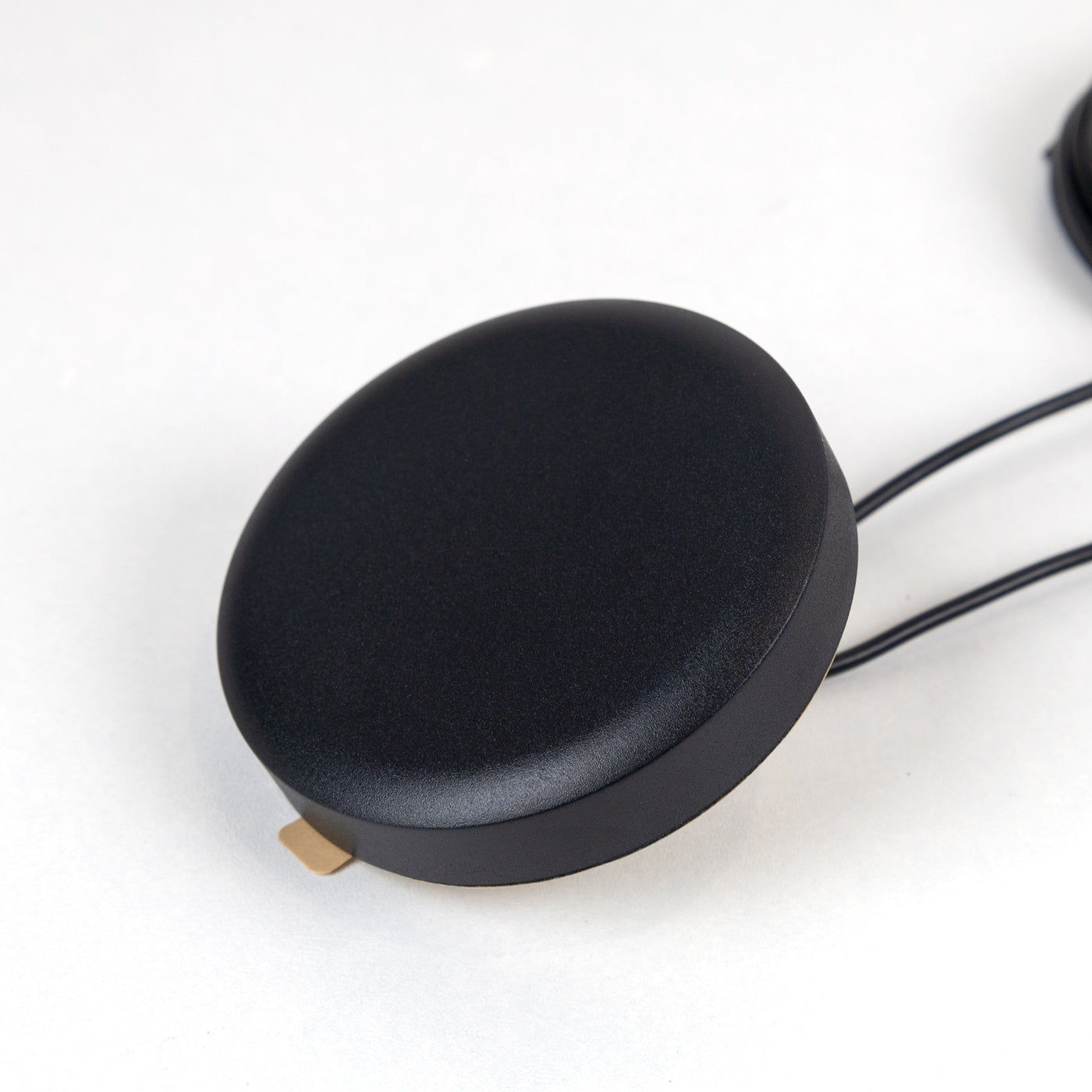

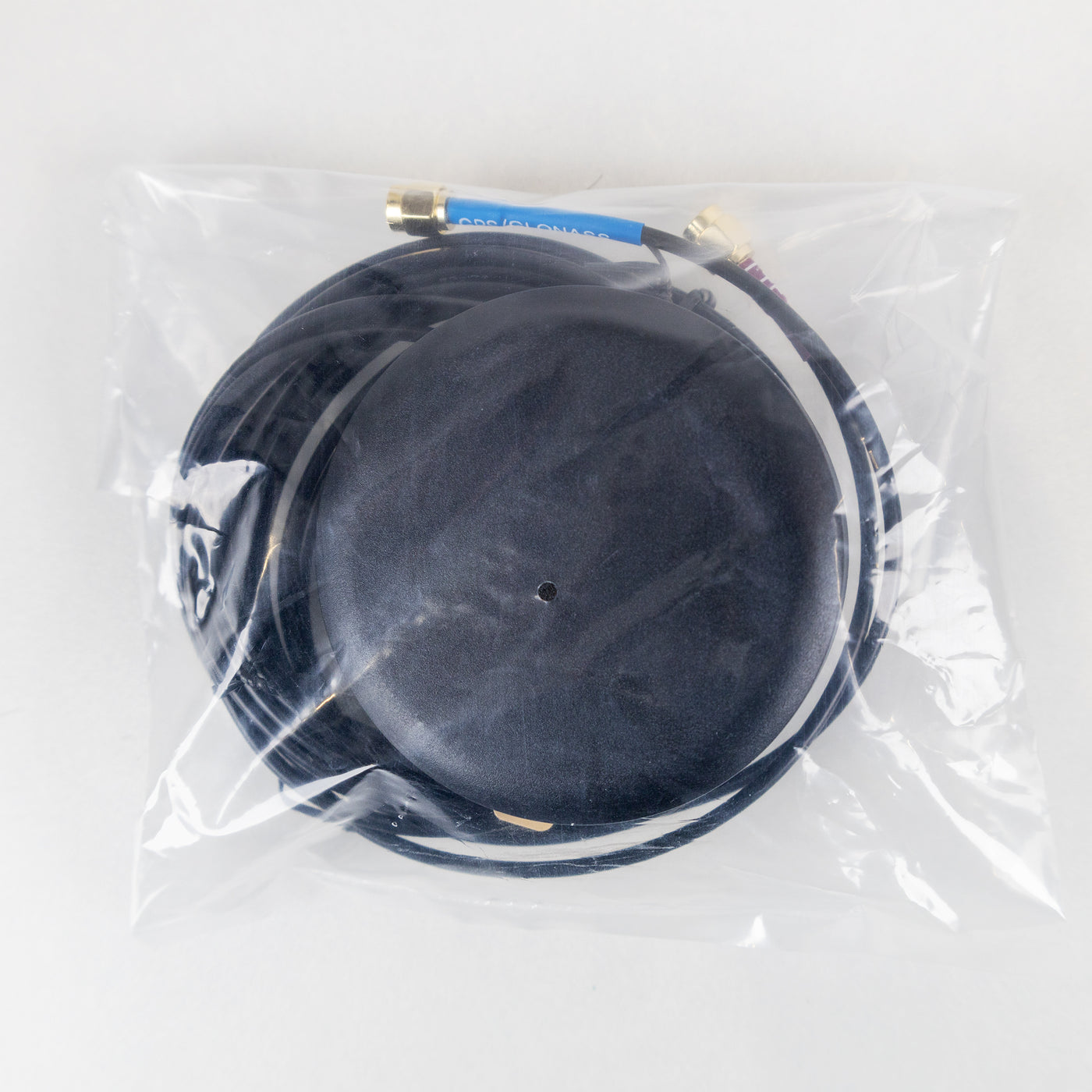

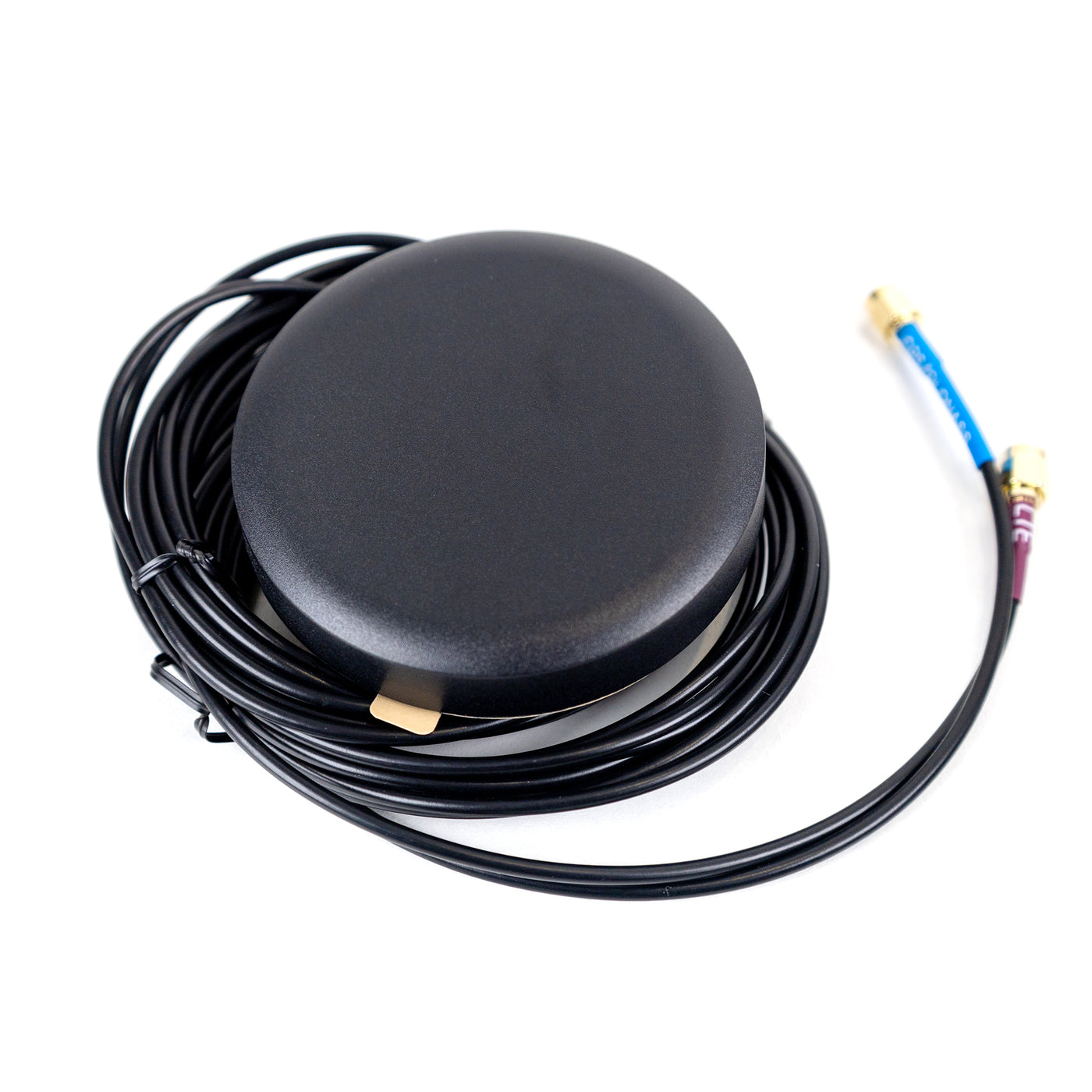

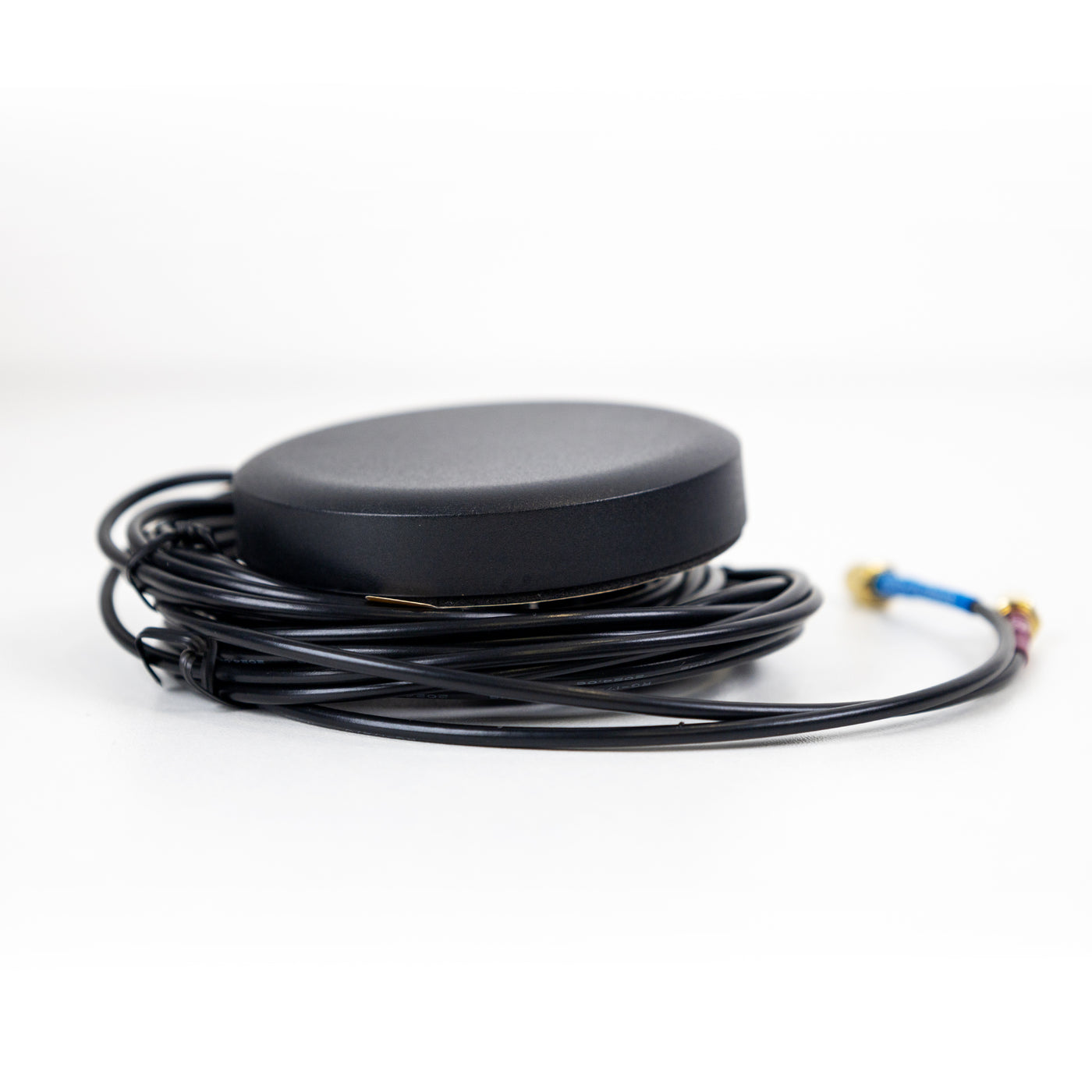

JCB046L GPS/GLONASS+LTE Combo Antenna

SKU: ELC8923

₹ 899.99 ~~₹ 1,249.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

JCB046L GPS/GLONASS+LTE Combo Antenna₹ 899.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

JCB046L is a multi-band antenna covering the LTE and GPS frequency bands. Different connector types and cable lengths for LTE and GPS are available.

Specifications:

Item			Specifications
GPS Antenna	Dielectric Antenna	Frequency Range	1575.42±3MHz
		Polarization	RHCP
		Gain	2dBic（Zenith）
		V.S.W.R	＜1.5
		Impedance	50Ω
	LNA	Gain	28±2dB
		Noise Figure	＜2dB
		V.S.W.R	＜2.0
		Supply Voltage	3~5V DC
		Current Consumption	＜20mA
LTE Antenna		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	＜3.0
		Polarization	Linear
		Gain	2.5dBi
		Impedance	50Ω
Mechanical		Cable	RG174
		Connector	SMA or others
		Material	ABS
		Mounting Method	Screw
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP67 (exclude cable outlet)
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant

What bands and polarization are supported by the GPS and LTE parts?

GPS operates at 1575.42 +/- 3 MHz with RHCP and 50 Ohm impedance. LTE covers 698-960 and 1710-2690 MHz with linear polarization, 50 Ohm impedance, and a gain of 2.5 dBi.

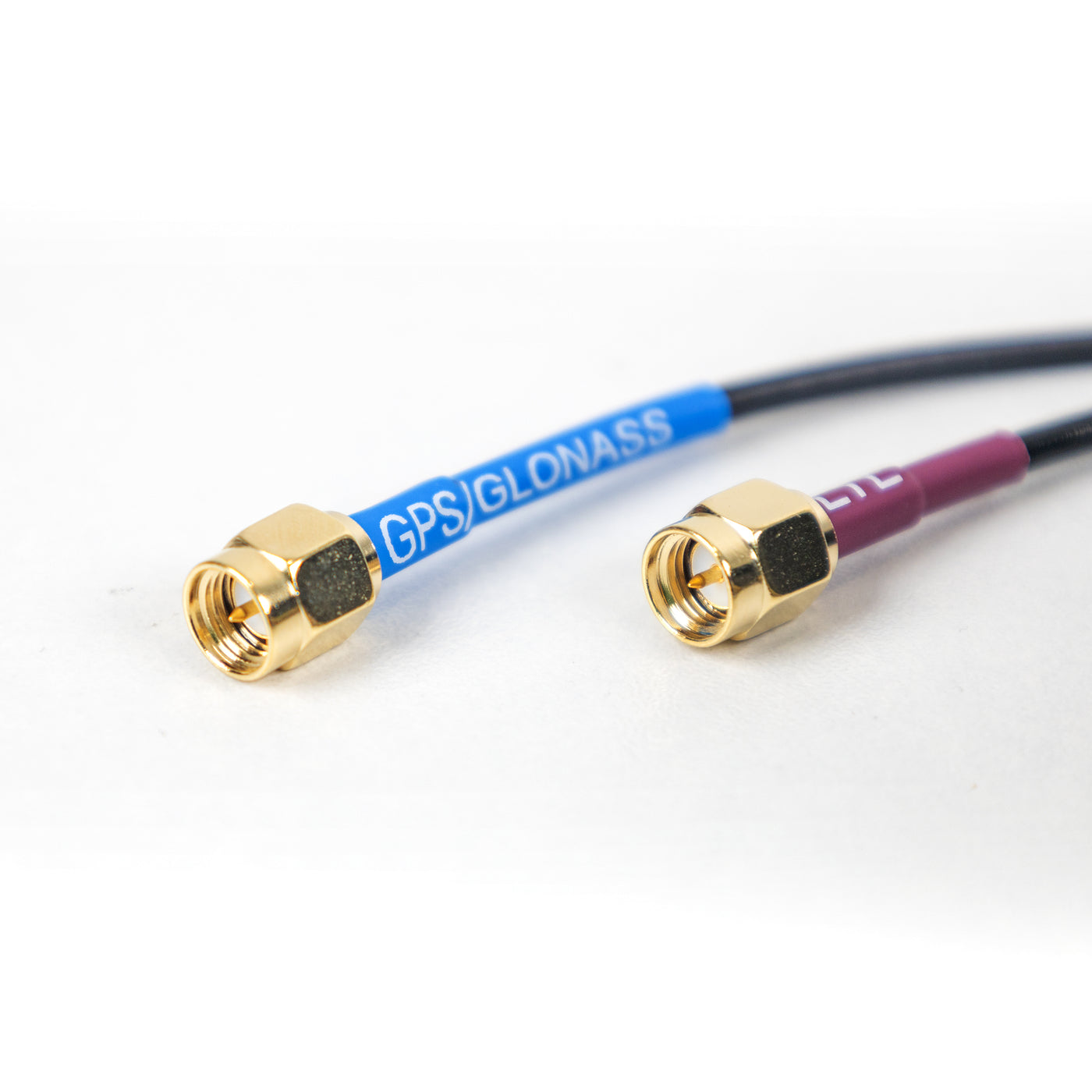

What connector options are available and can I choose different cable lengths?

The unit uses RG174 cable and a SMA or other connectors may be available. Different connector types and cable lengths for LTE and GPS are available.

Is the antenna suitable for outdoor use and what is its environmental rating?

Yes. It has IP67 protection excluding the cable outlet and operates from -40 C to 85 C with up to 95 percent humidity.

What are the power and LNA details for the GPS portion?

GPS LNA gain is 28 +/- 2 dB, noise figure less than 2 dB. It operates from 3 to 5 V DC and current consumption is under 20 mA.

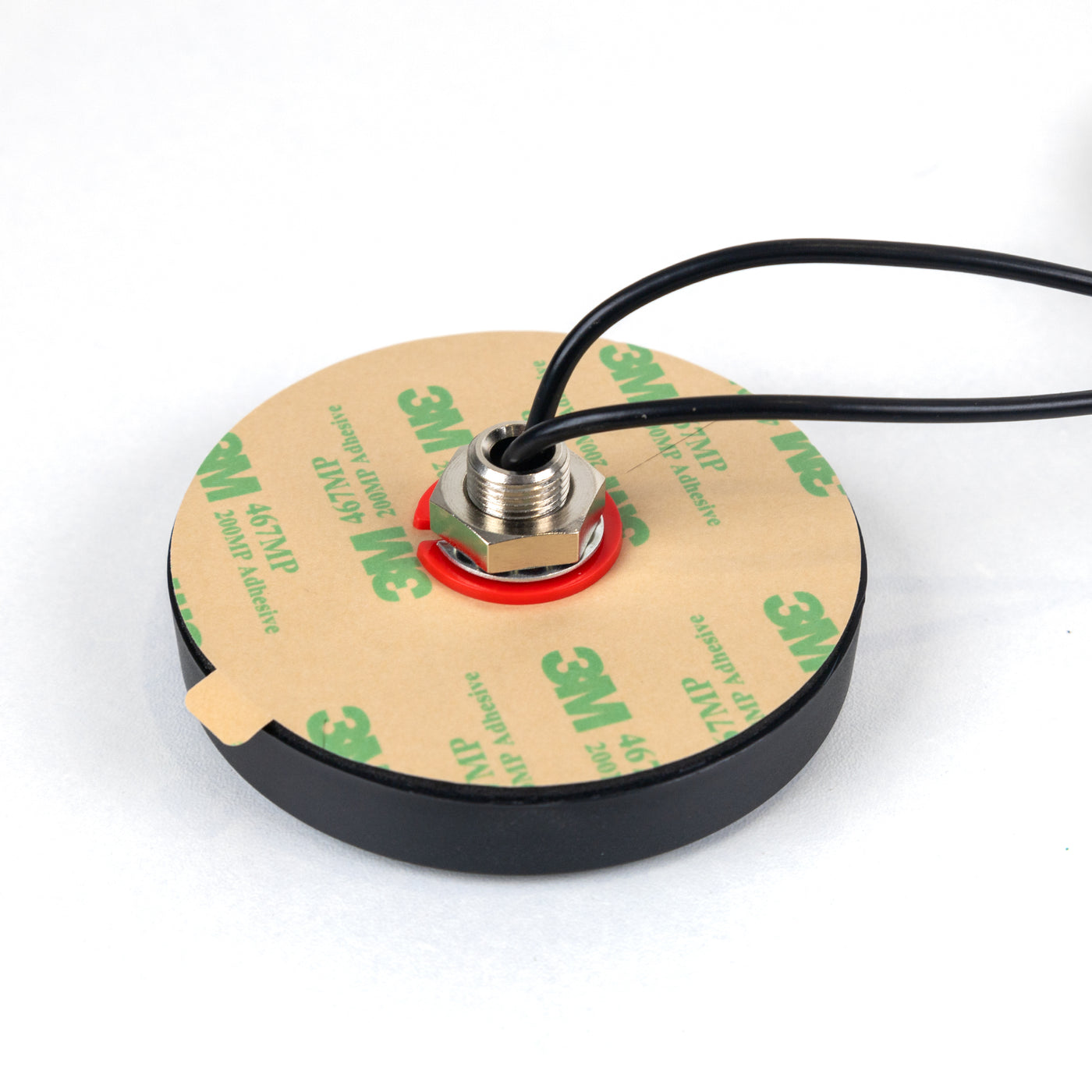

How should the antenna be mounted and what installation considerations exist?

Mounting is by screw. Ensure the cable outlet is sealed to maintain the IP67 rating.
