JCE008 GPS/Glonass + LTE + Wifi Combo Antenna

SKU: ELC8931

₹ 1,149.99 ~~₹ 1,249.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCE008 GPS/Glonass + LTE + Wifi Combo Antenna₹ 1,149.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

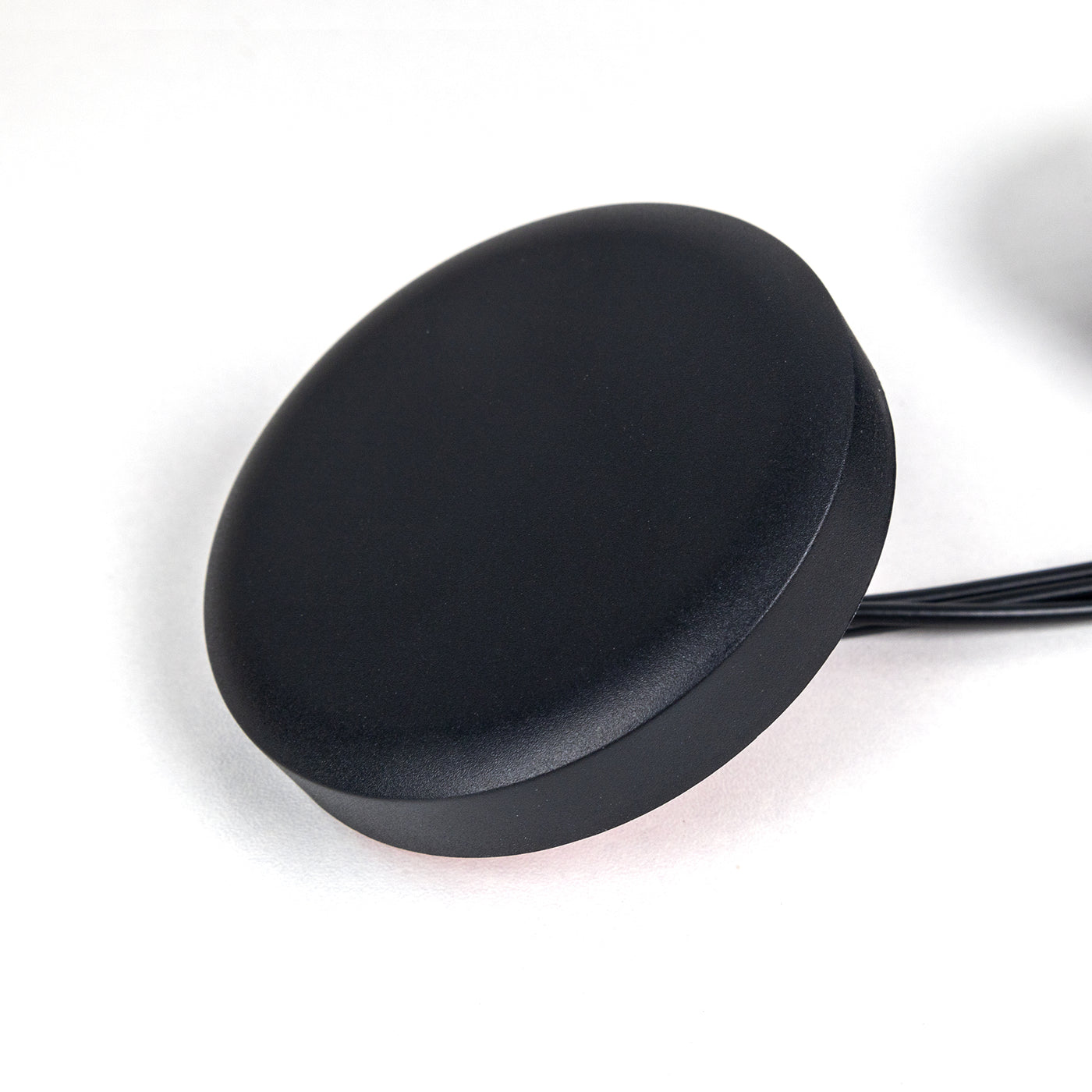

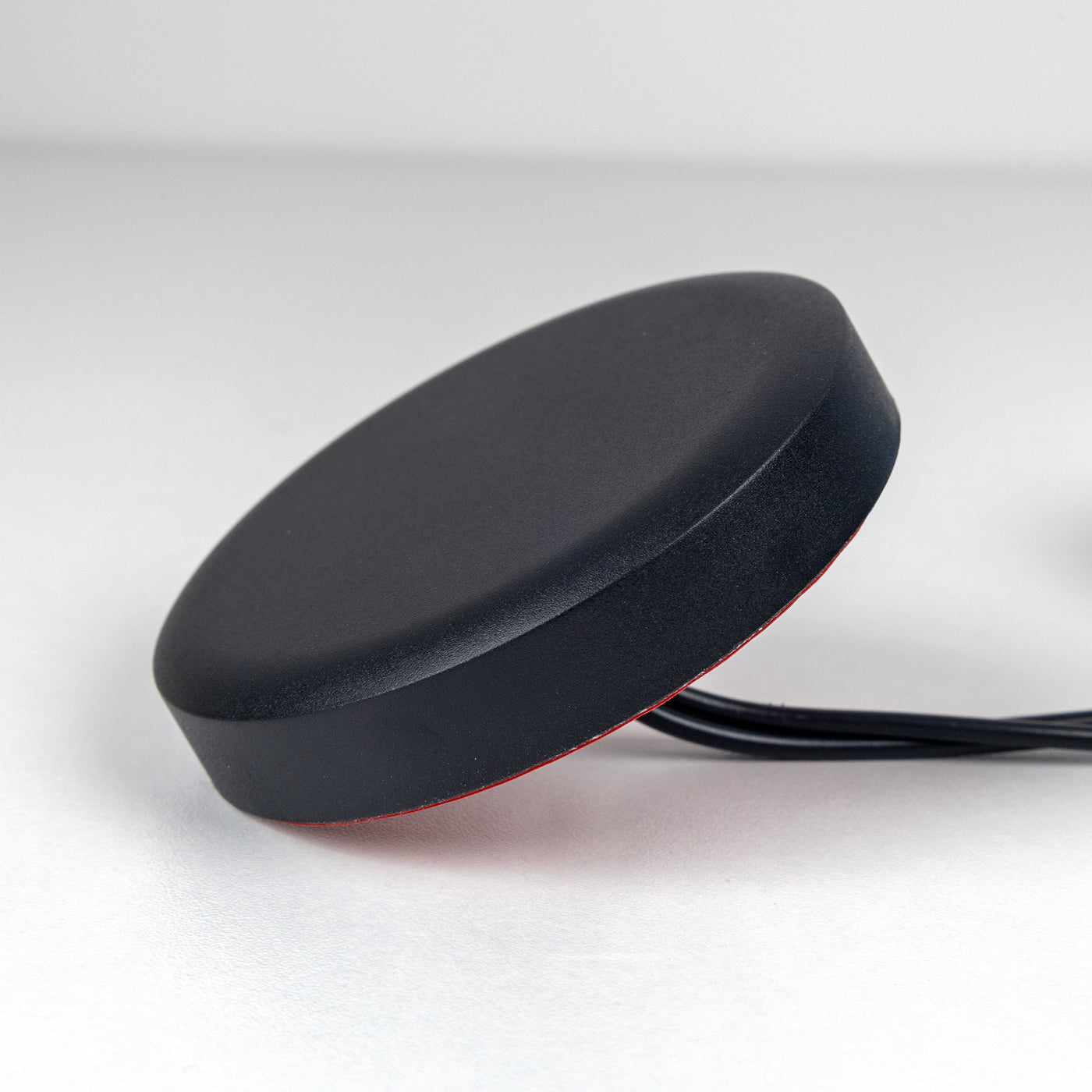

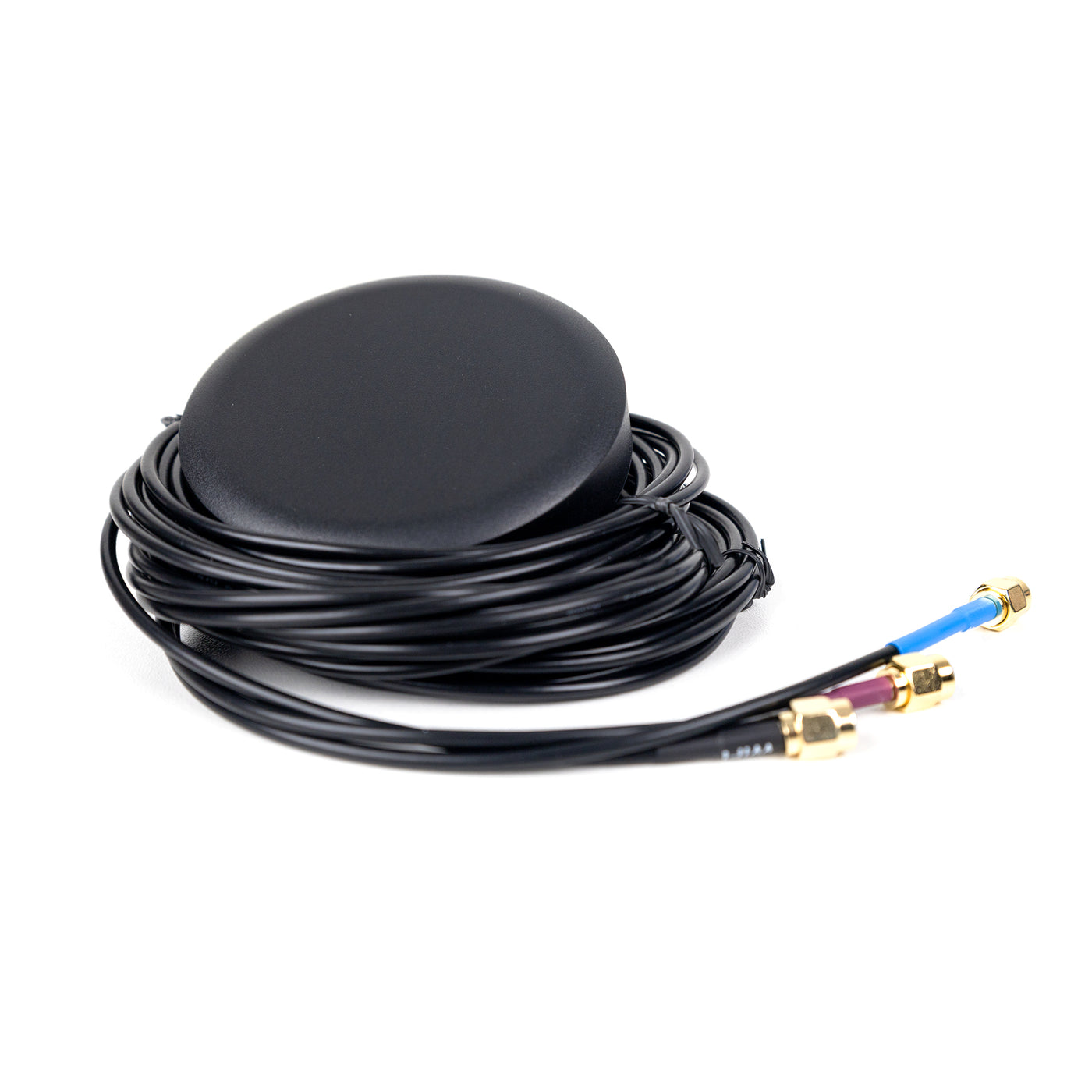

The JC Antenna JCE008 is a versatile multi-band antenna combining GPS/GLONASS, LTE, and WiFi connectivity in one compact solution. Designed for high-accuracy positioning and reliable data transmission, it is ideal for connected vehicles, smart transportation, and industrial IoT systems. Its rugged construction ensures durability in harsh environments, while the low-profile design enables easy installation on various surfaces. The JCE008 is your all-in-one antenna for seamless global navigation and communication.

Specifications:

Item			Specifications
GPS Antenna	Dielectric Antenna	Center Frequency	1575.42±3MHz
		Band Width	CF±5MHz
		Polarization	RHCP
		Gain	2dBic（Zenith）
		V.S.W.R	＜1.5
		Impedance	50Ω
		Axial Ratio	3dB（max）
	LNA	Gain	28±2dB
		Noise Figure	＜1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	2.2~5V DC
		Current Consumption	＜15mA
		Connector	SMA Male
LTE Antenna		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	＜2.0
		Polarization	Linear
		Gain	2.0dBi
		Impedance	50Ω
		Connector	SMA Male
WIFI Antenna		Frequency Range	2400~2483.5MHz/4900~5825MHz
		Polarization	Linear
		Gain	3dBi
		V.S.W.R	＜2.0
		Impedance	50Ω
		Connector	RP-SMA Male
Mechanical		Cable	RG174
		Material	ABS

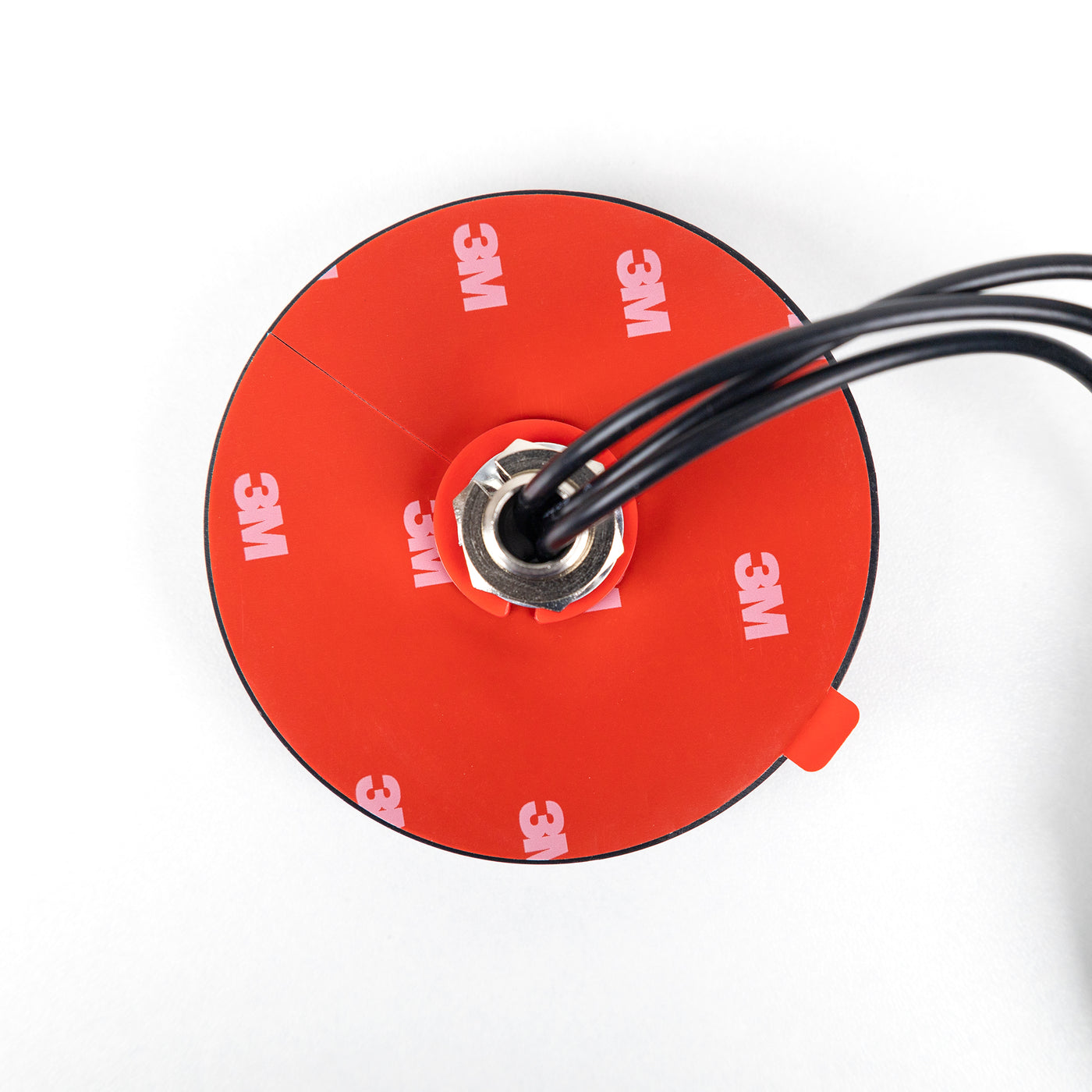

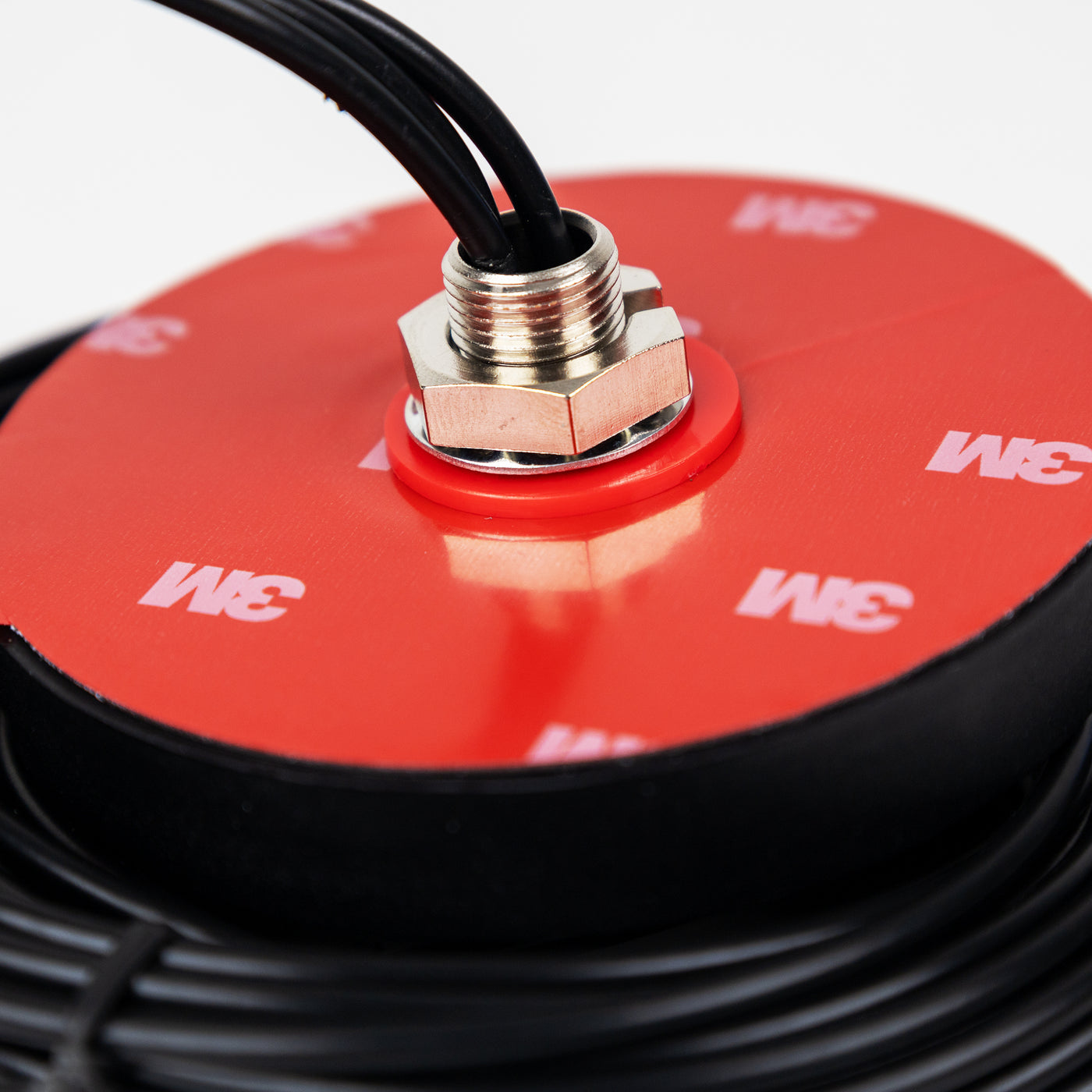

		Mounting Method	Screw
Environmental		Operating Temperature	-40℃~+85℃
Environmental		Relative Humidity	Up to 95%

What is this multi band antenna designed for?

It is a versatile multi band antenna combining GPS GLONASS LTE and WiFi in one compact unit, designed for high accuracy positioning and reliable data transmission in connected vehicles, smart transportation and industrial IoT systems.

Which bands and frequencies are supported by the GPS LTE and WiFi sections?

GPS center frequency is 1575.42 plus minus 3 MHz with RHCP and 50 ohm impedance; LTE covers 698-960 and 1710-2690 MHz with 50 ohm impedance and linear polarization; WiFi covers 2400-2483.5 and 4900-5825 MHz with 50 ohm impedance and linear polarization.

What are the connector types and mounting options?

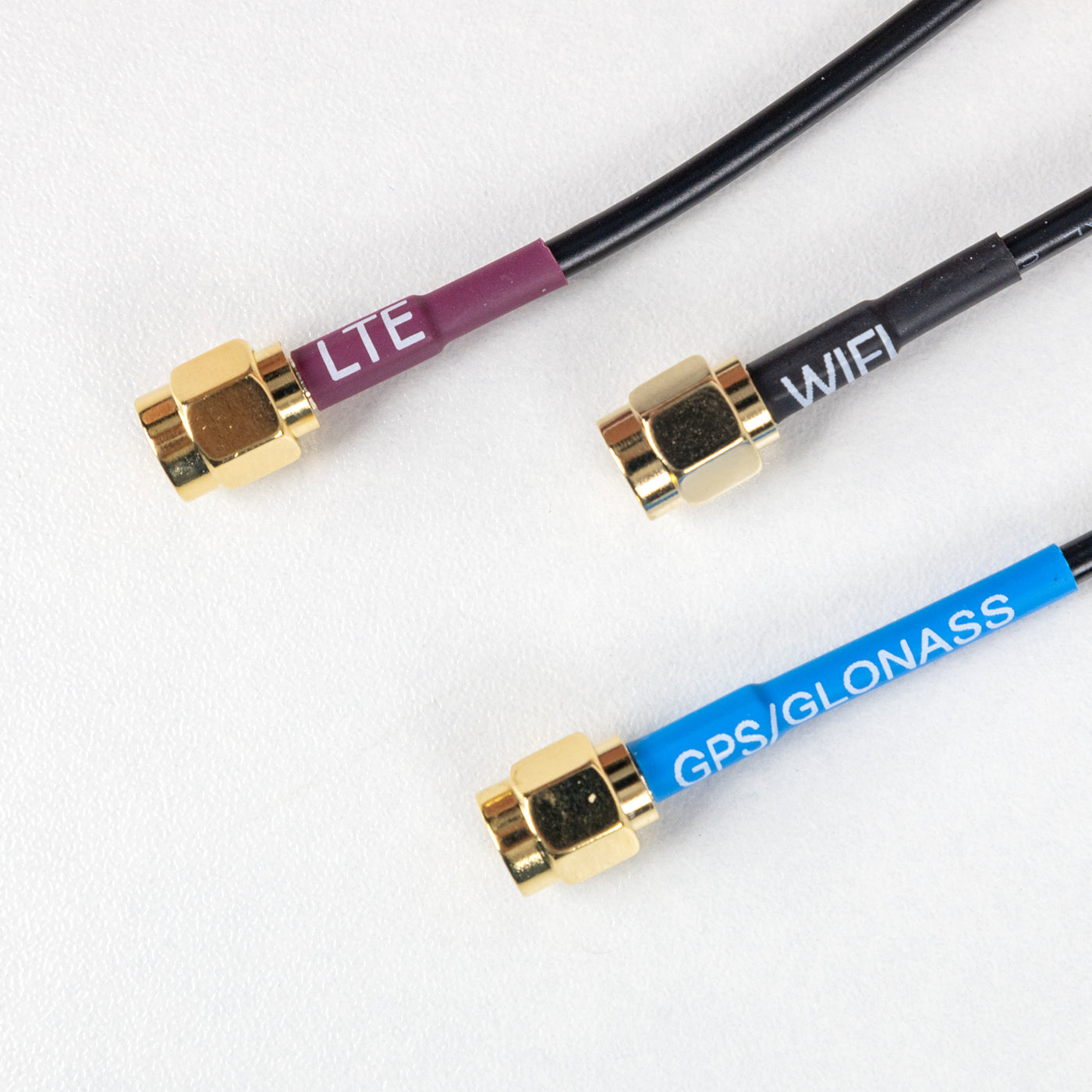

GPS and LTE use SMA Male connectors while the WiFi antenna uses RP-SMA Male; mounting is by screw and the unit uses an RG174 cable.

What are the environmental and power specifications?

The enclosure is made of ABS and rated for -40 C to 85 C and humidity up to 95 percent; power is 2.2 to 5 V DC with current under 15 mA.

Is warranty or after sales support provided?

Warranty information is not specified in the product details; please contact the seller or check the product page for warranty and returns information.
