JC Antenna

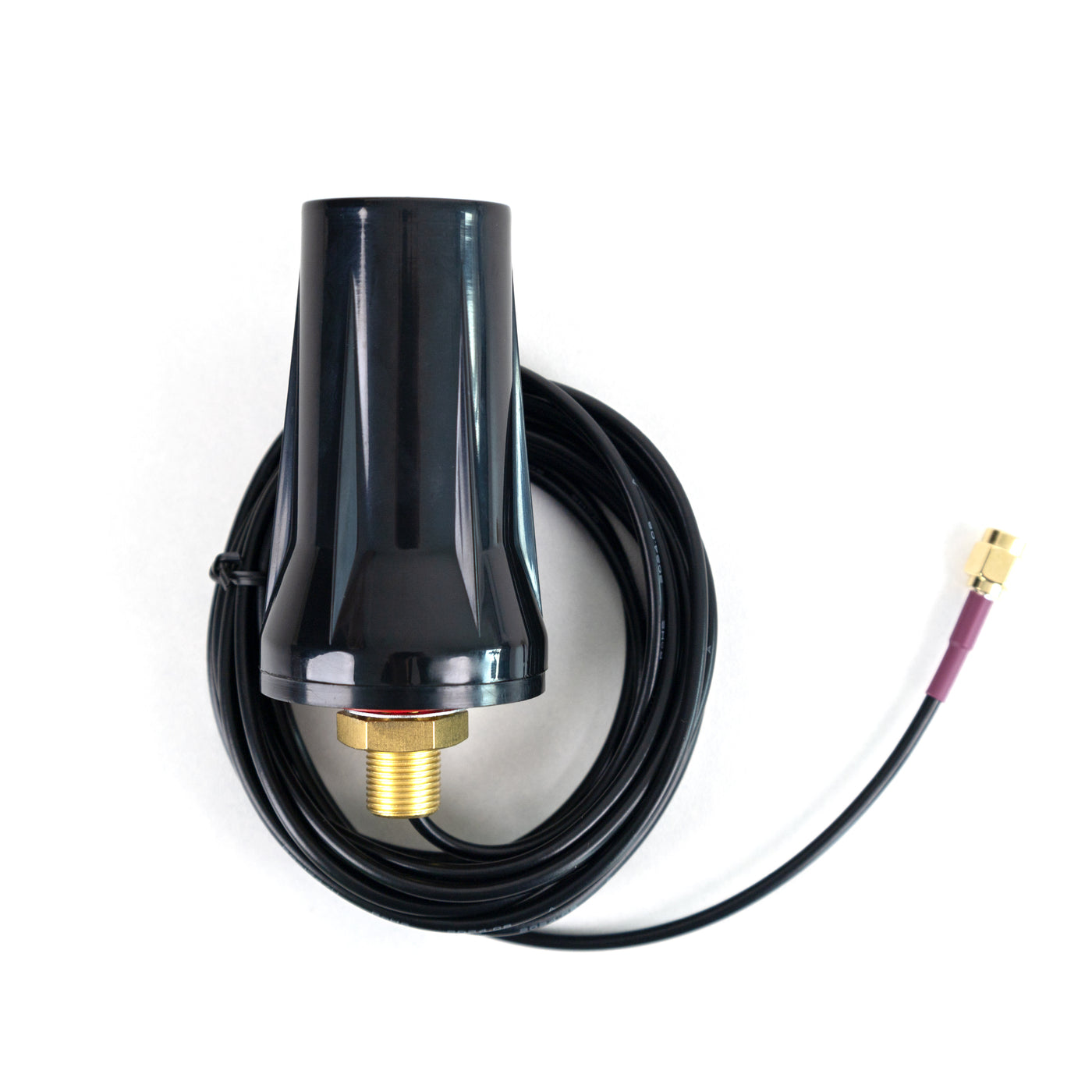

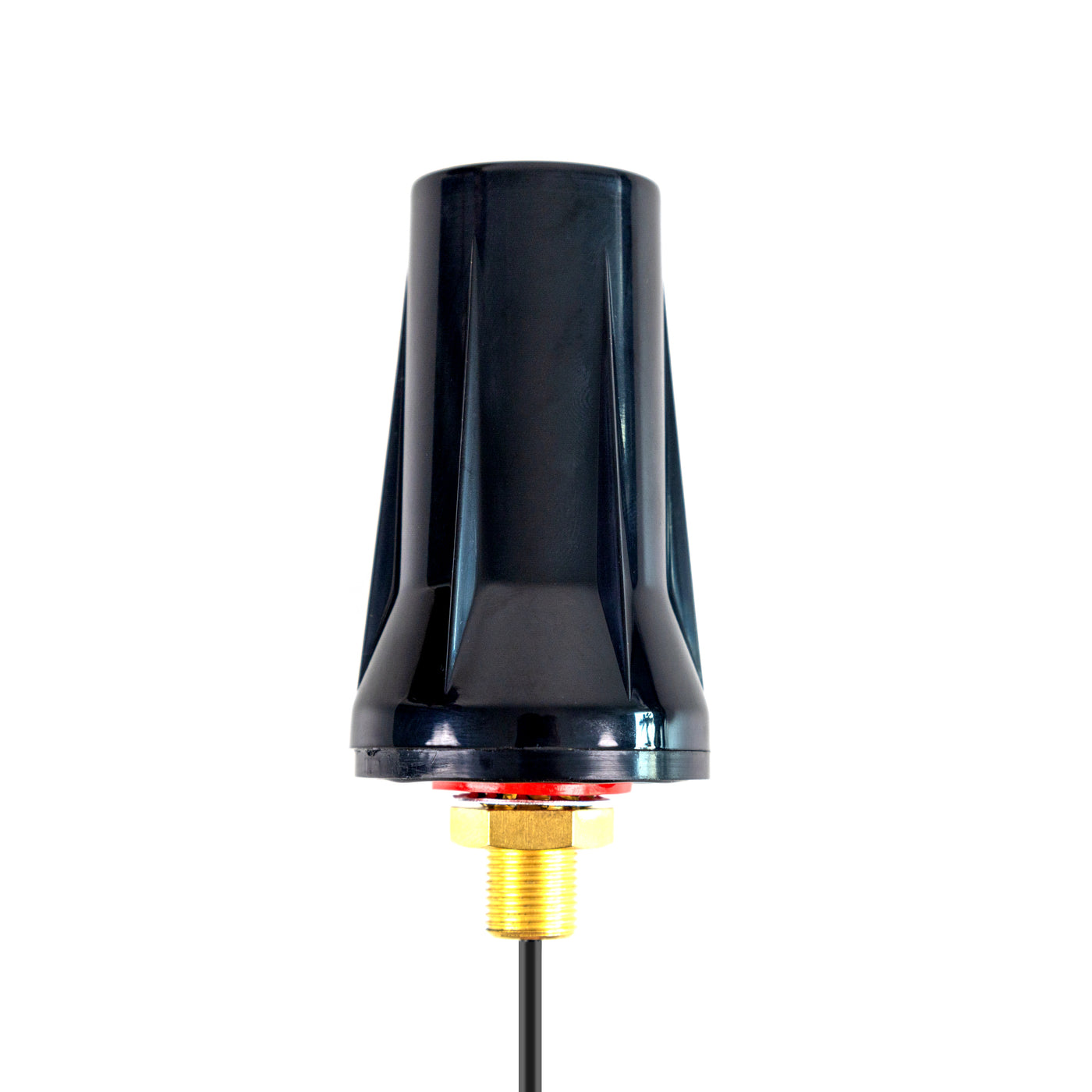

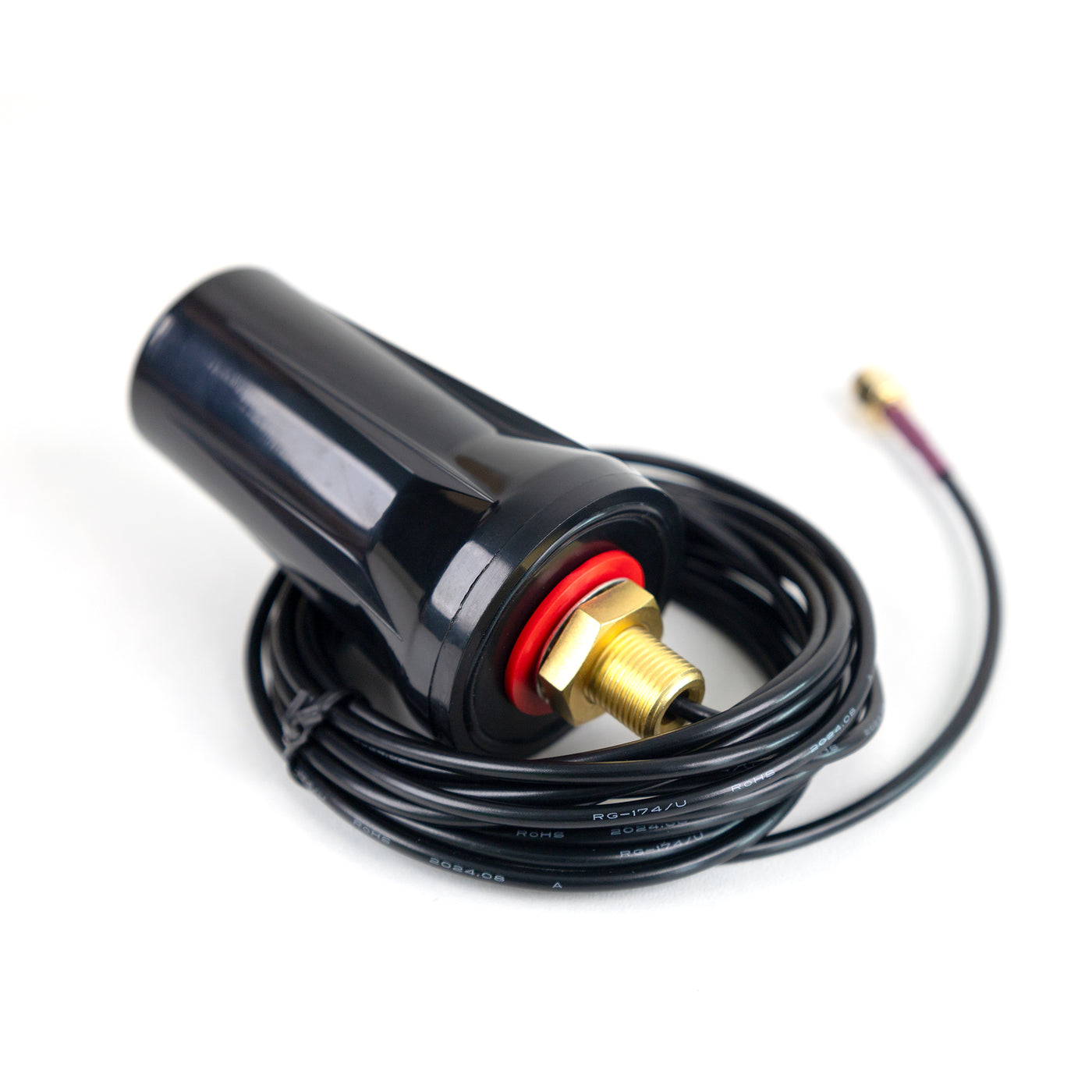

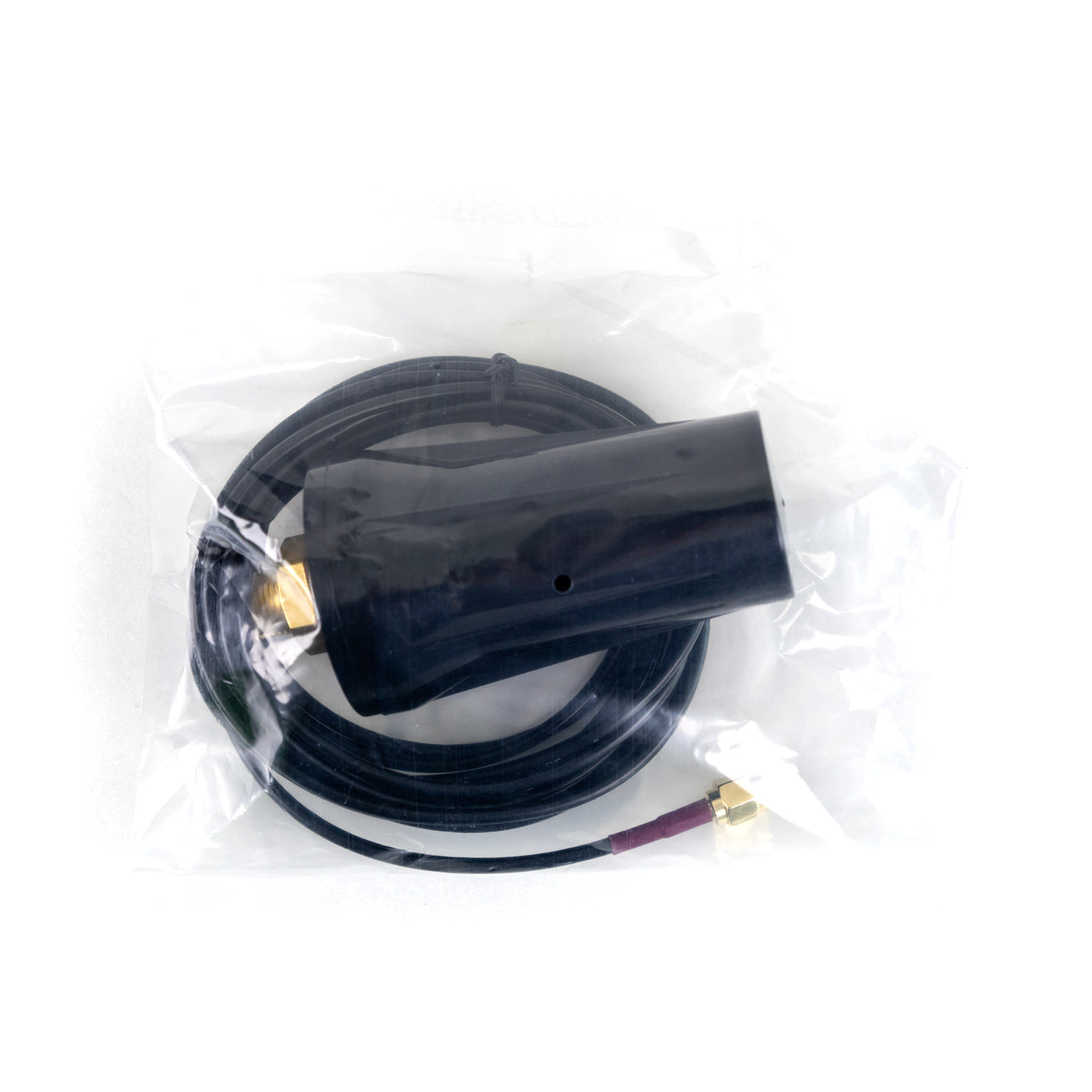

JCG023L LTE Antenna

SKU: ELC8907

₹ 349.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCG023L LTE Antenna₹ 349.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

JCG023L is a multi-band antenna, which covers 700~2700MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.

FEATURES

Low profile structure
Permanent screw mounting
Covers all the mobile communication network
Fully waterproof

APPLICATIONS

Vehicle Tracking
Asset Tracking
Telemetry Application
4G Application

Specifications

Item		Specifications
LTE Antenna	Frequency Range	698~960MHz/1710~2690MHz
	V.S.W.R（min）	＜3.0
	Polarization	Linear
	Gain	2dBi
	Impedance	50Ω
WIFI Antenna	Frequency Range	2400~2500MHz/4900~5825MHz
	V.S.W.R（min）	＜2.0
	Polarization	Linear
	Gain	3dBi
	Impedance	50Ω

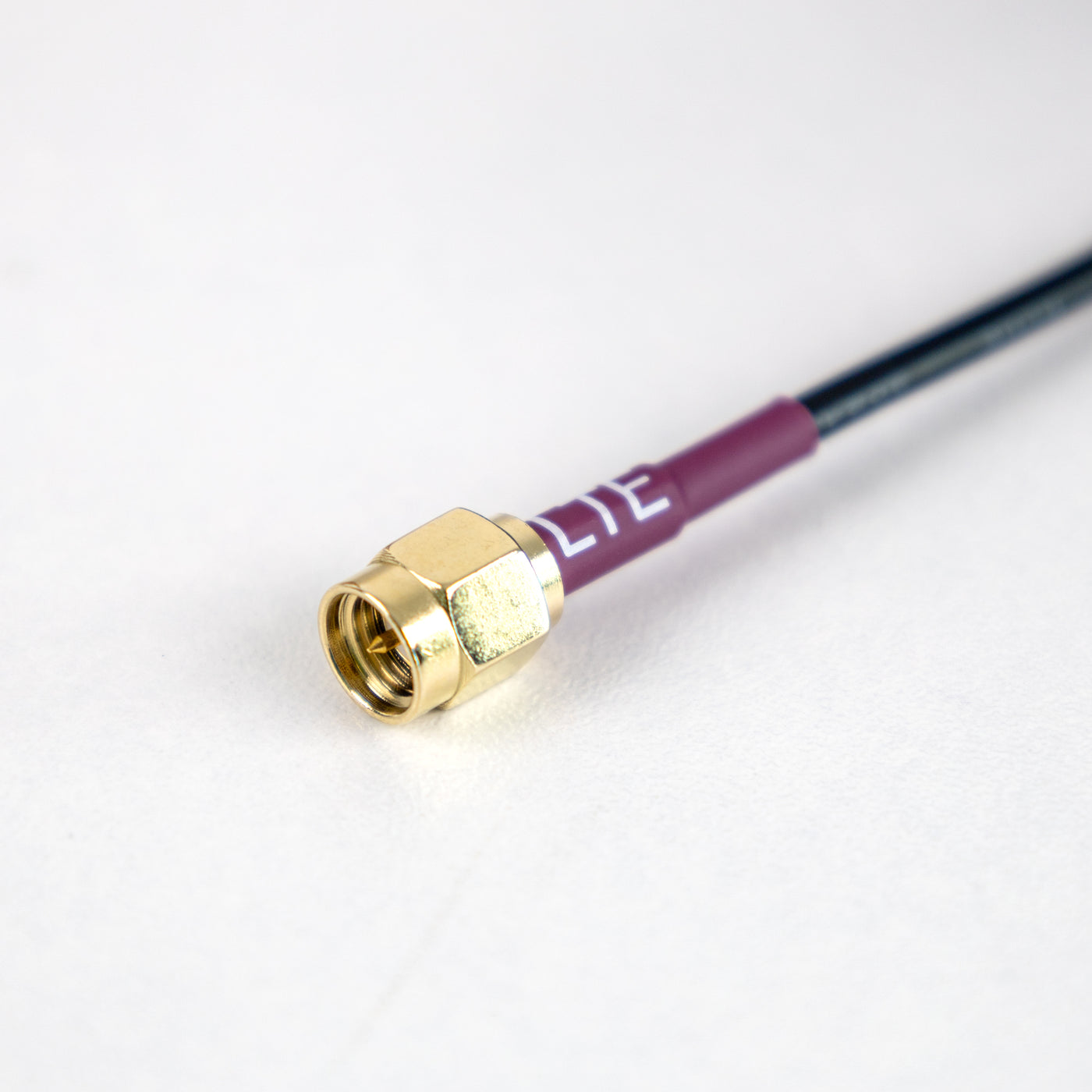

Mechanical	Cable	RG174
	Connector	SMA or others
	Radome Material	ABS
	Mounting Method	Adhesive/Magnet
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP66
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What frequency bands does this antenna support and will it work with 4G modems?

It covers 698-960 MHz and 1710-2690 MHz for LTE with 50 ohm impedance and a 2 dBi gain. It is designed for 2G 3G and 4G applications and uses an RG174 cable with SMA or other connectors.

How should this antenna be mounted and is it suitable for outdoor use?

Mounting method is adhesive or magnet. It has IP66 protection and is designed for outdoor use.

What are the environmental and durability specifications?

Operating temperature is -40 C to +85 C and relative humidity up to 95 percent. In addition the unit provides IP66 ingress protection and vibration performance of 10 to 55 Hz with 1.5 mm amplitude for 2 hours.

What should I know about warranty or returns?

Warranty and returns terms vary by retailer; please check the sellers policy at purchase.

Does the listing include a wifi specification and can this support wifi networks?

The specification includes a wifi frequency range and gain in a separate section, but the product is described as an LTE antenna. For wifi operation please confirm with the seller.

A

Admin

Welcome to the discussion thread for JCG023L LTE Antenna
Feel free to ask questions, share tips or report issues.
