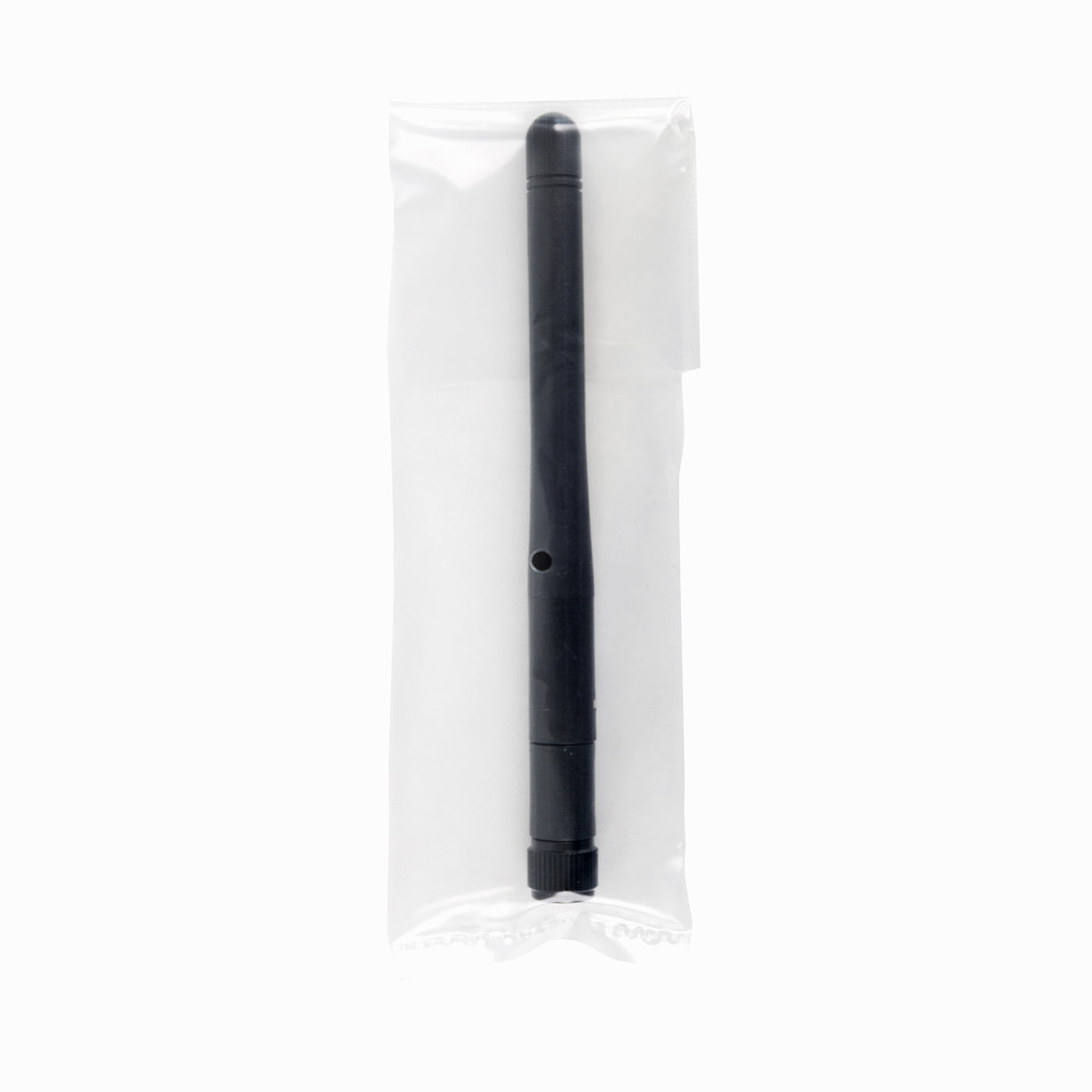

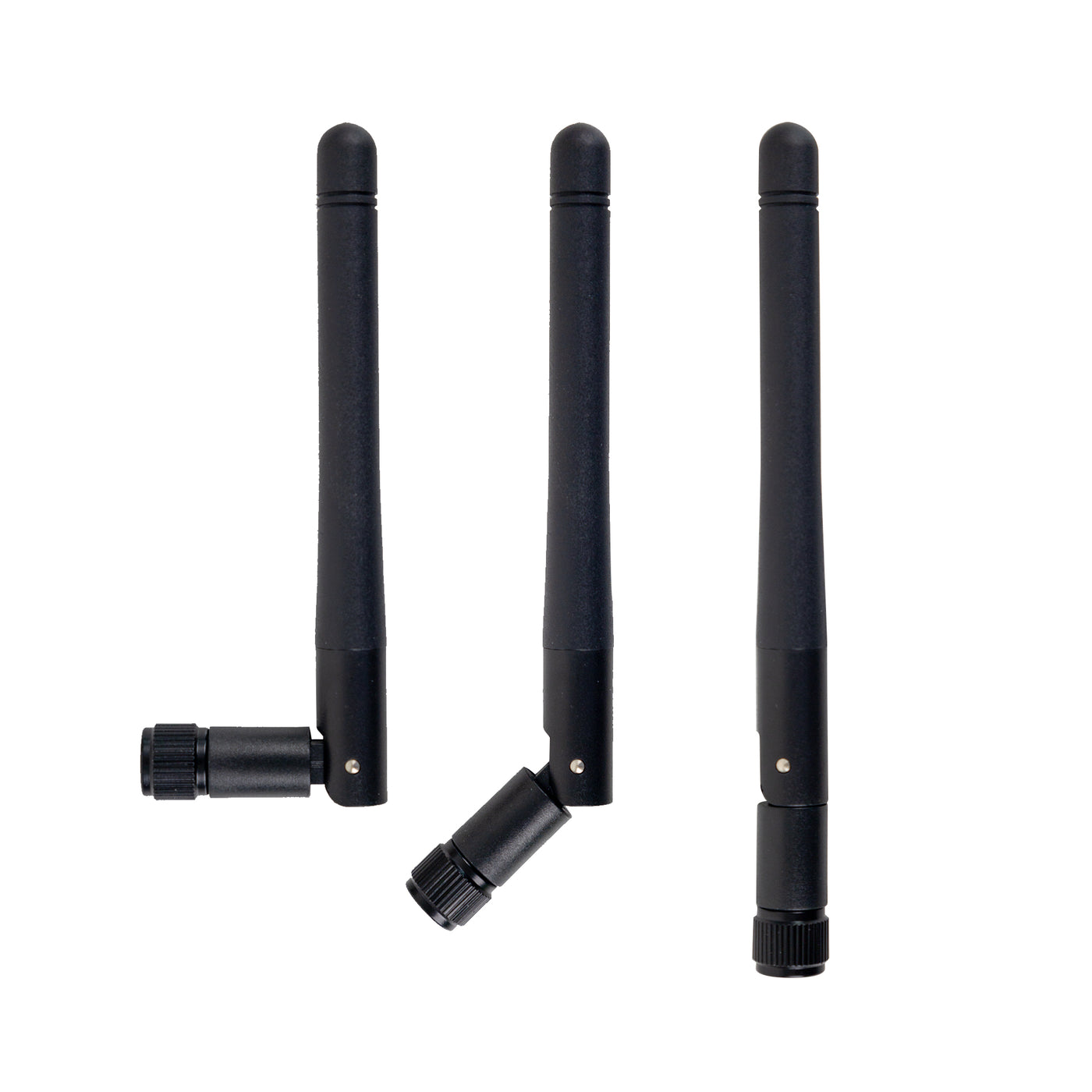

JCG402 GSM Antenna

SKU: ELC8905

₹ 99.99 ₹ 149.99

Out of stock

📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
JCG402 GSM Antenna₹ 99.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Dimensions



Specifications

Item

Specifications

Antenna

Frequency Range

824~894/1710~1990MHz or 880~960/1710~1990MHz

Polarization

Linear

Gain

2dBi（Zenith）

V.S.W.R（min）

＜2.5

Impedance

50Ω

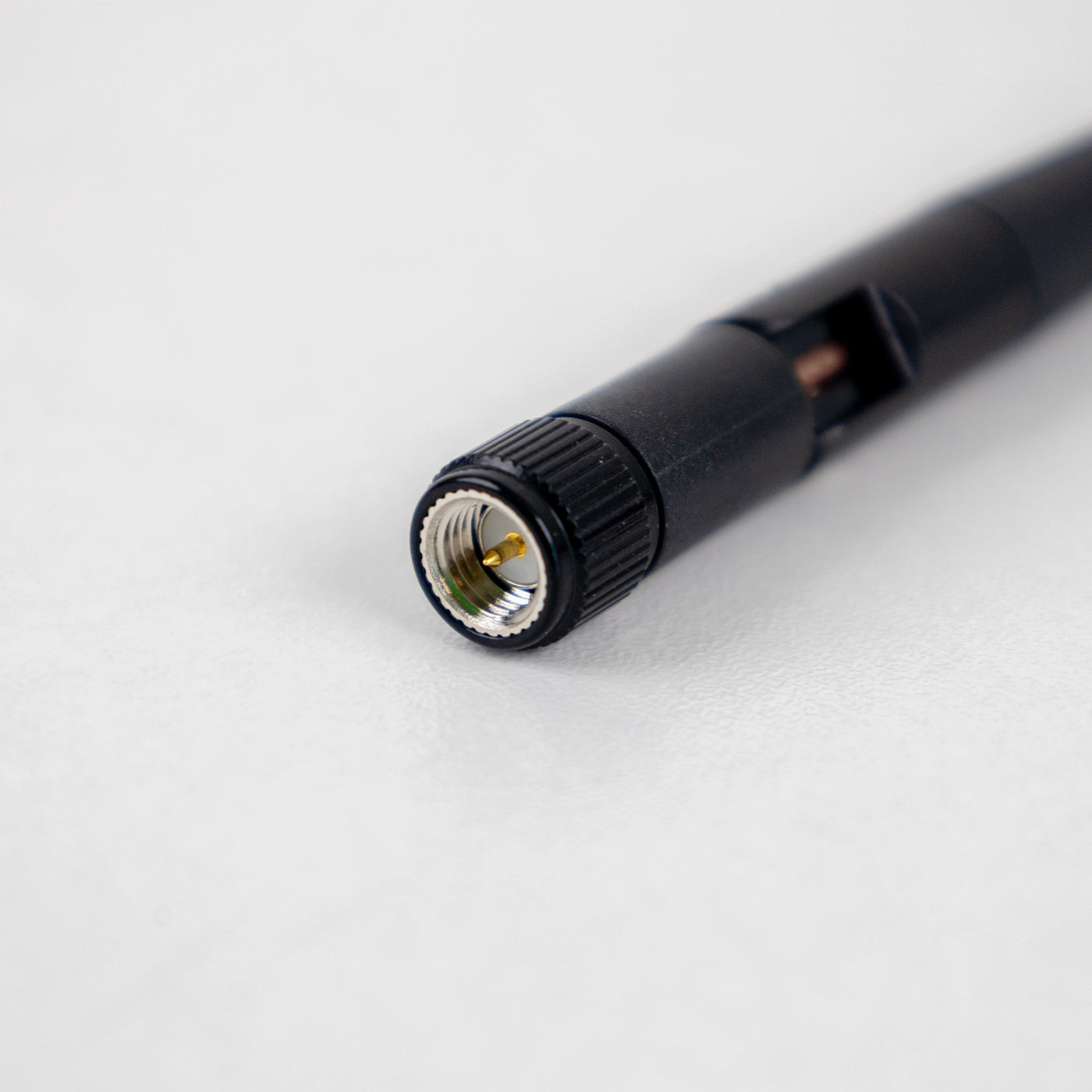

Connector

SMA Male

Environmental

Operating Temperature

-40℃~+85℃

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
What frequency bands does the JCG402 GSM Antenna support?
It supports two band ranges: 824 to 894 MHz and 1710 to 1990 MHz, or 880 to 960 MHz and 1710 to 1990 MHz.
What connector type and impedance does the antenna use?
It has an SMA Male connector and a 50 ohm impedance.
What is the operating temperature range and is it RoHS compliant?
The operating temperature is -40 C to +85 C and the product is ROHS compliant.
What is the gain and what does VSWR indicate about the antenna?
The antenna provides 2 dBi gain in zenith orientation and VSWR is less than 2.5, indicating a good impedance match.
What is the polarization of this antenna?
Linear polarization.
