Laser Range Finder Module - PTFG
Laser Range Finder Module - PTFG
PTFG is a laser rangefinder telescope adopts a high-transmittance LCD display screen,
Overview

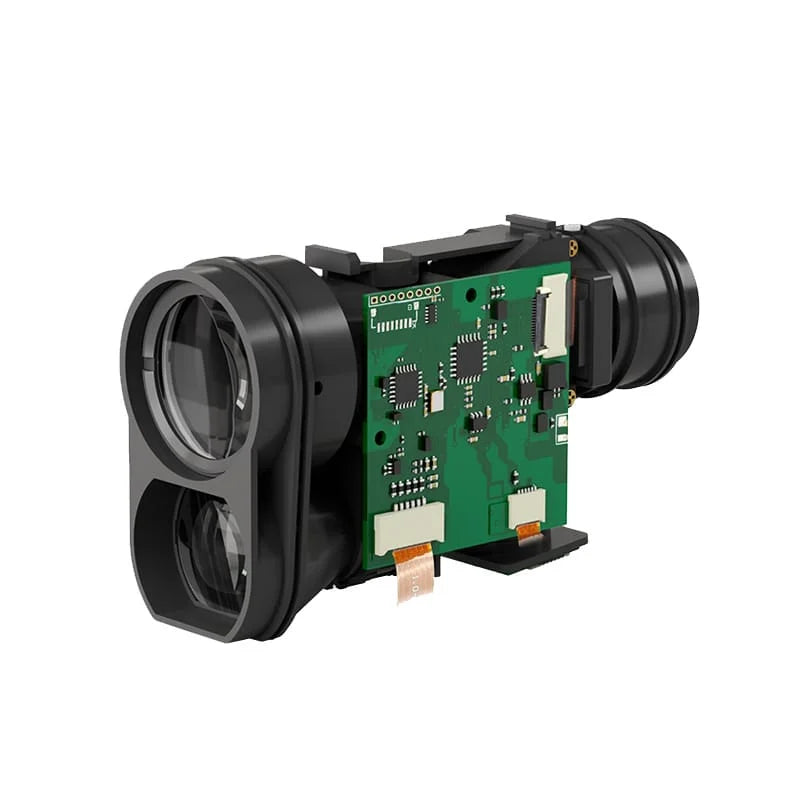

Introducing the PTFG Laser Range Finder Module, a state-of-the-art pulse laser rangefinder designed specifically for outdoor use. This advanced module combines high accuracy with fast measurement capabilities, making it ideal for applications such as golf, shooting, bird watching, and more. The module leverages pulsed laser technology to deliver precise distance measurements, ensuring reliability and performance in various outdoor environments.
Technical Specifications
Optical Specifications
Part No.
PTFG
Range
5–1500 m (Reflectivity ≥70%) (Different range is optional)
Accuracy
±1 m
Frequency
1–3 Hz
Laser Type
905 nm, Invisible
Laser Class
Class I (IEC 60825-1:2014), <0.4 mW
Measurement Method
Pulse principle
Electrical Specifications
Input Voltage
DC 3.3V–5V, typ. DC +3.3V
Working Current
100 mA
Power Consumption
330 mW @ 3.3V
Communication Specifications
Communication Level
TTL (3.3V)

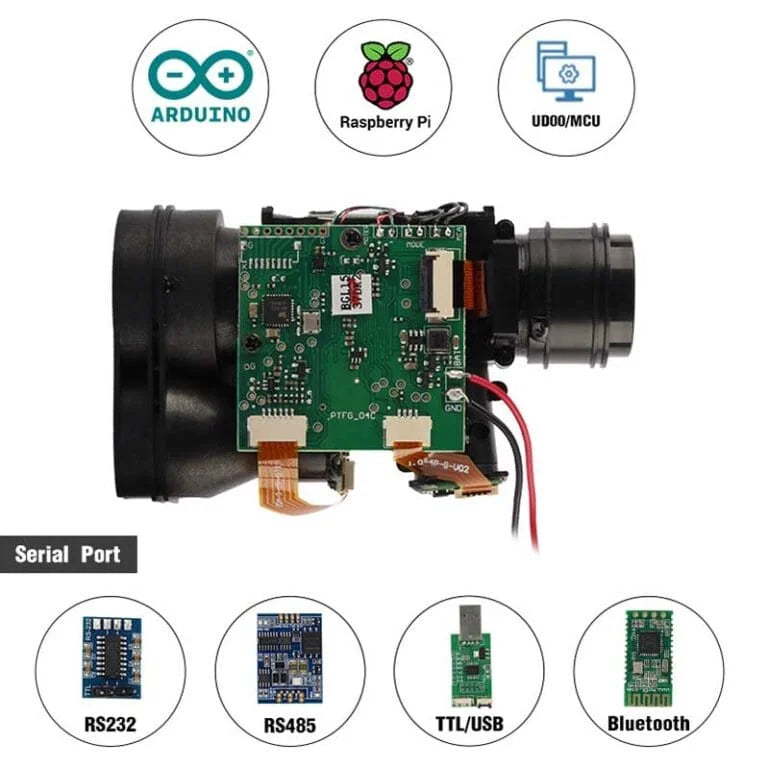

Interface
UART, RS232, RS485
Baud Rate
Default 115200 bps
Other Specifications
Dimensions
92 × 54 × 33.1 mm (L × W × H)
Weight
66 g
Working Temperature
0 ~ 50 ℃ (32–122 ℉)
Storage Temperature
-30 ~ 60 ℃ (-22–140 ℉)
Certification
CE / FCC / RoHS / FDA
Warranty
12 months

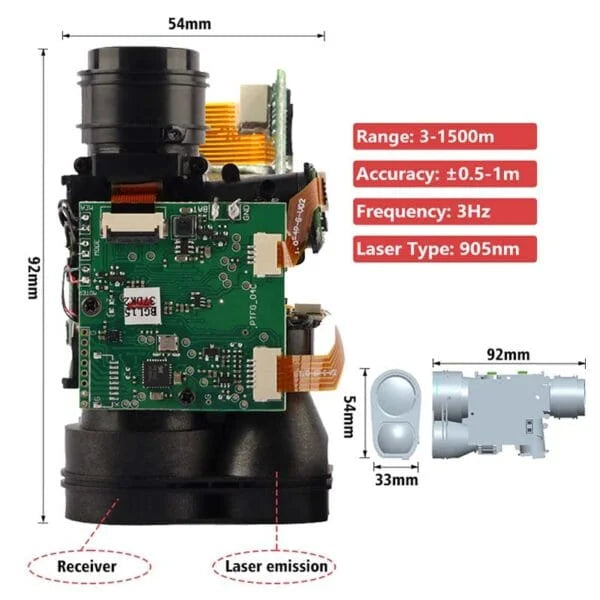

Dimension
Product Advantages
Extended Range and Accuracy: The module’s ability to measure distances up to 3000 meters with ±1 meter accuracy makes it a powerful tool for long-range applications and precise measurements.
Rapid Data Acquisition: The 3Hz frequency and pulsed laser technology ensure fast and efficient distance measurement, essential for real-time applications.
Multi-Functional Use: Versatile design caters to various outdoor activities, enhancing its utility across different scenarios such as sports, wildlife observation, and more.
Robust Construction: Engineered to operate reliably in diverse outdoor environments, including extreme temperatures and varying weather conditions.
Ease of Integration: The compact size and lightweight design facilitate easy integration into existing systems or devices, offering flexibility in deployment.
Applications
Golf: Provides accurate distance measurements for precise club selection and game strategy.
Shooting: Measures long distances accurately, aiding in target acquisition and adjustment.
Bird Watching: Assists in measuring distances to birds or other wildlife from a safe and non-intrusive distance.
Outdoor Activities: Suitable for a variety of outdoor sports and recreational activities requiring reliable distance measurements.
Why Choose the PTFG Laser Range Finder Module?
Outstanding Performance: With its extensive measurement range and high accuracy, this module meets the demands of professional and recreational users alike.
Versatile and Reliable: Designed for diverse outdoor applications, providing reliable performance in various environmental conditions.
Efficient and Fast: High-speed measurement capability ensures timely data acquisition, critical for dynamic and fast-moving situations.
Compact and Integrable: Its compact size and light weight make it easy to integrate into other devices or systems, expanding its range of use.
