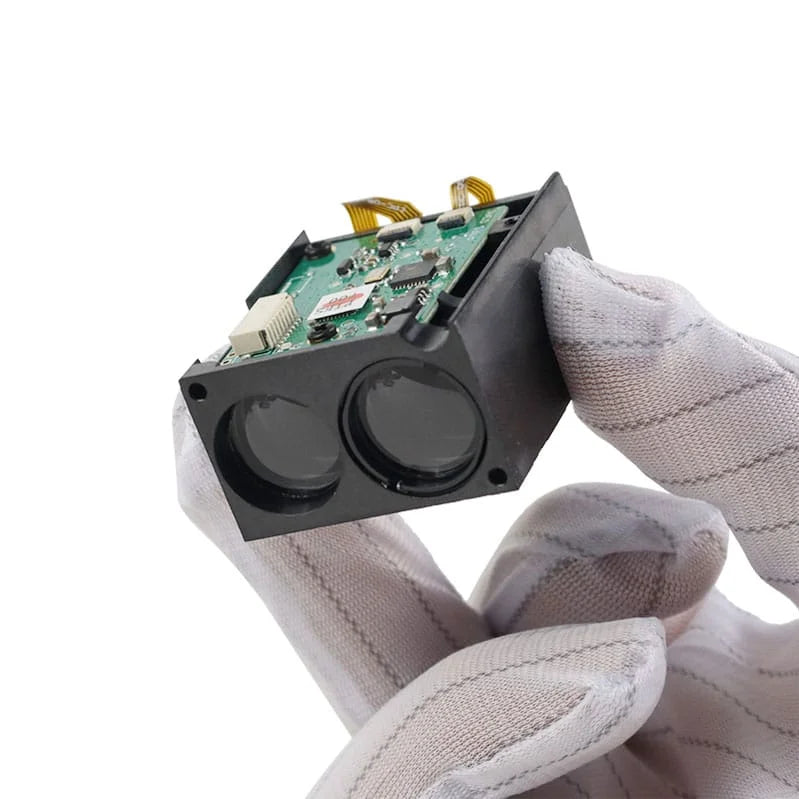

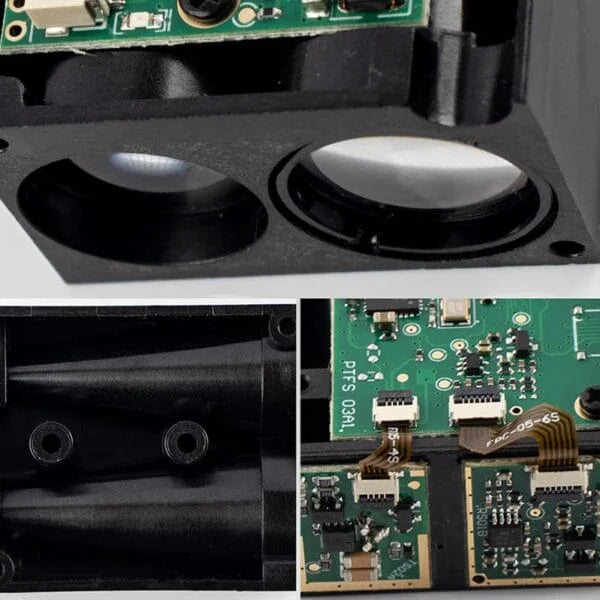

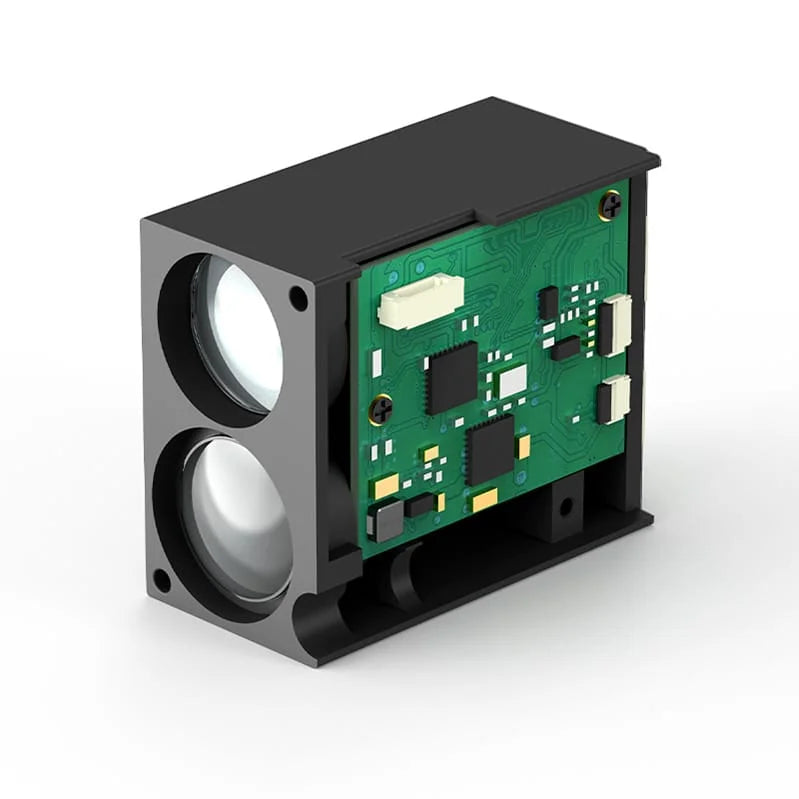

Ā PTFS laser distance module is the latest generation of outdoor long-range module, with a
Ā small size, light weight, strong measurement ability, high measurement accuracy, and simple
Ā installation and operation, etc.
Ā
Introducing the PTFS Long Range Laser Motion Sensor, an advanced measurement device using pulsed laser technology for accurate and reliable distance measurements. This module emits a series of pulsed laser beams and calculates the distance to a target by measuring the round-trip time of the laser pulses. It offers a broad range of applications, including speed and displacement measurement, as well as general distance measurement, making it a versatile solution for both indoor and outdoor environments. With a maximum measurement range of up to 1100 meters, it is ideal for high-speed vehicle measurements and road assessments.
Ā
| Specification | PTFS 400 | PTFS 700 | PTFS 1100 |
|---|---|---|---|
| Optical Specifications | |||
| Part No. | PTFS 400 | PTFS 700 | PTFS 1100 |
| Range | 3ā400 m (Reflectivity ā„70%) | 3ā700 m (Reflectivity ā„70%) | 3ā1100 m (Reflectivity ā„70%) |
| Accuracy | Ā±1 m | Ā±1 m | Ā±1 m |
| Frequency | 1ā3 Hz | 1ā3 Hz | 1ā3 Hz |
| Laser Type | 905 nm, Invisible | 905 nm, Invisible | 905 nm, Invisible |
| Laser Class | Class I (IEC 60825-1:2014), <0.4 mW | Class II (IEC 60825-1:2014), <1 mW | Class II (IEC 60825-1:2014), <1 mW |
| Measurement Method | Pulse Principal | Pulse Principal | Pulse Principal |
| Electrical Specifications | |||
| Input Voltage | DC 2.5Vā3.5V, typ. DC +3.3V | ||
| Working Current | 100 mA | ||
| Power Consumption | 330 mW @ 3.3V | ||
| Communication Specifications | |||

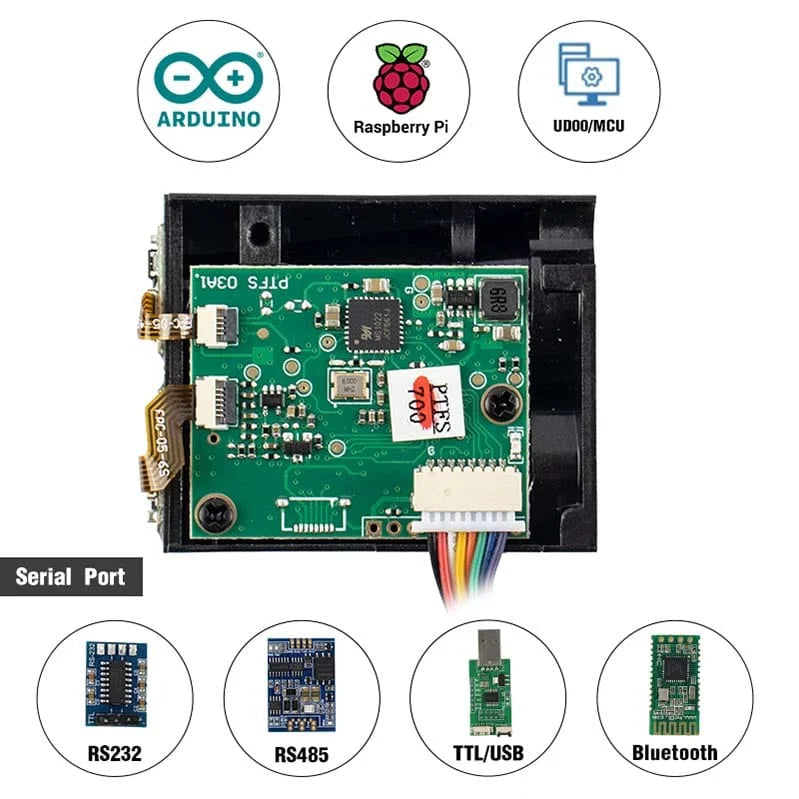

| Communication Level | TTL (3.3V) | ||
| Interface | UART, RS232, RS485 | ||
| Baud Rate | Default 115200 bps | ||
| Other Specifications | |||

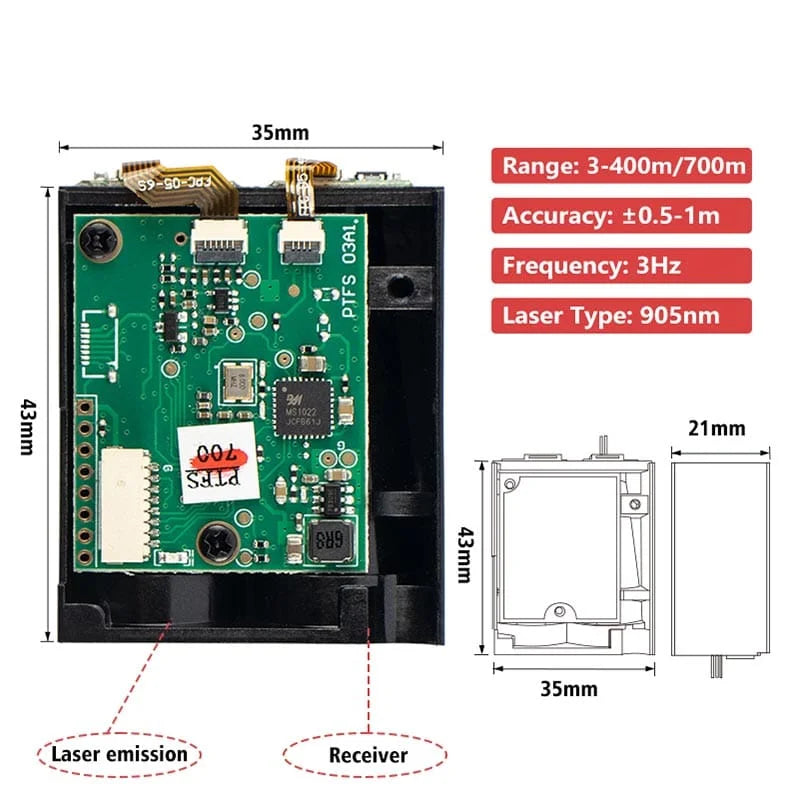

| Dimensions | 43 Ć 35 Ć 21 mm (L Ć W Ć H) | ||
| Weight | 30 g | ||
| Working Temperature | 0 ~ 50 ā (32ā122 ā) | ||
| Storage Temperature | -30 ~ 60 ā (-22ā140 ā) | ||
| Certification | CE / FCC / RoHS / FDA | ||
| Warranty | 12 months | ||
Ā
Ā
Speed Measurement: Measure the speed of moving objects accurately in transport, logistics, or industrial automation settings.
Displacement Measurement: Track displacement changes in machinery, conveyor belts, or structural monitoring with high precision.
Distance Measurement: Ensure accurate distance readings in construction, surveying, and other outdoor activities, even under challenging environmental conditions.
Robotic Navigation: Facilitate obstacle detection and distance measurement for robotic navigation and automated systems.
Ā
Greater Range Flexibility: The PTFS Long Range Laser Motion Sensor offers longer measurement ranges, making it suitable for various applications, from short-range indoor tasks to long-range outdoor measurements.
Rapid Measurement Speed: With an adjustable frequency of up to 500 Hz, it provides faster data acquisition, crucial for dynamic measurement tasks.
Enhanced Customization Options: We offer the flexibility to customize frequency, range, and even the communication interface to meet specific project requirements.
Robust Performance in Harsh Environments: Strong anti-interference capability ensures reliable performance even in complex electromagnetic environments.
Ā
Secondary Development Support: Our module supports secondary development, allowing engineers and developers to integrate and customize the sensor for unique applications.
Energy Efficient: With low power consumption, this module is ideal for battery-operated devices, prolonging operational time without frequent recharging.
Versatile Applications: From industrial automation to robotic navigation, the PTFS module adapts to various environments, both indoor and outdoor.
Choose the PTFS Long Range Laser Motion Sensor for a reliable, efficient, and highly adaptable distance measurement solution.
Ā
We understand that every project has unique demands. Our customization options include:
Adjustable measurement range and accuracy for tailored performance.
Optimization of frequency and baud rate to maximize data transfer efficiency.
Flexible interface options like USART, RS232, and RS485.
Modifications for temperature and environmental adaptability for consistent performance.
Ā
| User Manual - PTFS Series | Download |
| Datasheet - PTFS (400) | Download |
| Datasheet- PTFS (700) | Download |
| Datasheet- PTFS (1100) | Download |
No reviews yet. Be the first to share your experience!
