Meskernel LDK-60
60m Laser Distance Sensor
±2mm Accuracy

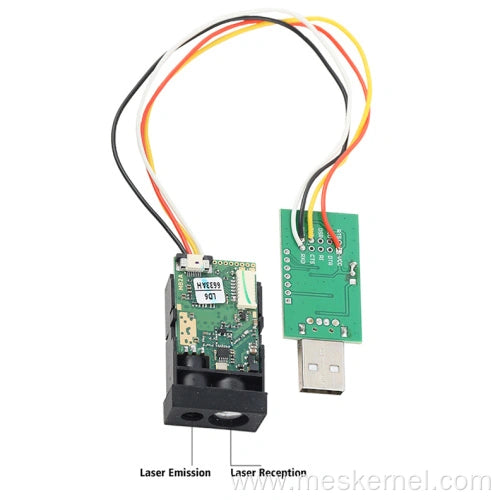

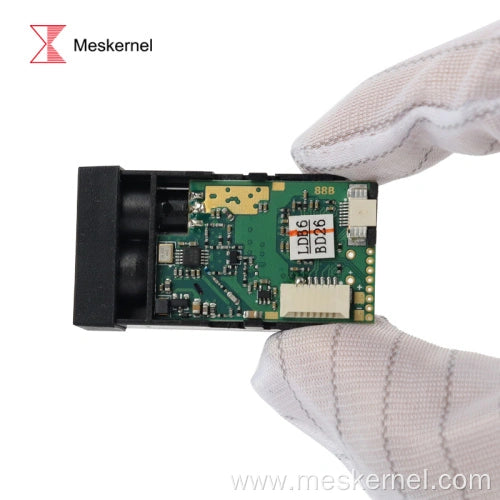

LDK laser sensor is a high precision laser distance sensor, independently developed by Chengdu Meskernel Integrated Technology Corporation, with small-size (45mm x 25mm x 12mm) and light weight, around 10g, the compact design is convenient for OEM users to integrate into systems and equipment, and the UART communication interface provides users to develop and program their own application.
Specifications
|
Indoor range
|
0.03-60m（90% Rate of reflection）
|
|
Output frequency
|
3Hz
|
|

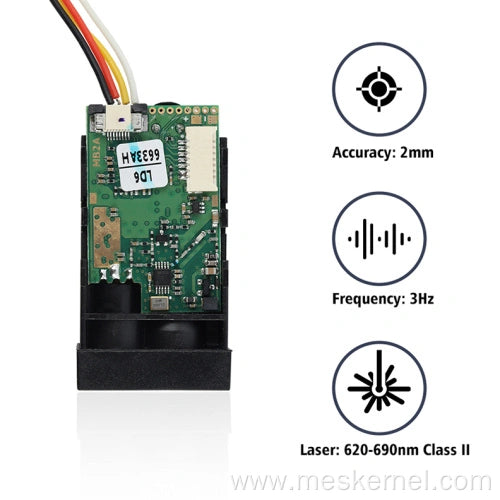

Absolute accuracy
|
±2mm
|
|
Resolution
|
1mm
|
|
Blind area
|
3cm
|
|
Light
|

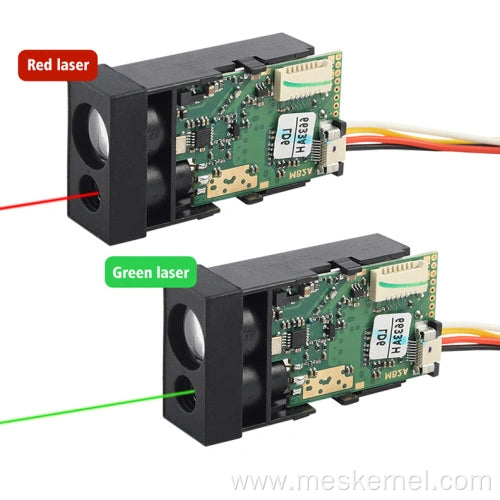

635nm，<1mW，Red laser, class II safety laser
|
|
Communication interface
|
UART TTL
|
|
Serial level
|
VTTL=3.3V
|
|
Operating temperature
|
-40~60 ℃
|
|
Working voltage
|
DC+3.3 V
|
|
Working current
|
80mA
|
|
Power
|
0.27W
|
|

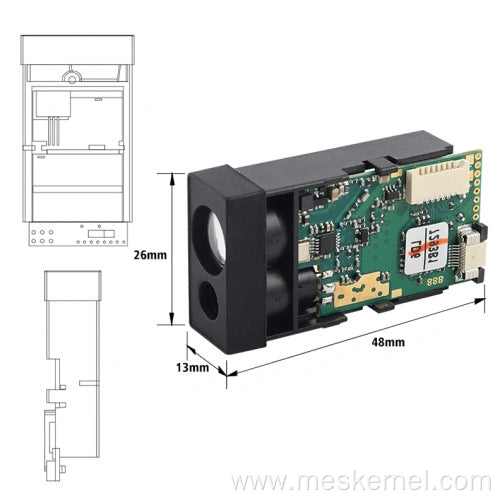

Volume
|
48*26*13mm
|
|
Weight
|
10g
|

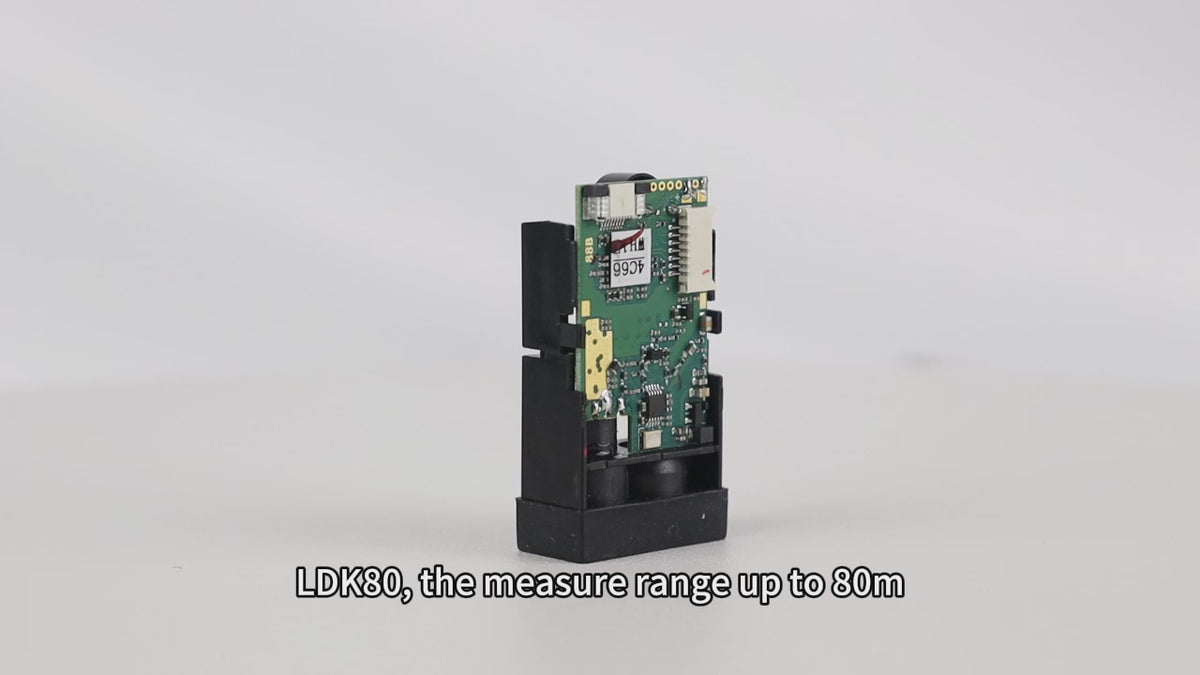

LDK Phase Distance Sensor, the measure range up to 80m, as a classical model, with low power consumption, stable performance, high measurement accuracy, fast measurement speed, and simple installation, LDK Laser Ranging Sensor has been widely used in home improvement measurement, industrial automation fields, logistics, warehouse automation.
Meskernel offers a variety of Customization options, including but not limited to measurement range, baud rate, frequency, precision, communication interface, temperature, and so on. If you have any questions, please contact our technical staff.
What is the measurement range and accuracy of this sensor?
Indoor range 0.03-60 m with ninety percent reflection. Absolute accuracy is 2 mm and the resolution is 1 mm.
What interface does the sensor use and what power supply is required?
It uses a UART TTL serial interface at 3.3 V and operates from a 3.3 V DC supply, drawing about 80 mA.
What are the laser wavelength and safety class?
The device uses a 635 nm red laser with power below 1 mW and is a class II safety laser.
What are the physical dimensions and weight?
The housing measures 48 x 26 x 13 mm and the weight is about 10 g.
Is customization available and how can I arrange it?
Meskernel offers customization options including measurement range, baud rate, frequency, precision, communication interface and temperature. Please contact our technical staff to discuss options.
