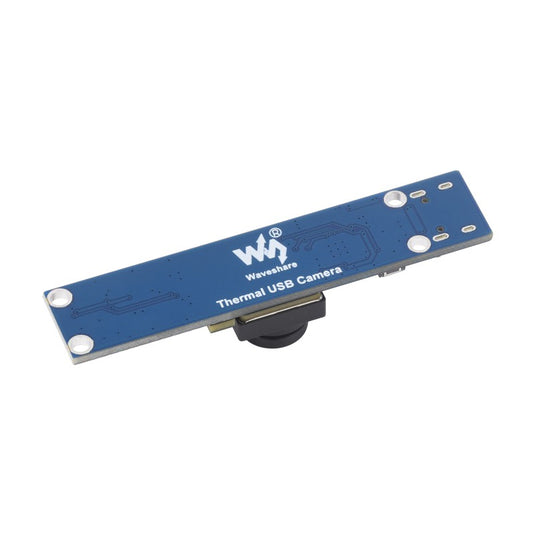

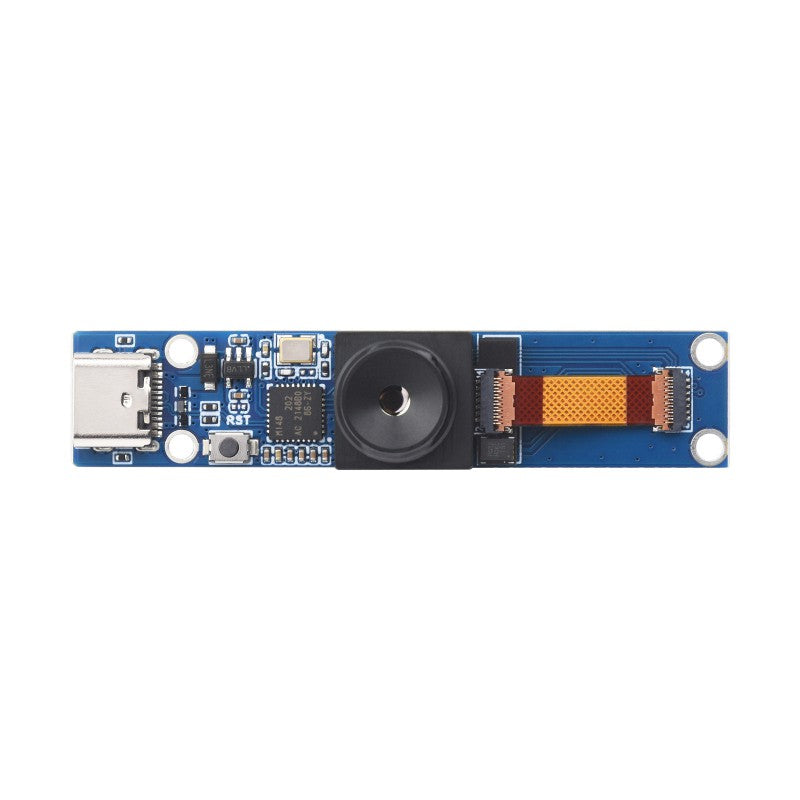

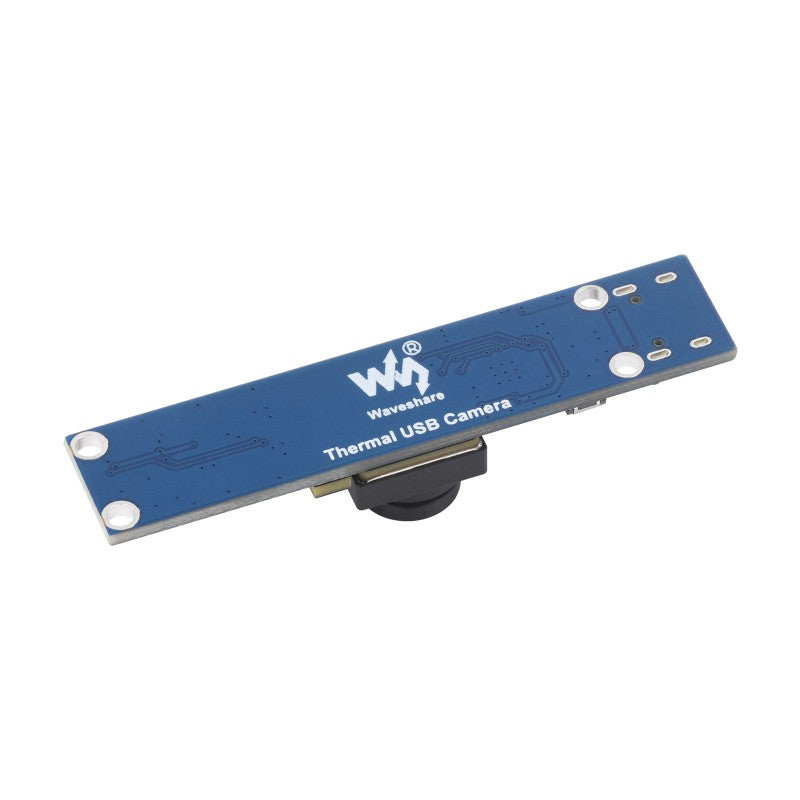

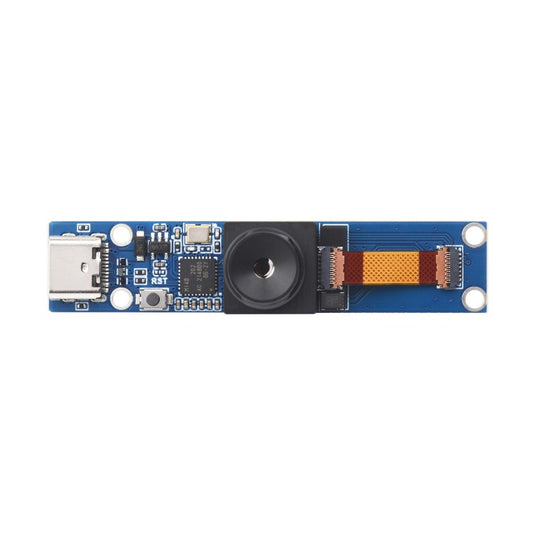

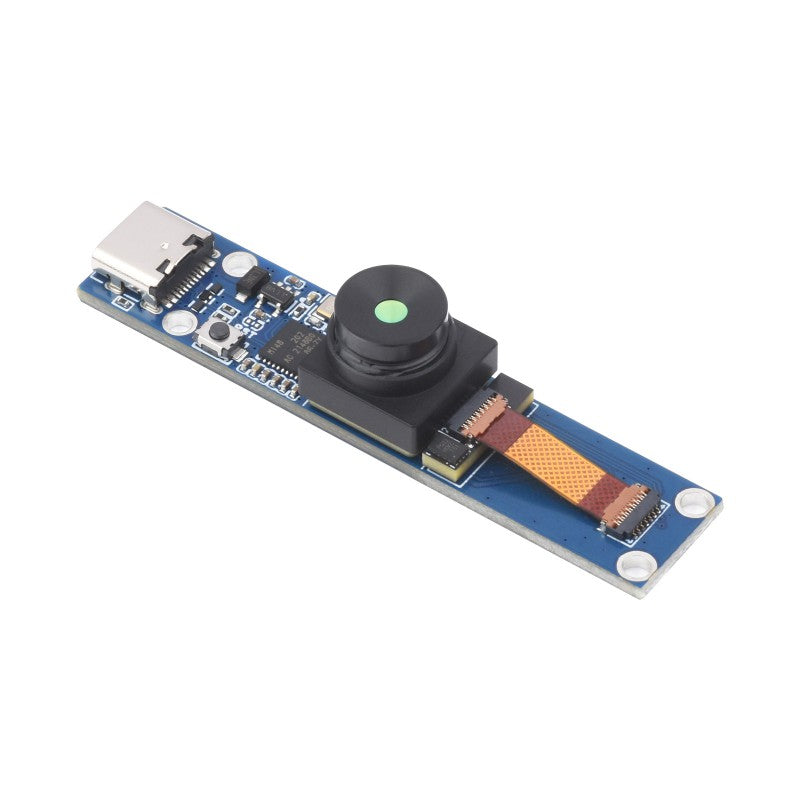

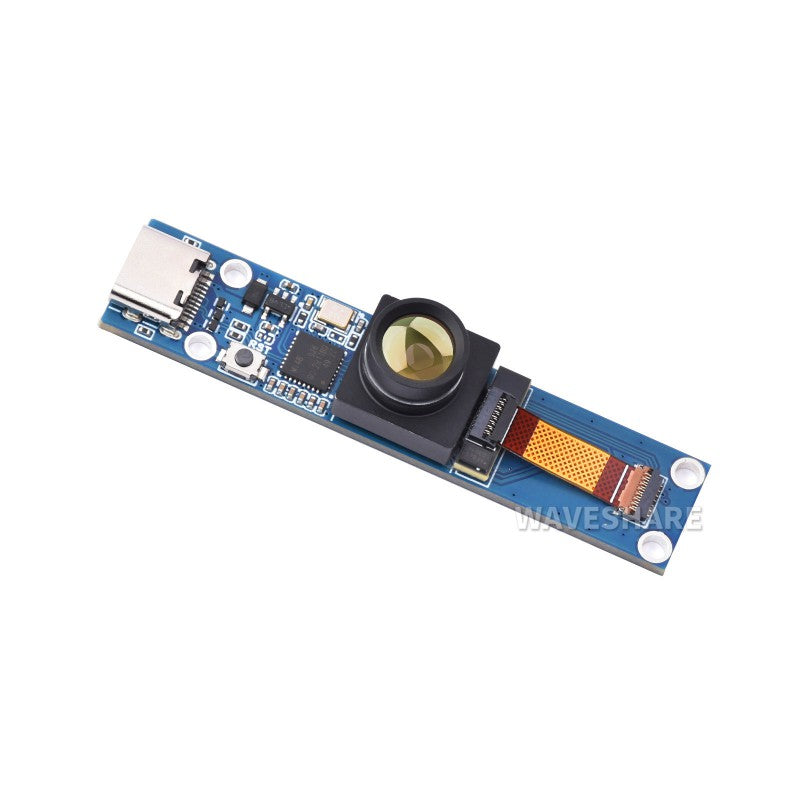

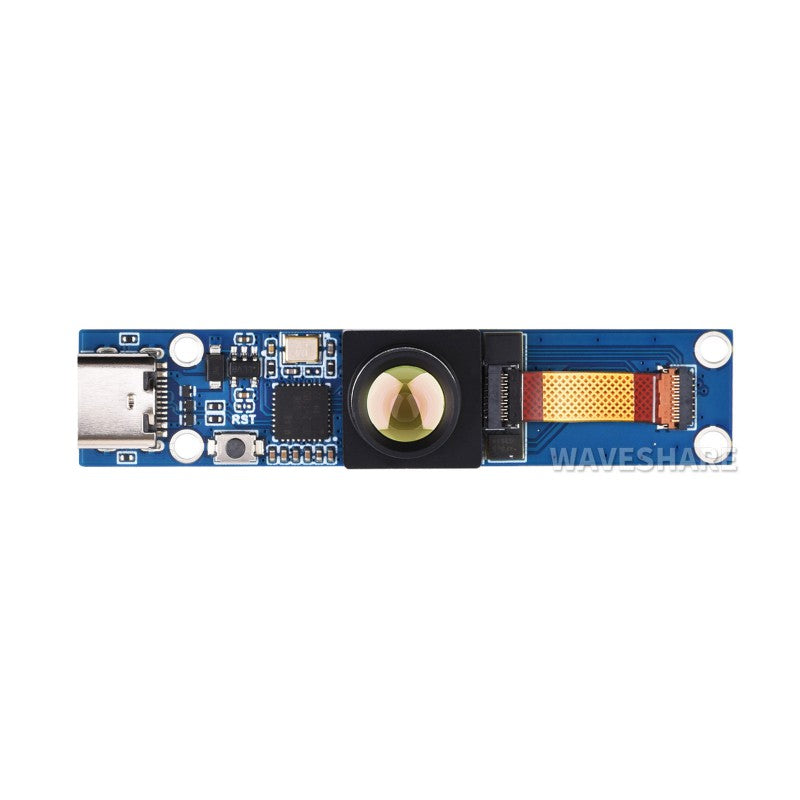

This is a long-wave IR thermal imaging camera that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
Four versions are available: options for HAT version with Raspberry Pi 40PIN GPIO header and USB version with Type-C port. Also provides basic version and wide-angle version with 45° / 90° FOV.
> Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels
> Continuous operation and thermal imaging video stream due to shutterless design
> Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
Up to 25FPS (Max) thermal imaging video stream output
> Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)
> High precision long-term non-contact temperature online monitoring
> IR thermal imaging devices, IR thermometers
> Smart home, intelligent building, intelligent lighting
> Industrial temperature control, security & safety, intrude/motion detection
> Small Target Thermal Analysis, Heat Trend Analysis and Solutions
| Specification | Details |
|---|---|
| Power Supply | 5V |
| Operating Current | 61mA @ 5V |
| Wavelength Range | 8~14μm |
| Operating Temperature | -20~85℃ |
| Target Temperature | -20~400℃ |
| Refresh Rate | 25 FPS (Max) |
| FOV | Basic Version: 45°(H) × 45°(V) Wide Angle Version: 90°(H) × 68°(V) |
| Noise Equivalent Temperature Difference (NETD) | 150mK |
| Measuring Accuracy | ±2℃ (ambient temp. 10~70℃) |
| Dimensions | Thermal Camera HAT / Thermal-90 Camera HAT: 65.0 × 30.5mm Thermal USB Camera / Thermal-90 USB Camera: 62.0 × 13.0mm |
| Specification | 80×62 Pixels, 45° FOV | 80×62 Pixels, 90° FOV |
|---|---|---|
| Product Name | Long-wave IR Thermal Imaging Camera Module, 80×62 Pixels, 45° FOV | Long-wave IR Thermal Imaging Camera Module, 80×62 Pixels, 90° FOV |
| Pixel Array | 80×62 | 80×62 |
| Field of View (FOV) | 45° × 45° | 90° × 68° |
| Absolute Accuracy | ±2℃ (ambient temp. 10 ~ 70℃) | ±2℃ (ambient temp. 10 ~ 70℃) |
| Target Temperature Range | -20℃ ~ 400℃ | -20℃ ~ 400℃ |
| Refresh Rate | 25 FPS | 25 FPS |
| Operating Temperature | -20℃ ~ 85℃ | -20℃ ~ 85℃ |
| Current Consumption | 61mA | 61mA |
| Use Case | Standard viewing, better detail in narrow scenes | Wide-area coverage, suitable for room scanning or crowd monitoring |
| Lens Type | Standard lens | Wide-angle lens |
| Installation Note | Ideal for close-range temperature detection | Better for broader area monitoring with less fine detail |
Compatible With Raspberry Pi Boards
Connect to Raspberry Pi 4B, extending the camera with the FPC cable
Directly connect to Raspberry Pi ZERO |
Directly connect to Raspberry Pi 4B |

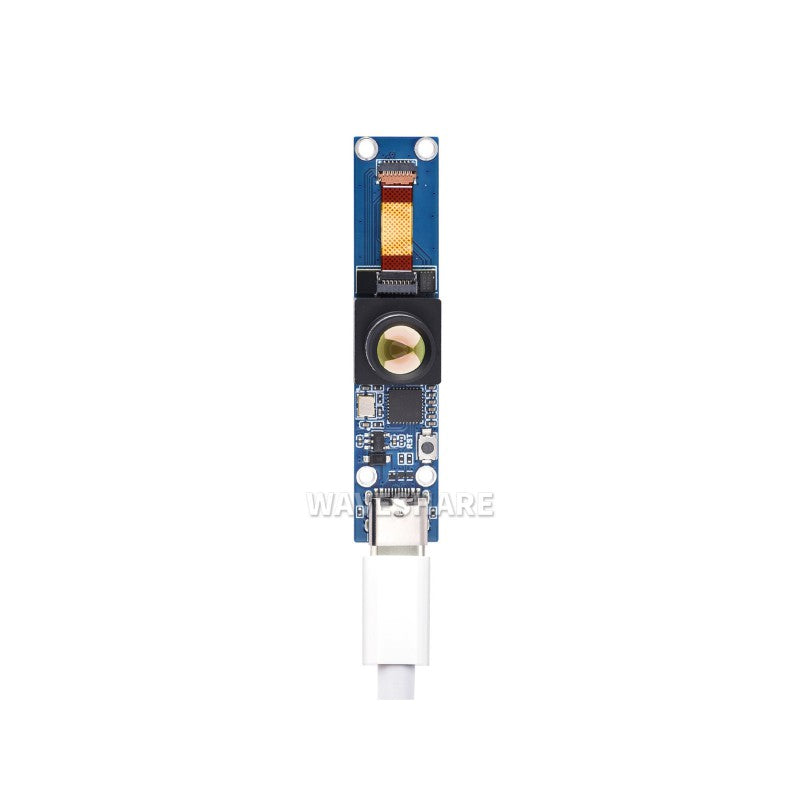

Compatible With Windows PC, Android Phone, etc
Connect to PC |
Connect to Android phone |
*For reference only, the Raspberry Pi boards and hosts above are NOT included
Wiki: www.waveshare.com/wiki/Thermal_Camera_HAT
Weight: 0.033 kg
Thermal USB Camera x1
Dual Type-C cable ~1m x1
