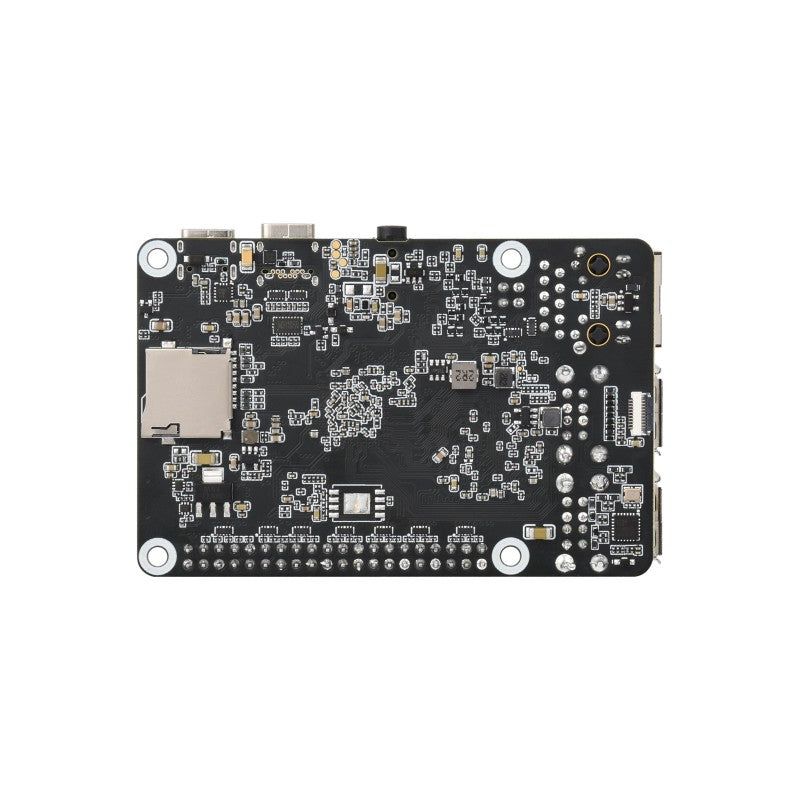

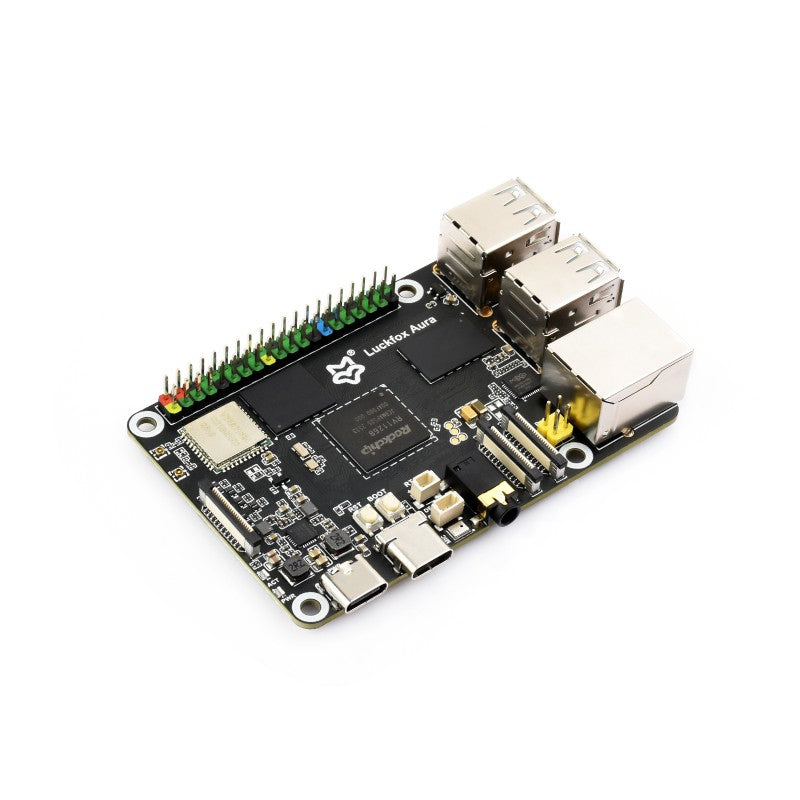

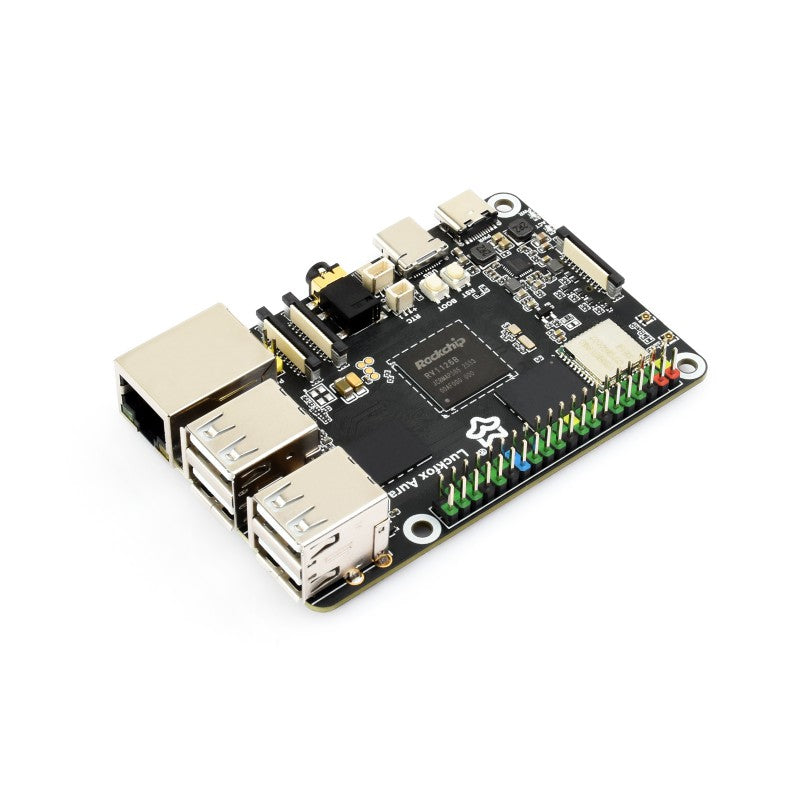

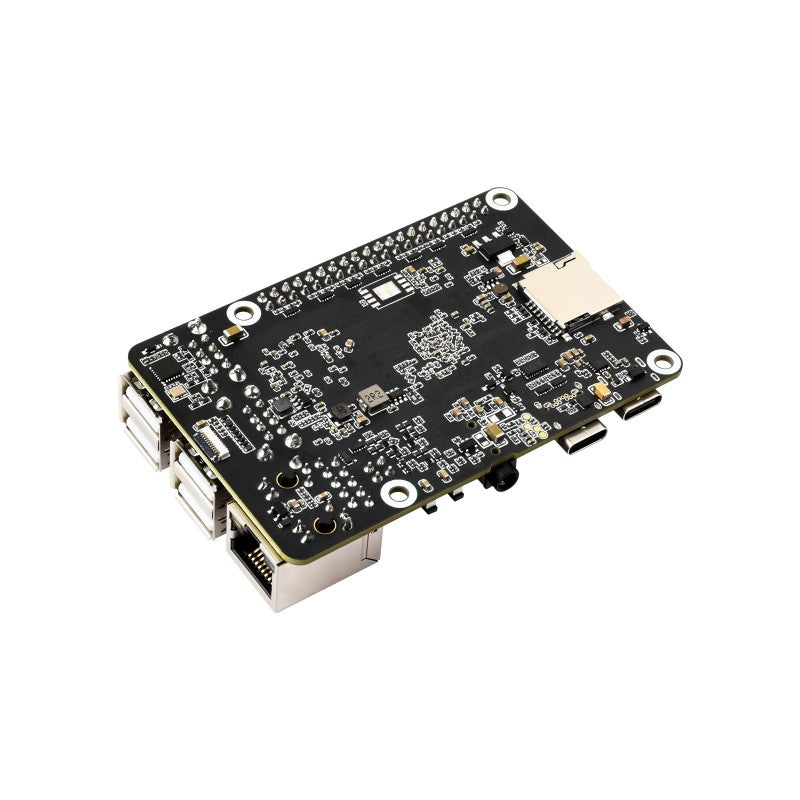

High-Performance Linux Development Board Based on Rockchip RV1126B
| Processor | Quad-core Arm Cortex-A53@1.6GHz |
| RAM | Options for 2GB / 4GB LPDDR4X RAM |
| NPU | 3 TOPS@INT8, supports INT4, INT8, INT16, FP16 mixed operation |
| ISP | Supports 12MP cameras, supports multiple algorithm accelerators, including HDR, 3A, LSC, 3DNR, 2DNR, sharpening, defogging, fisheye correction, and gamma correction, integrates 8MP AI-ISP for enhanced spatial noise reduction and image enhancement effect |
| Video | Decoding: 4K@30fps (H.265/HEVC, H.264/AVC) Encoding: 4K@30fps (H.265/HEVC, H.264/AVC) |
| Storage | TF card slot |
| Video Output | 4-lane MIPI DSI (1920x1080@60fps) interface × 1 |
| Video Input | 4-lane MIPI CSI camera interface × 2 |
| USB | USB3.0 OTG Type-C port × 1 USB2.0 HOST Type-A port × 4 |
| Audio | Onboard microphone 3.5mm headphone / microphone jack |
| GPIO | 40PIN header (compatible with some Raspberry Pi HATs) |
| System | Buildroot, Debian |
| Power Input | 5V DC |
| Others | 2PIN SH1.0 RTC Batt header |
| SARADC × 7 |
Equipped with high-performance RV1126B processor, integrated with quad-core Cortex-A53 processor, providing strong performance and high energy efficiency
Equipped with 3 TOPS computing power, easy to convert a variety of neural network models based on TensorFlow, MXNet, PyTorch, and Caffe frameworks, supports running large language models and Visual Language Models
|
Object Recognition |
Face Recognition |
Vehicle Recognition |
|
Pedestrian Detection |
Large Language Model |
Visual Language Model |
Supports 4K@30fps H.264/H.265 hardware encoding and decoding capabilities,
easy to deal with HD video tasks
Powerful performance, easy to drive large screens
* Supports up to 1920 × 1080@60Hz resolution.
for reference only, the 13.3inch DSI LCD is not included.
Suitable for AI vision applications such as visual robotics,
depth vision, and stereo vision
*for reference only, please refer to the package content for detailed part list.
Onboard 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5.4/BLE Bluetooth Module,
Providing Stable Connection And Efficient Transmission
Supports 10M/100M/1000M Ethernet port to meet file transfer and video streaming needs, with reserved PoE module header for more flexible power supply
Onboard Microphone + 3.5mm Headphone / Microphone Jack, meets a variety of audio application scenarios
|

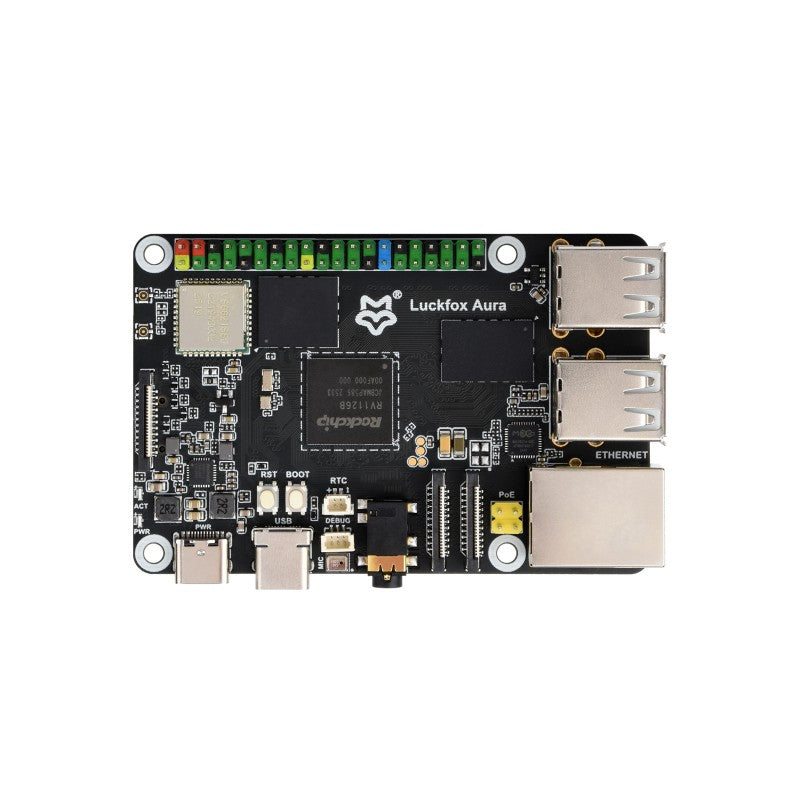

1. RV1126B
built-in quad-core ARM Cortex-A53 2. eMMC (options for 0GB / 8GB / 64GB)
3. Wi-Fi / BT module
2.4GHz / 5GHz Wi-Fi 6 + BT 5.4 / BLE module 4. Wi-Fi / BT module antenna connectors
5. DSI display interface
6. USER-LED
for indicating system operating status in the default image 7. POWER-LED
for indicating power supply status 8. USB-PWR
for 5V DC power supply 9. RESET button
10. BOOT button
Press it when powering on or resetting to enter download mode 11. USB3.0 OTG Type-C port
for programming, emulating USB devices, or connecting USB peripherals |
12. RTC header
13. Onboard microphone
14. DEBUG header
15. 3.5mm headphone / microphone jack
supports audio capture or output 16. CSI-0 camera interface
enabled by default 17. CSI-1 camera interface
18. PoE module header
19. Gigabit RJ45 Ethernet port with LED indicators (PoE-enabled)
supports power supply via PoE switch with network cable 20. USB2.0 HOST Type-A ports
expands 4-ch Type-A ports via USB-HUB chip 21. LPDDR4X (options for 1GB / 2GB / 4GB)
22. 40PIN GPIO header
compatible with some Raspberry Pi HATs 23. TF card slot
24. SARADC interface
|
OPTIONS Luckfox-Aura-02064/04064 x1
SH1.0 3PIN cable ~100mm x2
IPEX 4 to SMA cable x2
6DB antenna ~17cm x2
USB Type-A to Type-C cable ~1m x1
