LuckFox Pico RV1103 Linux Micro Development Board
Specifications
Processor Cortex A7@1.2GHz + RISC-V
NPU 0.5TOPS, supports int4, int8 and int16
ISP Input 4M @30fps (Max)
Memory 64MB DDR2
USB USB 2.0 Host/Device
Camera MIPI CSI 2-lane
GPIO 24 × GPIO pins
Ethernet port 10/100M Ethernet controller and embedded PHY
Default Storage TF card (Not included)
Highly Integrated And Powerful Performance
Integrates CPU, NPU, ISP And Other Processors
Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY
Easier To Develop
Integrates TF Card Slot And Camera Interface
Suitable For More Application Examples

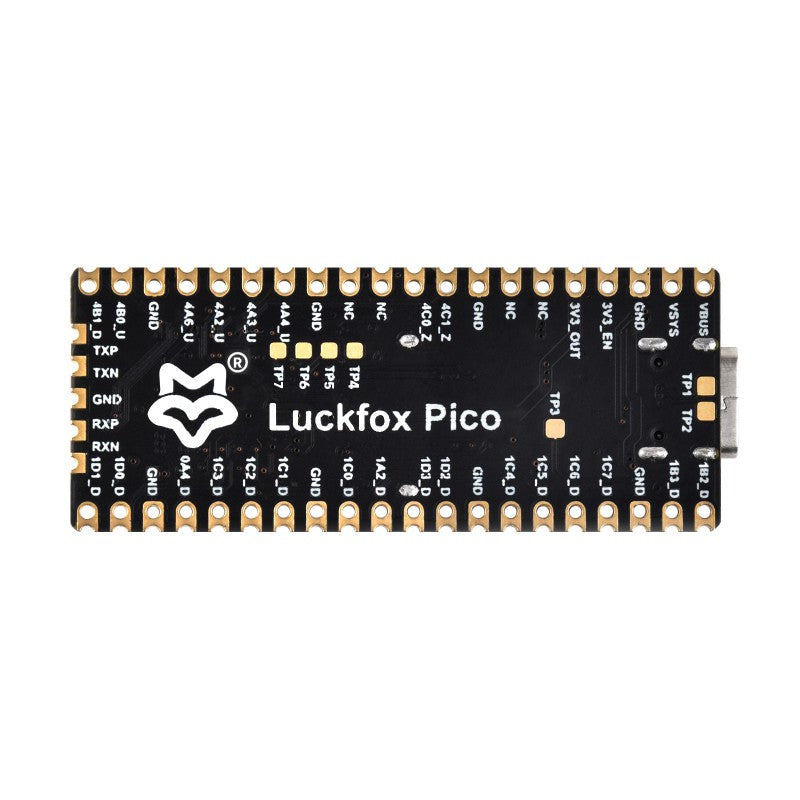

Pin Definition

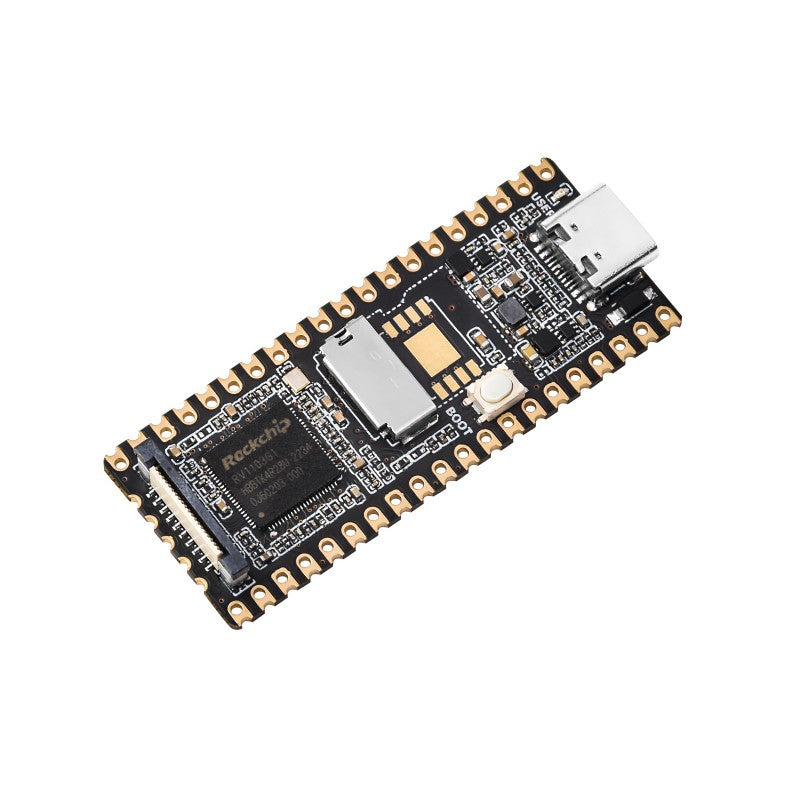

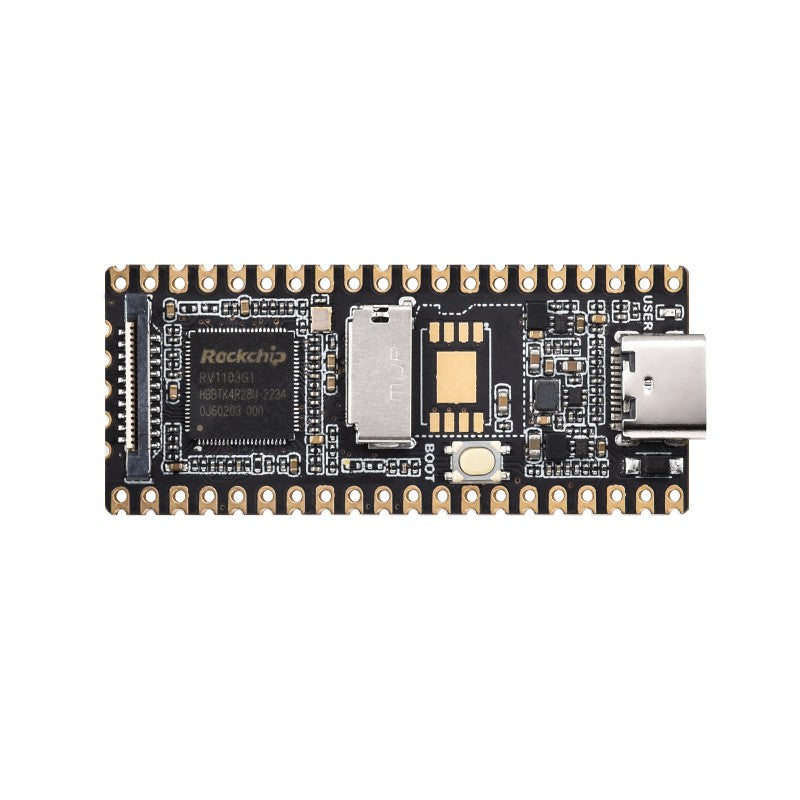

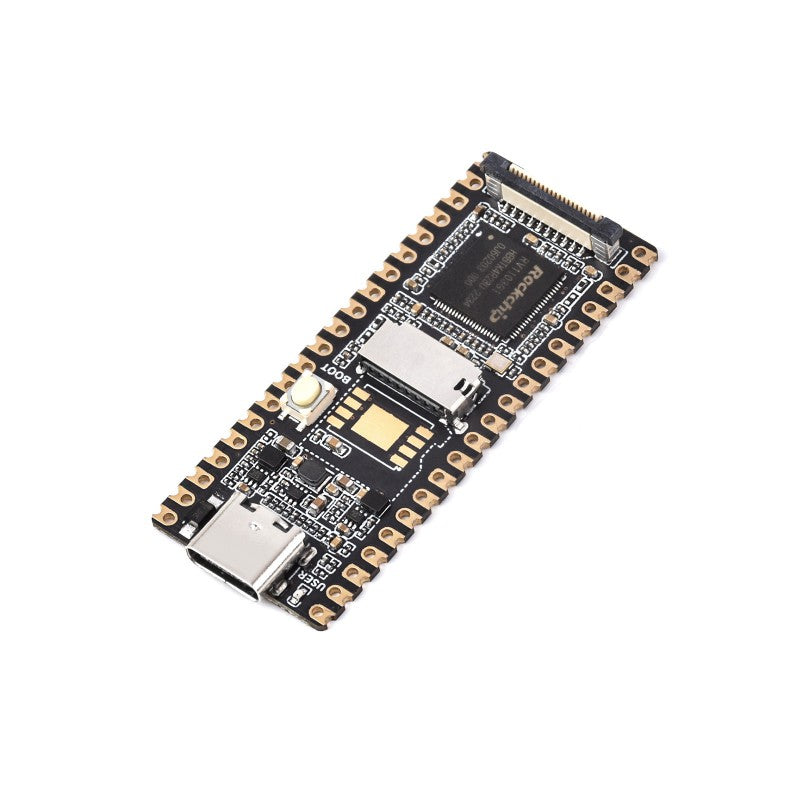

What's On Board
USB Type-C connector
ACT-LED
BOOT button
TF card slot
RV1103

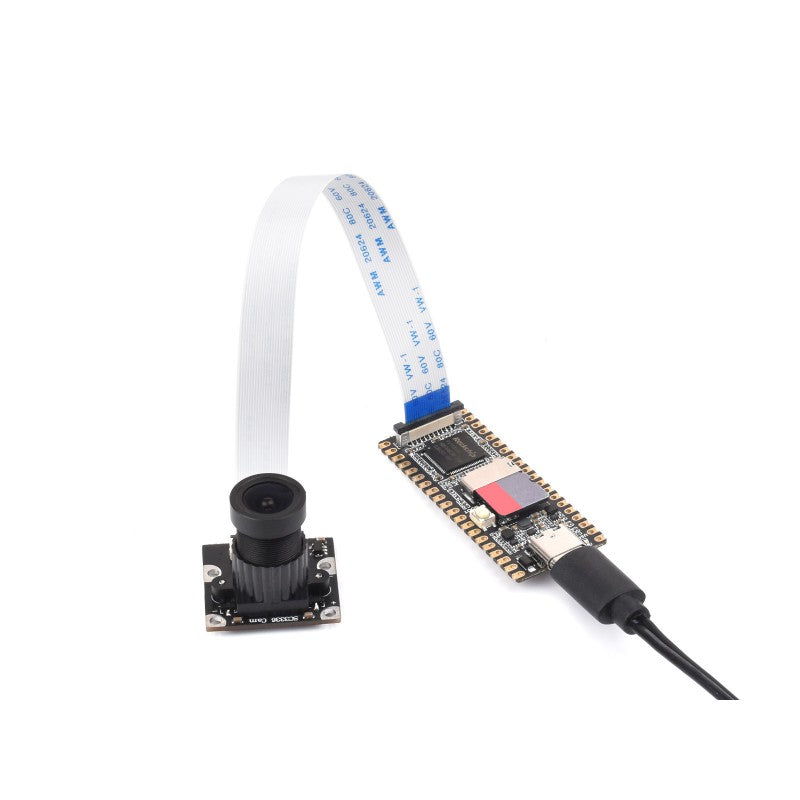

CSI camera interface
GPIO header
USB test pads
USB detection test pad
Microphone test pads
Ethernet interface pads
Outline Dimensions
Luckfox Pico Product Selection
PRODUCT
MAIN CHIP
MEMORY
NPU
ISP
DEFAULT STORAGE
FEATURES
RV1103G1
64MB
0.5TOPS, supports int4, int8 and int16
Input 4M @30fps (Max)
TF card (Not included)
Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
SPI NAND FLASH (128MB)
TF card (Not included)
Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
SPI NAND FLASH (128MB)
Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.
RV1106G2
128MB
Input 5M @30fps (Max)
SPI NAND FLASH (256MB)
Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
RV1106G3
256MB
