Luckfox PicoKVM, Lightweight IP KVM Remote Management Tool

SKU: WVSH0571

ā‚¹ 7,899.99

Out of stock

Select variant

Luckfox PicoKVM Base
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
Luckfox PicoKVM, Lightweight IP KVM Remote Management ToolLuckfox PicoKVM Baseā‚¹ 7,899.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Luckfox PicoKVM

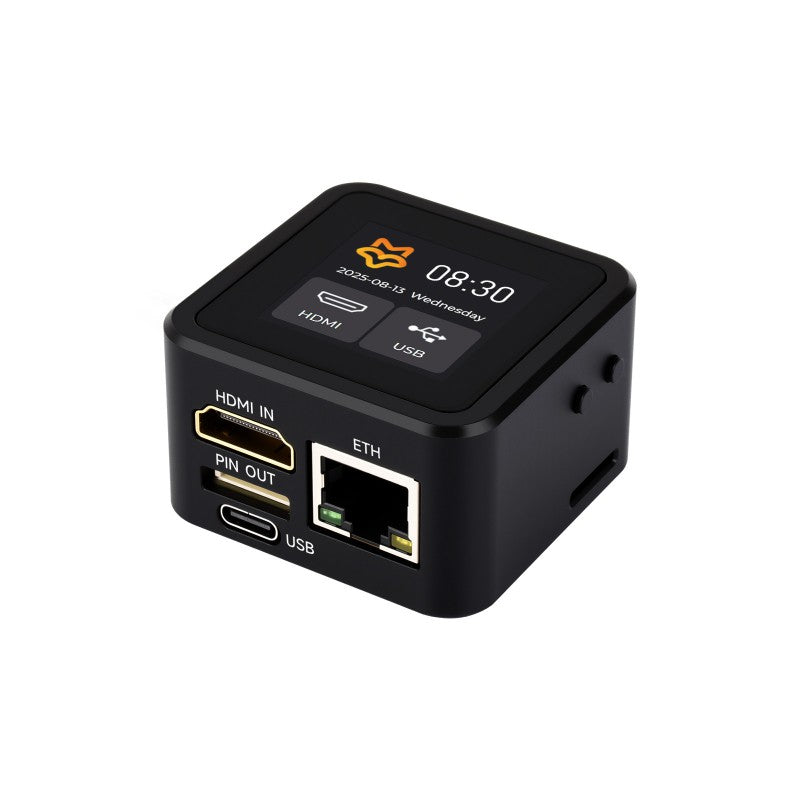

Luckfox PicoKVM, front viewLuckfox PicoKVM, features

Ā

Version Options

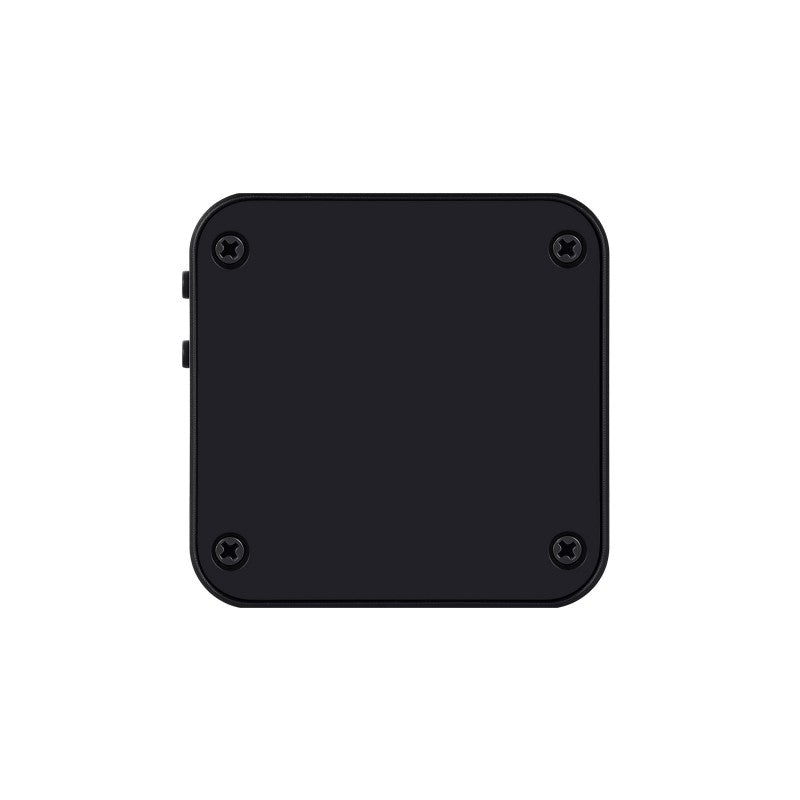

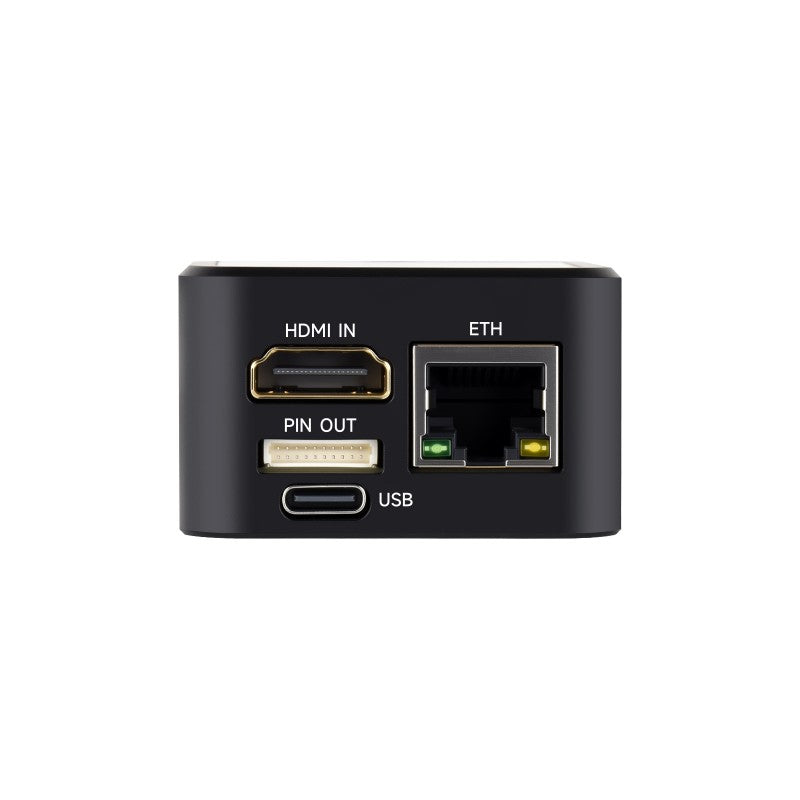

Ā Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

Luckfox PicoKVM
Full version
(with metal case and 1.54inch touch display)

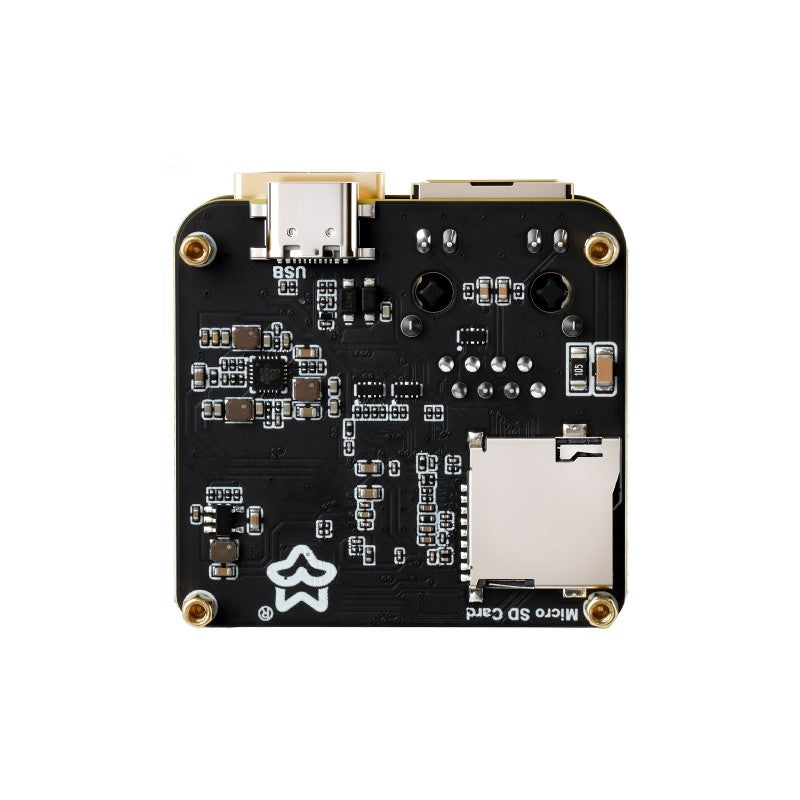

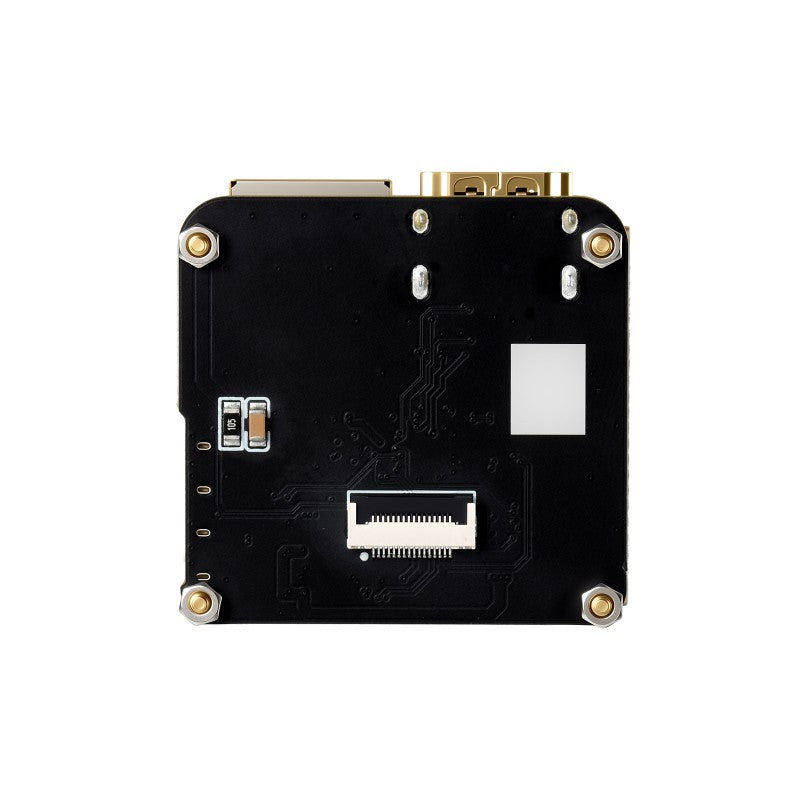

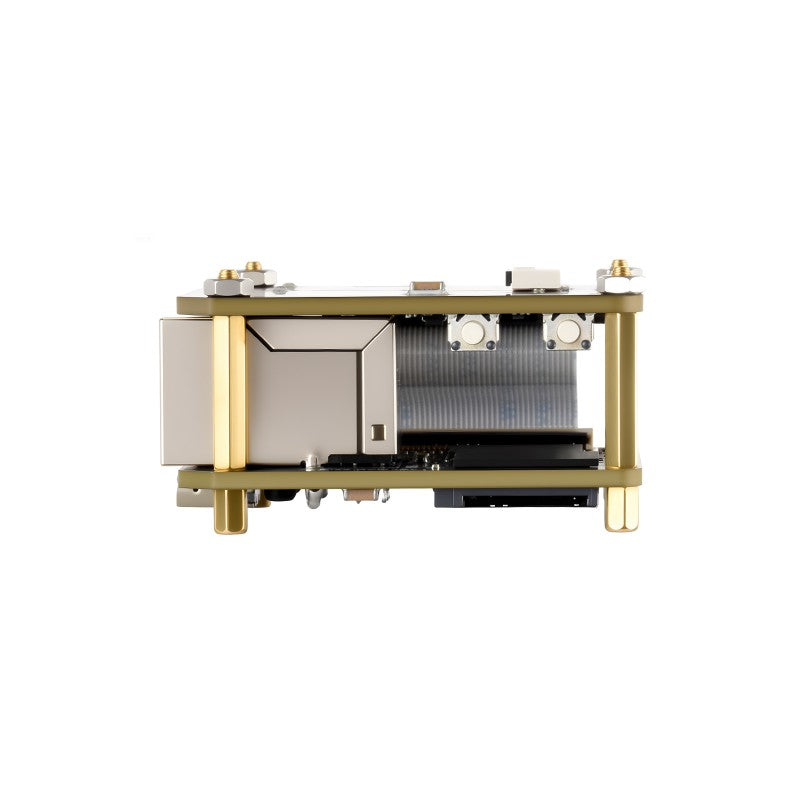

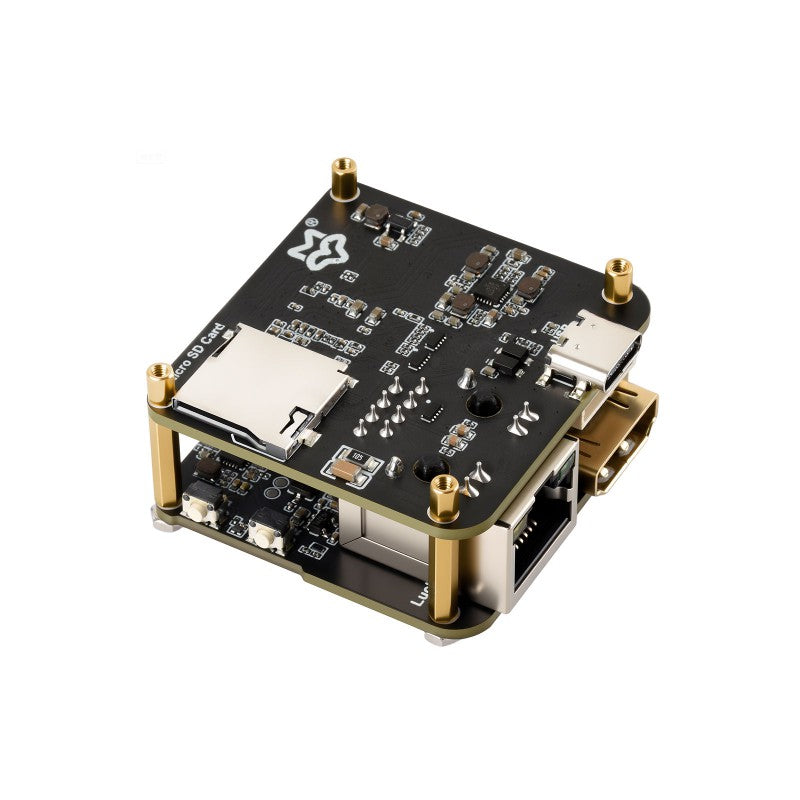

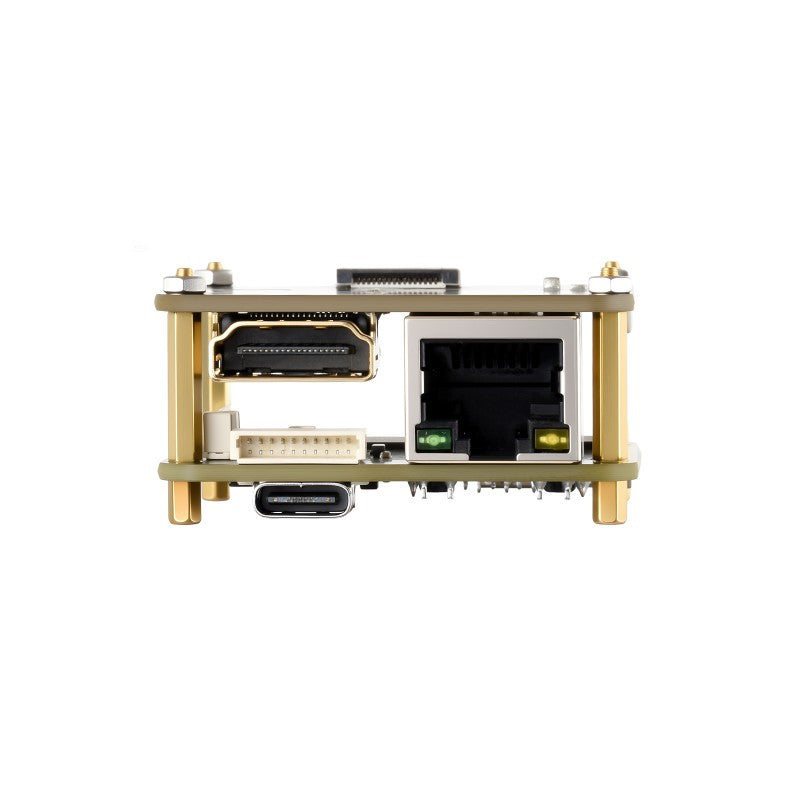

Ā Luckfox PicoKVM, Luckfox PicoKVM Base

Luckfox PicoKVM Base
Basic version

Ā

Features

The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers.Ā This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.

Onboard HDMI input interface: recognized by PC as a display for video capture
Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
Onboard 100Mbps Ethernet port: for video and control signal transmission

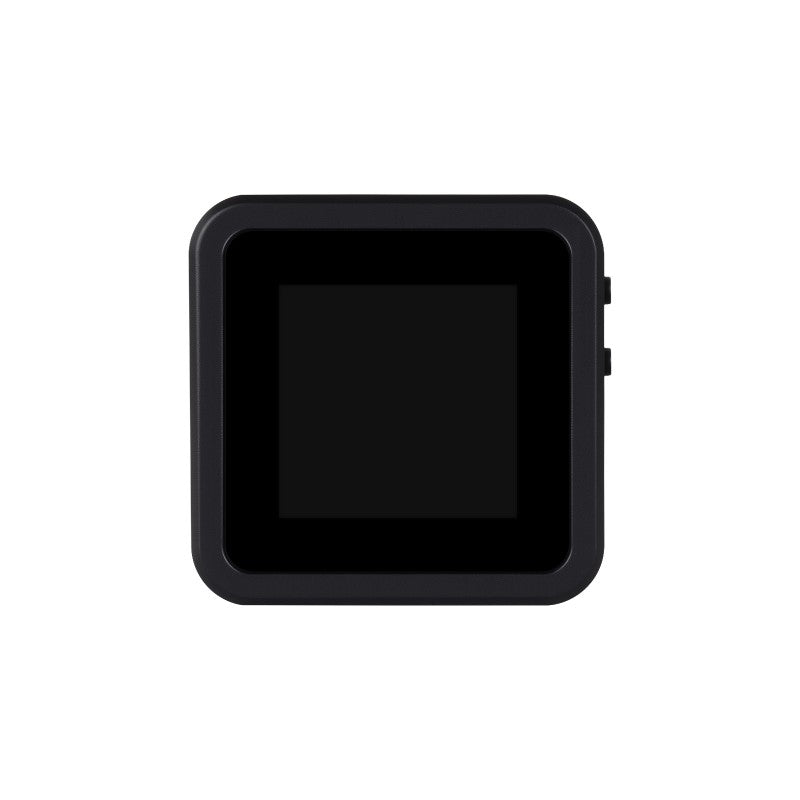

1.54-inch touch display: for displaying IP address, connection status, and system operating status
TF card slot: supports storage expansion
I/O expansion interface: for host power ON/OFF control

Ā

Specifications

Product Luckfox PicoKVM
Processor RV1106G3
Core 1 Ɨ A7@1.2G
Memory 256M DDR3
Storage 8G eMMC
System PicoKVM
Resolution 1080P@60fps
Video Encoding H264
Video Latency 80ms ~ 200ms
Audio Transmission āˆš
UEFI / BIOS Support āˆš
USB Keyboard & Mouse Emulation āˆš
USB Storage Emulation āˆš
UEFI / BIOS Scope āˆš
Wake-on-LAN (WOL) āˆš
Web Terminal āˆš
Custom Script āˆš
Serial Terminal 1-Ch
Storage Expansion TF card
Power Control GPIO control
Ethernet 100Mbps
LCD Display 1.54inch 240 Ɨ 240 touch display (Only included in the Luckfox PicoKVM full version)
Power Input Type-C
Outline Dimension

Luckfox PicoKVM Base: 44.00 Ɨ 42.00 Ɨ 23.60 (mm)

Luckfox PicoKVM: 48.50 Ɨ 48.50 Ɨ 29.00 (mm)

Ā

Comparison with Commercial Remote Control Software

Luckfox PicoKVM, Comparison with Commercial Remote Control Software

* for reference only, the above host boards are NOT included.

Ā

Function Demonstrations

Luckfox PicoKVM, supports remote control host system, expandable power control, virtual USB drive mounting, wake on LAN (WOL)Luckfox PicoKVM, supports cross-regional Networking

Ā

What's On Board

Luckfox PicoKVM, onboard components

1. HDMI IN interface
for connecting to the HDMI output interface of the controlled host		 5. 1.54inch touch LCD

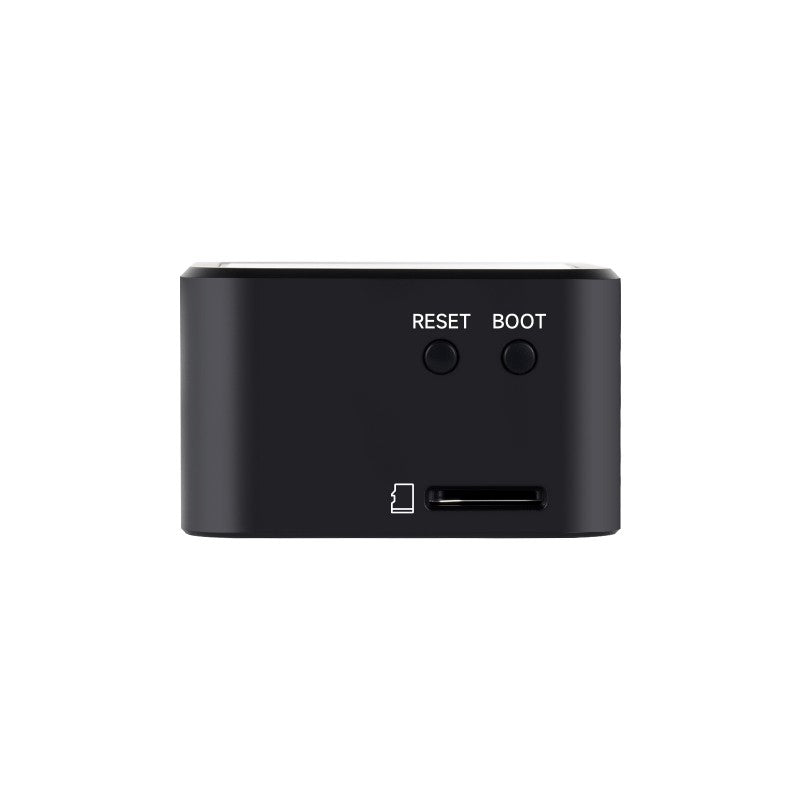

2. I/O expansion interface 6. BOOT button
press it when powering on or resetting to enter download mode
3. USB Type-C port
for power supply, simulating HID/UMS devices, and programming		 7. RESET button
4. 10/100Mbps RJ45 Ethernet port with indicator 8. TF card slot

Ā

Pin Definition

Luckfox PicoKVM, pin definition

Ā

Outline Dimensions

Luckfox PicoKVM, Luckfox PicoKVM Base dimensionsLuckfox PicoKVM, Luckfox PicoKVM dimensions

Ā

Resources & Services

Wiki:Ā https://wiki.luckfox.com/Luckfox-PicoKVM

Ā

Package Content

Weight: 0.073 kg

Luckfox PicoKVM Base

Luckfox PicoKVM Base x1

Luckfox PicoKVM Base

Ā

Luckfox PicoKVM

Luckfox PicoKVM x1
Type-C extension cable with auxiliary power supply ~175mm x1

How does PicoKVM enable remote control and video capture?
PicoKVM uses the HDMI input for video capture and USB HID emulation to simulate keyboard and mouse, plus a 100 Mbps ethernet link to transmit video and control signals.
What variants are available and how do they differ?
There is a base version and a full version. The full version includes a metal case and a 1.54 inch touch display for local status; both support real time video and remote control.
What types of hosts and interfaces are supported?
It supports hosts with HDMI output for video and USB input devices, and it can wake on LAN and interact with BIOS or UEFI systems.
What about warranty and returns?
Warranty details are not specified on this page; please check the listing or contact support for terms.
How is delivery and shipping handled?
Delivery times depend on location and the seller; shipping estimates appear at checkout and returns follow the seller policy.
