Magician E6 – 6 Axis Educational Collaborative Robot

SKU: DBR007

₹ 562,171.86

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

Magician E6 – 6 Axis Educational Collaborative Robot₹ 562,171.86

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

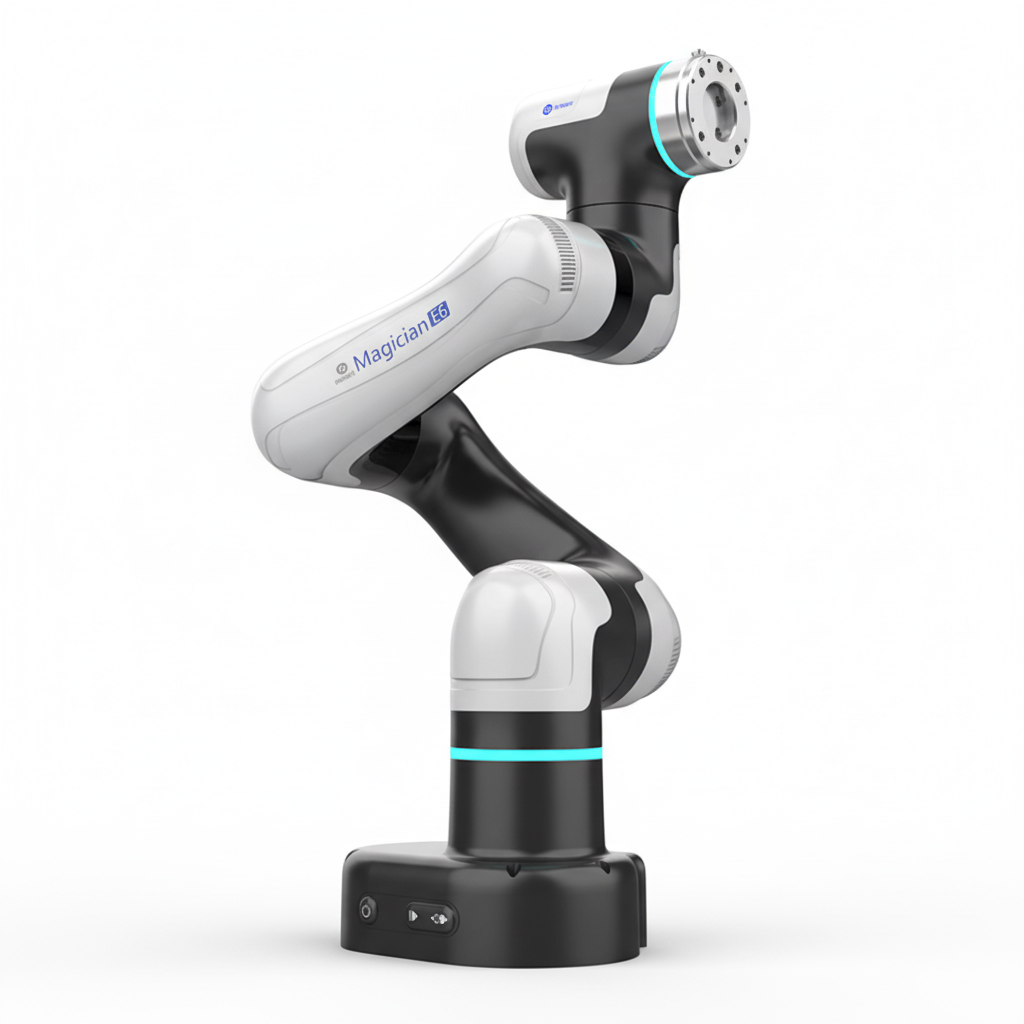

Dobot Magician E6 Hero

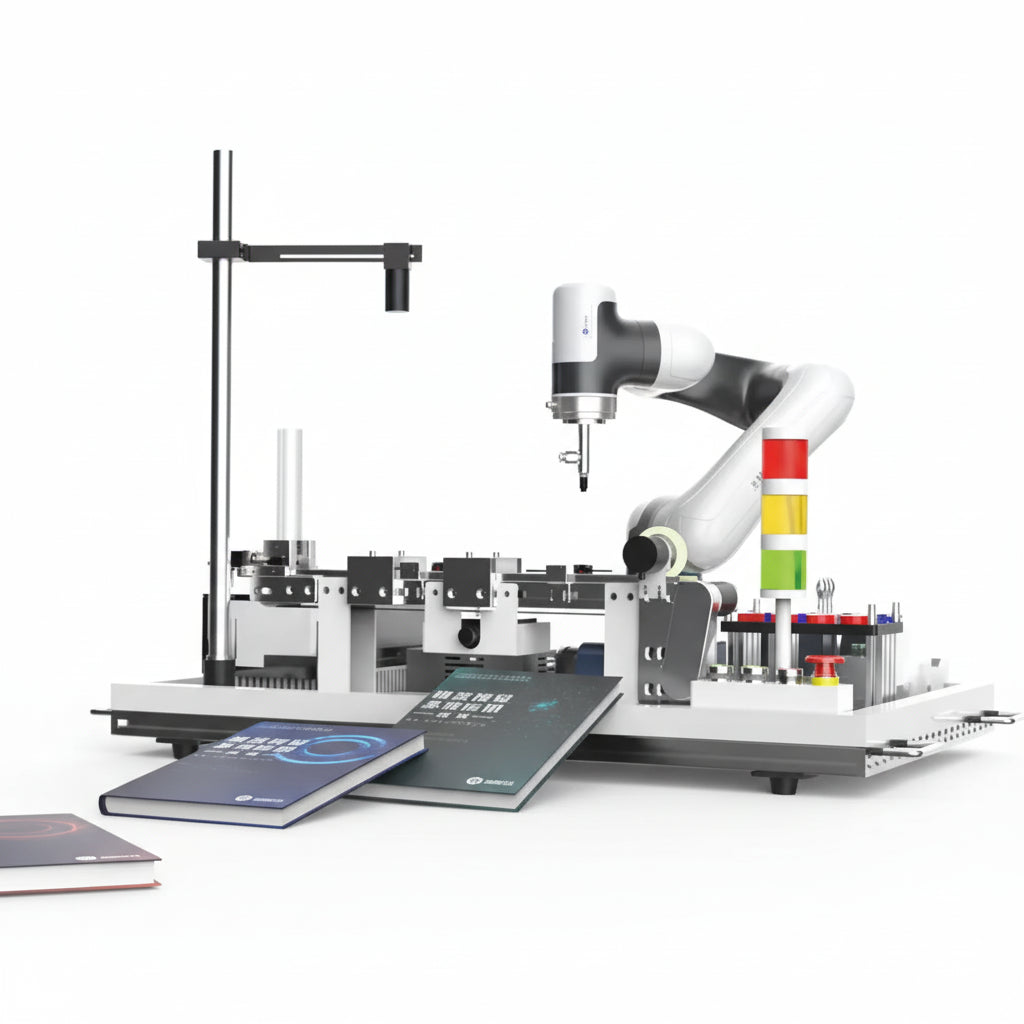

The DOBOT Magician E6 is a desktop-grade 6-axis cobot designed for education and scientific research. It accurately simulates automation scenarios and provides immersive learning experiences. With multiple interfaces for secondary development and robotics education materials, it is an ideal platform to explore AI, smart manufacturing, and advanced robotics.

Being a compact educational cobot, the Magician E6 possesses a yet decent reach coupled with a payload sufficient for the majority of precise lightweight tasks. Alongside good speed and repeatability, the machine provides support for different programming methods as well as intuitive and quick-to-learn control options, such as graphical programming interface and drag teaching, making it ideal both for beginners and experienced users looking for advanced automation challenges.

High Level of Safety

Streamlined body design with collision detection ensures safe operation. A light indicator ring shows real-time operating status.

Simple Deployment

Compact, lightweight, and flexible design allows easy desk installation.
Built-in control box enables plug-and-play wiring.

Easy to Use

Drag-to-teach programming with trajectory replay technology.
Supports graphical programming for quick learning.

Processing quality

The DOBOT Magician E6 possesses high reliability coupled with decent accuracy. It features 6 axes and is able to repeat the same movement within ±0.1 mm at a maximum speed of 0.5 m/s. In combination with 750 g payload, this lets the robot perform an ample range of lightweight precision tasks with ease.

Working Range

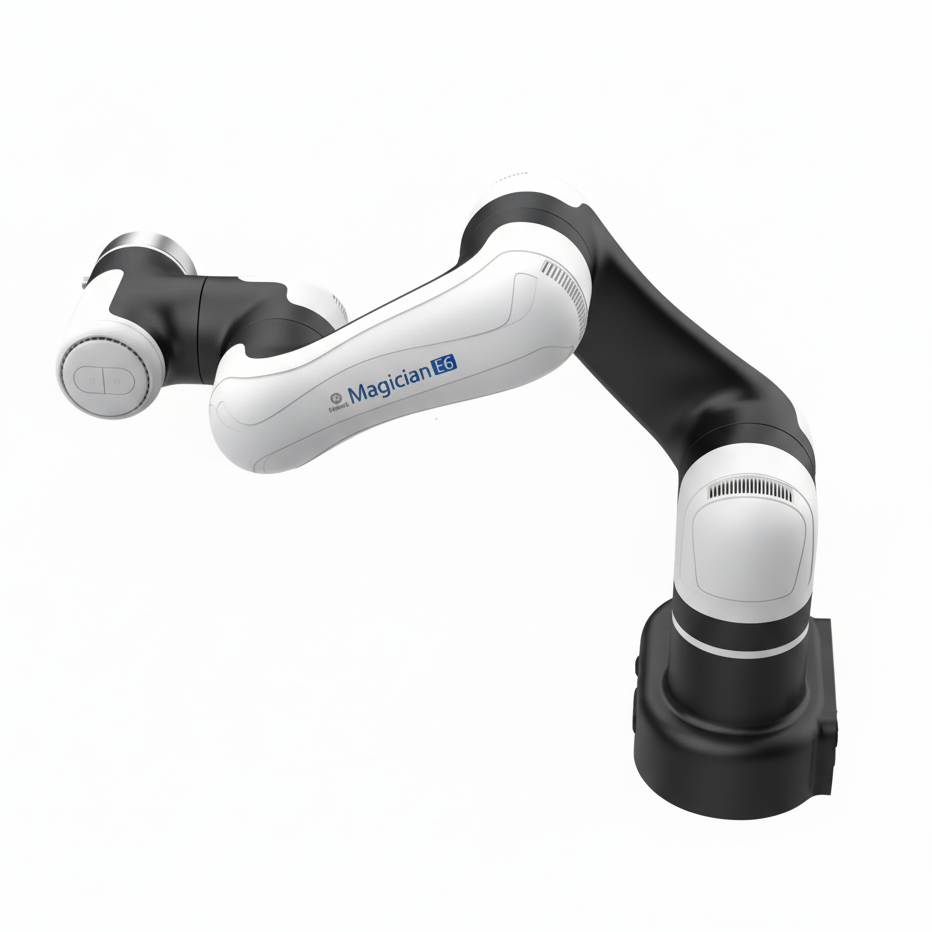

The DOBOT Magician E6 possesses a working radius of up to 450 mm in combination with a compact and lightweight joint body.
Its portable and ergonomic design with an integrated control box pairs effortlessly with G-type clamps enabling flexible and straightforward deployment without the need to alter layout of a designated area.

Robot Controls and Software

The DOBOT Magician E6 features an all-in-one compact design that integrates the control box and removes the need for additional wiring.

Thanks to TCP/IP and Modbus TCP support, the robot is capable of smooth integration into an existing production process.

Specifications

Weight	≤7.2 kg
Number of Axes	6
Payload	750 g
Working Radius	450 mm
Repeatability	±0.1 mm
Maximum Speed of TCP	0.5 m/s
Range of Joints	J1 : ±360°
	J2 : ±135°
	J3 : ±154°
	J4 : ±160°
	J5 : ±173°
	J6 : ±360°
Maximum Joint Speed	120°/s
Power	100V~240V AC, 50/60 Hz
Rated Voltage	48V DC, 5A
Power Consumption	130W
I/O Interface Communication	Ethernet, 2× for TCP/IP and Modbus TCP
I/O Interface	Arm Tip: DI ×2, DO ×2, 24V ×1, GND ×1
I/O Interface	Base: DI ×16, DO ×16, 24V ×4, GND ×4
I/O Power	24V, Max 2A, Max 0.5A per channel
External Interface	EMO ×1, ABZ encoder ×1, Power connector ×1
Control Software	DobotStudio Pro
IP Rating	IP20
Base Dimensions	162 mm × 120 mm × 103 mm
Working Environment	Temperature: 0–40°C, Humidity: 25–85% (non-condensing)
Noise	60 dB(A)
Installation Orientation	Desktop
Materials	Aluminum alloy, ABS plastic

Outline Dimensions

Downloads

User Manual	Download
Brochure	Download

Videos

What is the Magician E6 used for?

The Magician E6 is a desktop grade 6 axis collaborative robot designed for education and research. It enables hands-on learning of automation concepts with safe operation and lightweight tasks.

How can students program and control the robot?

It supports drag-to-teach, a graphical programming interface, and a built-in control box for plug-and-play operation.

What are the key performance specifications?

Payload is 750 g, working radius up to 450 mm, and repeatability within 0.1 mm at speeds up to 0.5 m/s.

How does the E6 connect to existing systems?

Ethernet TCP/IP and Modbus TCP interfaces enable smooth integration, and the unit's all-in-one design provides plug-and-play wiring.

What should I know about warranty and delivery?

Warranty, delivery, and returns vary by seller; please check the specific listing for policy details.
