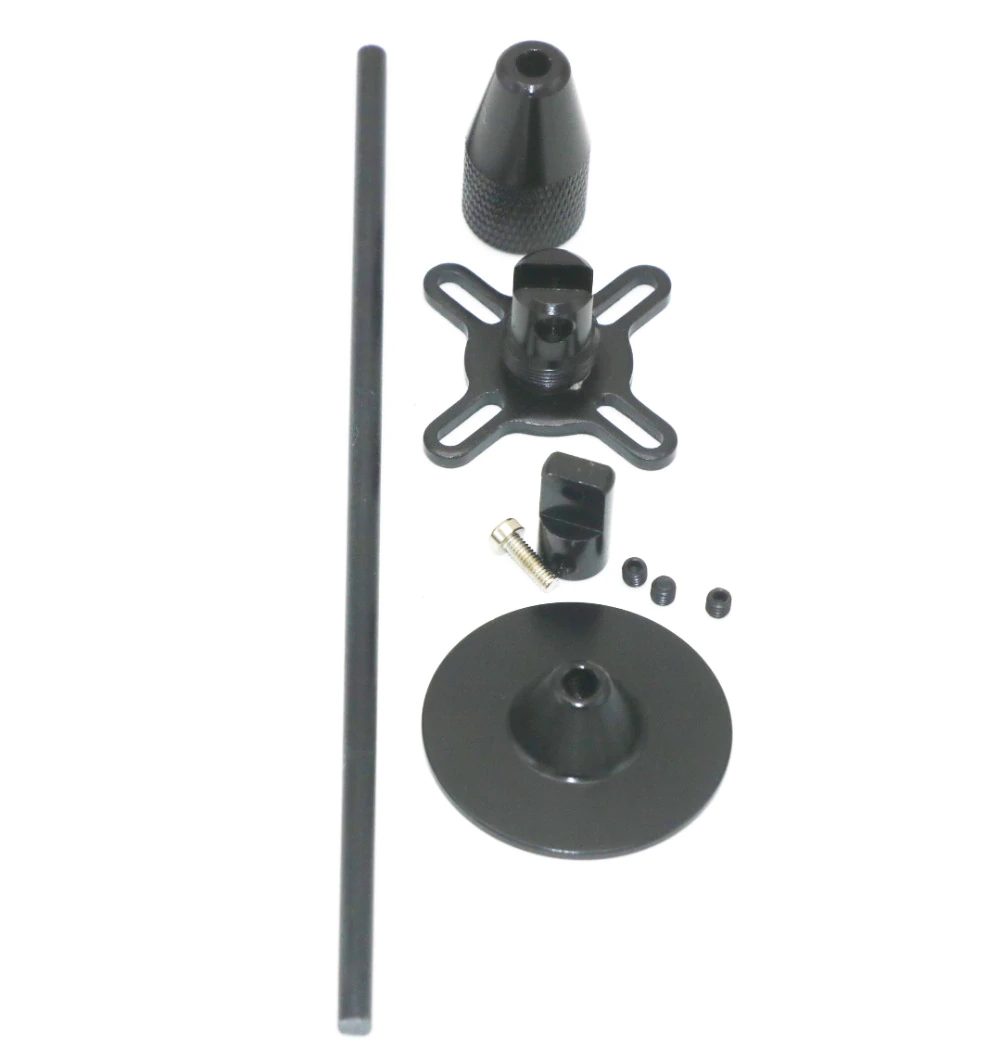

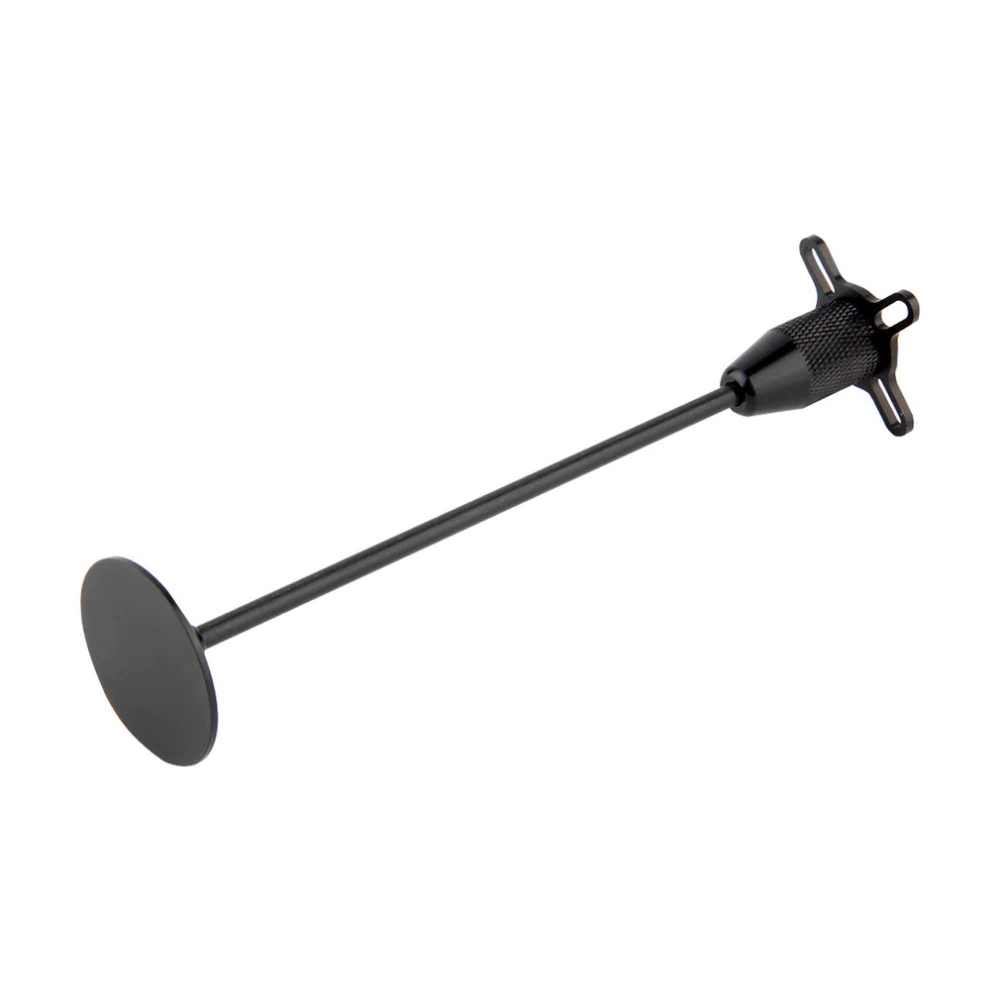

Mitoot 7M GPS with Stand

SKU: DRO2019

₹ 2,389.99

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

Mitoot 7M GPS with Stand₹ 2,389.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

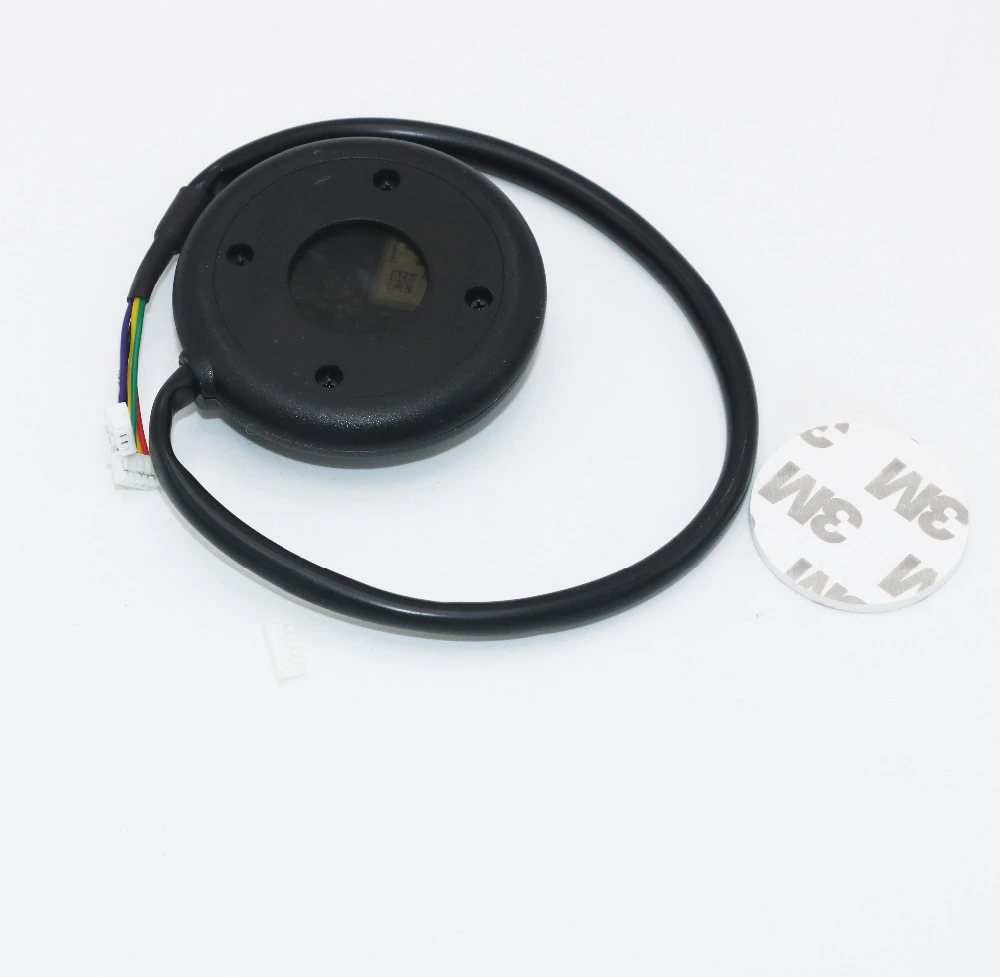

This is the high performance GPS module with HMC5883L compass. It can be mounted away from sources of interference. It features active circuitry for the ceramic patch antenna, rechargeable backup Capacitors for warm starts. 7M GPS module 10Hz update rate Build in 25 x 25 x 4mm ceramic patch antenna LNA and SAW chip 3.3V LDO low noise regulator UART (TTL) port with EMI protection 3V Rechargeable Backup Capacitors Fix indicator LEDs Reverse polarity protection for input power

Specifications

Default parameter
NMEA protocol
Baud rate : 9600
Nav rate : 1Hz
TIMEPULSE (fix LED) rate : 1Hz
Dimension: 53*14mm
Cable Length:215mm
Net Weight: 32g (include cable)

Resources

Datasheet

Tutorial

What interfaces are available to connect this module to a microcontroller?

The module provides a UART TTL port with EMI protection and uses NMEA protocol with a baud rate of 9600 and a navigation update rate of 1 Hz.

What are the physical dimensions and the antenna setup?

The device measures 53 by 14 mm and weighs 32 g including the cable. It includes a built in 25 x 25 x 4 mm ceramic patch antenna with LNA and SAW chip.

Does it include a compass and what power protection features exist?

Yes, it includes an HMC5883L compass. It also has reverse polarity protection for input power and a 3.3 V LDO low noise regulator with rechargeable backup capacitors for warm starts.

Are there any resources to help with integration and setup?

Yes, the product is supported with a datasheet and a tutorial to assist with integration and usage.

What indicators are available on the module and how can I verify a GPS fix?

Fix indicator LEDs are provided to show GPS fix status, helping you know when a valid position is available.
