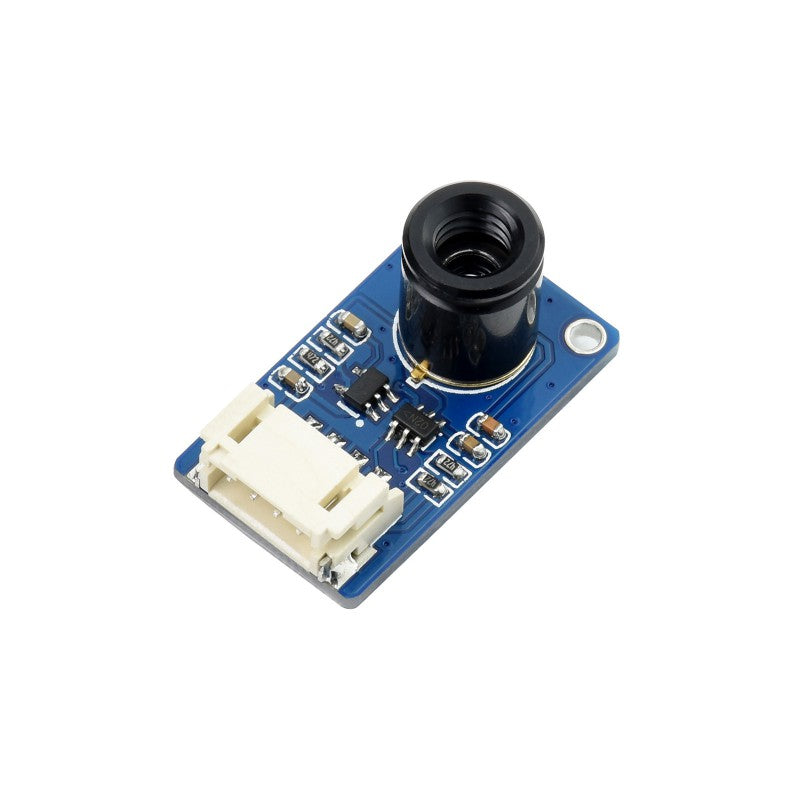

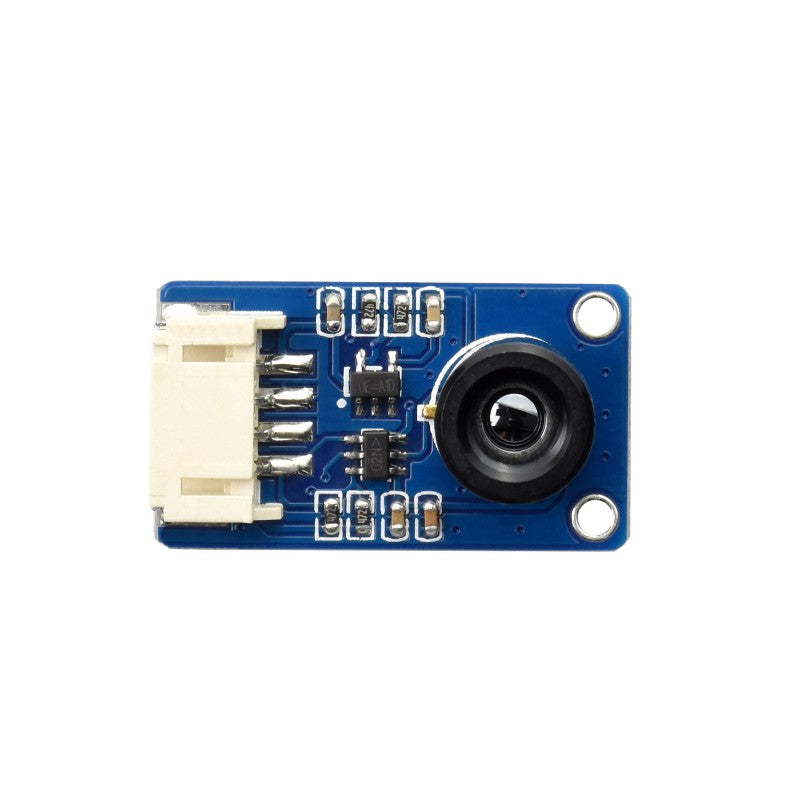

MLX90640 IR Array Thermal Imaging Camera, 32Ɨ24 Pixels, 55Ā° FOV

SKU: WVSH0006

ā‚¹ 7,249.99 ā‚¹ 8,999.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
MLX90640 IR Array Thermal Imaging Camera, 32Ɨ24 Pixels, 55Ā° FOVā‚¹ 7,249.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

IR Array Thermal Imaging Camera

MLX90640, 32Ɨ24 IR Array

Small Size, Non-Contact, Low Cost

Ā

Features

TheĀ MLX90640-D55 Thermal CameraĀ is a small size, non-contact, and low cost IR array thermal imaging camera, with 32Ɨ24 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.

  • Adopts MLX90640 far-infrared thermal sensor array, 32Ɨ24 pixels
  • Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
  • Noise Equivalent Temperature Difference (NETD) 0.1KĀ RMS@1HzĀ refresh rate
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Programable frame rate 0.5ļ½ž64Hz (0.25ļ½ž32FPS)
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Typical applications:

  • High precision non-contact temperature measurements
  • IR thermal imaging devices, IR thermometers
  • Smart home, intelligent building, intelligent lighting
  • Industrial temperature control, security & safety, intrude/movement detection

Specifications

OPERATING VOLTAGE 3.3V/5V CURRENT < 23mA
FIELD OF VIEW (FOV) 55Ā° Ɨ 35Ā° ABSOLUTE ACCURACY Ā±2ā„ƒ (ambient temp. 0 ~ 50ā„ƒ)
COMMUNICATION BUS I2C (0x33 by default) REFRESH RATE 0.5~64Hz (0.25ļ½ž32FPS)
TARGET TEMPERATURE RANGE -40 ~ 300ā„ƒ OPERATING TEMPERATURE -40 ~ 85ā„ƒ
DIMENSIONS 28 Ɨ 16mm MOUNTING HOLE SIZE 2.0mm

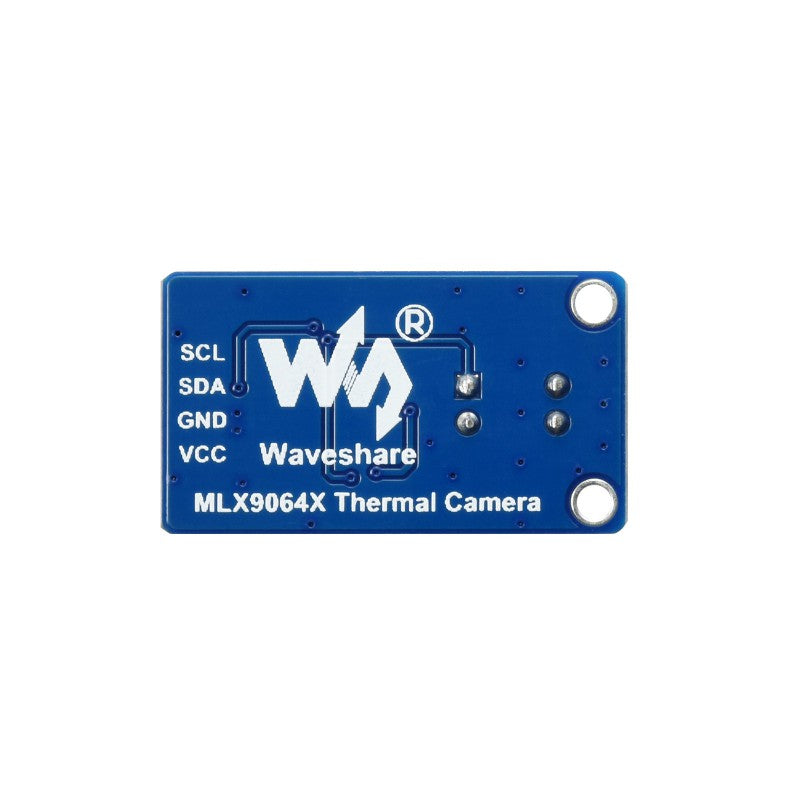

I2C Control Interface

Supports Host Boards Including Raspberry Pi/Arduino(ESP32)/STM32...

VCC 3.3V/5V power input
GND GND
SDA connects to MCU I2C data pin
SCL connects to MCU I2C clock pin

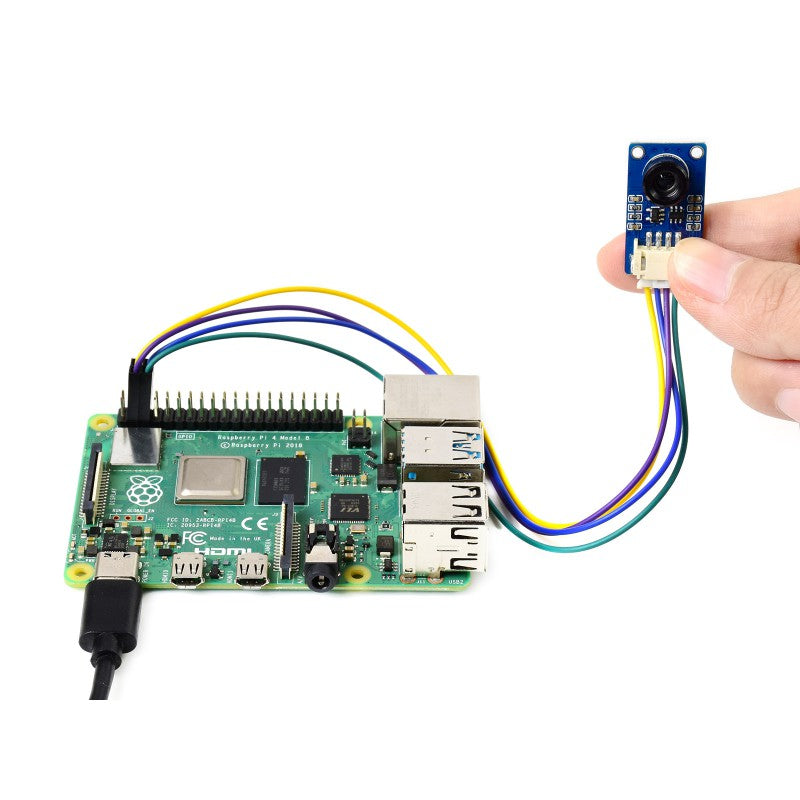

Demonstration

Ā
for reference ONLY, Raspberry Pi is NOT included.

Dimensions

Resources


Package Contains:

  1. 1x MLX90640-D55 Thermal Camera
  2. 1x PH2.0 4PIN wire

What is the resolution and field of view of this camera?
It uses a 32 by 24 IR array. The field of view is listed as 55 degrees by 35 degrees, enabling thermal imaging over a wide area.
How does it interface and what power does it require?
The device communicates over I2C with a default address of 0x33 and operates on 3.3V or 5V supply.
What are the frame rate and temperature range specifications?
Programmable frame rate ranges from 0.5 to 64 Hz (0.25 to 32 FPS). The camera supports target temperatures from -40 to 300 Celsius.
What resources are included to get started?
The package includes development resources and a manual with examples for Raspberry Pi, Arduino ESP32, and STM32.
Is warranty or return information provided for this product?
Warranty and return terms are not specified in the product listing.
