MLX90641 IR Array Thermal Imaging Camera, 16×12 Pixels, 55° FOV, I2C

SKU: WVSH0005

₹ 6,299.99 ₹ 8,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
MLX90641 IR Array Thermal Imaging Camera, 16×12 Pixels, 55° FOV, I2C₹ 6,299.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

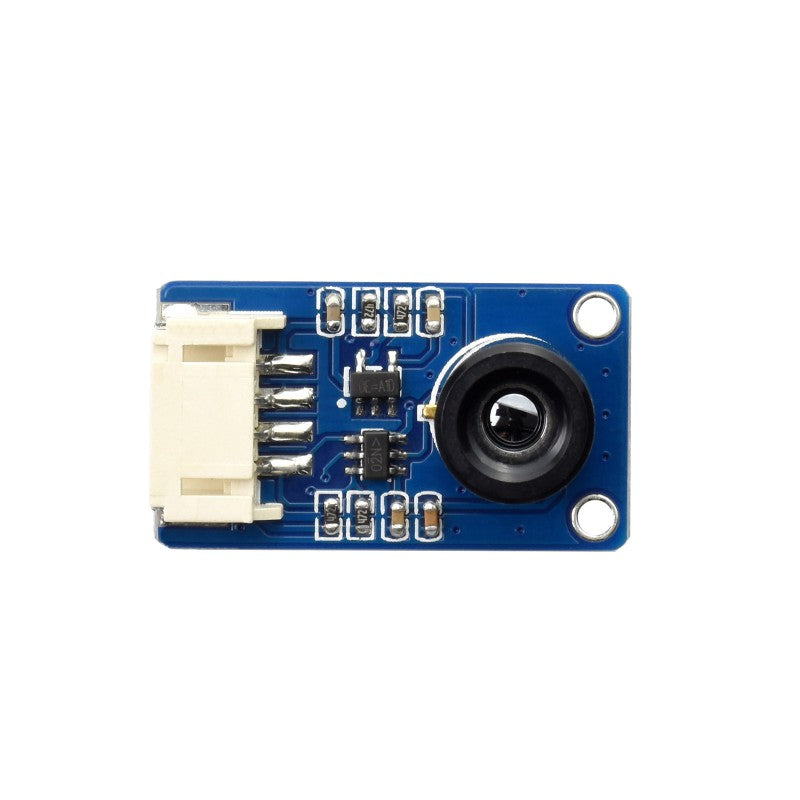

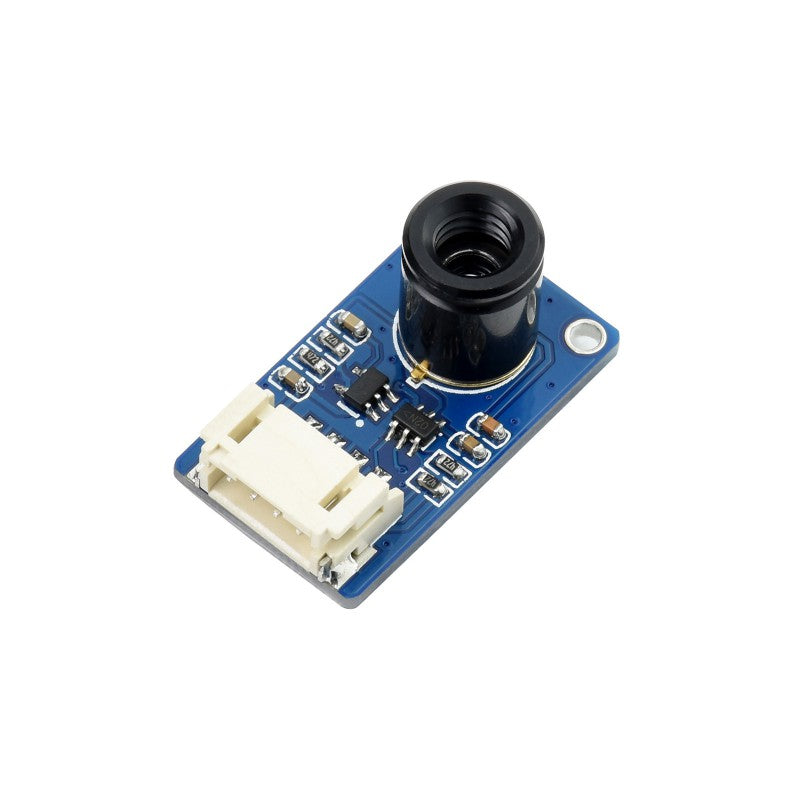

MLX90641 IR Array Thermal Imaging Camera, 16×12 Pixels, 55° Field Of View, I2C Interface


Features

The MLX90641-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, with 16×12 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.

  • Adopts MLX90641 far-infrared thermal sensor array, 16×12 pixels
  • Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
  • Noise Equivalent Temperature Difference (NETD) 0.1K RMS@4Hz refresh rate
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Programable frame rate 0.5～64Hz (0.25～32FPS)
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Typical applications:

  • High precision non-contact temperature measurements
  • IR thermal imaging devices, IR thermometers
  • Smart home, intelligent building, intelligent lighting
  • Industrial temperature control, security & safety, intrude/movement detection

Specifications


OPERATING VOLTAGE 3.3V/5V CURRENT ≈12mA
FIELD OF VIEW (FOV) 55° × 35° ABSOLUTE ACCURACY ±2℃ (ambient temp. 0 ~ 50℃)
COMMUNICATION BUS I2C (0x33 by default) REFRESH RATE 0.5~64Hz (0.25～32FPS)
TARGET TEMPERATURE RANGE -40 ~ 300℃ OPERATING TEMPERATURE -40 ~ 125℃
DIMENSIONS 28 × 16mm MOUNTING HOLE SIZE 2.0mm

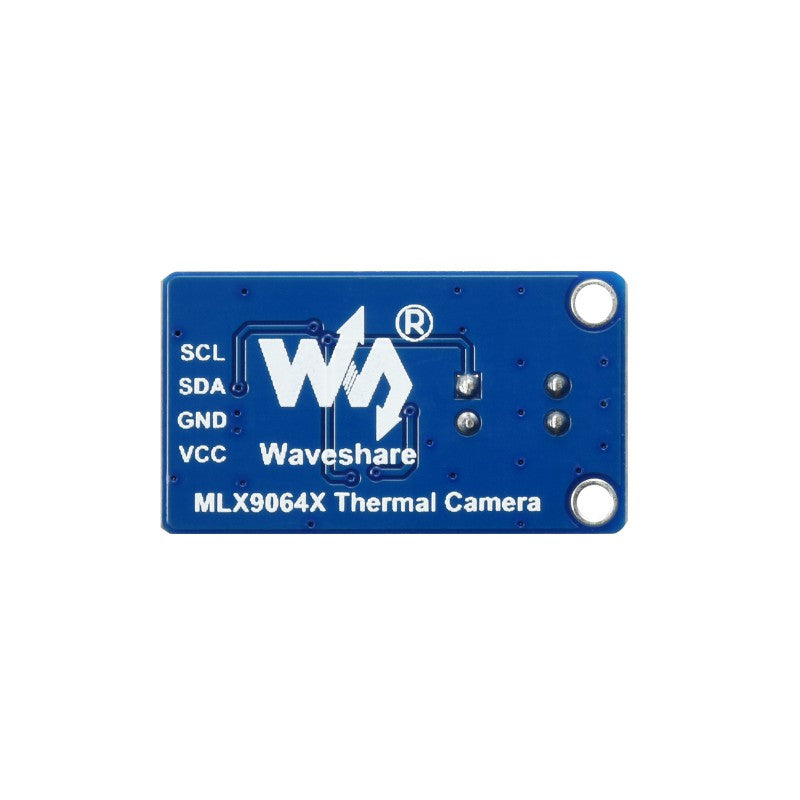

I2C Control Interface

Supports Host Boards Including Raspberry Pi/Arduino(ESP32)/STM32...

VCC 3.3V/5V power input
GND GND
SDA connects to MCU I2C data pin
SCL connects to MCU I2C clock pin

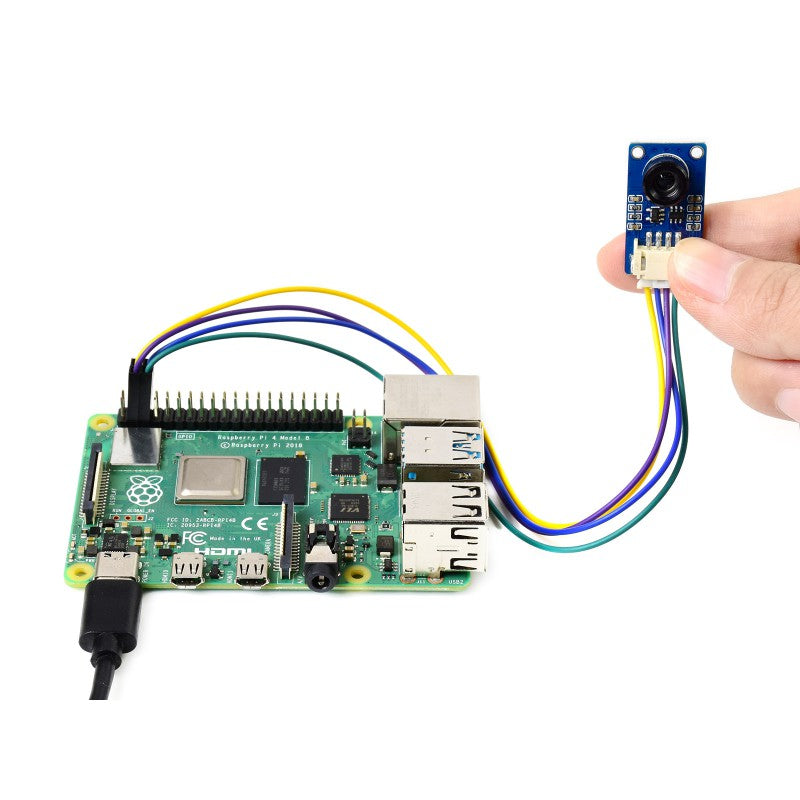

Demonstration


for reference ONLY, Raspberry Pi is NOT included.

Dimensions

Resources


Package Contains:

  1. 1x MLX90641-D55 Thermal Camera
  2. 1x PH2.0 4PIN wire
What is the resolution and field of view of this thermal camera?
It uses a 16 by 12 pixel sensor with a field of view of 55 degrees by 35 degrees.
What interfaces and power options are supported?
The device communicates over I2C with a default address 0x33 and supports 3.3V or 5V operation with an onboard voltage translator.
What is the programmable frame rate and temperature range?
Frame rate can be set from 0.5 to 64 Hz and the target temperature range is -40 to 300 degrees Celsius.
Is this module compatible with common development boards?
Yes, it provides resources and examples for Raspberry Pi, Arduino ESP32 and STM32 and is designed for easy integration via I2C.
What is included in the package and are warranty details provided?
The package includes 1x MLX90641-D55 Thermal Camera and 1x PH2.0 4PIN wire. Warranty information is not specified in the description.
A
Admin
Welcome to the discussion thread for MLX90641 IR Array Thermal Imaging Camera, 16×12 Pixels, 55° FOV, I2C
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Camera Modules → Cameras & LIDARs → Thermal Cameras →

Category: View similar items (MLX90641)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

MLX90641 IR Array Thermal Imaging Camera, 16×12 Pixels, 55° Field Of View, I2C Interface


Features

The MLX90641-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, with 16×12 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.

  • Adopts MLX90641 far-infrared thermal sensor array, 16×12 pixels
  • Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
  • Noise Equivalent Temperature Difference (NETD) 0.1K RMS@4Hz refresh rate
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Programable frame rate 0.5～64Hz (0.25～32FPS)
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Typical applications:

  • High precision non-contact temperature measurements
  • IR thermal imaging devices, IR thermometers
  • Smart home, intelligent building, intelligent lighting
  • Industrial temperature control, security & safety, intrude/movement detection

Specifications


OPERATING VOLTAGE 3.3V/5V CURRENT ≈12mA
FIELD OF VIEW (FOV) 55° × 35° ABSOLUTE ACCURACY ±2℃ (ambient temp. 0 ~ 50℃)
COMMUNICATION BUS I2C (0x33 by default) REFRESH RATE 0.5~64Hz (0.25～32FPS)
TARGET TEMPERATURE RANGE -40 ~ 300℃ OPERATING TEMPERATURE -40 ~ 125℃
DIMENSIONS 28 × 16mm MOUNTING HOLE SIZE 2.0mm

I2C Control Interface

Supports Host Boards Including Raspberry Pi/Arduino(ESP32)/STM32...

VCC 3.3V/5V power input
GND GND
SDA connects to MCU I2C data pin
SCL connects to MCU I2C clock pin

Demonstration


for reference ONLY, Raspberry Pi is NOT included.

Dimensions

Resources


Package Contains:

  1. 1x MLX90641-D55 Thermal Camera
  2. 1x PH2.0 4PIN wire
FAQ
What is the resolution and field of view of this thermal camera?
It uses a 16 by 12 pixel sensor with a field of view of 55 degrees by 35 degrees.
What interfaces and power options are supported?
The device communicates over I2C with a default address 0x33 and supports 3.3V or 5V operation with an onboard voltage translator.
What is the programmable frame rate and temperature range?
Frame rate can be set from 0.5 to 64 Hz and the target temperature range is -40 to 300 degrees Celsius.
Is this module compatible with common development boards?
Yes, it provides resources and examples for Raspberry Pi, Arduino ESP32 and STM32 and is designed for easy integration via I2C.
What is included in the package and are warranty details provided?
The package includes 1x MLX90641-D55 Thermal Camera and 1x PH2.0 4PIN wire. Warranty information is not specified in the description.
