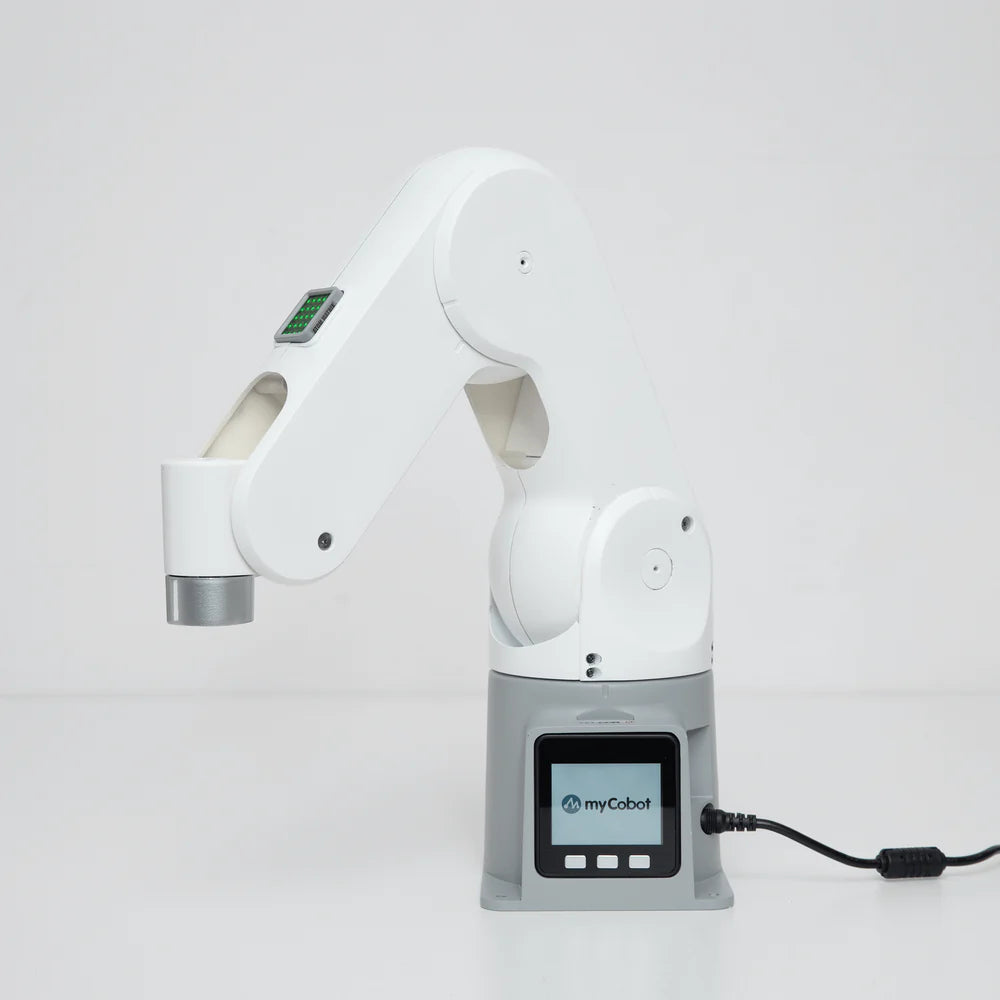

MyPalletizer 260 M5Stack - The Most Compact 4-Axis Robotic Arm (Dual Screen Version)

SKU: RBA1040

Regular price ₹ 57,999.99
Sale price ₹ 57,999.99 Regular price ₹ 94,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
Add Ons:
This is a pre order item. We will ship it when it comes in stock.

The new series - myPalletizer 4-axis robotic arm, jointly produced with M5STACK, is the world's first fully wrapped 4-axis robot arm, with an overall Fin-less design, safety wrapping, compact and easy to bring it everywhere.

The weight of myPalletizer is 960g with a payload of 300g and a working radius of 260mm. It is specially designed for makers and STEM educators. It also has rich expansion interfaces and unlimited development possibilities. Users can explore the cutting-edge scientific and technological knowledge of robots by applying varieties of AI kits, machine vision kits, composite robots kits, etc., and share inspiring innovative thinking.

Features

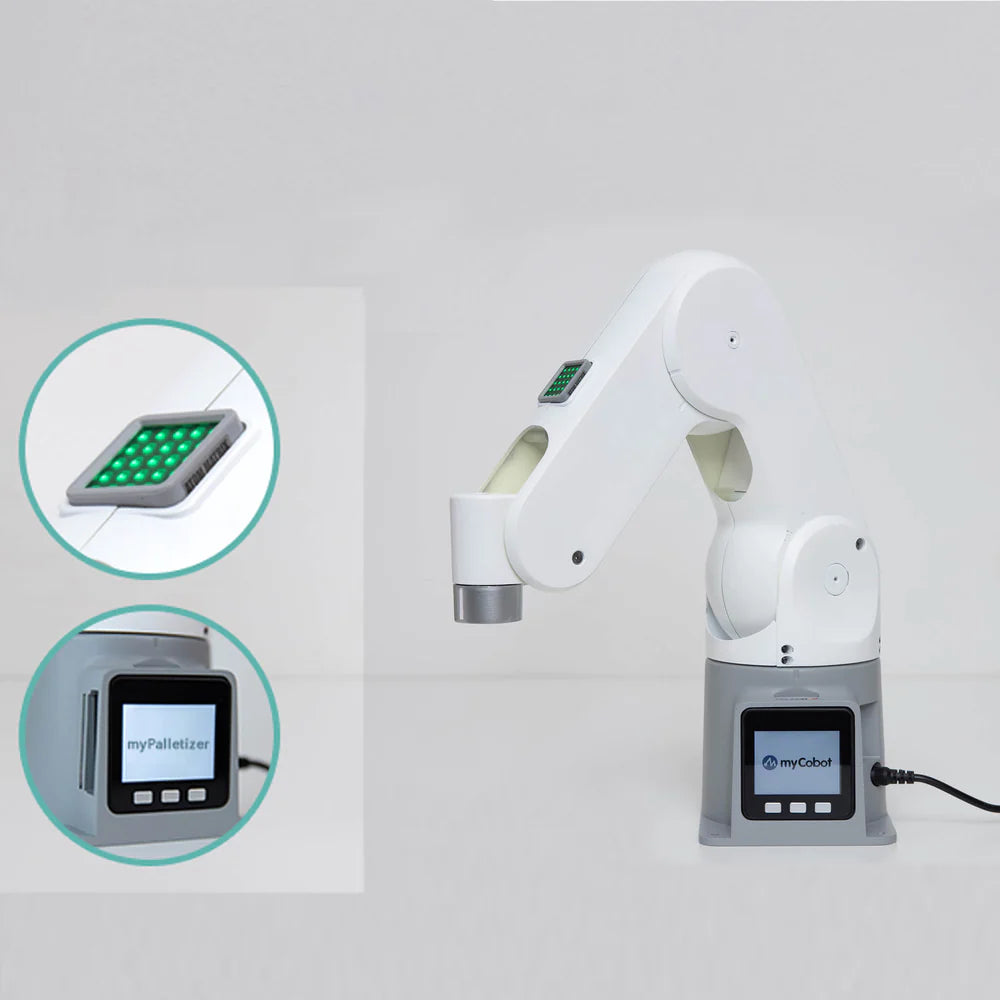

Dual-screen user interaction, Fully-wrapped

  • The robotic arm carries two display screens, which is easy to expand the interactive output of the application, and the gameplay is unlimited.
  • World’s first 4-axis full-body wrapped robotic arm, safe to use.

Fin-less design small and compact

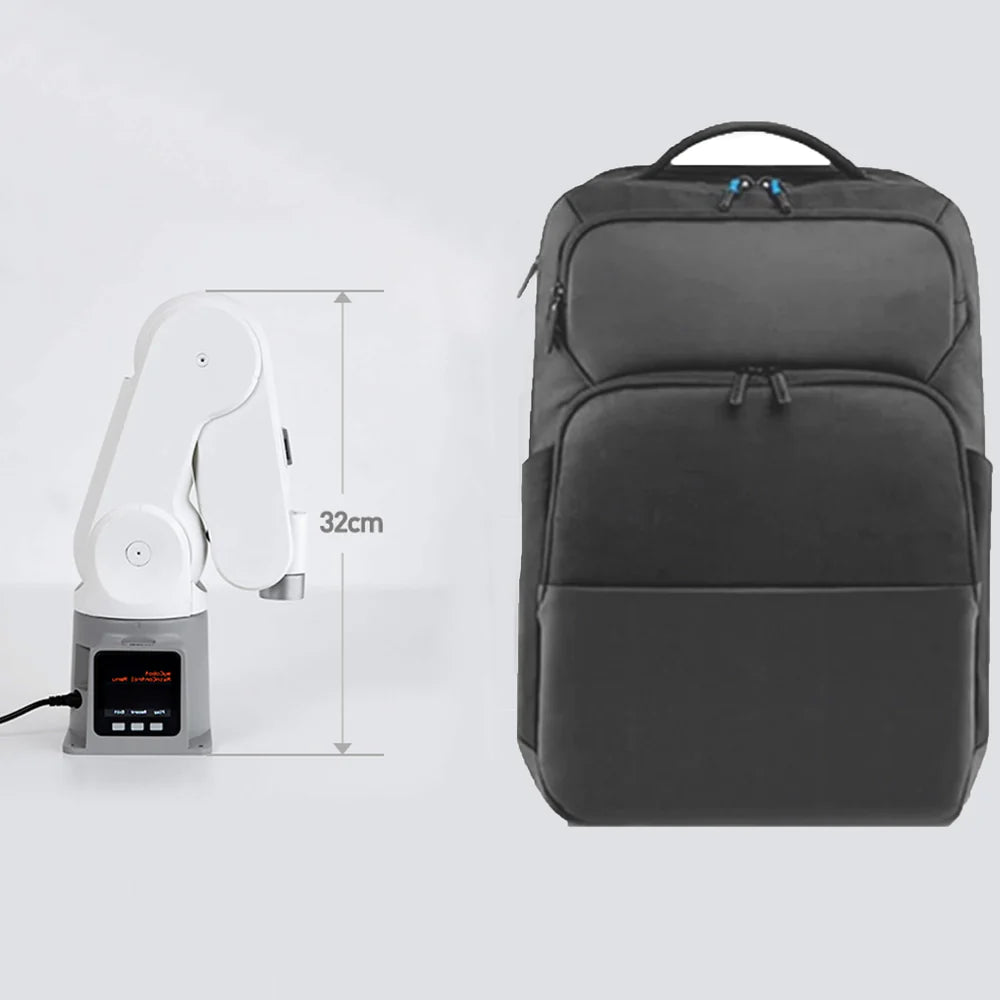

  • The motor-removing fin-less design can easily fit your Palletizer into the backpack, this innovative design makes it stands out from other traditional education 4-axis robotic arm.

LEGO ecology, expandable compatibility

  • The patented Lego hole design is shared globally, my series hardware ecological platform concept is implemented, and the end accessories are plug-and-play.

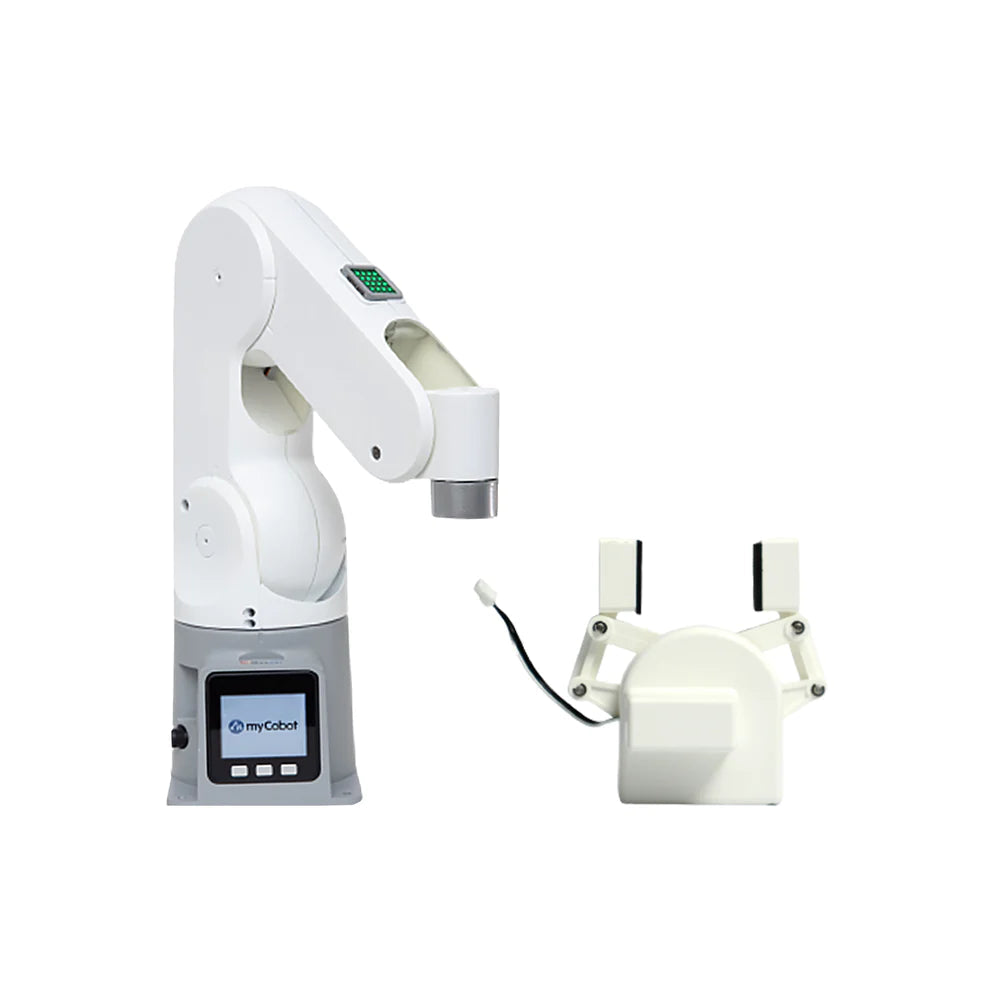

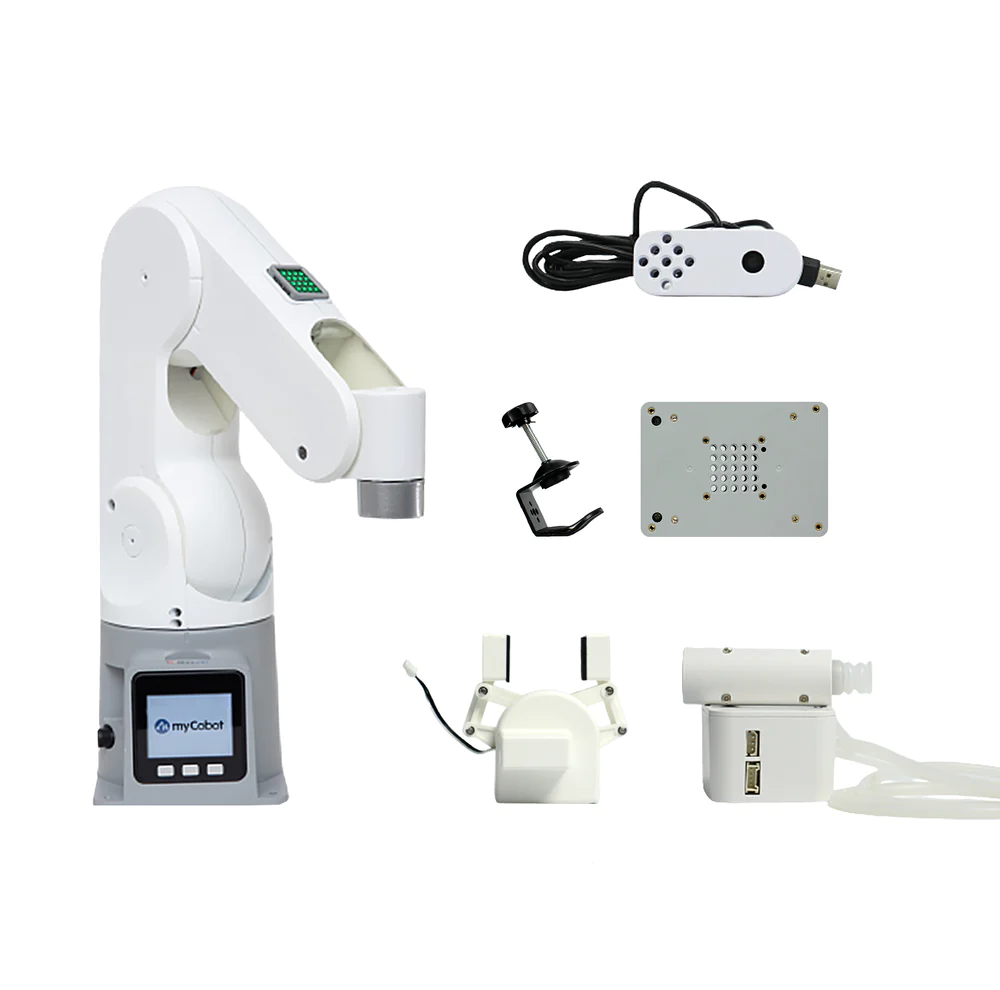

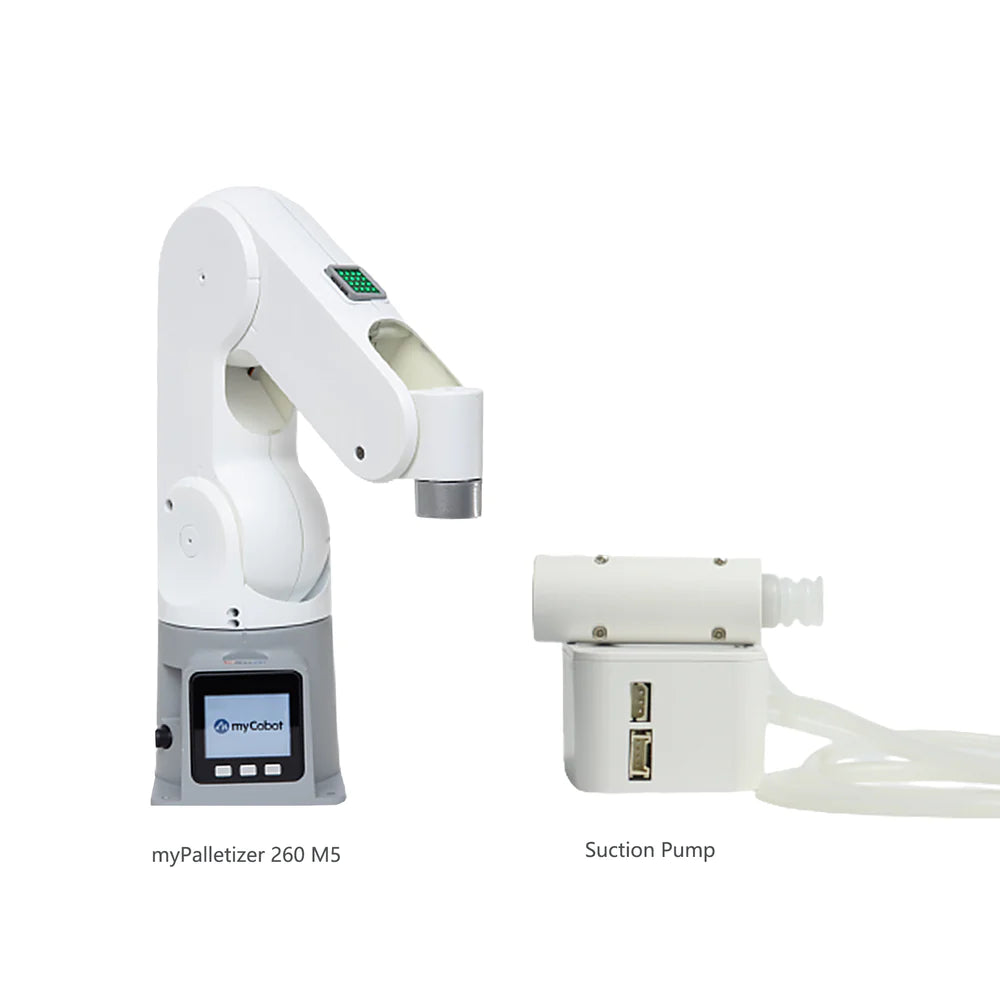

  • Fit with all accessories of My series, implementing the concept of my series hardware ecological platform including griper, suction pump, and more, unlimited imagination.



PARAMETERS

Four degrees of freedom joint motion, 260mm radius of motion, to help achieve your ideal control

EXCELLENT CONFIGURATION

myPalletizer is equipped with complicated and intelligent configuration, which highly satisfies your demands of
creative secondary developments. .

photo of myCobot Arduino with main features

EASY TO GET STARTED

It is easy to get started and use, and the graphical programming language allows you to easily start the journey of using the robotic arm..

photo of the bottom base of myPalletizer

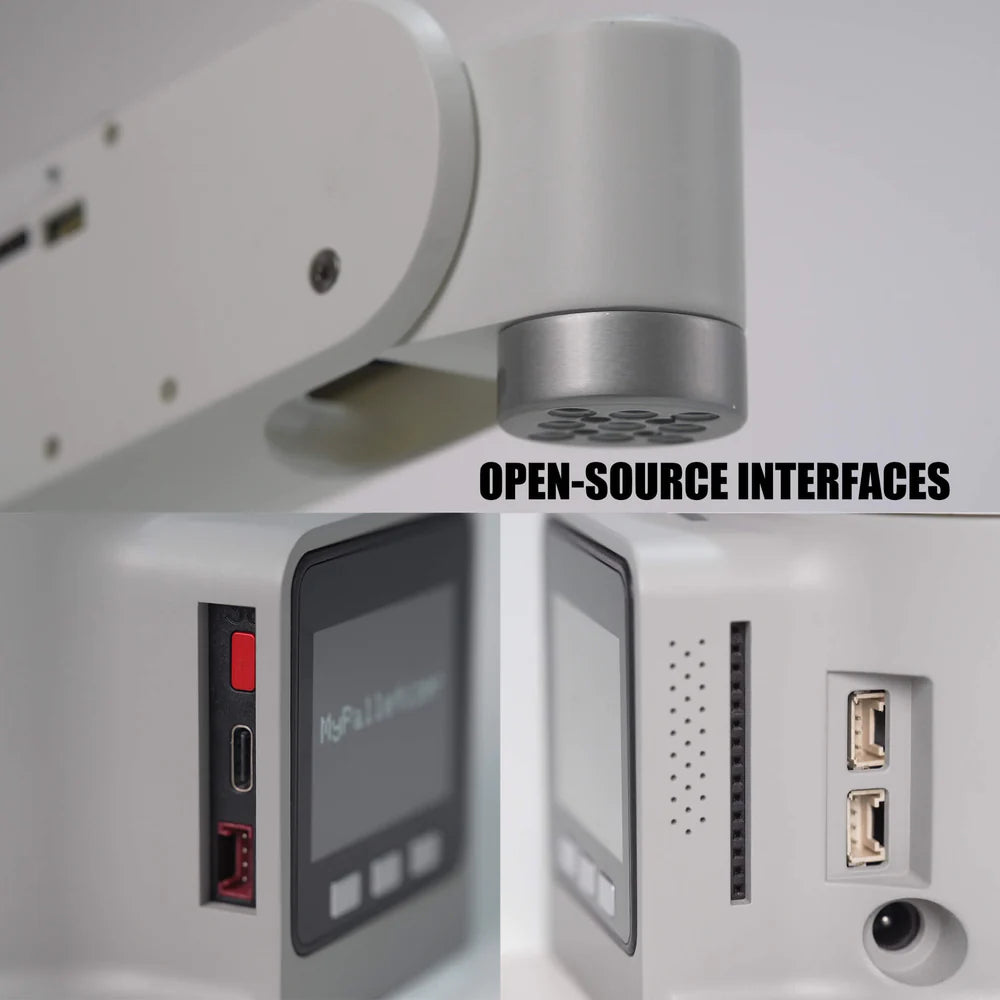

OPEN-SOURCE INTERFACES

Based on different kinds of applications, open-source to its interfaces and enables to achieve objects recognition, facial recognition, image recognition etc.

ROS SUPPORTING

Developing in ROS - the world's mainstream robot communication framework, you can control myPalletizer and conduct algorithm verificationin under a virtual environment, which reduces the requirements for the experimental environment and improves the experimental efficiency.

screenshoot of Ros operating window

Application

myCobot work as coffee barista
Intelligent palletizing

Simulate industrial robot arms, realize multiple palletizing applications, build your own mini smart warehouse, and realize more innovative thinking.

Engineer working with myCobot
Recognition and grabbing

The perfect combination of robotic arm and art creates unlimited possibilities.

myCobot fetch balls
Writing, drawing, and touching

Continuously print out photos, the perfect combination of artistic creation and robot.

Engineer working with myCobot

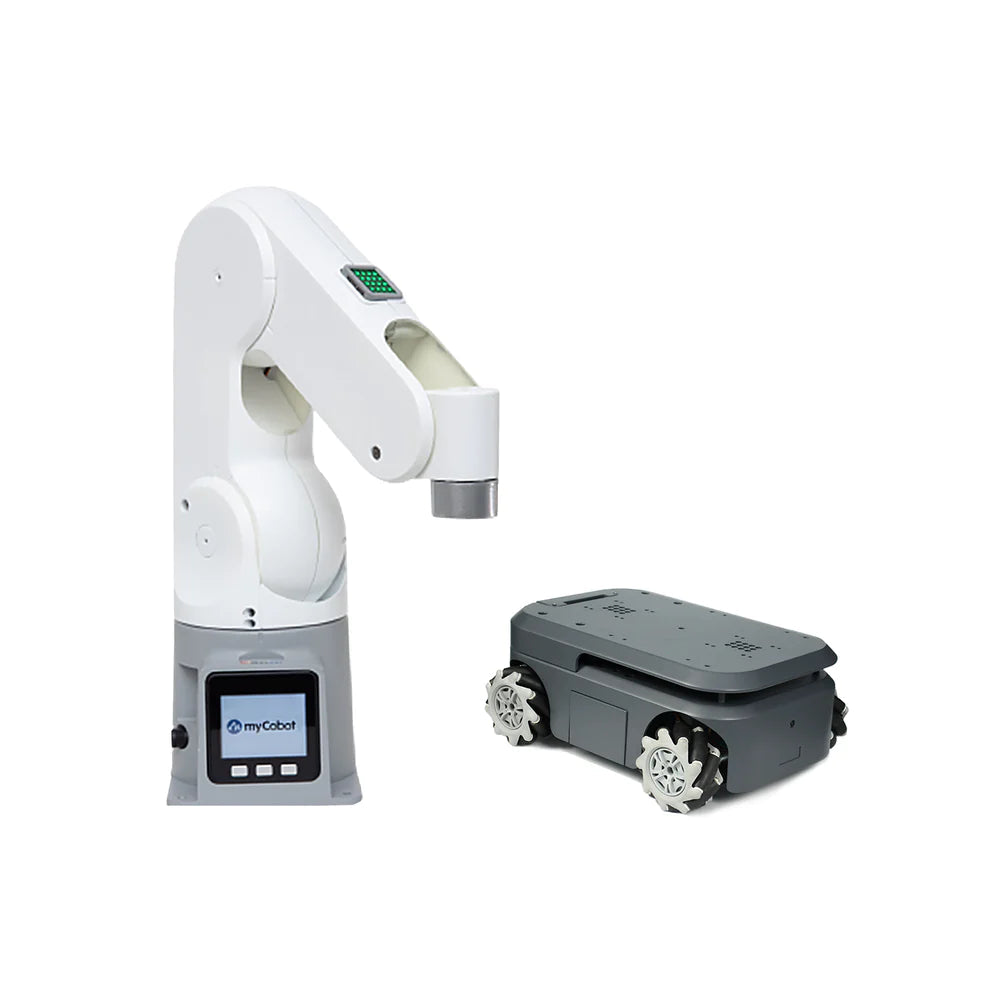

Compound robot

Compound robots with AGVs, allow working space to be fully expanded, enabling the completion of more tasks.



Specifications

Product myPalletizer
Model myPalletizer 260
Degree of Freedom 4
Repeatability ± 0.5mm
Payload 250g
Weight 960g
Working radius 260mm
Power Input 8.4 ~ 12V 5A
Motor type High precision magnetic encoder servo motor
Max speed 120°/ S
Control M5Stack Basic
Communication USB / type-C
Material Photosensitive resin SLA

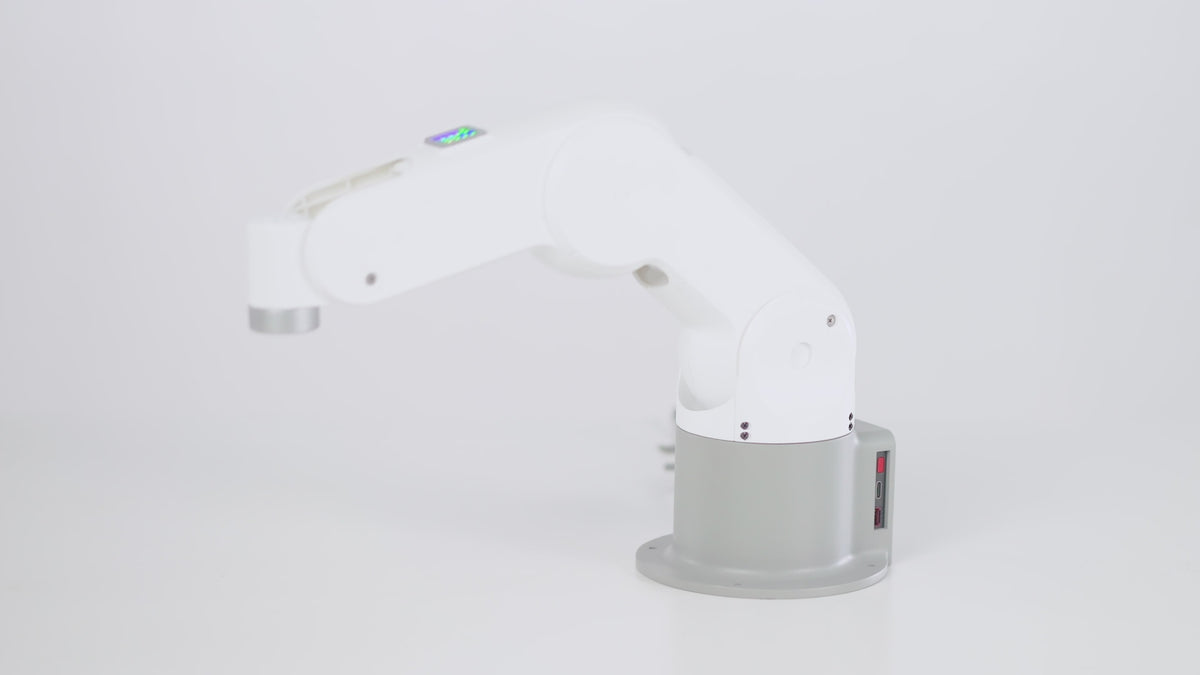

myPalletizer 260 M5 Unboxing

Warranty

  • Return service is limited to goods not opened within 7 days after the receipt date of logistics of the products. The freight or other risks incurred in return shall be borne by the customer.
  • Customers should provide the purchasing invoice and warranty card as the warranty certification when a warranty is being asked.
  • Elephant Robotics will be responsible for the hardware faults of products caused by normal use during the warranty period.
  • The warranty period starts from the date of purchase or the receipt date of the logistics.
  • The faulty parts from the products will be owned by Elephant Robotics, and the appropriate cost will be charged if necessary.

If you need to apply for warranty service, please contact our customer service first to confirm the detailed information.

During the warranty period of the delivered product, the company only repairs the malfunctions that occur during the normal use of the robot for free. However, in the following cases, the customer will be charged for repairs (even during the warranty period):

  • Damage or malfunction caused by incorrect use and improper use different from the contents of the manual.
  • Failure caused by unauthorized disassembly by the customer.
  • Damage caused by improper adjustment or unauthorized repairs.
  • Damage is caused by natural disasters such as earthquakes and floods.

Warranty Terms of Detailed Components

  • Servo motor
Warranty Period Warranty Services
≤1 month Elephant Robotics offers a free new servo motor and bear the freight.
1-3 months Elephant Robotics offers a free new servo motor, customs shall bear the freight.
≥3 month Customers need to buy it themselves.
  • Electrical Parts(M5Hardware
Warranty Period Warranty Services
≤3 months Customers need to send it back after disassembly, Elephant Robotics shall send a new one for free and bear the freight out and home.
3-6 months Customers need to send it back after disassembly and bear the freight out and home, Elephant Robotics shall send a new one for free.
≥6 months Customers need to buy it themselves.
  • Structure Parts,including shell parts
Warranty Period Warranty Services
≤12 months Elephant Robotics offers free new components, customs shall bear the freight.
≥12 months Customers need to buy it themselves.
