NAS Mini-Computer For CM4
Designed For Raspberry Pi Compute Module 4
Personal Network Storage Server
Ā
Features
- All-in-one Mini-Computer, mainly designed for home or small home office, but not limited to the above applications
- Out of the box, no expert knowledge of networking and storage systems required
- Built-in 2x SATA slots for installing 2.5-inch Solid State Drives
- 2-inch SPI LCD screen for real-time monitoring the working status of CM4: CPU, RAM, system disk usage, network speed and temperature, etc.
- Easy to use, convenient to online access the documents, videos, and music at any timeĀ Ā
Ā Ā
Specifications
| PROCESSOR * | Broadcom BCM2711 Quad-Core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
|---|---|
| RAM * | CM4104008: 4GB CM4102032: 2GB |
| EMMC FLASH * | CM4104008: 8GB CM4102032: 32GB |
| CONNECTIVITY | Dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE with onboard and external antenna options * |
| Gigabit Ethernet RJ45 connector | |
| 2 x USB 2.0 ports | |
| 2 x SATA slots (2.5inch SATA) | |
| TF card slot for Compute Module 4 Lite (without eMMC) variants | |
| HDMI Ć 1, supports 4K 30fps output | |
| OPERATING VOLTAGE | 5V DC |
* the CM4104008 or CM4102032 is optional. You can choose and purchase other variants ofĀ Compute Module 4Ā according to your needs
Ā
Built-In Dual Hard Drive Slots
Support Large Capacity HDD Storage
Ā Ā

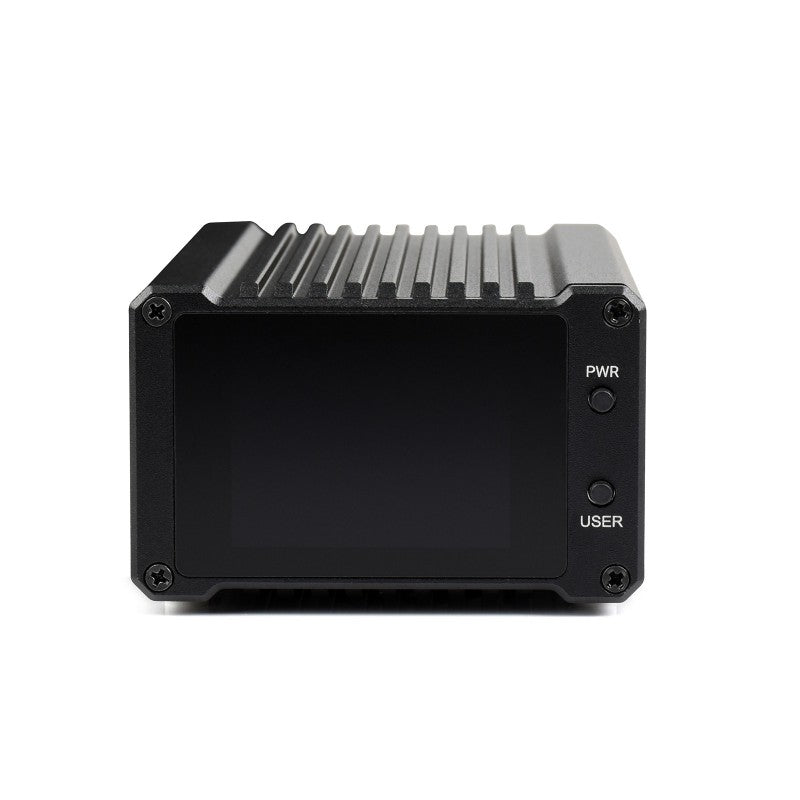

Comes With SPI 2inch LCD Display
For Monitoring The Working Status Of CM4 In Real-Time
Ā

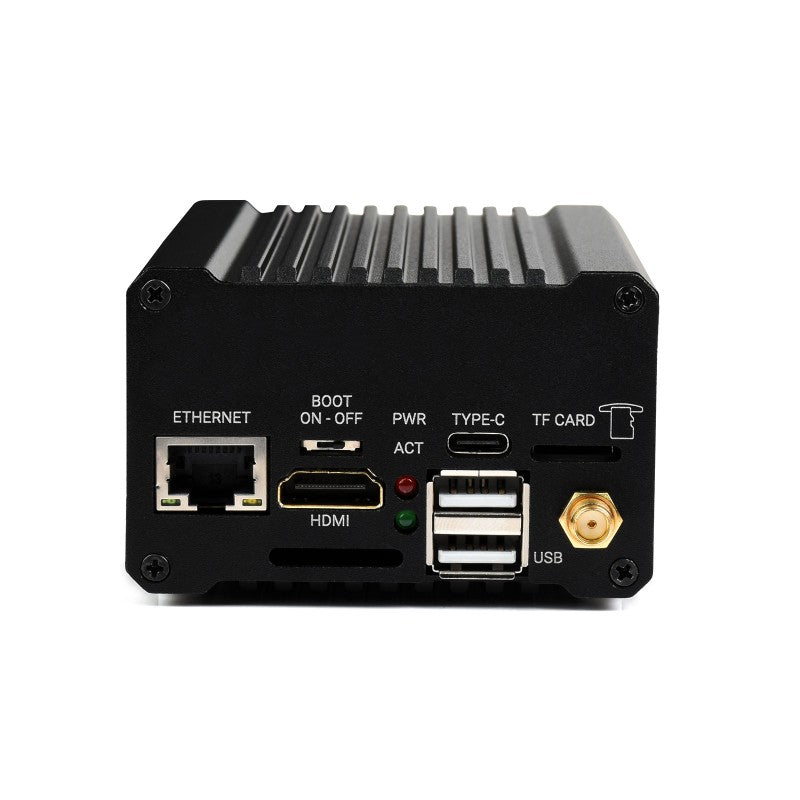

Rich Interfaces
Ā

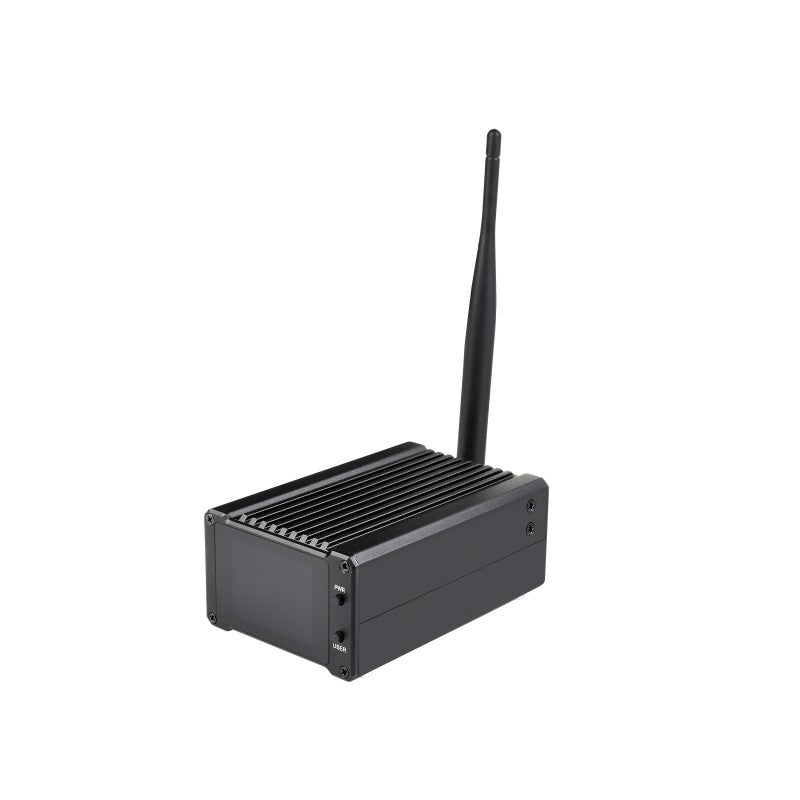

Aluminum Alloy Case Design
Alloy Case For Large Area Heat Dissipation, With Fan Vents And Nonskid Feet At The Bottom, Better Heat Dissipation And More Stable Placement
Ā
Precise Cut-Out With Clear Label
Each Cut-Out Is Completely Aligned With The Connector
Ā
Dimensions
Ā
Resources
WIKI:Ā www.waveshare.com/wiki/CM4-NAS-Double-Deck
Ā

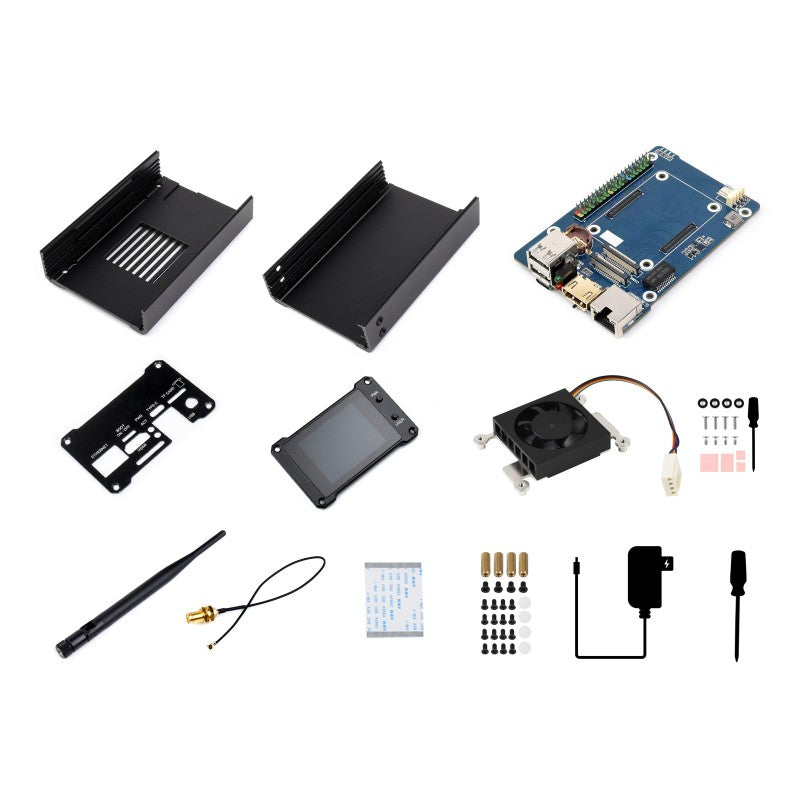

Package Contents:
CM4-NAS-Double-Deck
- Aluminum alloy case (2inch LCD included) x1
- CM4-NAS-Double-Deck x1
- CM4-FAN-3007 (fan screwpack and screwdriver included) x1
- Antenna x1
- IPEX to SMA cable ~20cm x1
- FPC 50PIN cable ~4cm x1
- Screws pack x1
- 5V 3A Type C power supply x1
- Screwdriver x1
What storage options does this NAS provide and how many drives can it support?
It provides 2 x SATA slots for 2.5 inch solid state drives, enabling dual drive storage.
Which Compute Module 4 variants are supported by this unit?
It supports CM4 variants CM4104008 and CM4102032, and other CM4 variants can be used according to your needs.
What information can the built in 2 inch SPI LCD display show?
It shows real time status such as CPU, RAM, system disk usage, network speed and temperature.
What are the connectivity options and ports available?
It offers dual band WiFi 802.11b/g/n/ac with Bluetooth 5.0 BLE, a Gigabit Ethernet RJ45 port, 2 USB 2.0 ports, an HDMI port that supports 4K 30fps, and a TF card slot.
What is included in the package and what power does it require?
Package contents include aluminum alloy case, CM4 NAS Double-Deck, CM4-FAN-3007, antenna, IPEX to SMA cable, FPC 50PIN cable, screws pack, and a 5V 3A Type C power supply. The unit is powered by a 5V DC input.
