AI Ready For Edge Analytics With 157 TOPS Performance
DSBOARD-ORNX comes with various connectivity options, including Gigabit Ethernet, USB 3.1, HDMI, and CAN, enabling seamless integration with a wide range of devices and systems. The NVIDIA Orin NX SOM provides the processing power and capabilities needed to support intensive data processing and analysis.
In addition to its compact size, DSBOARD-ORNX also features multiple expansion slots for adding peripherals and customizing the system to meet specific requirements. Its wide operating temperature range ensures reliable operation in challenging environments.

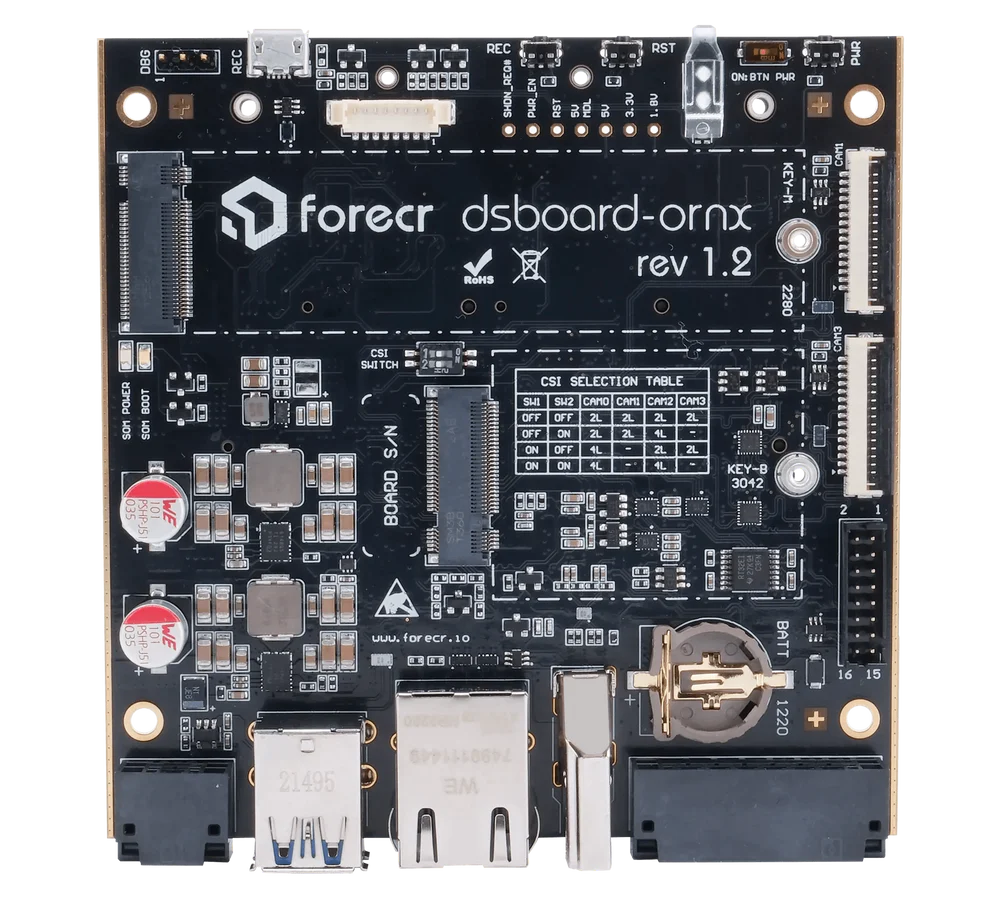

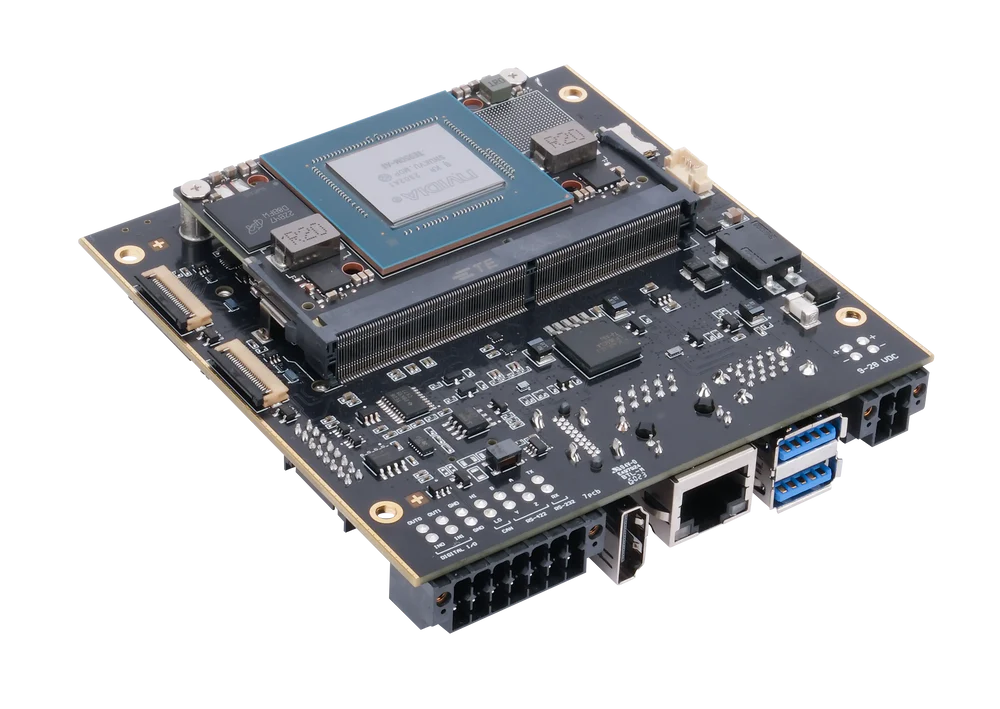

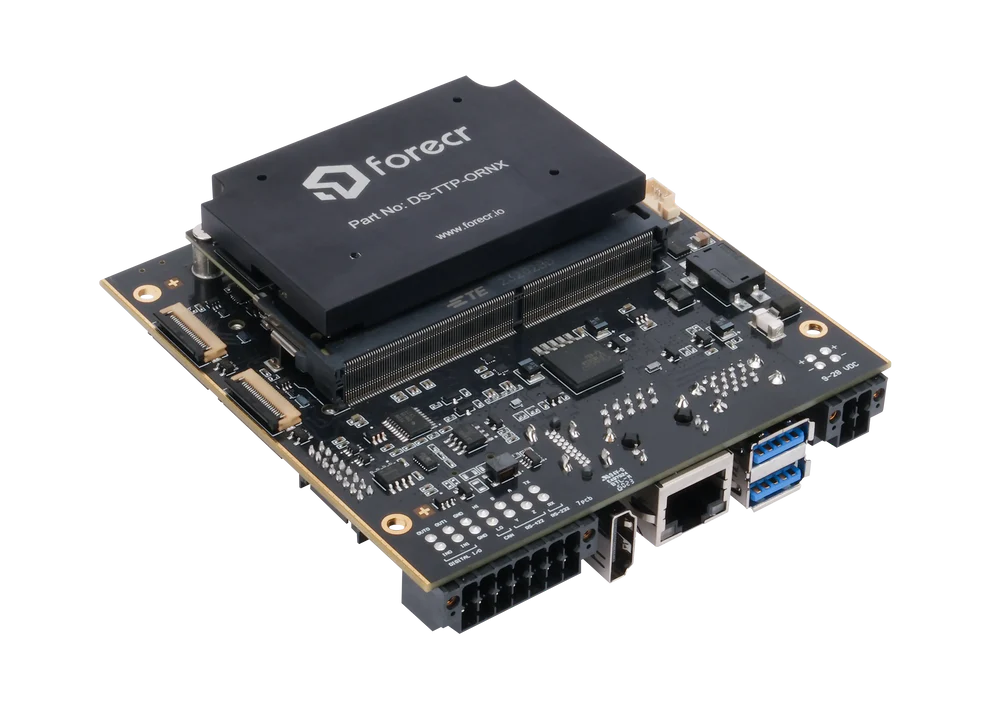

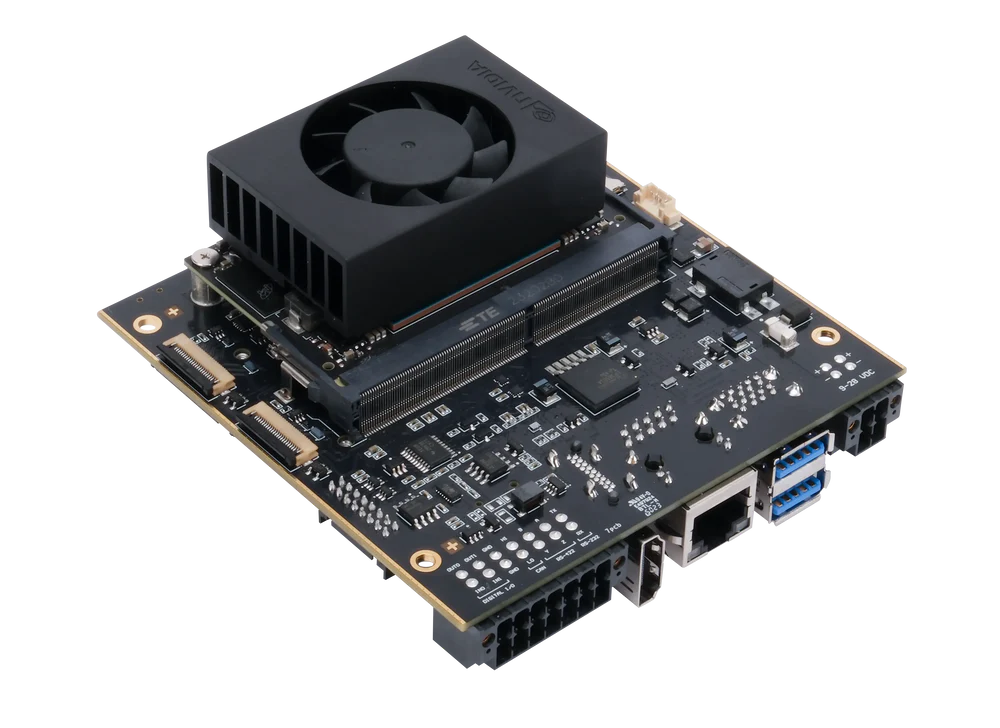

| High-Performance Carrier Board | The DSBOARD-ORNX is an industrial-grade carrier board powered by NVIDIA Jetson Orin Nano and Orin NX modules, delivering exceptional computing performance for robotics, autonomous systems, machine vision, and intelligent video analytics applications. |
| AI Ready for Edge Analytics | Supports up to 157 TOPS of AI performance, enabling real-time inference, edge analytics, machine learning workloads, and intelligent decision-making for next-generation AI applications. |
| Extensive Connectivity | Equipped with Gigabit Ethernet, 2 × USB 3.1 Type-A, HDMI 2.0, CAN Bus, and RS232/RS422 interfaces, ensuring seamless integration with industrial equipment, sensors, and peripherals. |
| Advanced Video Capabilities | Features HDMI 2.0 output with support for up to 4K Ultra HD resolution, providing crisp and detailed visual output for industrial automation, AI vision, and robotics applications. |

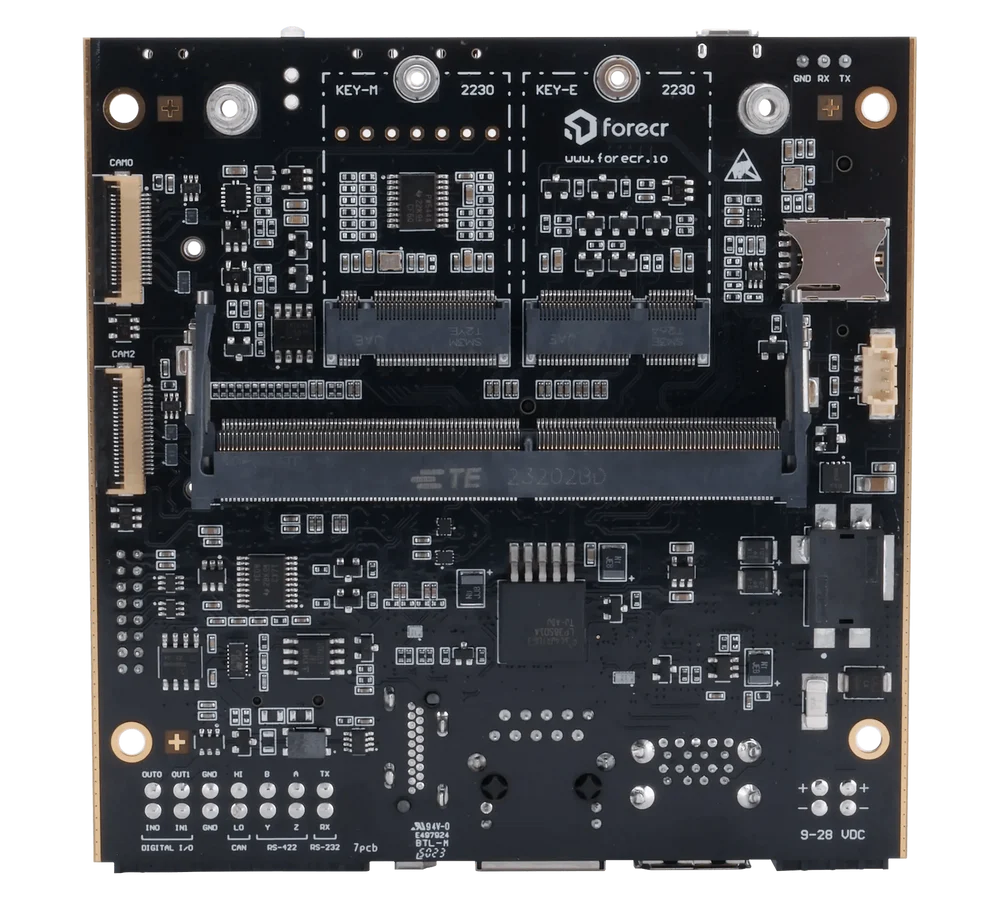

| Versatile Expansion | Includes M.2 Key-E, M.2 Key-B, and M.2 Key-M expansion slots, allowing flexible integration of wireless modules, storage devices, and application-specific hardware. |
| Reliable Industrial Operation | Designed for harsh industrial environments with support for operating temperatures from -25°C to +85°C and a wide 9V–28V DC input range, ensuring stable and reliable long-term operation. |
| Autonomous Vehicles | Accelerates the development of autonomous vehicles by providing high-performance AI computing for real-time sensor fusion, navigation, object detection, path planning, and intelligent decision-making, enabling safer and more efficient autonomous transportation systems. |
| Security & Surveillance | Enables advanced security and surveillance solutions through real-time analysis of video streams and sensor data, enhancing threat detection, situational awareness, monitoring accuracy, and rapid incident response capabilities. |
| Healthcare | Supports high-performance medical imaging, diagnostics, and AI-assisted healthcare applications, enabling faster image processing, more accurate diagnoses, and improved patient care outcomes in clinical and research environments. |
| Parameter | Specification |
|---|---|
| Supported Modules | NVIDIA Jetson Orin Nano 4GB / 8GB NVIDIA Jetson Orin NX 8GB / 16GB |
| Memory | 4GB 64-bit LPDDR5 / 8GB 128-bit LPDDR5 8GB 128-bit LPDDR5 / 16GB 128-bit LPDDR5 |
| Graphics Interface | 1 × HDMI 2.0 (Max Resolution: 3840 × 2160) |
| Interfaces | 1 × Gigabit Ethernet 2 × USB 3.1 Type-A 1 × CAN Bus 1 × RS232 1 × RS422 1 × microUSB 2.0 (Recovery) 2 × Digital Inputs 2 × Digital Outputs 2 × CSI 4-Lane or 4 × CSI 2-Lane |
| Wireless Communication | Wi-Fi / Bluetooth / LTE / 5G Connectivity via Extension Sockets |
| Power Supply | 9V – 28V DC |
| Extension Sockets | 1 × M.2 Key-E 1 × M.2 Key-B 1 × SIM Slot 1 × 5V Fan Header 1 × SPI 1 × I²S 1 × I²C |
| Mass Storage | 2 × M.2 Key-M SSD Slots |
| Operating Temperature | -25°C to +85°C |
| Dimensions | 100 mm × 100 mm |
| Weight | 85 g |
| Operating System | Ubuntu Linux 20.04 / 22.04 |
| JetPack Support | JetPack 5.x / 6.x |
| Datasheet | View |
| 3D Model | View |
| JetPack 5.x Installation | View |
| JetPack 6.x Installation | View |
| Getting Started Guide | View |
| Connector Definitions | View |
| User Manual | View |
