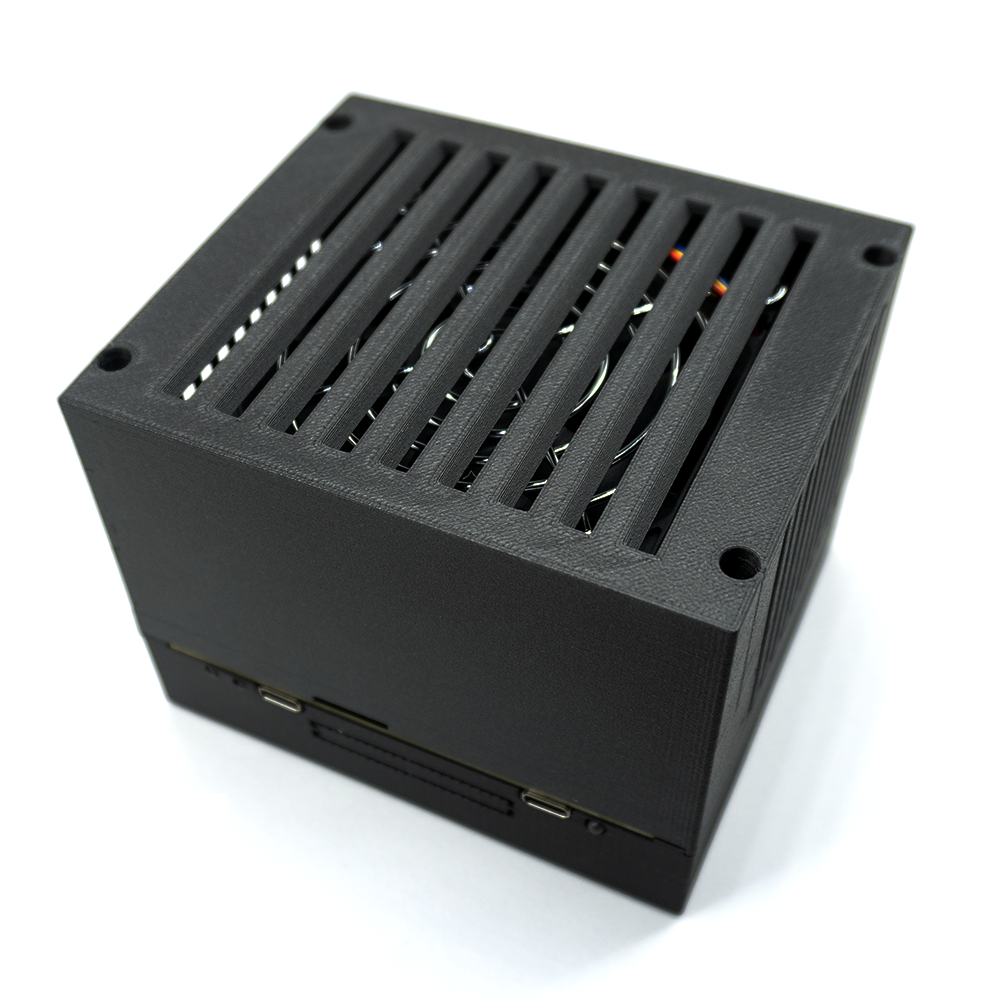

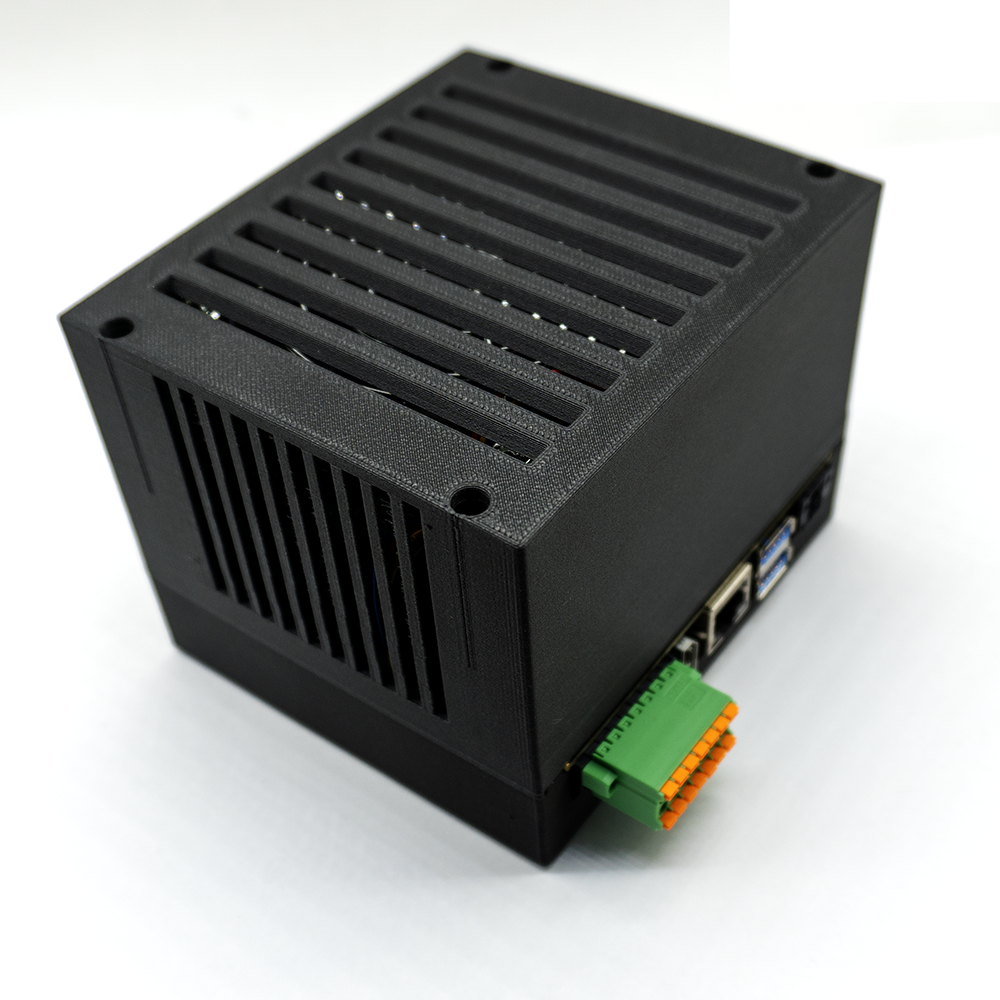

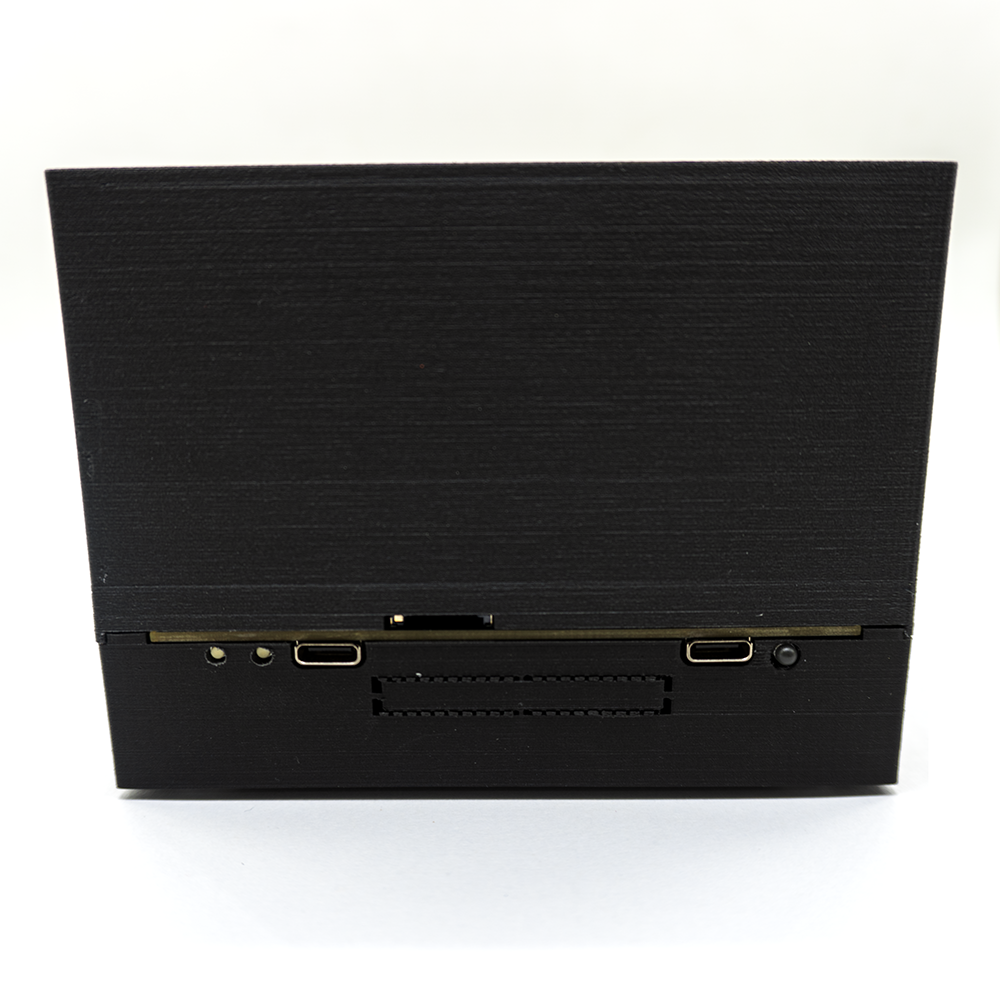

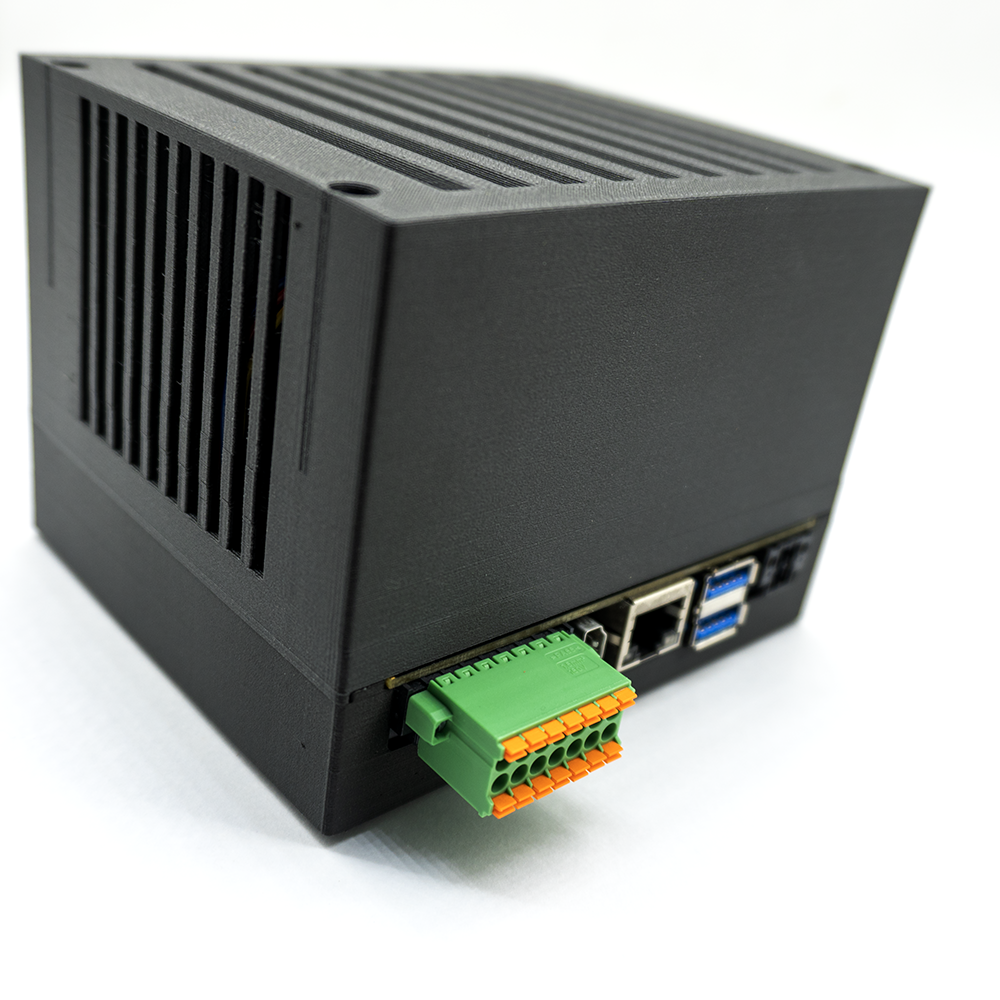

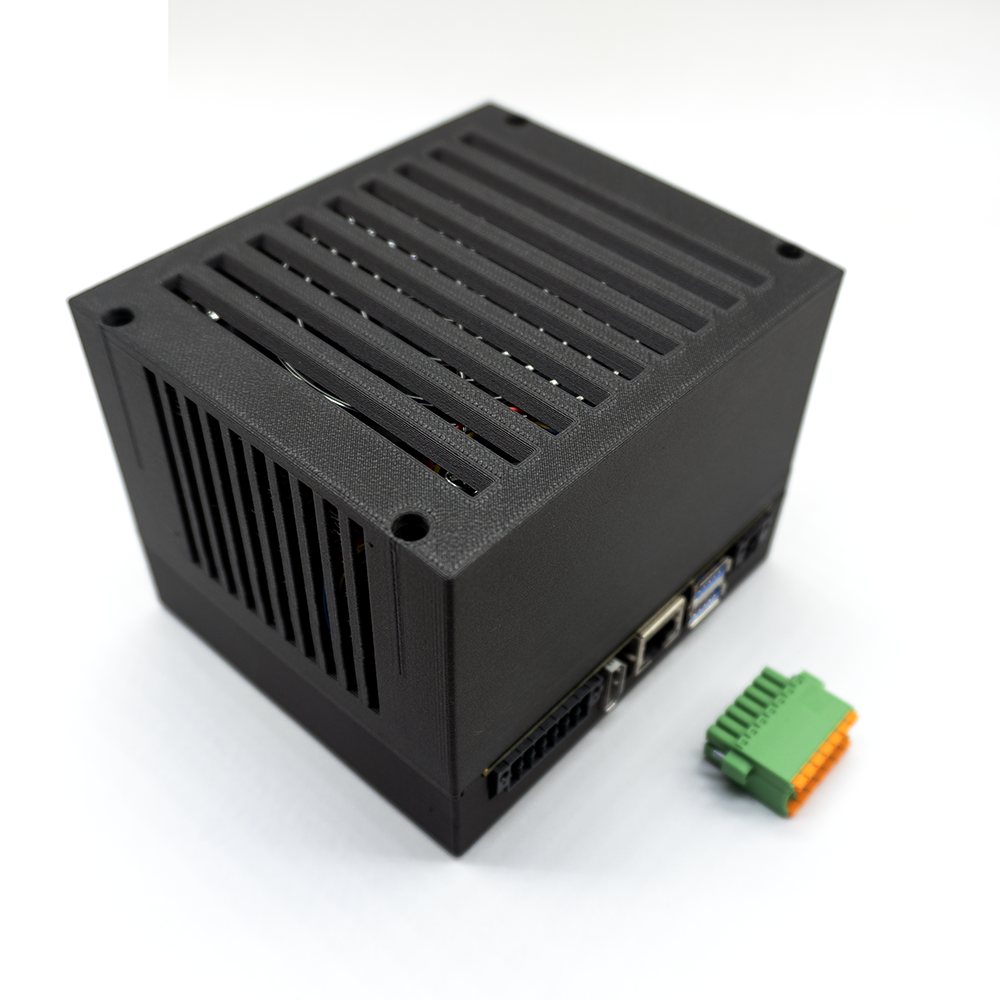

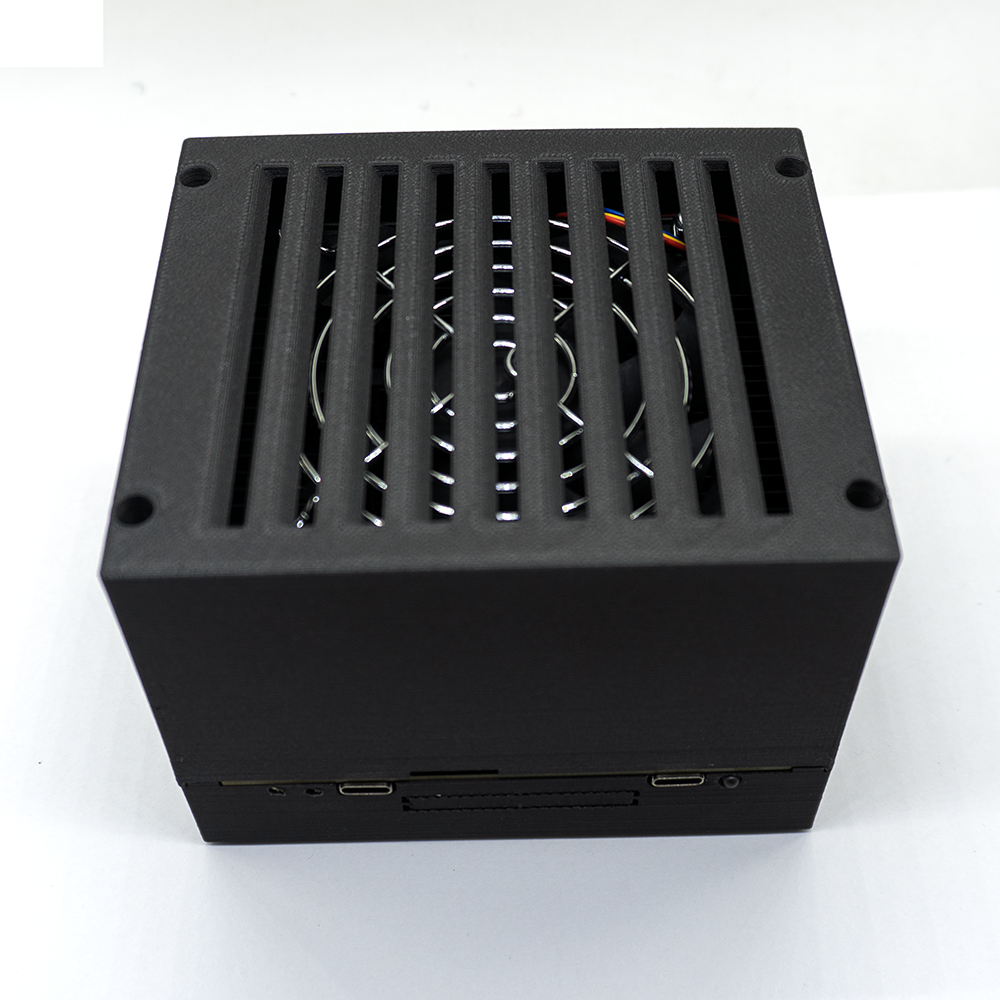

This robust embedded system is assembled by ThinkRobotics with an industrial grade carrier board from Forecr.io, heat sink and a power supply from Meanwell. This isĀ a device for supercomputer level edge Edge AI applications with multiple MIPI CSI-2 camera requirements. We install Jetpack on each device before shipping, for custom installations, or NVME SSD booting, please contact us after placing the order.
There may be a lead time of 2 weeks on certain variants
DSBOARD-XV2 is a high-performance industrial level carrier board for NVIDIAĀ® Jetsonā¢ AGX Xavierā¢ processor. Itās ideal size and supercomputer level performance with 32 TOPs enables a wide range of applications, from deep learning algorithms to autonomous machines. Jetsonā¢ AGX Xavierā¢ can encode up to 8 4K streams and decode 12 4K streams.
NVIDIAĀ® TensorRT library and Deepstream framework provide a basis for the maximum performance of the NVIDIAĀ® Jetsonā¢ AGX Xavierā¢ processor. Together with the required optimizations in the embedded form factors, obtaining desktop GPU level framerates with deep learning algorithms is no surprise. For more details regarding the performance of NVIDIAĀ® Jetsonā¢ processors, you can visit the NVIDIAĀ®ās DeepStream SDK website.Ā Ā
Ā
DSBOARD-XV2 supports both Jetsonā¢ AGX Xavierā¢ and Jetsonā¢ AGX Xavierā¢ Industrial with all the features. We provide the most recent release of BSP packages of Jetpack that NVIDIAĀ® provides. In just two weeks after the new announcement of Jetpack, we publish additional connectivity and OS related tutorials on our blog pages.
As Forecr, we also provide solutions to mechanical integration problems for our customers at the carrier board level. To make the Jetsonā¢ modules work efficiently even under maximum loads, we created a thermal transfer plate option. When you order DSBOARD-XV2 with a module option, the suitable thermal transfer unit and screw set will be included in the package. We integrate the module and mechanical parts to the carrier board, flash the recent Jetpack software, and our BSP package to deliver a ready-to-use system to your hands.Ā
Ā

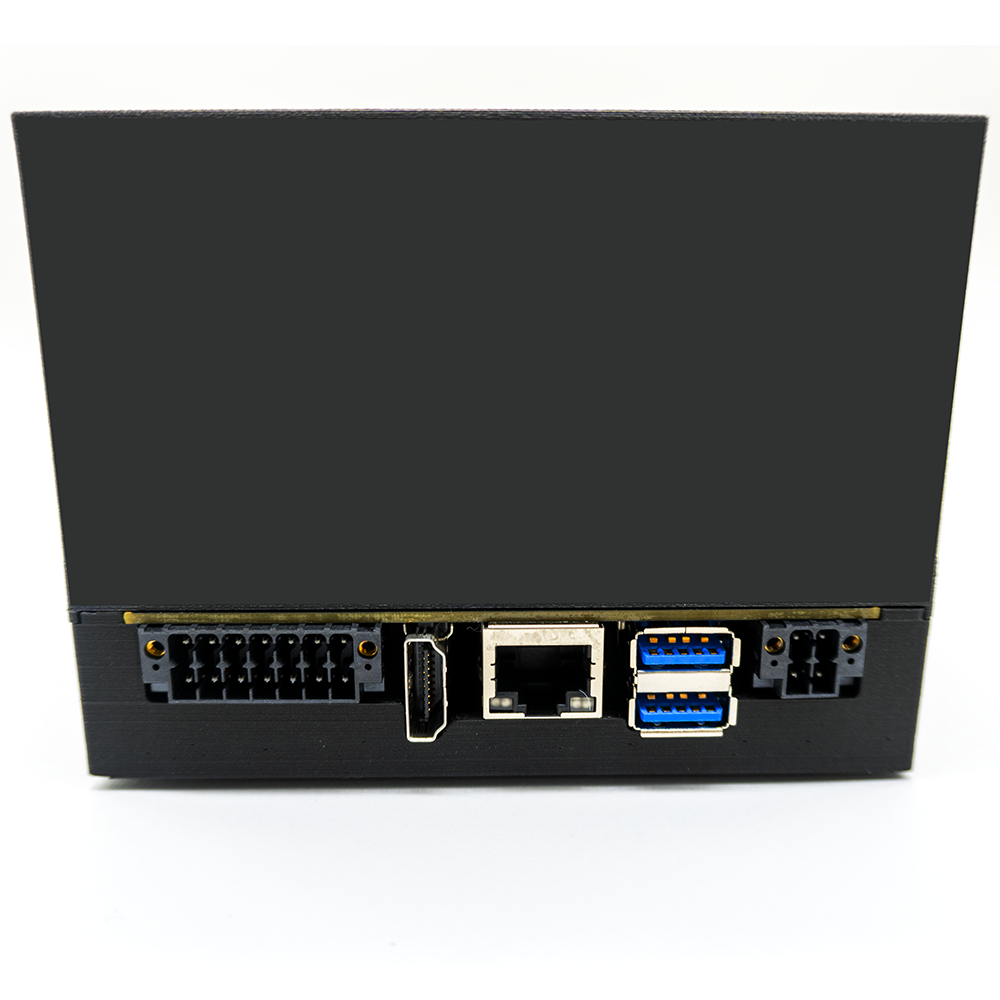

DSBOARD-XV2 comes with both internal and external connections that can be used in a variety of applications at the industry. With high-speed interfaces such as Gigabit Ethernet and USB 3.1, you can connect to high-speed devices and transfer data up to 136.5 GB/s speed bandwidth quickly. We also included industrial-level communication interfaces such as CAN Bus and software configurable RS232/422/485 ports.
DSBOARD-XV2 is designed to be used in various different industries so we included board-level connectors and rich camera connections as well. DSBOARD-XV2 supports up to six MIPI CSI-2 camera connections compatible with standard Raspberry Pi pinout. Additional board-level connectors with UART, SPI, I2C, PCIe signals are also available.Ā
Ā
DSBOARD-XV2 has 4x PCI Gen 4 support for M.2 Key-M SSD slot, Gigabit Ethernet, 2x USB 3.1 and M.2 Key-B with USB 3.1 connection. Together with these interfaces, board level MIPI CSI-2 interfaces and SD Card interfaces are available as high-speed interfaces.
The bandwidths of USB 3.1 interfaces with high-speed cameras, Gigabit Ethernet with network throughput softwares, functionality and FPS performance of MIPI CSI-2 interfaces with high resolution cameras, NVMe SSD read/write performances with a PCIE GEN4 compatible NVMe SSD are tested by our engineering team prior to the shipment. We make sure that the performance of our carrier boards is stable and at the maximum efficiency before deliver to our customers.Ā
Ā
DSBOARD-XV2 supports wide input voltage range together with a reliable power connector. Any power supply between 18-32 VDC range can be connected, and it will work 24/7, for weeks and months without any issues even under maximum CPU and GPU loads. DSBOARD-XV2 has a robust power circuitry and durability for extended temperature range between -40Ā°C to 85Ā°C to make the board adapt to every industrial environment.
With Jetsonā¢ AGX Xavierās high bandwidth low-power RAM, powerful applications can run efficiently by consuming a small amount of power. DSBOARD-XV2 also supports internal mass storage such as 32 GB eMMC 5.1 Flash and MicroSD.Ā
Ā
| SUPPORTED MODULES | NVIDIA Jetson AGX Xavier |
| MEMORY | 32 GB 256-bit LPDDR4x |
| GRAPHIC INTERFACES | 1x HDMI 2.0 (max resolution 3840x2160) |
| INTERFACES |
1x Gigabit EthernetĀ 3x USB 3.1 1x CAN BusĀ 1x RS232/422/485 2xDigital In/3x Digital OutĀ 1x USB 2.0 (Debug UART)Ā |
| WIRELESS COMMUNICATION | Optional M.2 Key-E Cards |
| POWER SUPPLY | 18-32 VDC |
|
INTERNAL EXTENSIONĀ SOCKETS |
1x M.2 Key M (PCIe Gen4 x4) |
| INTERNAL MASS STORAGE |
32 GB eMMC 5.1 FlashĀ 1x MicroSD Card |
| AMBIENT CONDITIONS | -40Ā°C ā¦ +85Ā°CĀ |
| FORM FACTOR / DIMENSIONS | 100 mm x 100 mmĀ |
| OPERATING SYSTEMS | Ubuntu Linux 18.04 |
