Pulsar SL450 employs direct Time of Flight (dToF) ranging technology. It’s constructed around a high-precision rotating-mirror optical scanning system and a high-frequency laser pulse transmitter. Sophisticated optical, mechanical, and structural design permits robust and accurate scanning within a 270° horizontal area, up to a distance of 45m. SL450 can be used in many fields, including robot positioning and navigation, area security, logistics, environmental scanning, and 3D scene reconstruction.
dToF l High-accuracy l Long-range l IP65
High-density Point Cloud Scanning
With a scanning frequency of up to 72 kHz and an angular resolution as fine as 0.075°, it ensures highly detailed surface scanning without missing any details.
Robust Environmental Perception
Reliable ranging capability, combined with a multi-echo noise filtering design, enables precise scanning and accurate data feedback, even in environments containing light dust or fog.
Accurate and Consistent Mapping
High degree of point cloud consistency, ensuring uniform distribution of accuracy and precision trends, and avoiding the presence of varying positive or negative offsets. This enables each sensor to generate maps of consistent quality, enabling reliable environmental reconstruction.
Warehouse AMRs
Autonomous Forklifts
Commercial Service Robots
Open-source SDK with Support for ROS1/ROS2
Supports Development in Windows/Linux Environments
Professional Technical Team for Development Support

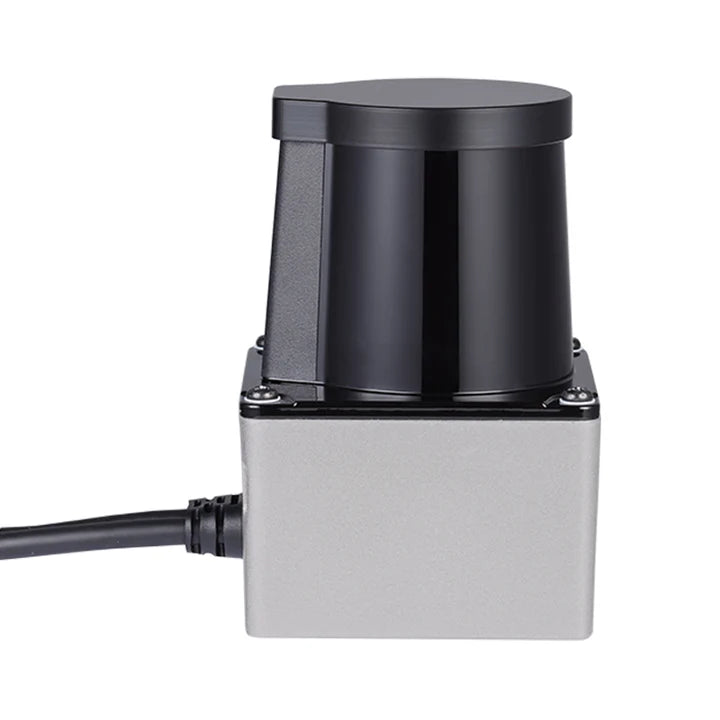

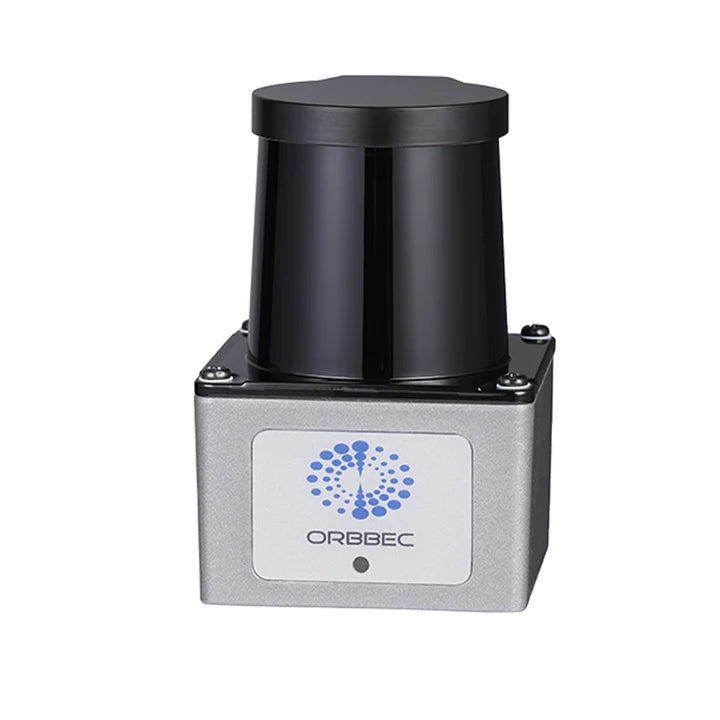

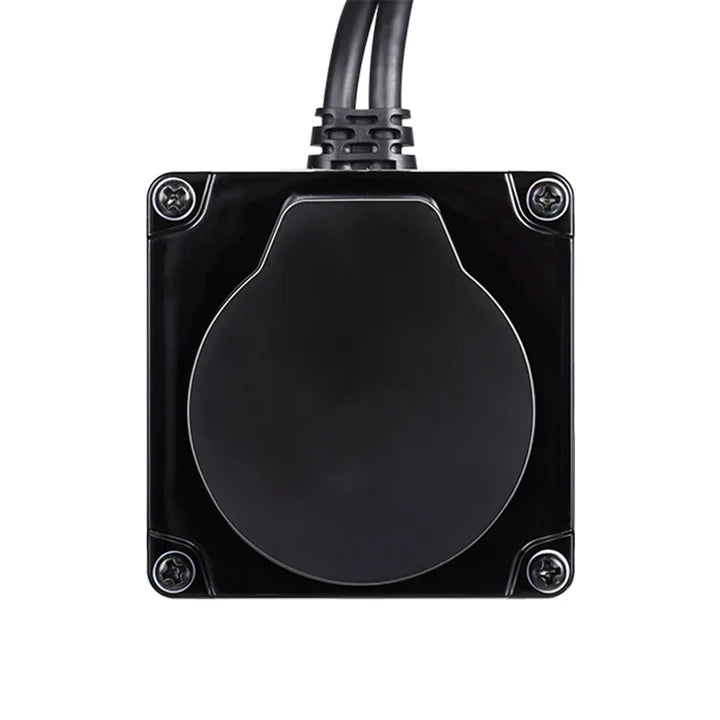

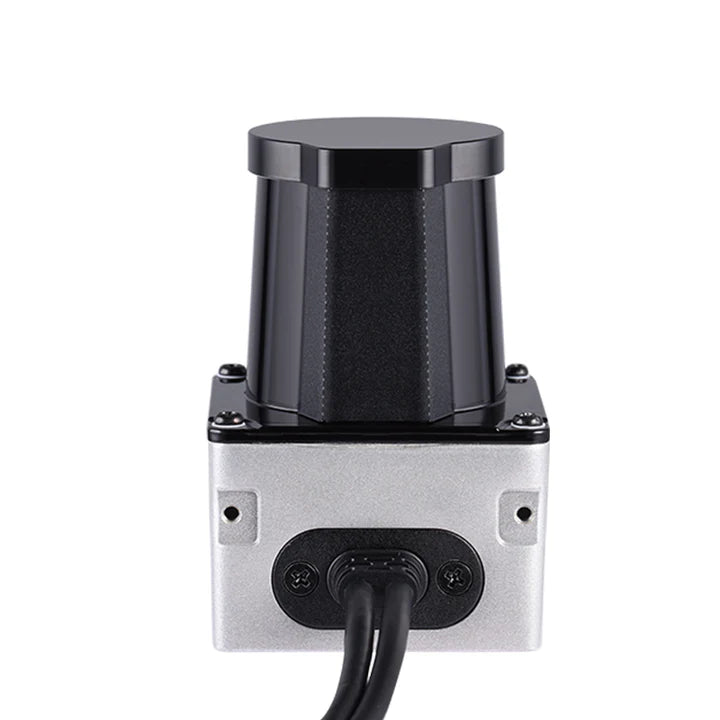

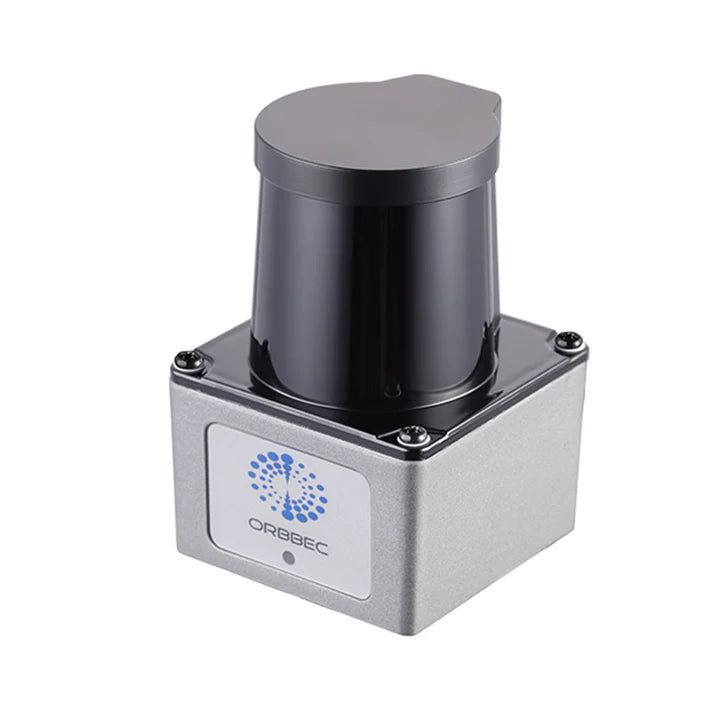

Pulsar SL450 |
||
|---|---|---|
| Specification | Value | Additional Information |
| General | ||
| Measurement Principle | ToF (Time of Flight) | Measures distance by calculating time for light to return |
| Measurement Range | 45.0m @ 90%; 15.0m @ 10% | Range varies with target reflectivity |
| Accuracy | ±20mm @ 90%; ±25mm @ 10% | Accuracy depends on target reflectivity |
| Precision | ≤15mm @ 90% & 10% | Consistent across reflectivity ranges |
| Scanning Angle | 270° | Nearly three-quarters circular coverage |
| Measurement Frequency | 72kHz | High-frequency measurement rate |
| Angular Resolution | 0.075°/0.1°/0.125°/0.15°/0.2° | Configurable resolution settings |
| Emission Pitch Angle | 0° ± 0.5° | Very precise beam alignment |
| Laser Wavelength | 903 ± 10nm | Near-infrared spectrum |
| Ambient Light Limit | 60,000 Lux | Functions in bright outdoor conditions |
| Structure | ||
| Dimensions (L x W x H) | 60mm × 60mm × 88mm | Compact form factor |
| Weight | ~320g | Lightweight design |
| Environment | ||
| Ambient Operation Temperature | -10℃ ~ 55℃ | Wide operating temperature range |
| Laser Class | Class 1 | Safe under all normal use conditions |
| Ingress Protection | IP65 | Dust-tight and protected against water jets |
Documents
| Orbbec Pulsar Series SL450 Datasheet-V1.2 | Download >> |
| Orbbec Pulsar SL450 documentation | Download >> |
