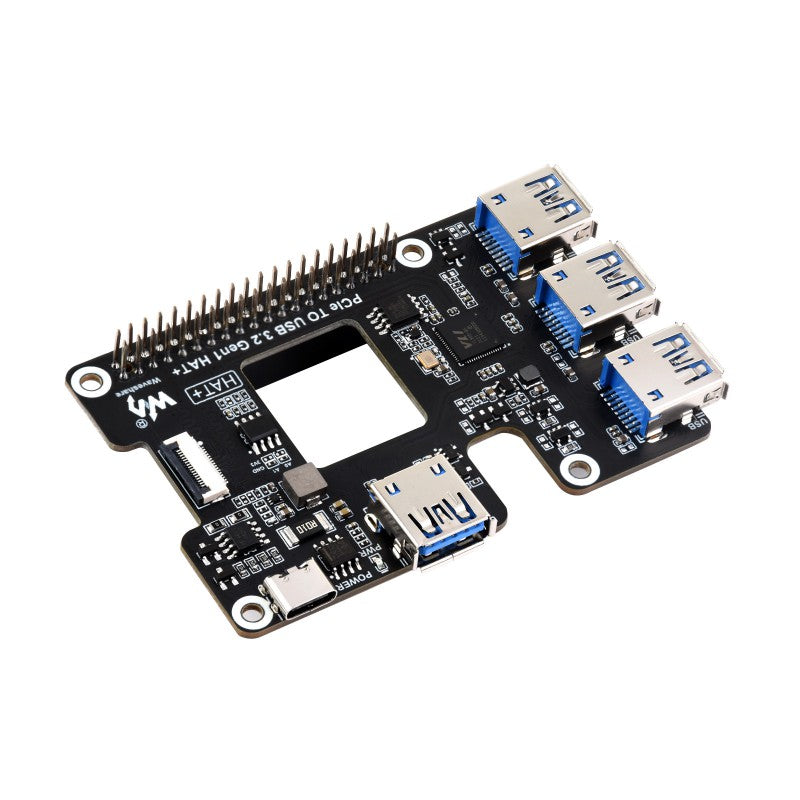

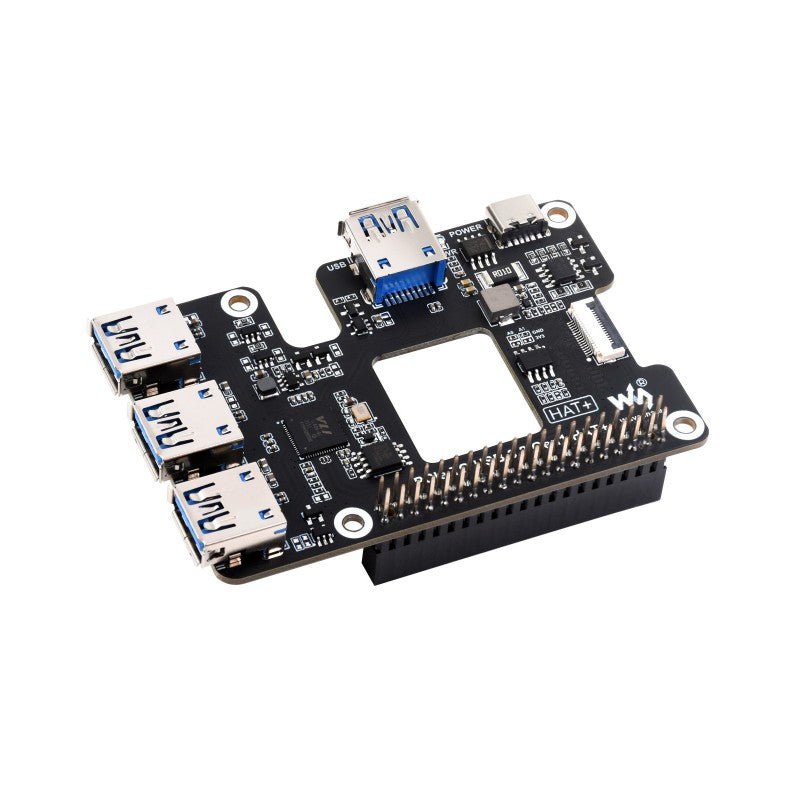

PCIe To USB 3.2 Gen1 HAT+ for Raspberry Pi 5
PCIe TO USB 3.2 Gen1 HAT
Designed for Raspberry Pi 5, driver-free, plug and play
Connecting To PI5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5 * for reference only, please refer to the Package Content for detailed part list
More USB Capability For Raspberry Pi 5
Extends The PCIe Interface To 4x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals
Onboard Power Monitoring Chip And EEPROM
Real-Time Monitoring Of Power Status, Supports USB Port Power Control Via Software
Reserved Airflow Vent For Cooling Fan
Better Cooling Effect For Pi5, More Stable Operation
* for reference only, the Raspberry Pi 5 and cooling fan are NOT included

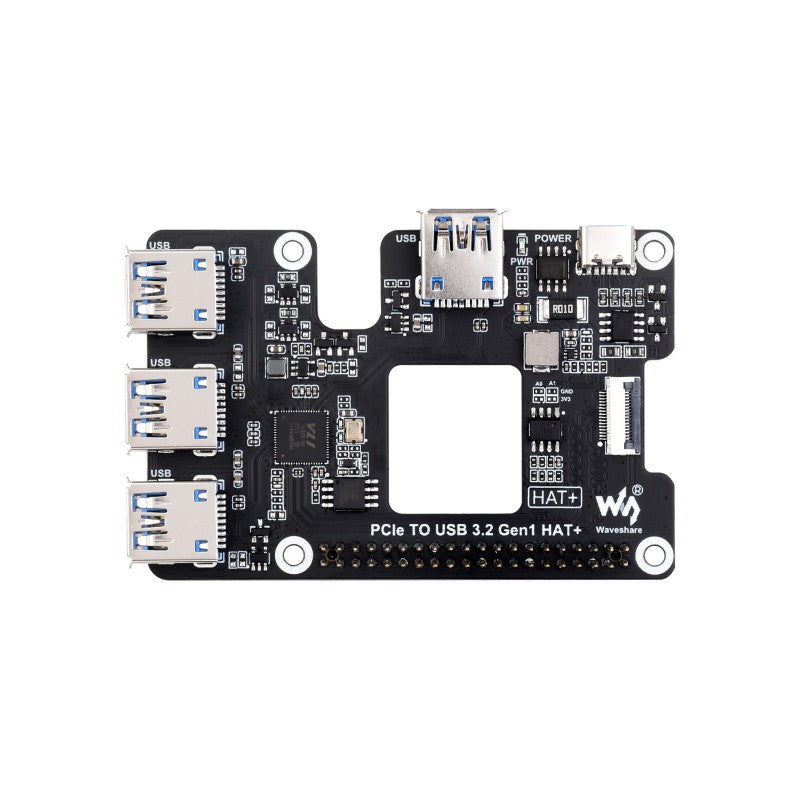

What's On Board
Raspberry Pi GPIO header
USB 3.2 Gen1 expanded ports
INA219
Power port
PWR LED
MX25L3206
VL805
PCIe interface

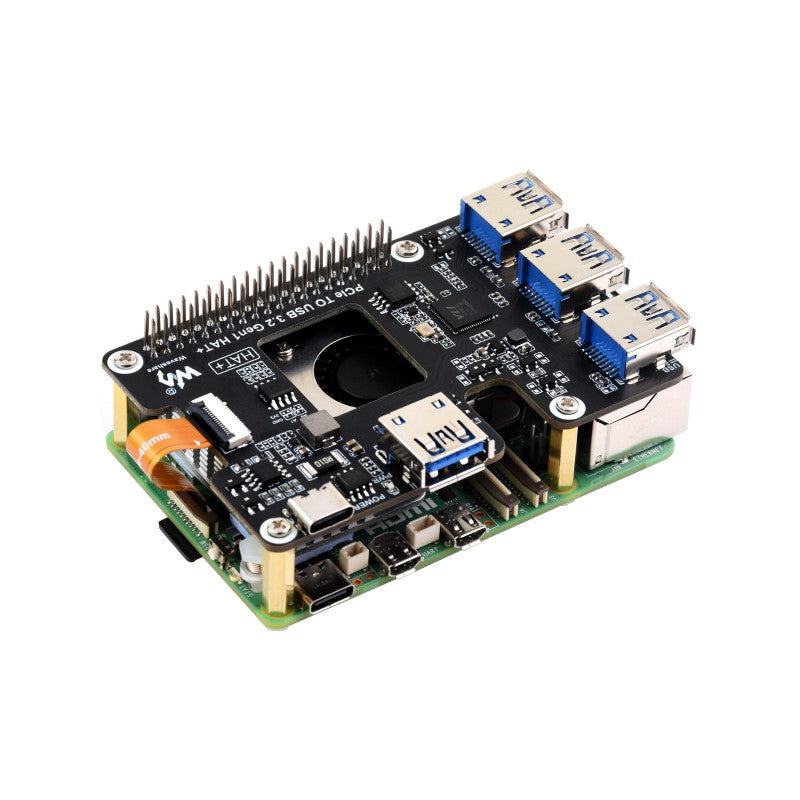

How To Install
* for reference only, please refer to the Package Content for detailed part list
Outline Dimensions
Package Contains:
Weight: 0.017 kg
PCIe TO USB 3.2 Gen1 HAT+ x1
Standoff pack x1
16P-Cable-40mm x1
