PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi, Based On Raspberry Pi

SKU: WVSH0572

Regular price ₹ 1,299.99
Sale price ₹ 1,299.99 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

PCM5122 HIFI I2S DAC Audio Board for Raspberry Pi

Supports Stereo Encoding / Decoding And High-quality Audio Playback

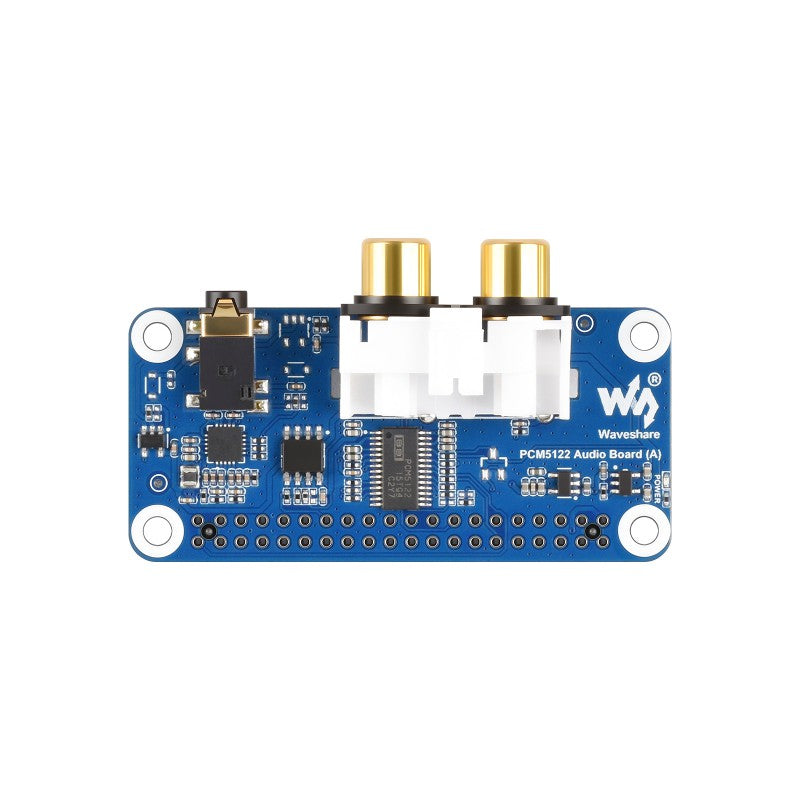

PCM5122-Audio-Board-A, front view



Features

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface
Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
Built-in RCA connector for use with speaker and other devices in a variety of scenarios
Supports sampling frequency up to 384kHz
Supports up to 32-bit resolution audio data



Designed for Raspberry Pi

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards

PCM5122-Audio-Board-A, based on Raspberry Pi 40PIN GPIO header

* for reference only, please refer to the package content for detailed part list.



PCM5122 Audio Chip

Stereo decoder, controlled through I2C, with audio transmitted via I2S

PCM5122-Audio-Board-AM, onboard PCM5122 Audio Chip



Onboard Headphone Jack & RCA connector

Onboard standard 3.5mm headphone jack, supports audio playback via external headphones,
and features RCA connector for connecting external speaker

PCM5122-Audio-Board-A, Onboard Headphone & RCA connector



Onboard EEPROM Chip

Used for automatic driver loading in Raspberry Pi OS

PCM5122-Audio-Board-A, onboard EEPROM Firmware



Pin Definition

PCM5122-Audio-Board-A, pin definition



Outline Dimensions

PCM5122-Audio-Board-A, outline dimensions



Resources & Services

WIKI: www.waveshare.com/wiki/PCM5122-Audio-Board-A



Package Content

Weight: 0.008 kg

PCM5122 Audio Board (A) x1
2*20pin header x1
Screwdriver x1
