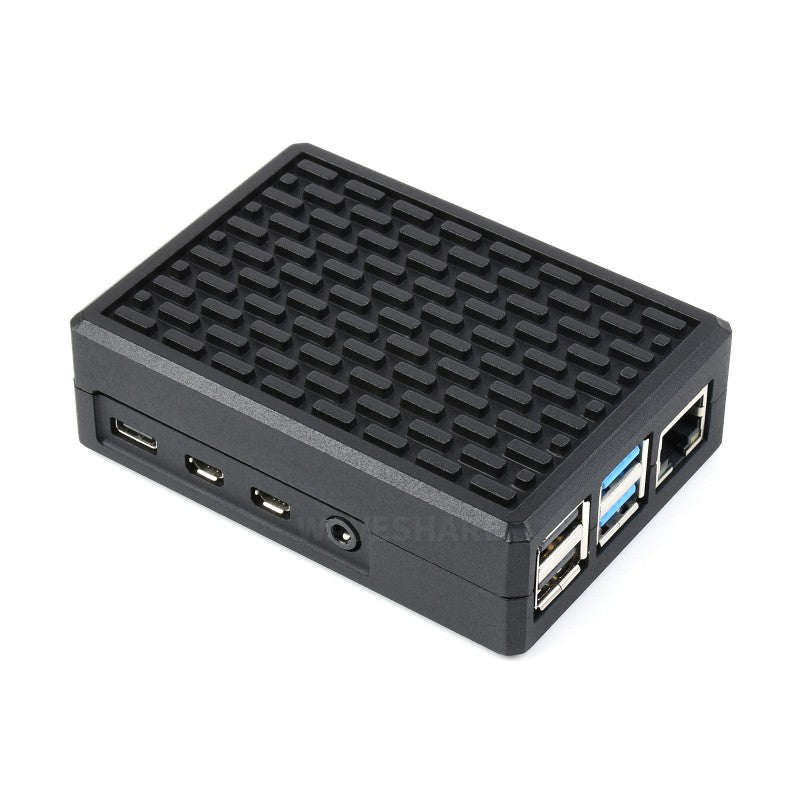

Aluminum Grid Grooved Case for Raspberry Pi 4
Aluminum grid grooved Case for Pi 4
Grid grooved lid with inner heatsink pillars, fast passive cooling

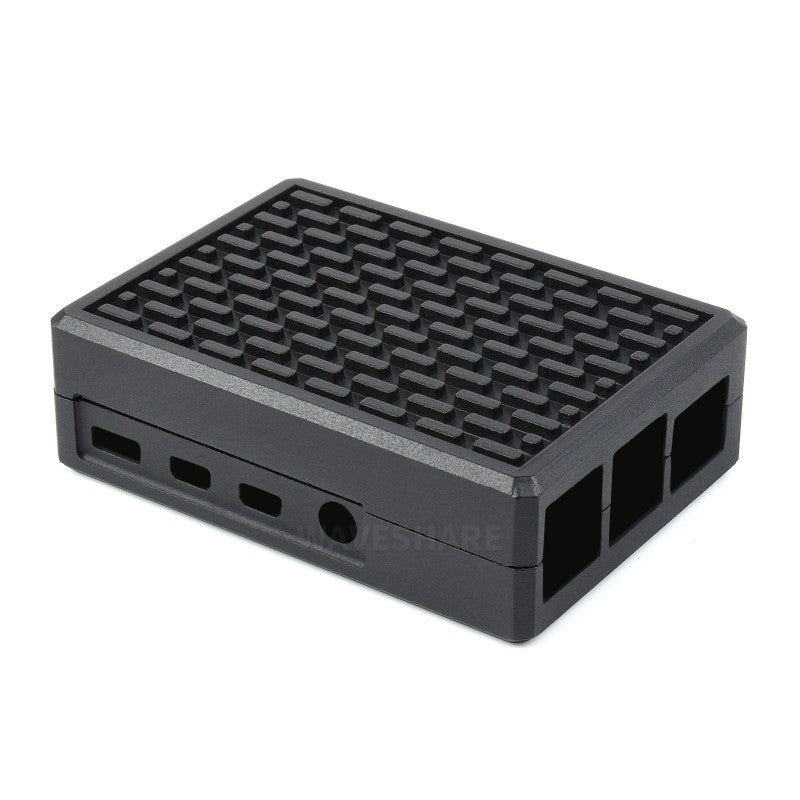

Grid grooved top lid
enlarging the heat dissipation area, fast passive cooling

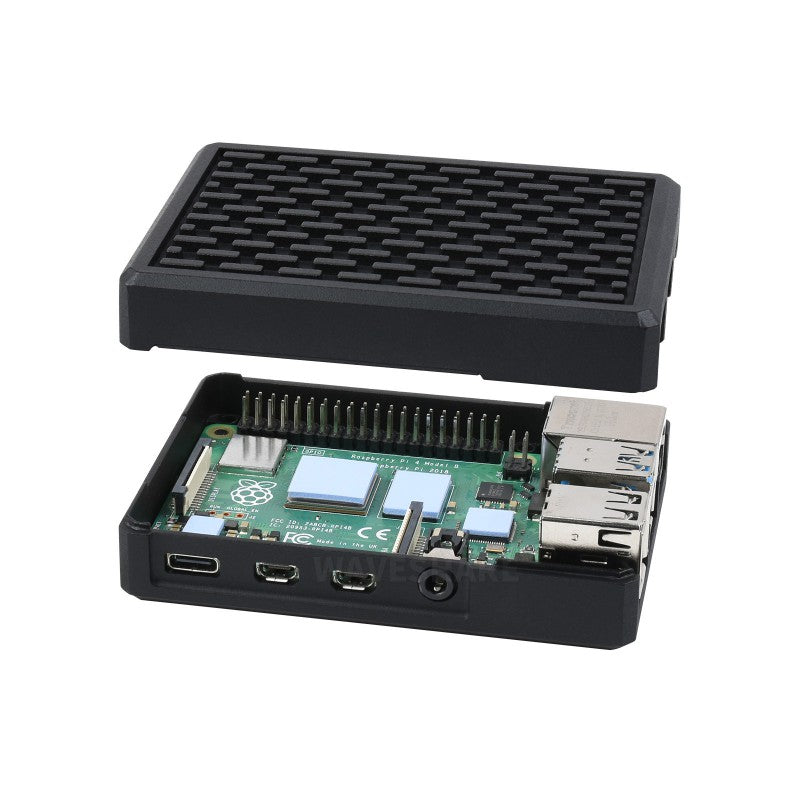

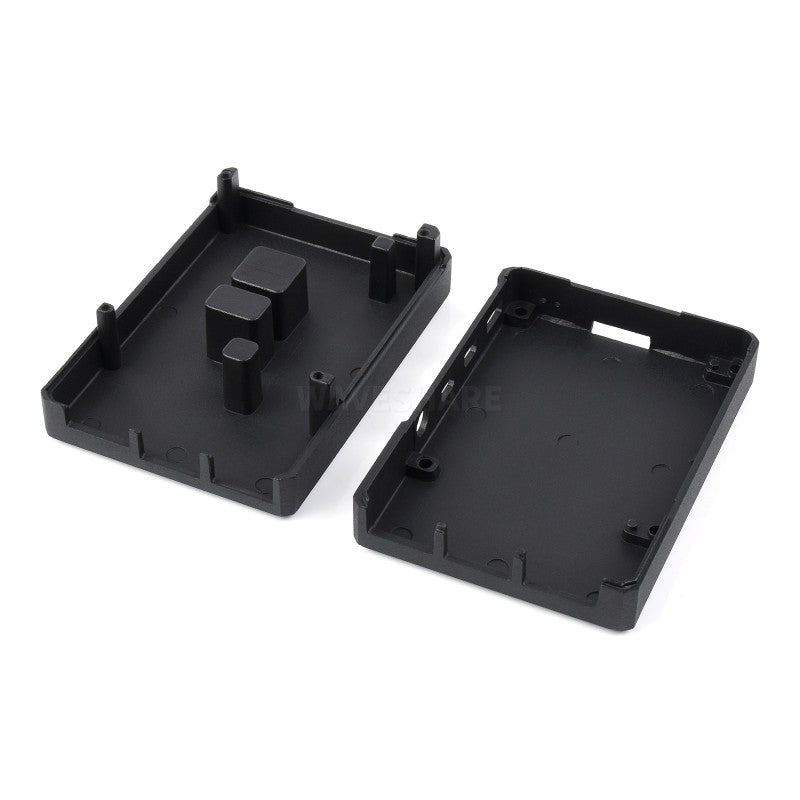

Inner heatsink pillars
uni-body heatsink pillars design for conducting heat to the whole body
for reference only, Raspberry Pi 4 is NOT included.

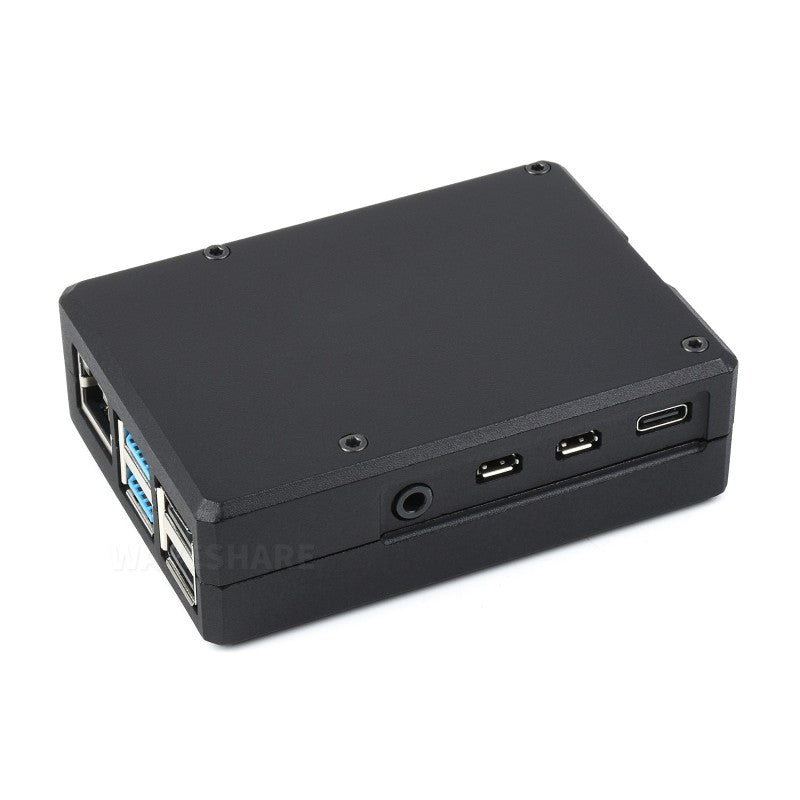

Precise Opening Design
Reversed GPIO slot and openings for sorts of connectors
Outline dimensions
How to install
Package Contains:
Weight: 0.15 kg
Case parts
Thermal tapes 4PCS
L-form hex socket spanner
Screws pack
