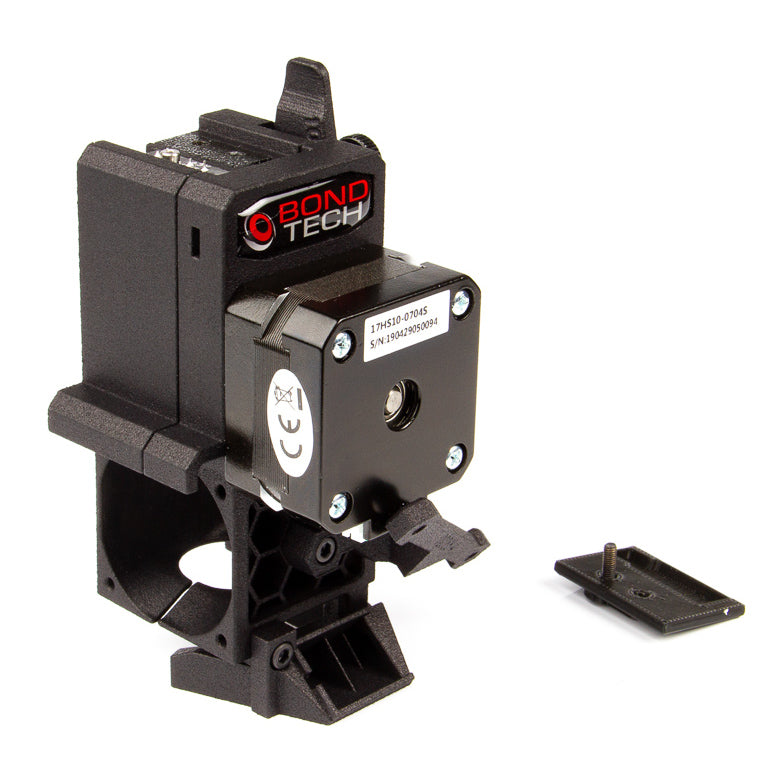

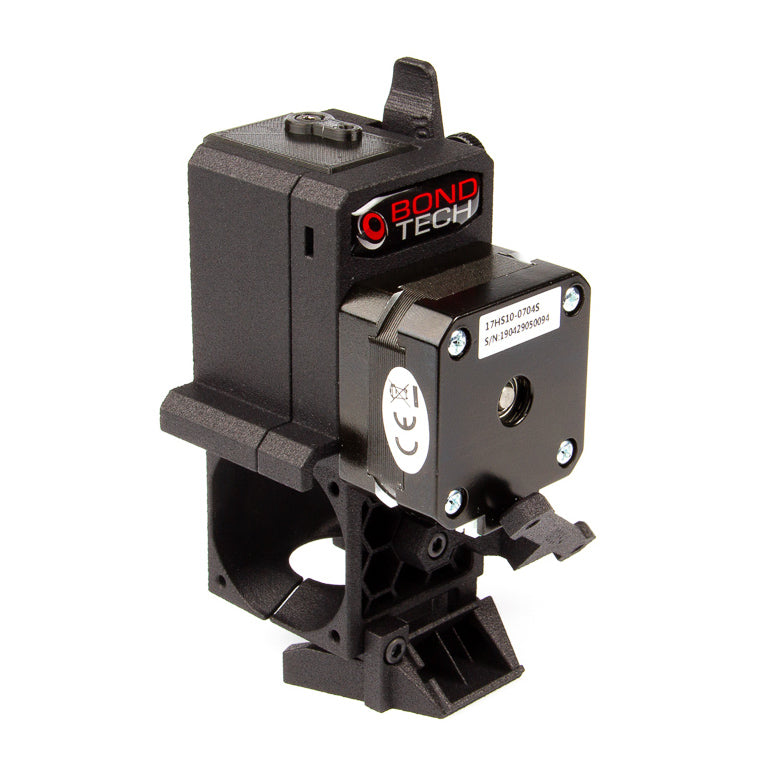

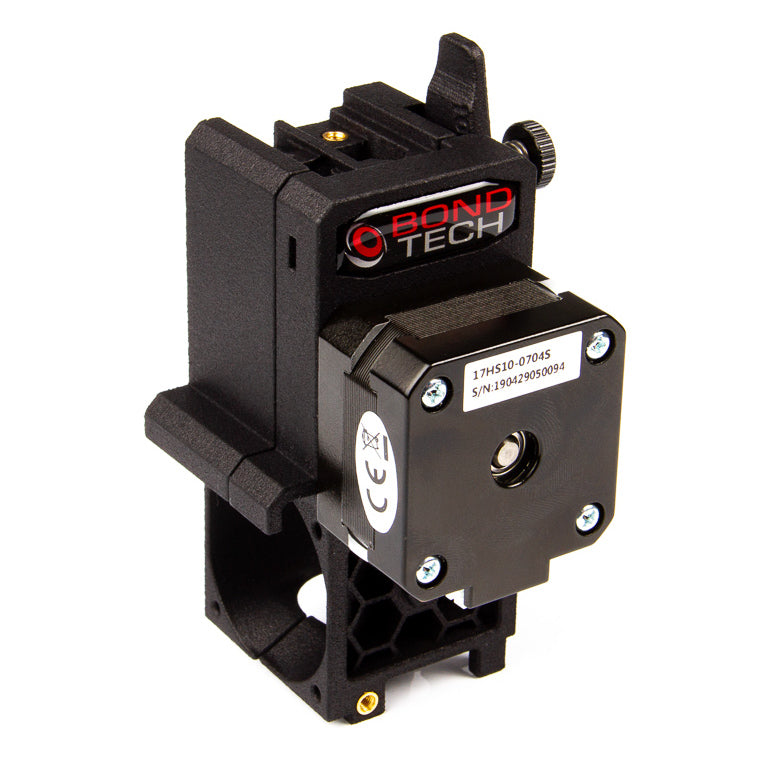

A lightweight high-resolution extruder upgrade for the popular Prusa I3 MK3S 3D printers, featuring an optimized design achieved with the help of the community.
This upgrade kit is compatible only with the original All Metal V6 hotend that is supplied with each Prusa.
Upgrade your extruder to a Bondtech Mini Geared with higher gear ratio ā 3:1 ā that allows for extra push force and higher resolution.
Use a lightweight extruder that will allow your 3D printer to print faster or to achieve better surface quality.
Decrease the risk of heat creep to avoid clogs and improve filament feeding to avoid slipping and deformation that cause under and over extrusion issues.
This Upgrade Kit does not include the gears (already supplied by Prusa).
This Upgrade Kit requires extra parts to install (X-Carriage Kit).
You can buy the x-carriage for the MK3S from us or you can download the free STLs models and 3D print the x-carriage parts available also for the Prusa i3 MK2.5. Use the āDownload STL filesā option of our āFirmware & Moreā menu to reach the download links.
Bear in mind that if you use this upgrade kit inside a closed chamber, it will have the following set of working temperature limits:
This is the latest generation Bondtech upgrade for the popular Prusa I3 MK3S, with an optimized design achieved with the help of the community.
This kit contains only the necessary parts to convert your current extruder to our own popular design based upon our BMG (Bondtech Mini Geared) extruder with 3:1 gearing ratio for better precision and resolution together with optimized geometry for the heatsink cooling and professional SLS 3D printed housing.
It is also compatible with the MK2.5S model.
With this version we also lower the moving weight to reduce ghosting and vibrations or to allow increasing the printing speed. 15% of weight saving was achieved.
This extruder upgrade kit is for the Prusa i3 MK2.5S / MK3S / MK3S+.
These are its main features:
The enhanced housing design improves cooling and decreases heat creeping issues that all metal hotends have when printing with PLA. This small enhancement will avoid many clogs.
The increased push force will drastically reduce slipping, shredding and deformation of the filament avoiding most of the common filament 3D printing issues that start with under and over extrusion.
To use this upgrade in the MK2.5S / MK3S / MK3S+, the E-steps and Z_Max needs to be updated. Check out the latest version of our firmware here.
Ā
No reviews yet. Be the first to share your experience!
