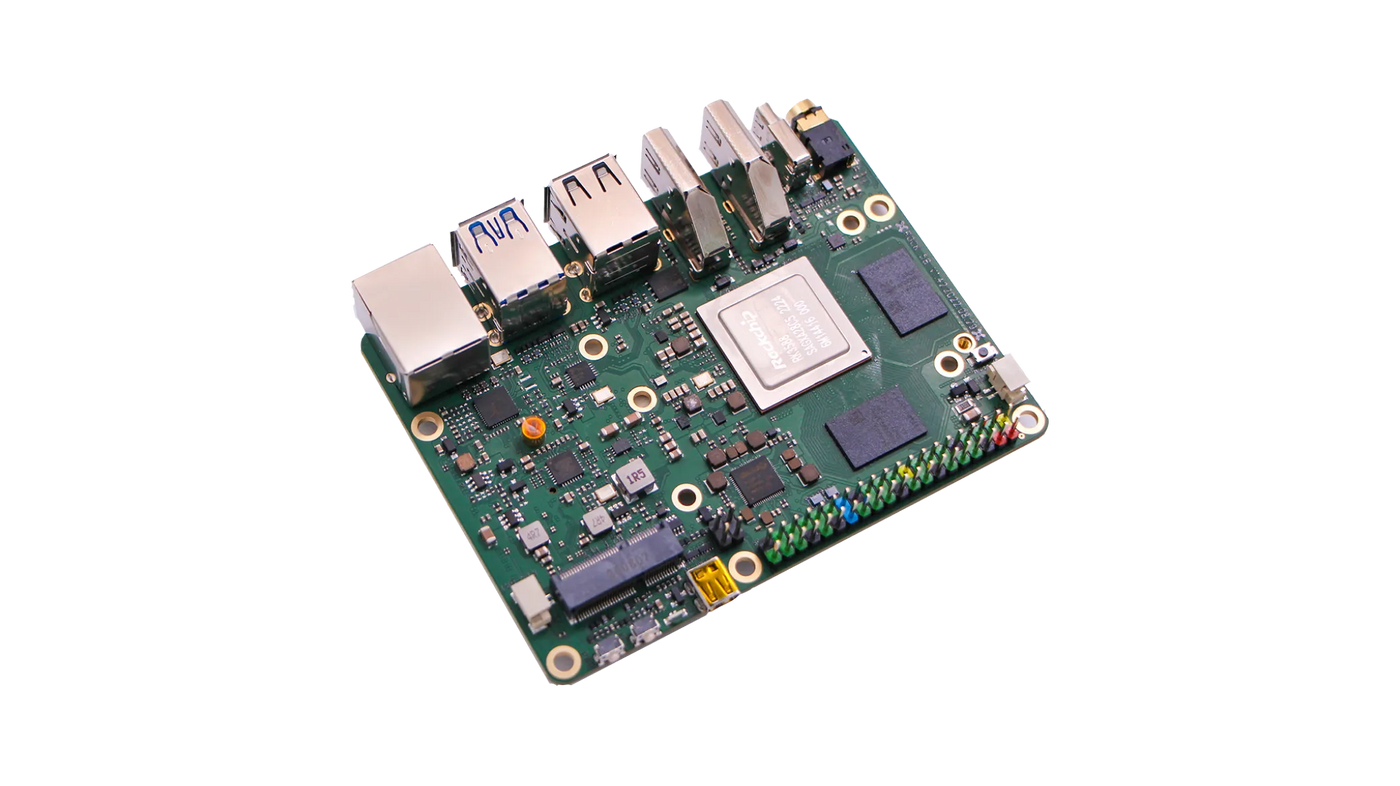

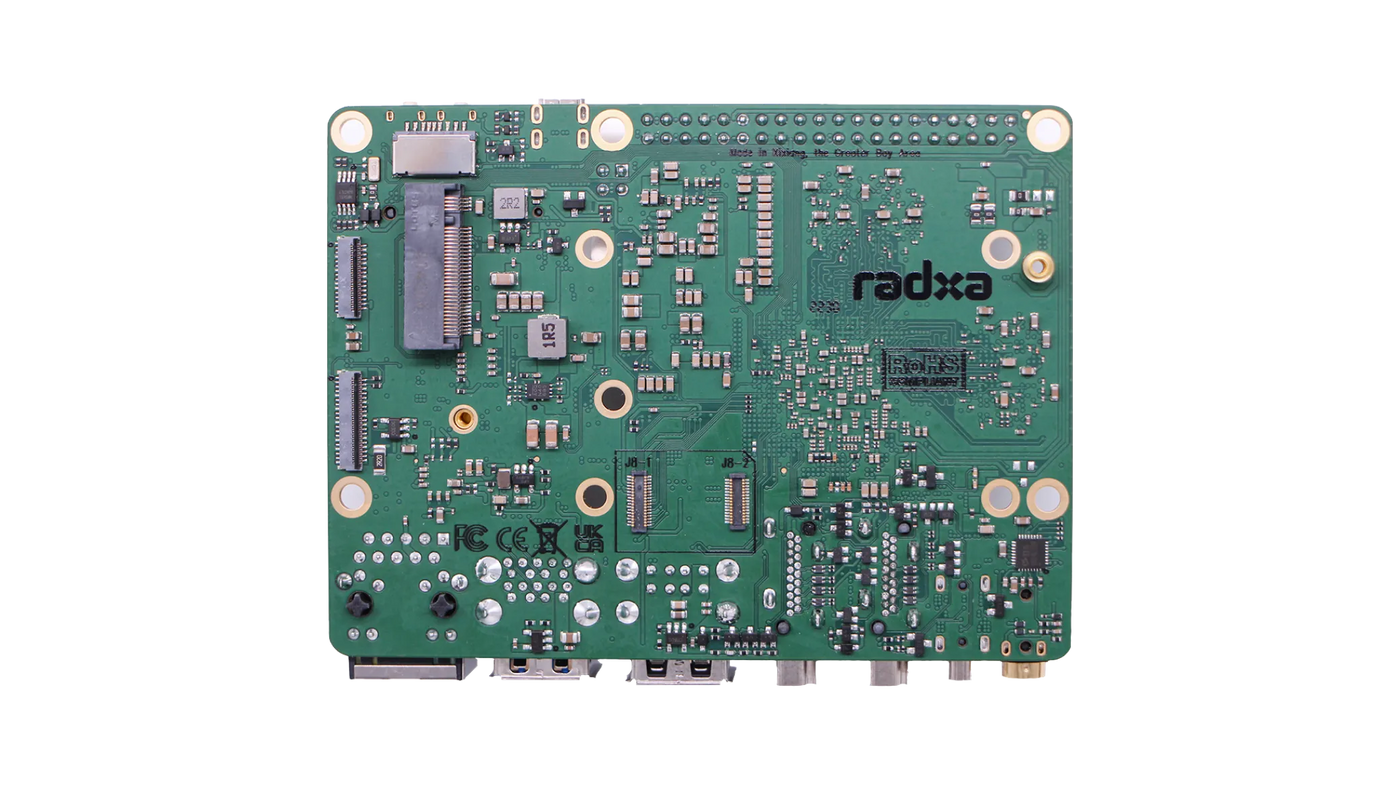

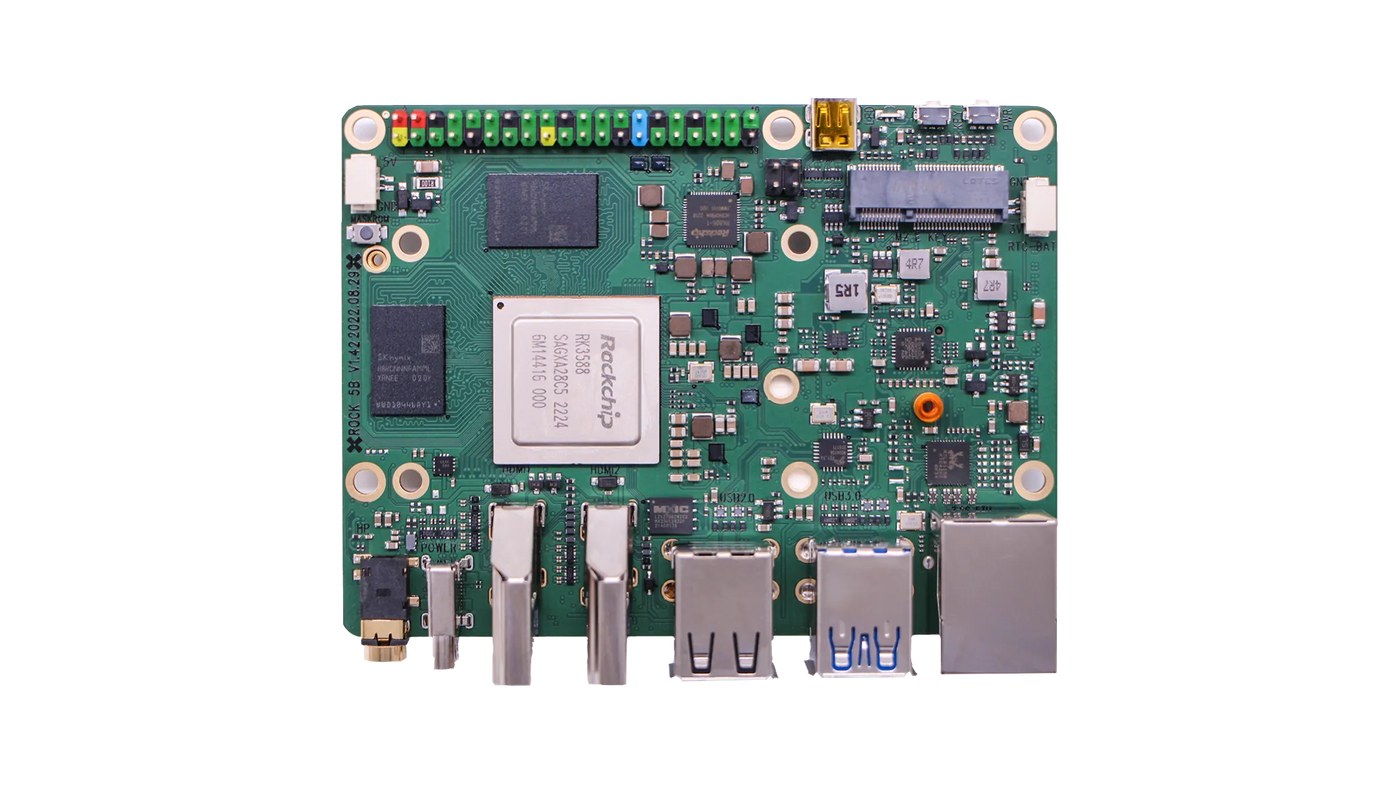

ROCK 5B
8K Single Board Computer with Quad Display
The ROCK 5B is a high-performance single board computer powered by the Rockchip RK3588 SoC, featuring an octa-core CPU (quad Cortex-A76 + quad Cortex-A55), Arm Mali-G610 GPU, and a 6TOPS-capable NPU for AI acceleration. It supports up to 32GB of LPDDR4x RAM and high-speed storage options including eMMC, NVMe SSD, and microSD. With four simultaneous display outputs—including dual HDMI 2.1 (up to 8K), DisplayPort over USB-C, and MIPI DSI—ROCK 5B is ideal for edge computing, multimedia applications, and development requiring 8K visuals. Built with rich I/O, AI capabilities, and open software support (Android, Radxa OS, Linux distros), it’s a versatile choice for powerful embedded solutions.
Faster CPU Performance
Quad Core A76 and Quad Core A55
Large RAM
Running Multiple Apps at the same time
Powerful GPU
Arm® Mali™ G610 MC4 GPU
8K Video Encoding and Decoding Technology
H.265 / H.264 / VP9 / AV1 / AVS2 video decoder up to 8K@60fps
- H.264 / H.265 video encoder up to 8K@30fps
Video Input and Output Interfaces
HDMI, DP via Type-C, MIPI CSI and MIPI DSI
Dedicated NPU
build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation computing power is up to 6TOPs
Fast and Stable
2.5G high-speed Ethernet Port with PoE support (Additional PoE HAT Required)
Support for Multiple Systems
Interfaces
Tech Specs
| Radxa ROCK 5B - Specifications | |
|---|---|
| SoC | Rockchip RK3588 |
| CPU | Quad Cortex-A76 @ 2.2~2.4GHz + Quad Cortex-A55 @ 1.8GHz |
| GPU | Arm Mali-G610MC4 - OpenGL ES1.1/2.0/3.2 - OpenCL 1.1/1.2/2.2 - Vulkan 1.1/1.2 - 2D image acceleration module |
| NPU | Supports INT4/8/16, FP16, BF16, TF32 Computing power: up to 6TOPs |
| RAM | 64bit LPDDR4x: 4GB / 8GB / 16GB / 32GB |
| Storage | SPI Flash, eMMC (up to 512GB), microSD (SDHC/SDXC/UHS-I), M.2 NVMe SSD (2280, PCIe 3.0 x4) |
| Audio | 1x 4-ring 3.5mm jack with mic input |
| Display | 2x HDMI 2.1 (8Kp60 & 4Kp60), 1x DP via USB-C, 1x MIPI DSI (1080p60), 4 outputs simultaneous |
| Video Input | 1x Micro HDMI Input (up to 4Kp60) |
| Camera | 1x 4-lane or 2x 2-lane MIPI CSI (up to 48MP) |
| Multimedia | 8K@60fps decode: H.265 / H.264 / AV1 / AVS2 8K@30fps encode: H.264 / H.265 |
| USB | 1x USB-C (PD 2.0, DP 4Kp60, USB 3.1 Gen1), 2x USB 3.1 Gen1 Type-A, 2x USB 2.0 Type-A |
| Ethernet | 1x 2.5G Ethernet (PoE with HAT) |
| Wireless | M.2 WiFi 6(E) / BT 5, supports Radxa Wireless A8 |
| Miscellaneous | RTC battery, PWM fan, Power/Recovery buttons, RGB LED |
| Power | USB-C PD 2.0: 9V/12V/15V/20V @ 2A, 5V via GPIO Pin 2 & 4, Fixed voltage 5.2V–20V supported |
| Software | Radxa OS, Android, third-party images |
| Operating Conditions | 0~50°C, Throttles at 80°C, external cooling recommended |
| Dimensions | 100mm x 75mm |
| Certifications | FCC / CE |
Download
Documentation
| Overview - Radxa ROCK 5B | Download >> |
| Getting Started - Radxa ROCK 5B | Download >> |
| Radxa OS - Radxa ROCK 5B | Download >> |
| Configuration - Radxa ROCK 5B | Download >> |
| Accessories - Radxa ROCK 5B | Download >> |
| App Deployment - Radxa ROCK 5B | Download >> |
| Low-Level Dev - Radxa ROCK 5B | Download >> |
| Other Operating Systems - Radxa ROCK 5B | Download >> |
| Hardware Development - Radxa ROCK 5B | Download >> |
Product Information
| Product Brief | Download >> |
| Schematic V1.3 | Download >> |
| Components Placement Map (SMD V1.3) | Download >> |
| Schematic V1.423 | Download >> |
| Components Placement Map (SMD V1.423) | Download >> |
| Schematic V1.45 | Download >> |
| Components Placement Map (SMD V1.45) | Download >> |
| 2D Drawings | Download >> |
