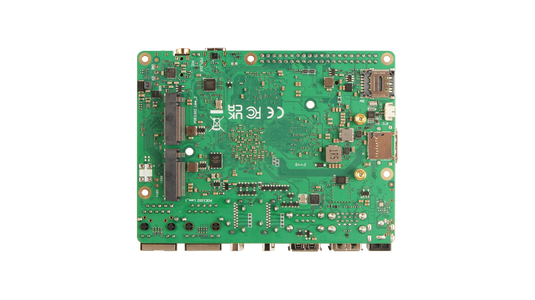

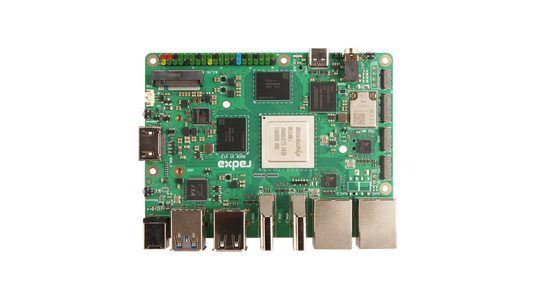

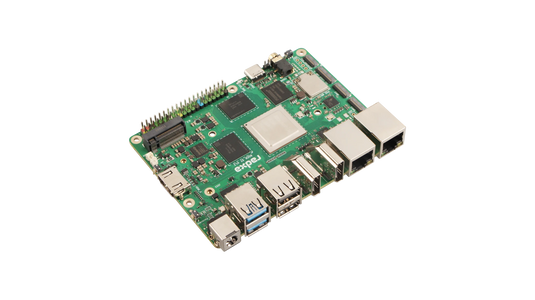

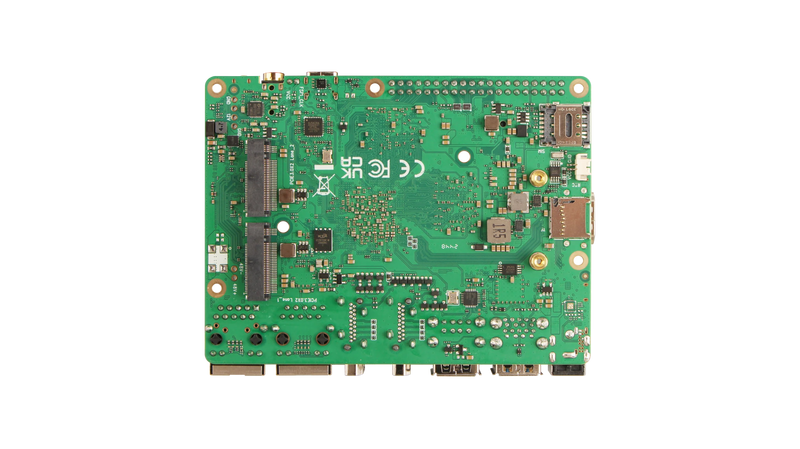

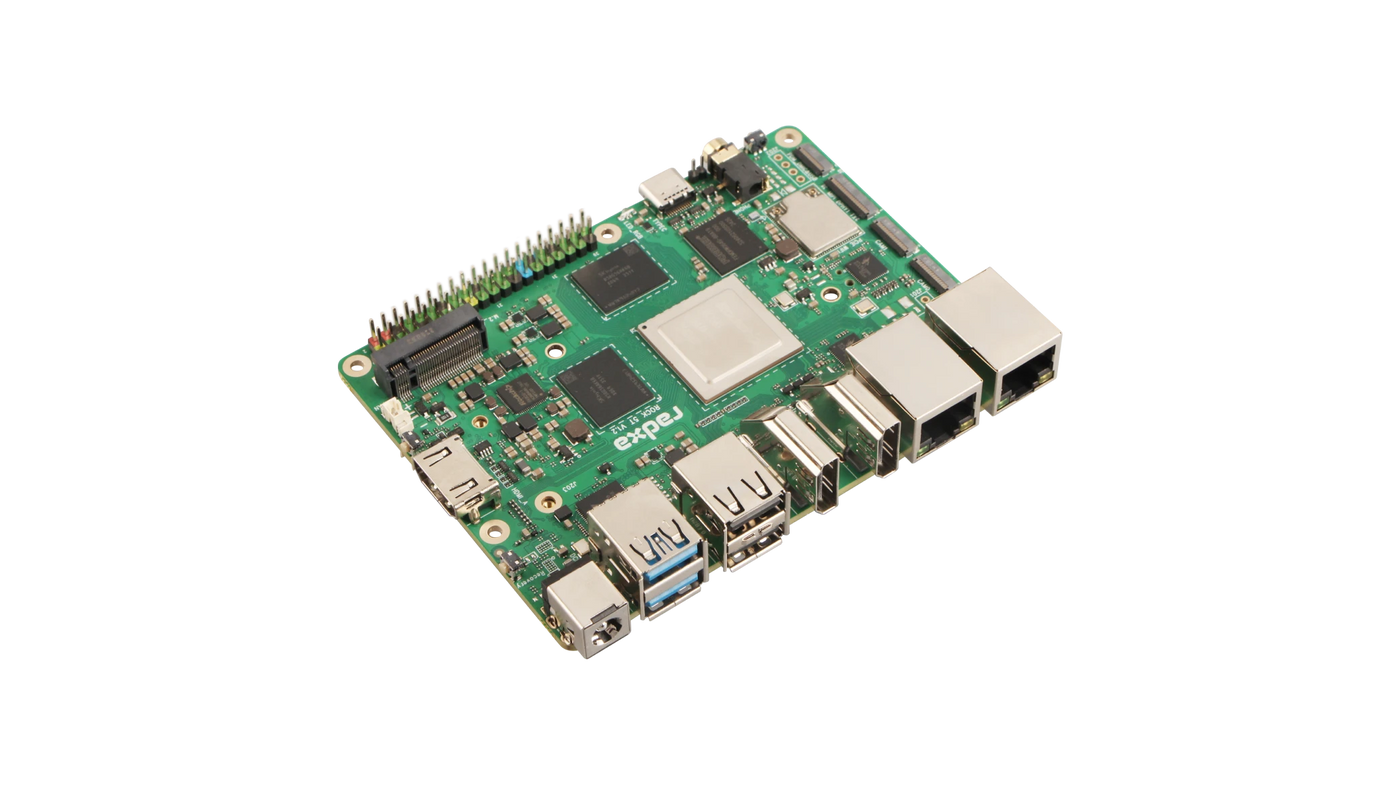

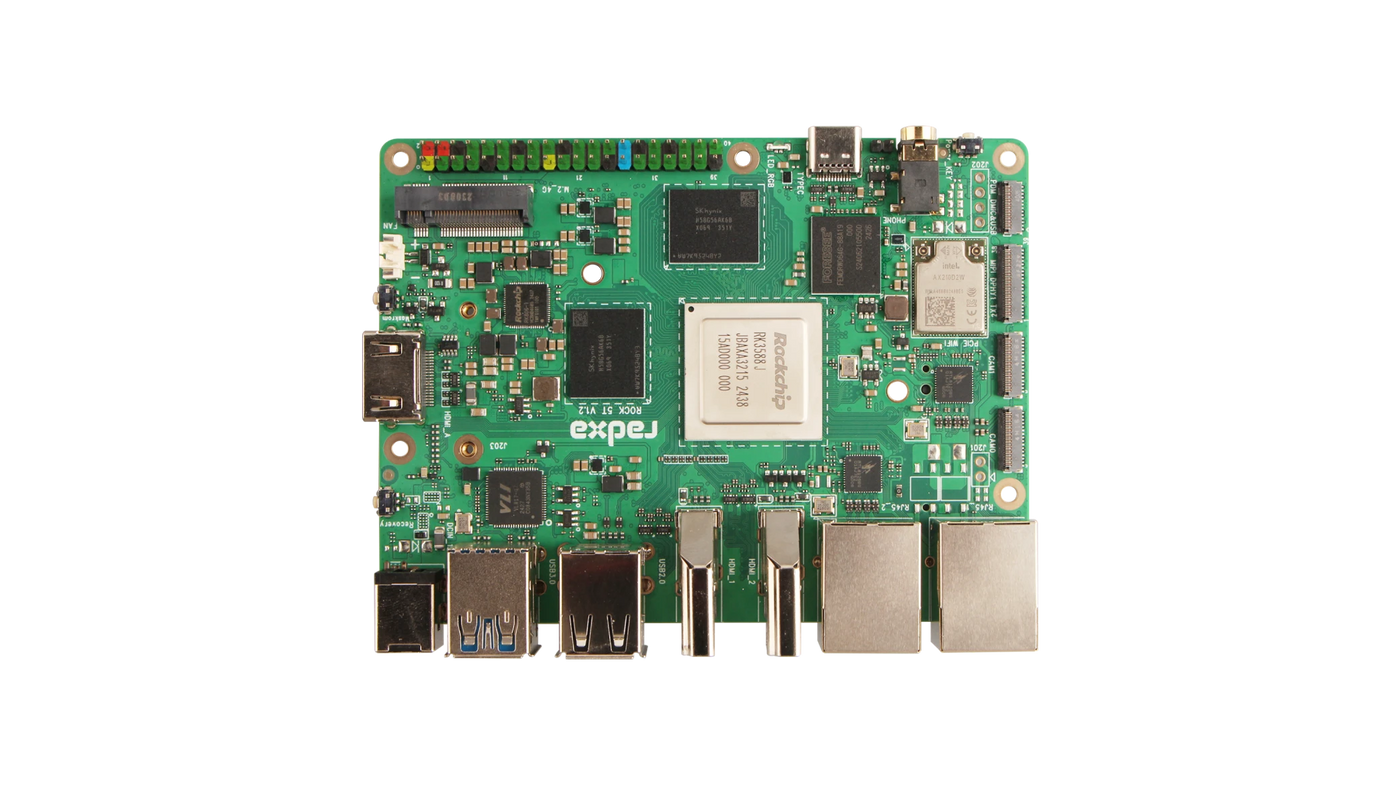

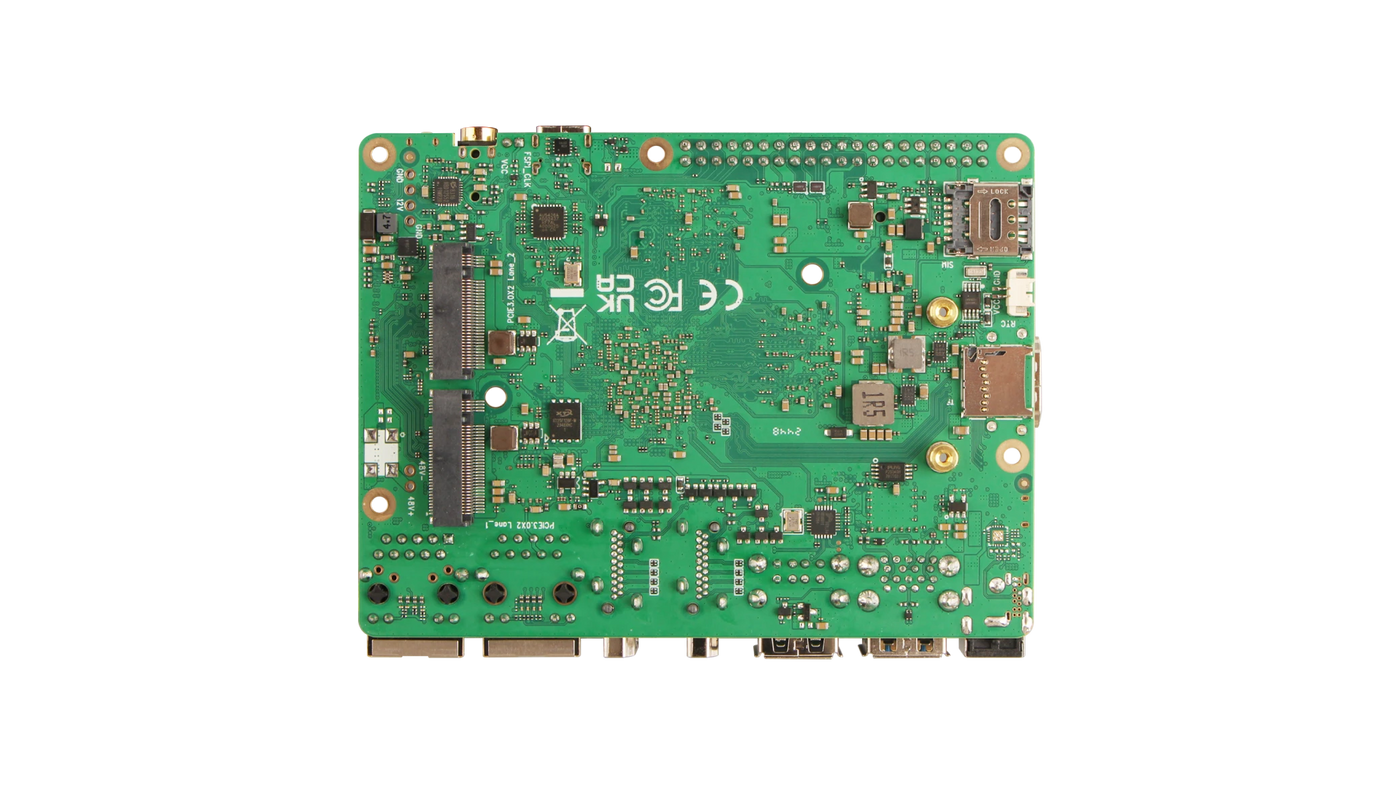

Radxa ROCK 5T

SKU: RDXA1214

₹ 14,149.99

Out of stock

Select variant

4GB
N/A
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Radxa ROCK 5T4GB / N/A₹ 14,149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

ROCK 5T

8K Industrial-Grade Single Board Computer





Breaking boundaries with ultimate innovation

All the features and interfaces of a Mini-ITX board, now in a smaller size without any compromise





Consumer-Grade or Industrial-Grade for
Perfectly Meeting All Your Demands





Unchanged Excellence, Enhanced Capabilities!





Ultimate Networking Performance!

Dual 2.5 Gigabit Ethernet Ports, One with PoE Support (Optional Built-in PoE)





DC Jack Interface





Support Industrial-Grade Wi-Fi 6





ROCK 5 Comparison





Comprehensive Technical Documentation and
Active Community





Interfaces





Tech Specs

Radxa ROCK 5T Specifications
SoC Rockchip RK3588(J)
CPU Quad Cortex-A76 @ 2.2~2.4GHz + Quad Cortex-A55 @ 1.8GHz
GPU Arm Mali-G610MC4
- OpenGL ES1.1/2.0/3.2
- OpenCL 1.1/1.2/2.2
- Vulkan 1.1/1.2
- 2D image acceleration module
NPU Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32, up to 6 TOPs
Multimedia Decoder: H.265 / H.264 / AV1 / AVS2 up to 8K@60fps
Encoder: H.264 / H.265 up to 8K@30fps
RAM 64bit LPDDR5: 4GB / 8GB / 16GB / 24GB / 32GB
Storage 1x SPI Flash (Bootloader)
1x Optional Onboard eMMC
1x microSD Slot
2x M.2 M Key PCIe 3.0 (2-lane)
Audio 1x 3.5mm 4-ring jack (Mic+Headphone)
1x Digital Mic via FPC
Display 1x HDMI 2.1 (8K@60)
1x HDMI 2.1 (4K@60)
1x DP via USB-C (4K@60)
1x 4-lane MIPI DSI (1080p@60)
Multi-display: 4K+4K+4K+2K or 8K+4K+2K
Video Input 1x HDMI Input (4K@60)
2x 4-lane or 4x 2-lane MIPI CSI
USB 1x USB-C (DP 4K@60, USB 3.1 Gen1 OTG)
2x USB 3.1 Gen1 Type A
2x USB 2.0 Type A
Ethernet 2x 2.5G Ethernet (1 with optional PoE)
Wireless Wi-Fi 6 & BT 5.2 (Consumer)
Wi-Fi 6E & BT 5.3 (Industrial)
Mobile Network 1x M.2 B Key (3042) + 1x SIM Card Slot
Miscellaneous RTC battery, PWM fan, power/recovery buttons, RGB LED
Power 5525 DC Jack 12V, 5V via GPIO PIN 2 & 4
Software Radxa OS, Android
Dimensions 110mm x 82mm
Compliance FCC / CE





Download

Documentation

Product Brief Download
Schematic V1.2 Download
Components Placement Map (SMD V1.2) Download
3D Drawings Download
2D Drawings Download



What are the key networking and video output options available on the board?
It provides two 2.5G ethernet ports with one PoE option; video outputs include HDMI 2.1 for 8K and 4K, a DP via USB C for 4K, and a 4 lane MIPI DSI for 1080p. It also has an HDMI input for 4K capture.
What RAM and storage options are offered?
RAM is LPDDR5 with options of 4GB, 8GB, 16GB, 24GB or 32GB. Storage includes a SPI bootloader, an onboard eMMC option, a microSD slot, and two M.2 M Key PCIe 3.0 lanes.
Are there different wireless and ethernet variants for this board?
Yes, consumer variants include Wi Fi 6 and BT 5.2, while industrial variants use Wi Fi 6E and BT 5.3; the board also provides two 2.5G ethernet ports with a PoE option.
What software and support resources are available?
The board supports Radxa OS and Android, and there is comprehensive technical documentation plus an active community for support.
What are the power, size and compliance details I should know?
Power is supplied via a 5.5 x 2.5 mm DC jack for 12V and a 5V rail via GPIO pins 2 and 4; the board dimensions are 110 mm by 82 mm and it is FCC and CE compliant.
