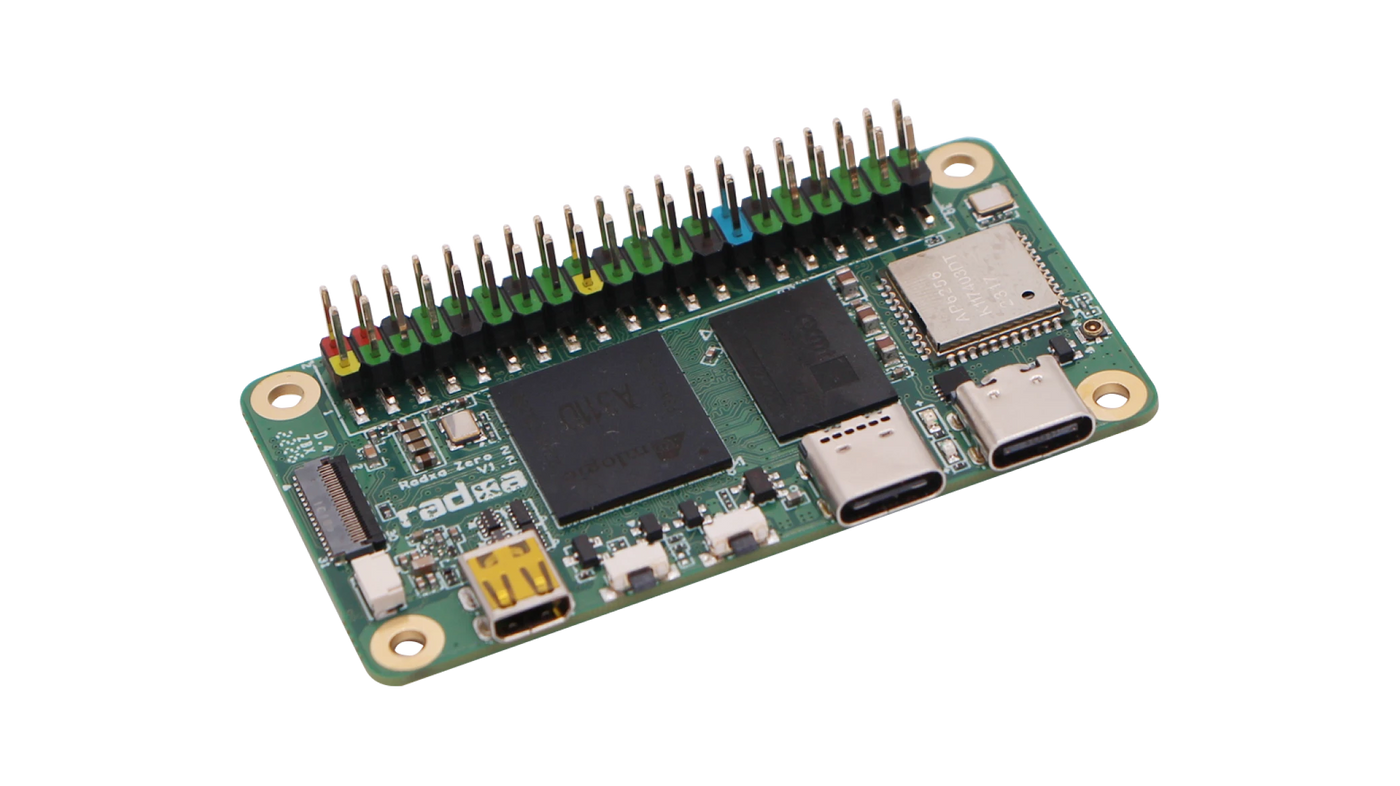

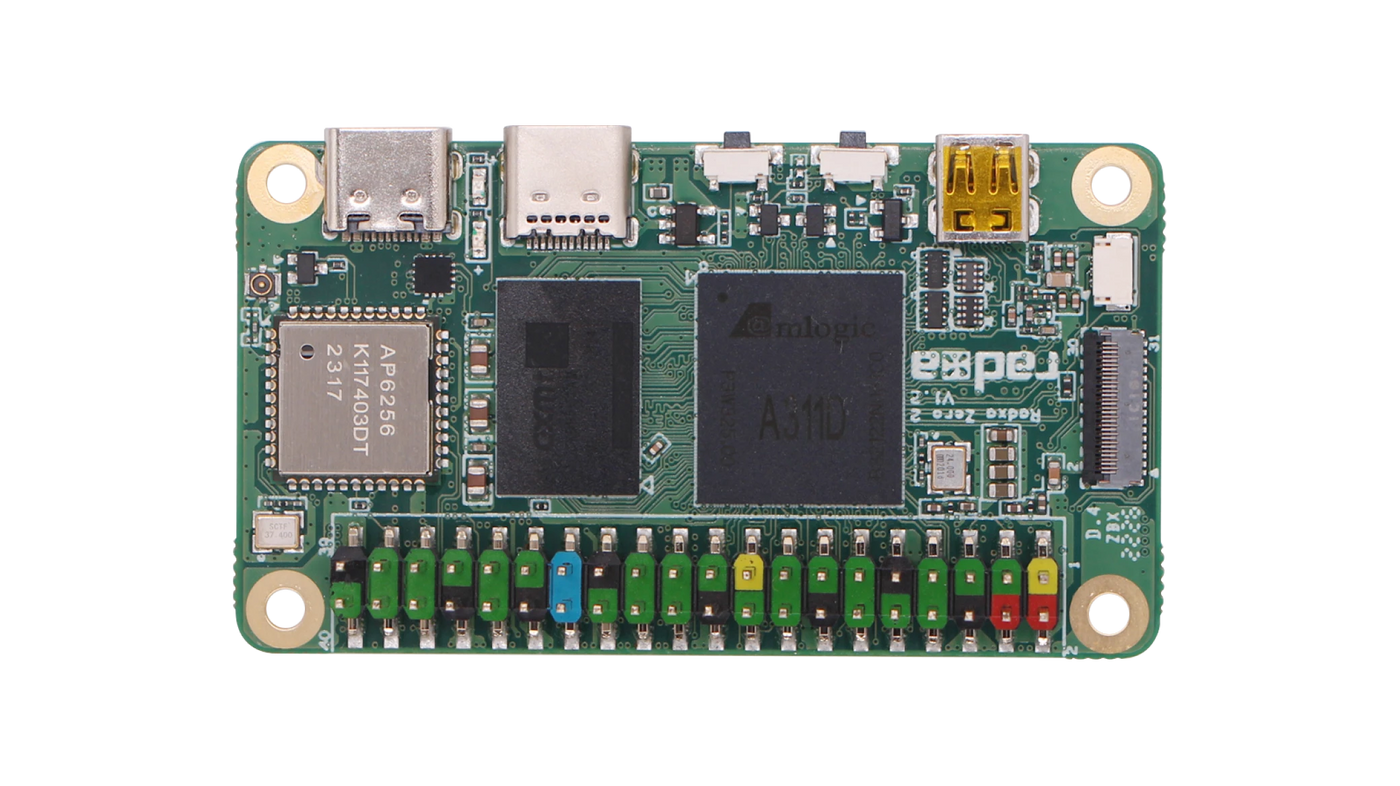

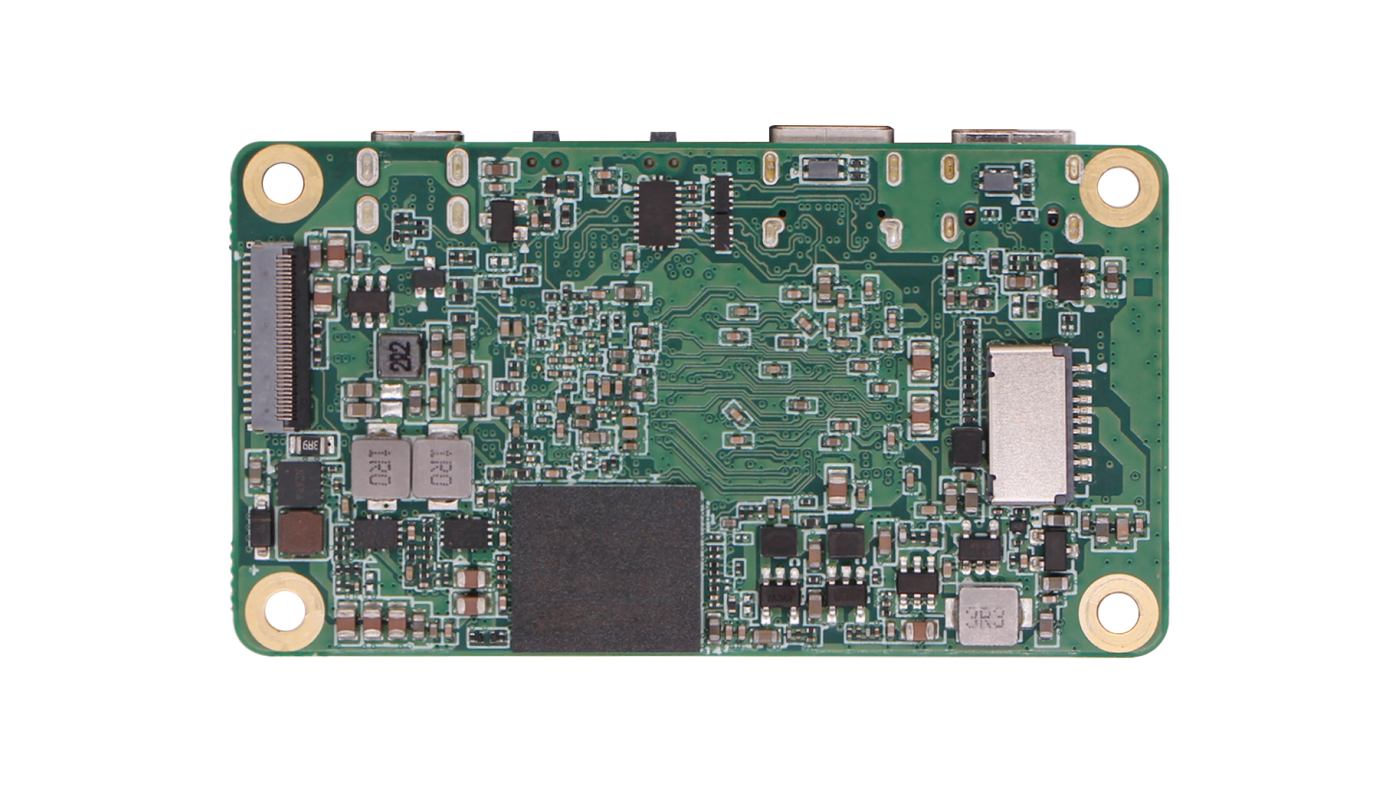

Experience powerful computing in an incredibly compact form factor with the ZERO 2 Pro SBC. This ultra-miniature board delivers impressive performance while maintaining a tiny footprint, making it perfect for IoT projects, embedded applications, robotics, and space-constrained builds where every millimeter matters.
Tiny Form Factor, Big Heart
RAM: 4 GB LPDDR4
Onboard eMMC: 16GB / 32GB / 64GB
> 802.11 b/g/n/ac (Wi-Fi 5) Wireless LAN
> External antennas support wider coverage
> Bluetooth 5.0 with BLE
High Speed and Capacity to Fulfill Diverse Storage Needs
Display
1x MIPI DSI with 39-Pin and 0.3mm pitch.
USB Ports
1x USB 2.0 OTG Type C Port for power and data
1x USB 3.0 Host Type C Port
Camera
1x MIPI CSI with 31-Pin and 0.3mm pitch.
40x User GPIO
supporting a wide range of interface options
>UART >SPI >I2C >PWM >GPIO etc.
Specifications - Radxa ZERO 2 Pro |
|
|---|---|
| SoC | Amlogic A311D |
| CPU | Quad‑core Arm® Cortex‑A73 (Armv8) 64‑bit @ 2.2GHz and Dual‑core Arm® Cortex‑A53 (Armv8) 64‑bit @ 1.8GHz |
| GPU | Arm® G52 MP4 GPU - OpenGL® ES1.1/2.0/3.0/3.1/3.2 - Vulkan® 1.0, OpenCL™ 2.0 |
| NPU | Computing Power up to 5 TOPs Support for Deep Learning Frameworks - Tensorflow - Caffe |
| RAM | 4GB LPDDR4 |
| Storage | eMMC: 32 / 64 / 128GB 1 x Micro SD Card |
| Wireless | WiFi5 with external antenna support BT 5.0, BLE |
| USB | 1x USB 2.0 Type C OTG 1x USB 3.0 Type C Host |
| Display | 1 x Micro HDMI 2.0 support 4K@60fps 1 x MIPI DSI |
| Camera | 1 x MIPI CSI camera port |
| Connectivity | 40 x color user GPIO supporting various interface options: - up to 3 x UART - up to 2 x SPI - up to 3 x I2C - up to 3 x PWM - up to 2 x ADC - up to 22 x GPIO - 2 x 5V DC power in - 2 x 3.3V power in - 2 x 3.3V power pin |
| Operating Conditions |
Recommended environmental temperature: 0 ~ 50°C Radxa ZERO 2 Pro has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit |
| Software | Support Debian / Linux / Android |
| Dimension | 65 mm × 35 mm |
| Compliance Certification | CE / FCC |
Documentation
| Getting Started Guide - Radxa ZERO 2 Pro | Download >> |
| Radxa OS - Radxa ZERO 2 Pro | Download >> |
| Configuration setting - Radxa ZERO 2 Pro | Download >> |
| Build Guide - Radxa ZERO 2 Pro | Download >> |
| Other Operating Systems - Radxa ZERO 2 Pro | Download >> |
| Hardware Development - Radxa ZERO 2 Pro | Download >> |
Official Images
| Debian OS - Radxa ZERO 2 Pro | Download >> |
Product Information
| Radxa ZERO 2 Pro - Product Brief | Download >> |
| Radxa ZERO 2 Pro - Schematic V1.2 | Download >> |
| Radxa ZERO 2 Pro - Components Placement Map (SMD V1.2) | Download >> |
| Radxa ZERO 2 Pro - 2D Drawings | Download >> |
> Radxa Camera 4K
IMX 415

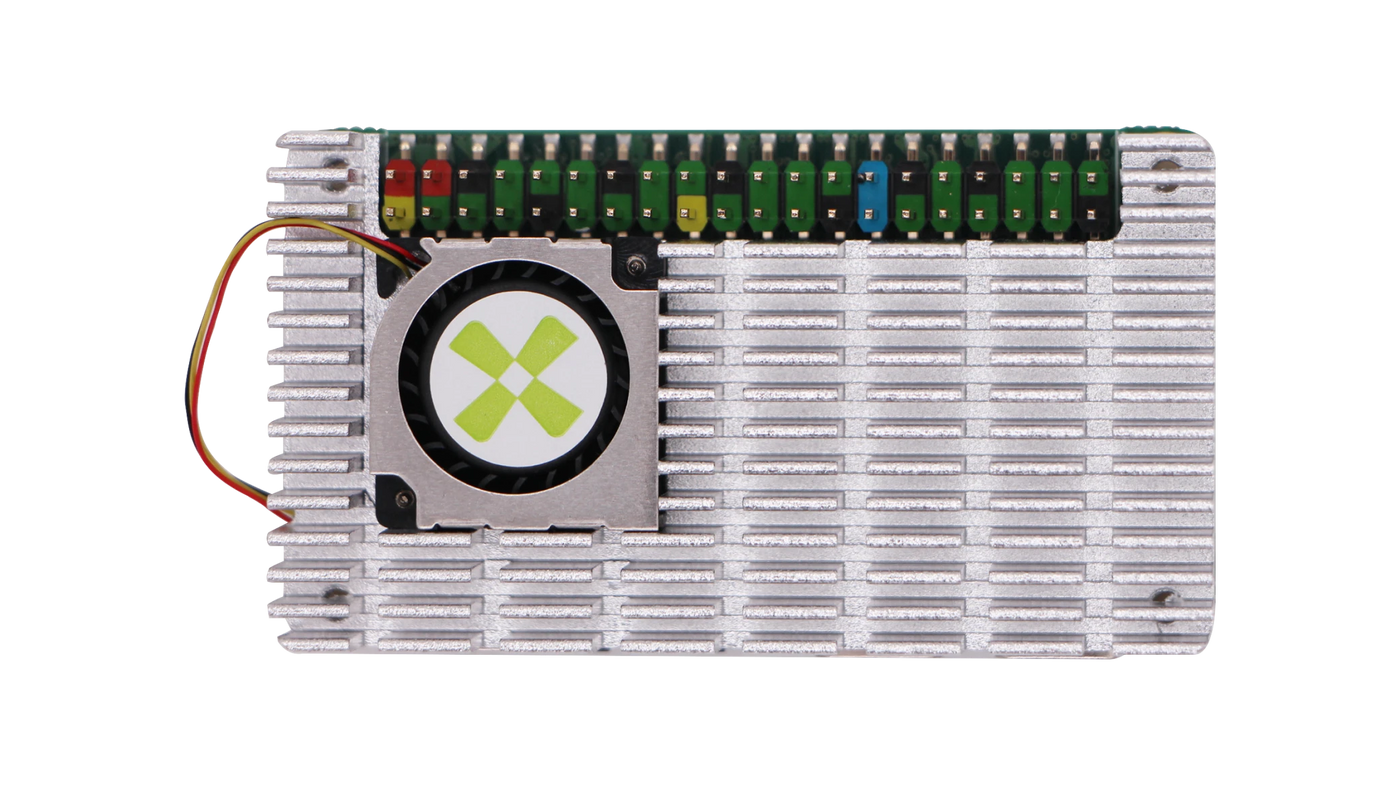

> Radxa Heatsink 6510
Specialized for Radxa ZERO 2 Pro
> Radxa Power PD 30W
5A High Current Super-Fast Charge
> Radxa Display 10 FHD
10-inch FHD Touchscreen Module
