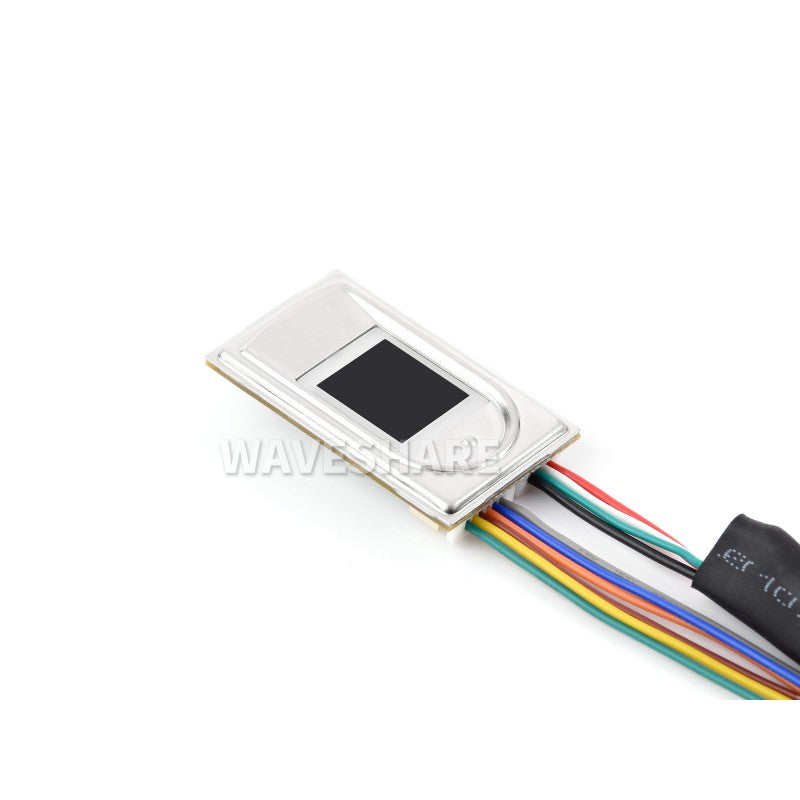

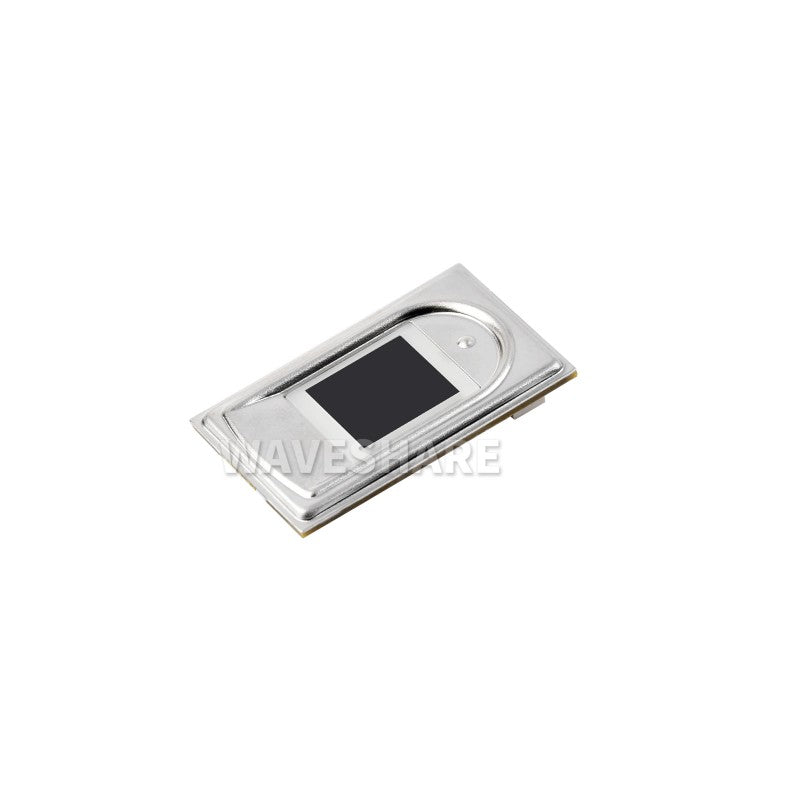

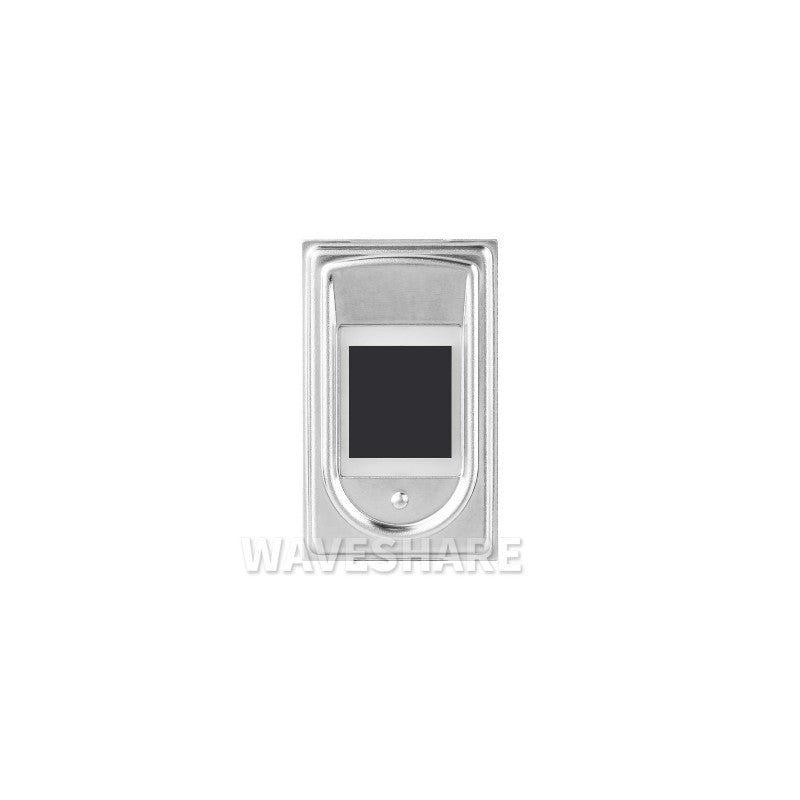

High-precision | UART & USB communication | LED indicator | All-In-One
Based on a high-performance Cortex processor, combined with high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (F) features functionalities like fingerprint enrolling, image acquisition, feature finding, fingerprint matching, and so on. Without any knowledge about the complicated fingerprinting algorithm, all you need to do is just send some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.
| Easy to use with simple commands; no need to understand fingerprint technology or internal structure |
| Commercial fingerprint algorithm supporting enrolling, matching, image acquisition, and feature uploading with stable, fast performance |
| Capacitive sensitive detection; light touch enables fast verification |
| Highly integrated hardware with processor and sensor in a compact chip suitable for small applications |
| Embedded human sensor: auto sleep mode and touch-wake for lower power consumption |
| Onboard collecting window indicator for fingerprint capture notification |

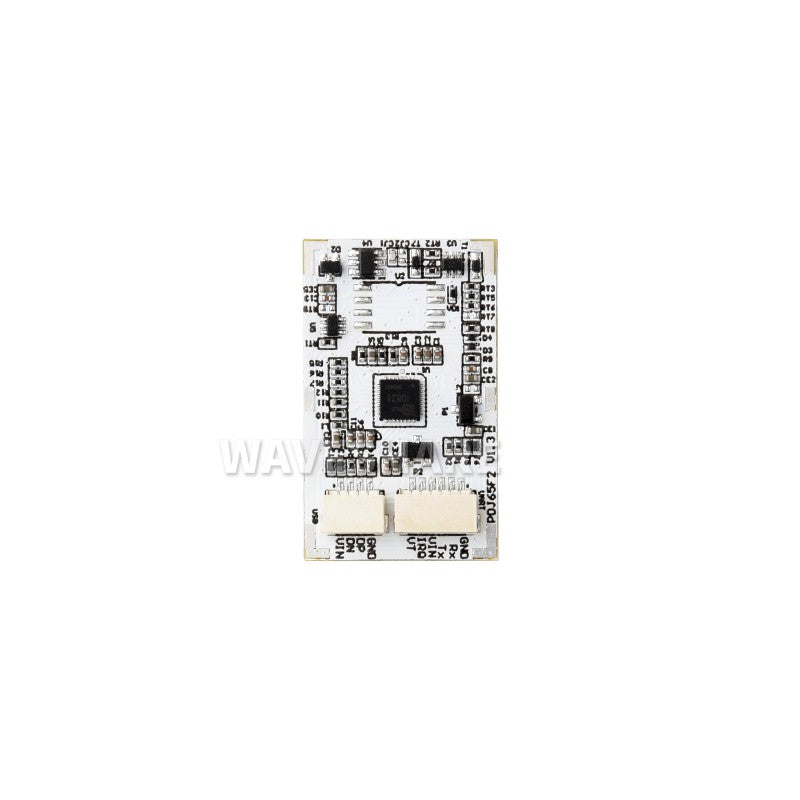

| Onboard UART and USB dual communication interfaces |
| Supports PC connection for upper-computer software and compatible with embedded platforms like STM32 and Raspberry Pi |
| Sensor | Capacitive touch sensor |
| Resolution | 508 DPI |
| Image Pixels | 192 × 192 |
| Fingerprint Template Size | 448 Byte |
| Sensor Dimension | 9.6 × 9.6 mm |
| Fingerprint Capacity | 1000 |
| Matching Time | < 0.5s (1:N, N≤500) |
| False Acceptance Rate | < 0.001% (Level 3) |
| False Rejection Rate | < 2% (Level 3) |
| Operating Voltage | 3.3V |
| Operating Current | < 55mA |
| ESD Protection | IEC 61000-4-2 LEVEL 4 ±15KV air discharge |
| Communication Port | UART, USB |
| Baudrate | 115200bps (supports 9600bps ~ 115200bps) |
| Operating Environment | Temperature: -10°C ~ 60°C; Humidity: 20%RH ~ 80%RH (no condensation) |
 Fingerprint lock |
 Fingerprint safe |
 Access control |
 Fingerprint attendance |
Wiki: www.waveshare.com/wiki/UART_Fingerprint_Sensor_(F)
Weight: 0.04 kg
UART Fingerprint Sensor (F) x1
SH1.0 6PIN cable ~150mm x1
4PIN to USB port cable x1
6PIN dual plug cable x1
