PCIe To 5G HAT For Raspberry Pi 5

PCIe Protocol, Supports 5G High-Speed Networking

* for reference only, the Raspberry Pi 5 is NOT included.

Features

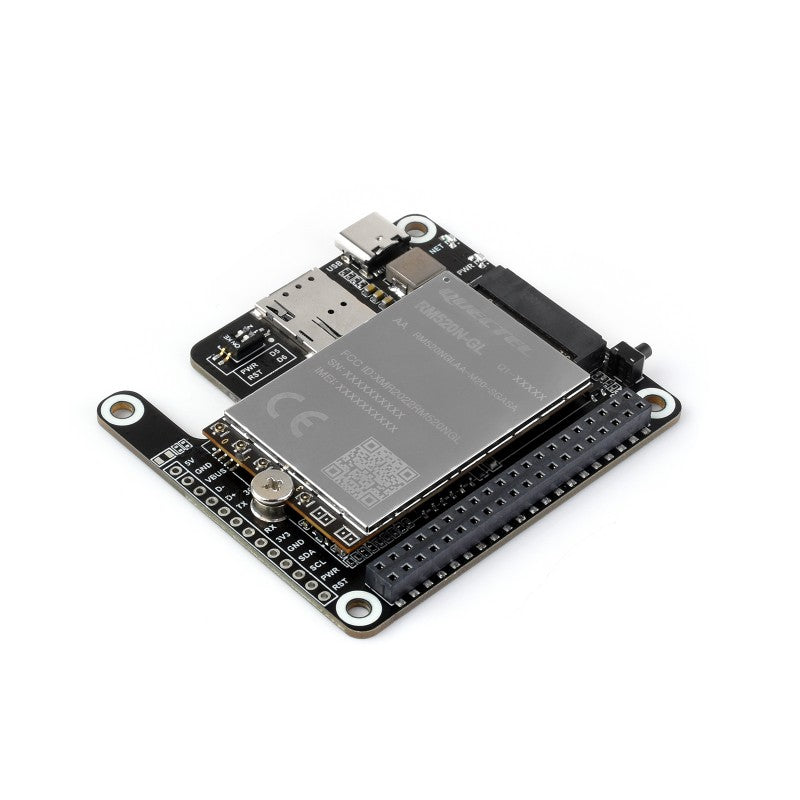

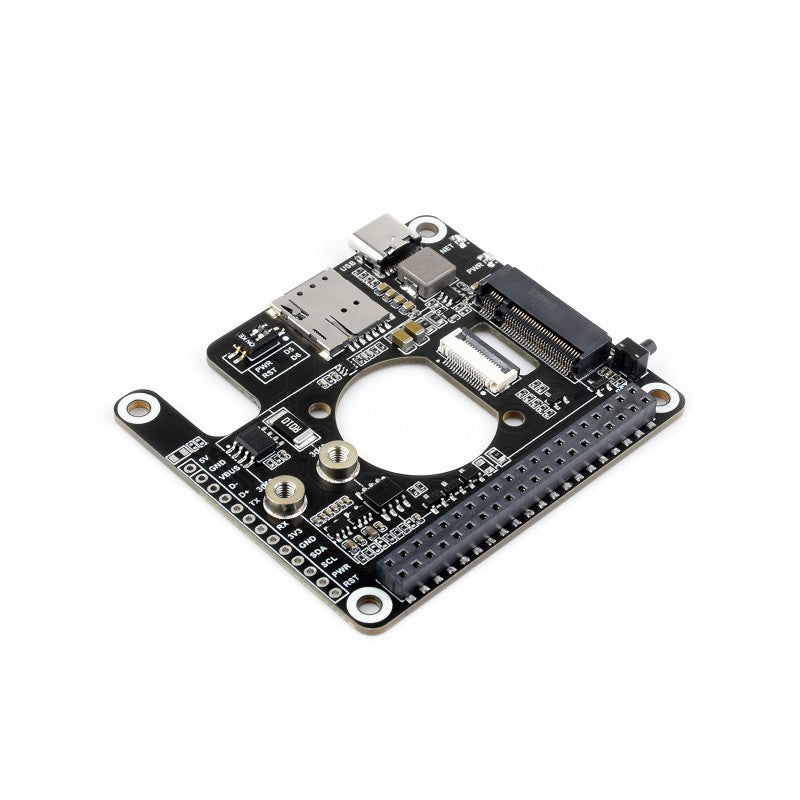

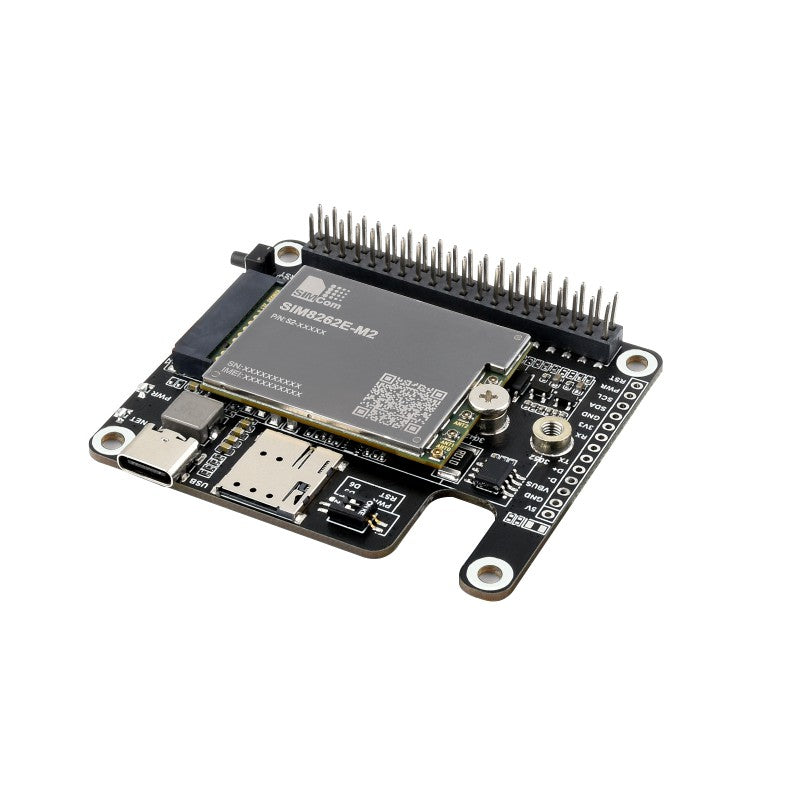

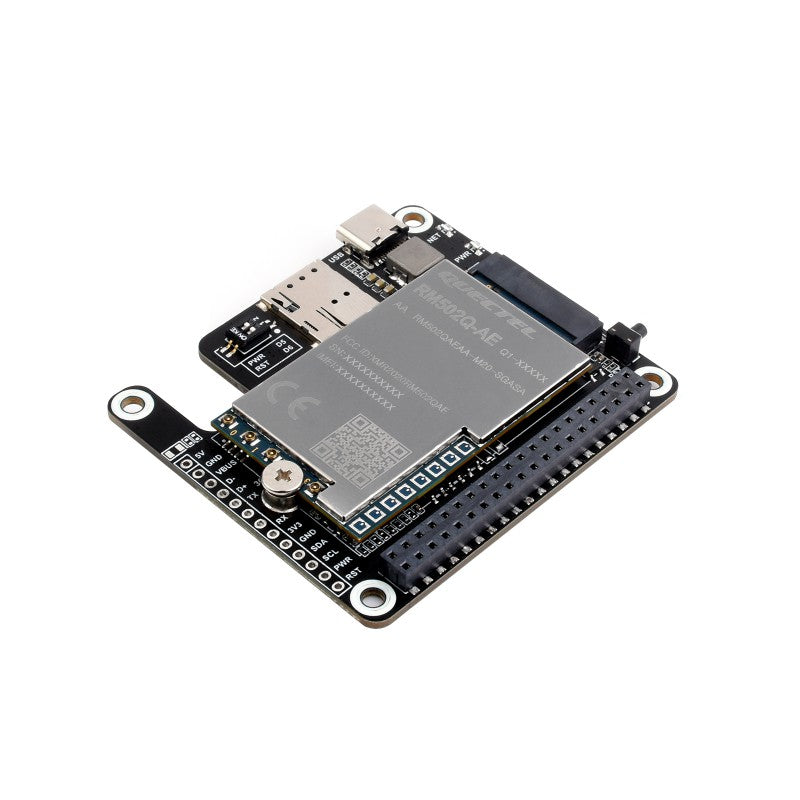

Comes with PCIe TO 5G HAT+

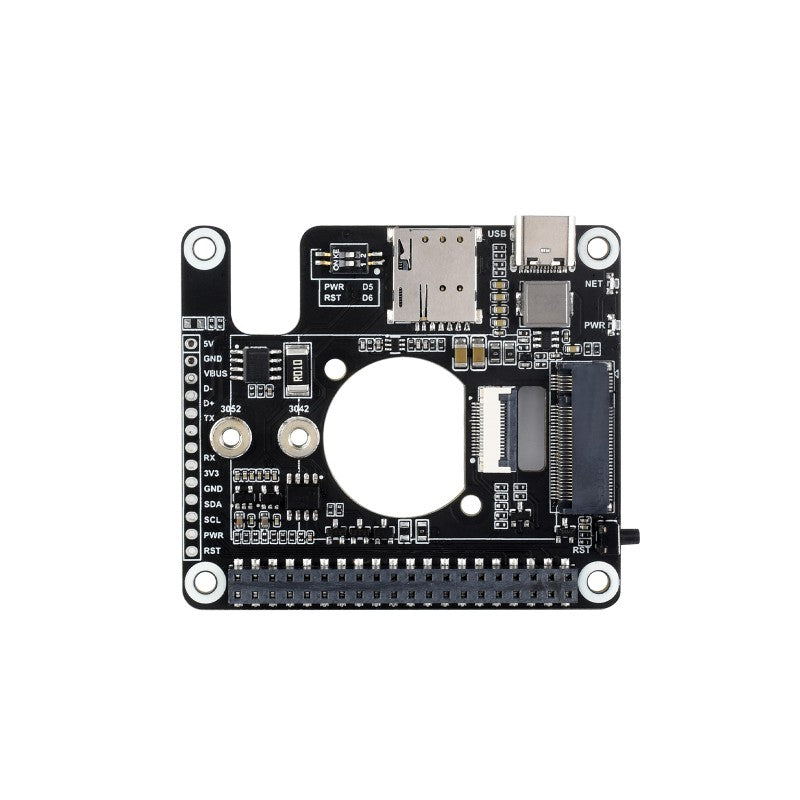

- Onboard M.2(NGFF) Key B slot, supports SIM82XX and RM5XX series 5G modules and is compatible with 3042/3052 packages
- Onboard PCIE connector, can be directly connected to Raspberry Pi 5 PCIe interface for 5G networking, supports Raspberry Pi OS and OpenWRT
- Onboard Type-C port for 5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
- HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
- Onboard power monitoring chip for real-time measurement of voltage, current and power
- Onboard SIM card slot for NANO SIM card
- Onboard Reset button, power and network indicators for easy debugging and monitoring the operating status
Provides options for 5G module, please refer to the module specifications and applicable region below to choose your 5G HAT kit before placing order
Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation

Options For SIMCom/Quectel 5G Module

Tested To Support Multiple SIMCom/Quectel Qualcomm 5G Modules
Compatible With 3042 / 3052 Size 5G M.2 Modules

MODEL		RM502Q-AE 5G HAT+	RM520N-GL 5G HAT+	RM530N-GL 5G HAT+	SIM8262E-M2 5G HAT+	SIM8262A-M2 5G HAT+

5G Module		RM502Q-AE	RM520N-GL	RM530N-GL	SIM8262E-M2	SIM8262A-M2
5G Standard		3GPP R15	3GPP R16
5G		Sub-6 GHz		Sub-6G & mmWave	Sub-6 GHz
Applicable Region		Global (except China)	Global		except Americas	Americas
Dimensions		30.0 × 52.0 × 2.3 (mm)			30.0 × 42.0 × 2.3 (mm)
FREQUENCY BAND
5G	5G NR	-		n257, n258, n260, n261	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79
	5G NR NSA	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
	5G NR SA	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE	LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71			B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
	LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48			B38, B39, B40, B41, B42, B43	B41, B46, B48
	LAA	B46			-
UMTS	WCDMA	B1, B2, B3, B4, B5, B6, B8, B19	B1, B2, B4, B5, B8, B19		B1, B5, B8	B2, B4, B5
GNSS		GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE)			GPS / GLONASS / BeiDou / Galileo / QZSS
DATA RATE
5G mmWave		-		downlink 4 Gbps; uplink 1.4 Gbps	-
5G SA Sub-6		downlink 4.2 Gbps; uplink 450 Mbps	downlink 2.4 Gbps; uplink 900 Mbps		downlink 2.4 Gbps; uplink 500 Mbps
5G NSA Sub-6		downlink 5 Gbps; uplink 650 Mbps	downlink 3.4 Gbps; uplink 550 Mbps		downlink 2.4 Gbps; uplink 500 Mbps
LTE		downlink 2 Gbps; uplink 200 Mbps	downlink 1.6 Gbps; uplink 200 Mbps		downlink 1.0 Gbps; uplink 200 Mbps
UMTS		downlink 42 Mbps; uplink 5.76 Mbps
Note: The above are the supported 5G modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility.

Supports 5G/4G/3G Networking

Supports 5G NSA (4G And 5G Co-Networking) And SA (5G Separate Networking); Supports 4G/3G Internet

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Connecting To PI5 Via PCIe Interface

Onboard PCIe Connector, Can Be Directly Connected To Raspberry Pi 5 PCIe Interface For 5G Networking Via 16PIN Cable

* for reference only, please refer to the Package Content for detailed part list

PCIe MHI Driver Porting

The Raspberry Pi 5 Can Load The Module Via PCIe MHI Driver
Compatible With The Latest Raspberry Pi OS And OpenWRT System

Raspberry Pi OS

OpenWRT

Networking other devices via network cable

Individually powered and sharing WIFI

Connecting To Windows/Linux Host Via USB

Onboard Type-C Port, Supports Connecting To Windows/Linux Host Via USB Cable For 5G Networking, Firmware Updating Or Debugging

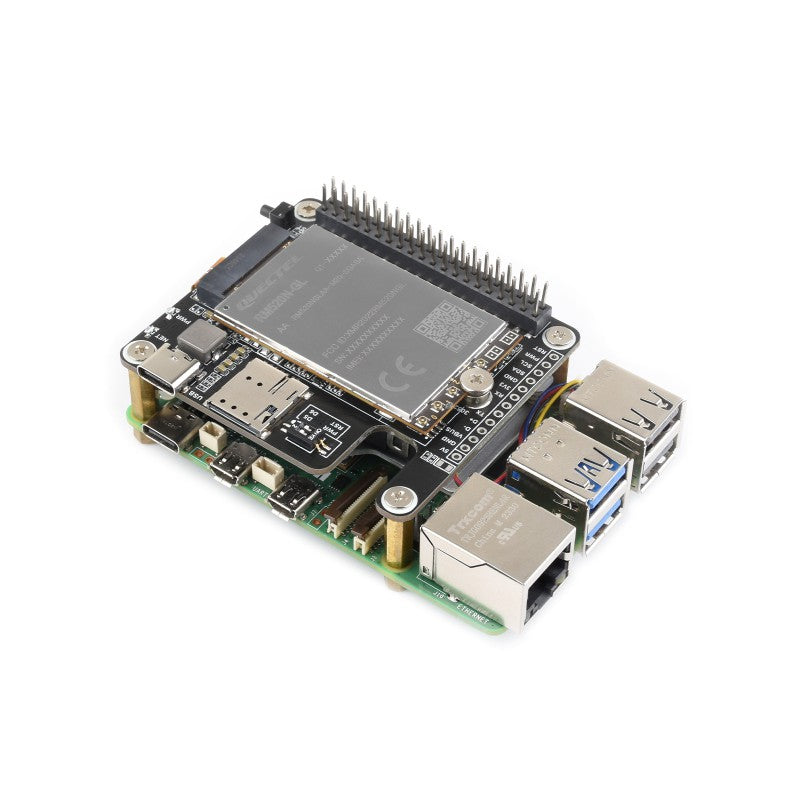

Connecting to the Raspberry Pi 4B

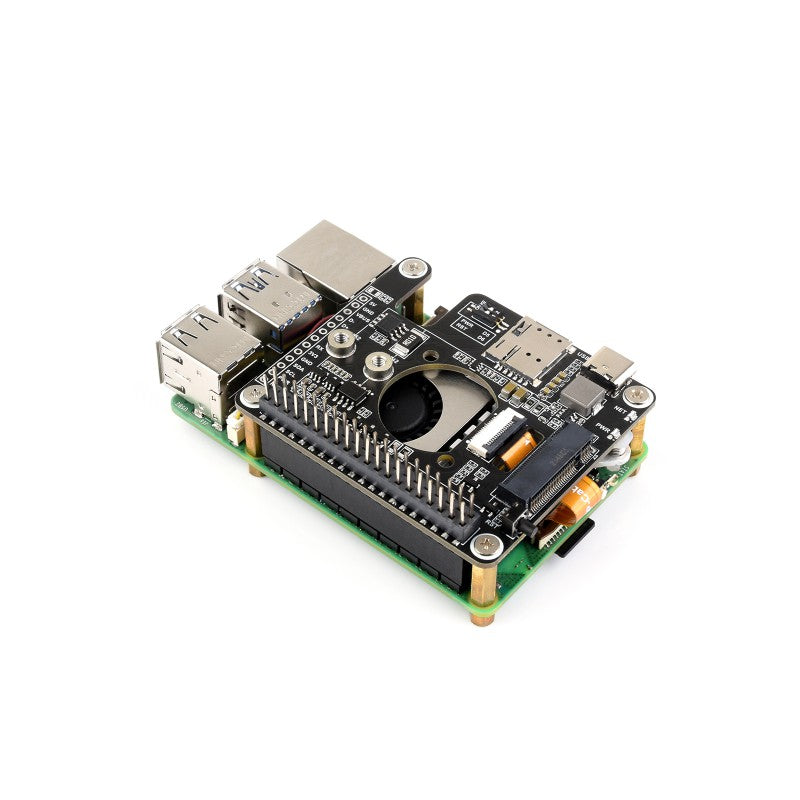

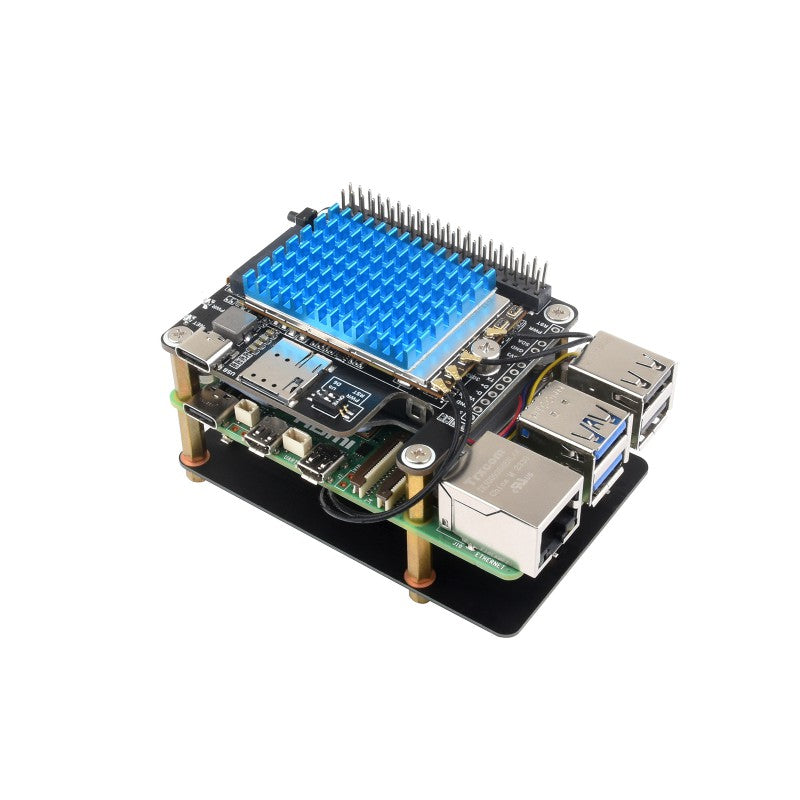

PCIe To 5G HAT for Raspberry Pi 5, connecting to the Raspberry Pi PC

Connecting to the PC

Supports Windows/Linux Systems Via USB Port

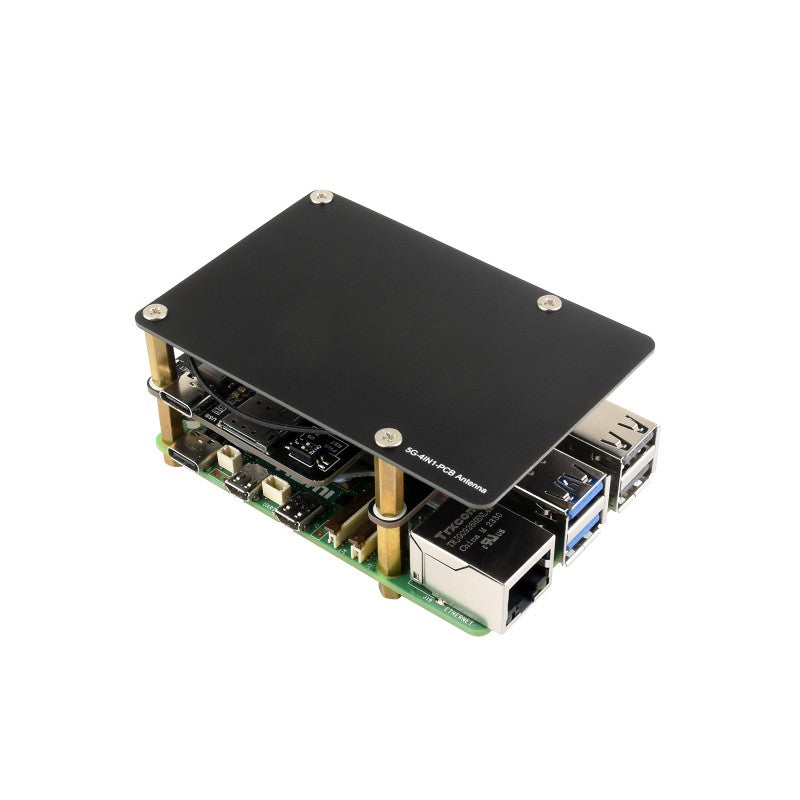

Comes With 5G-4IN1-PCB Antenna

Supports Top And Bottom Mounting, Easy To Install, Good Communication Effect

PCIe To 5G HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the bottom

Install on the Bottom

PCIe To 5G HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the top

Install on the Top

Onboard Power Monitoring Chip And EEPROM

For Real-Time Monitoring Voltage, Current And Power Of Module Via I2C
Supports Saving HAT+ ID And Product Information, Compatible With HAT+ Standard

How To Install

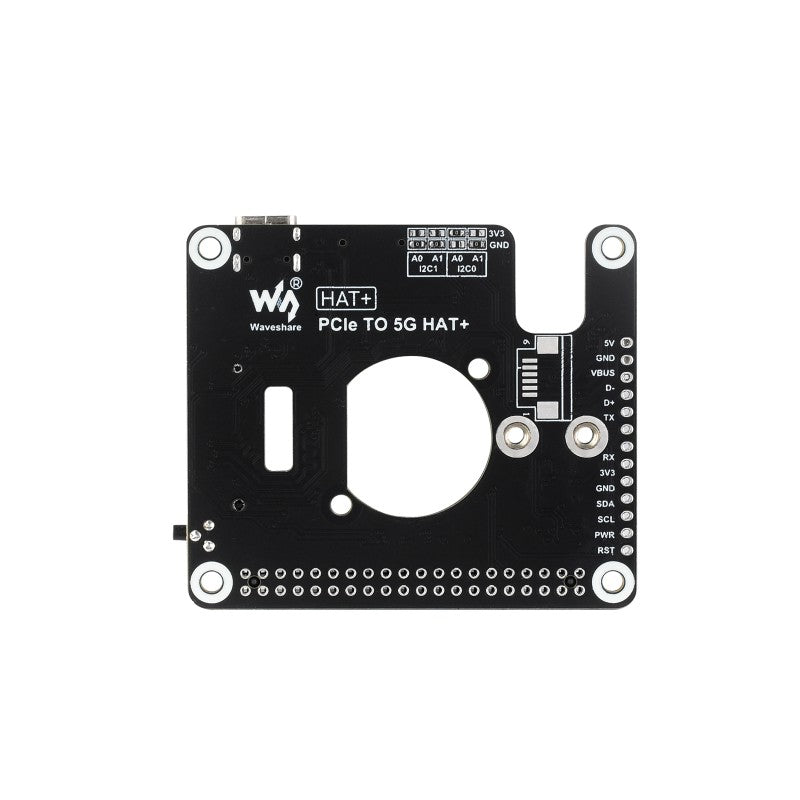

Pinout Definition

Application Scenarios

Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

Outline Dimensions

Resources

Wiki: www.waveshare.com/wiki/RM520N-GL_5G_HAT+
www.waveshare.com/wiki/RM530N-GL_5G_HAT+
www.waveshare.com/wiki/RM502Q-AE_5G_HAT+
www.waveshare.com/wiki/SIM8262E-M2_5G_HAT+

Package Contains:

Weight: 0.052 kg

RM520N-GL 5G HAT+

PCIe TO 5G HAT+ x1
5G-4IN1-PCB Antenna x1
RM520N-GL 5G module x1
Heatsink x1
16P-Cable-40mm cable x1
2x20PIN female header x1
IPEX1 to IPEX4 cable 4PCS x1
Screws pack x1

RM530N-GL 5G HAT+

PCIe TO 5G HAT+ x1
5G-4IN1-PCB Antenna x1
RM530N-GL 5G module x1
Heatsink x1
16P-Cable-40mm cable x1
2x20PIN female header x1
IPEX1 to IPEX4 cable 4PCS x1
Screws pack x1

RM502Q-AE 5G HAT+

PCIe TO 5G HAT+ x1
5G-4IN1-PCB Antenna x1
RM502Q-AE 5G module x1
Heatsink x1
16P-Cable-40mm cable x1
2x20PIN female header x1
IPEX1 to IPEX4 cable 4PCS x1
Screws pack x1

SIM8262E-M2 5G HAT+

PCIe TO 5G HAT+ x1
5G-4IN1-PCB Antenna x1
SIM8262E-M2 5G module x1
Heatsink x1
16P-Cable-40mm cable x1
2x20PIN female header x1
IPEX1 to IPEX4 cable 4PCS x1
Screws pack x1

How do I connect the PCIe to 5G HAT to the Raspberry Pi 5 and what is included in the kit?

The HAT connects to the Raspberry Pi 5 PCIe interface using the included 16P 40 mm cable. The kit contains a 16P 40 mm cable, a 2x20 pin header, four IPEX cables, a heatsink and a screws pack.

Which 5G modules are supported and how should I choose the correct kit?

Supported modules include RM502Q AE RM520N GL RM530N GL SIM8262E M2 and SIM8262A M2. Choose the kit according to the module you plan to use and verify compatibility with your region and band needs.

Can I connect to a Windows or Linux host via USB and update firmware on this HAT?

Yes, the onboard USB C port allows connecting to a Windows or Linux host via USB for 5G networking, firmware updates and debugging.

Is the HAT compatible with Raspberry Pi OS and OpenWRT, and how is the antenna mounted?

The HAT supports Raspberry Pi OS and OpenWRT. It provides top or bottom mounting for the 5G antenna on the board for flexible installation.

Is the Raspberry Pi 5 included with the kit and is the board compatible with 3042 and 3052 packages?

The Raspberry Pi 5 is not included. The HAT is designed to work with 3042 and 3052 size 5G modules.

A

Admin

Welcome to the discussion thread for PCIe to 5G/4G/3G HAT designed for Raspberry Pi 5, Compatible with 3042/3052 packages SIMCom/Quectel 5G modules
Feel free to ask questions, share tips or report issues.

Add Post

For more discussion Click Here

Discover More In:

GPS, GSM, RFID → IOT Modules → NVIDIA Jetson →

Category: View similar items (PCIe)

5G M.2 Module DONGLE With USB3.1 Port Online

Waveshare

5G M.2 Module DONGLE with quad antennas & USB3.1 port

₹ 2,749.99 ~~₹ 3,499.99~~

Waveshare

GPS External Antenna, Ceramics with Amplifier

₹ 449.99 ~~₹ 499.99~~

Waveshare

Micro HDMI to HDMI Multifunctional Adapter for Raspberry Pi

₹ 649.99 ~~₹ 749.99~~

Waveshare

GNSS L1+L5 Dual-frequency Active Antenna

₹ 2,399.99 ~~₹ 2,499.99~~

Fill out the form below and our team will get back to you with bulk pricing.

Description

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

PCIe To 5G HAT For Raspberry Pi 5

PCIe Protocol, Supports 5G High-Speed Networking

* for reference only, the Raspberry Pi 5 is NOT included.

Features

Comes with PCIe TO 5G HAT+
- Onboard M.2(NGFF) Key B slot, supports SIM82XX and RM5XX series 5G modules and is compatible with 3042/3052 packages
- Onboard PCIE connector, can be directly connected to Raspberry Pi 5 PCIe interface for 5G networking, supports Raspberry Pi OS and OpenWRT
- Onboard Type-C port for 5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
- HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
- Onboard power monitoring chip for real-time measurement of voltage, current and power
- Onboard SIM card slot for NANO SIM card
- Onboard Reset button, power and network indicators for easy debugging and monitoring the operating status
Provides options for 5G module, please refer to the module specifications and applicable region below to choose your 5G HAT kit before placing order
Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation

Options For SIMCom/Quectel 5G Module

Tested To Support Multiple SIMCom/Quectel Qualcomm 5G Modules
Compatible With 3042 / 3052 Size 5G M.2 Modules

MODEL		RM502Q-AE 5G HAT+	RM520N-GL 5G HAT+	RM530N-GL 5G HAT+	SIM8262E-M2 5G HAT+	SIM8262A-M2 5G HAT+

5G Module		RM502Q-AE	RM520N-GL	RM530N-GL	SIM8262E-M2	SIM8262A-M2
5G Standard		3GPP R15	3GPP R16
5G		Sub-6 GHz		Sub-6G & mmWave	Sub-6 GHz
Applicable Region		Global (except China)	Global		except Americas	Americas
Dimensions		30.0 × 52.0 × 2.3 (mm)			30.0 × 42.0 × 2.3 (mm)
FREQUENCY BAND
5G	5G NR	-		n257, n258, n260, n261	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79
	5G NR NSA	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
	5G NR SA	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE	LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71			B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
	LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48			B38, B39, B40, B41, B42, B43	B41, B46, B48
	LAA	B46			-
UMTS	WCDMA	B1, B2, B3, B4, B5, B6, B8, B19	B1, B2, B4, B5, B8, B19		B1, B5, B8	B2, B4, B5
GNSS		GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE)			GPS / GLONASS / BeiDou / Galileo / QZSS
DATA RATE
5G mmWave		-		downlink 4 Gbps; uplink 1.4 Gbps	-
5G SA Sub-6		downlink 4.2 Gbps; uplink 450 Mbps	downlink 2.4 Gbps; uplink 900 Mbps		downlink 2.4 Gbps; uplink 500 Mbps
5G NSA Sub-6		downlink 5 Gbps; uplink 650 Mbps	downlink 3.4 Gbps; uplink 550 Mbps		downlink 2.4 Gbps; uplink 500 Mbps
LTE		downlink 2 Gbps; uplink 200 Mbps	downlink 1.6 Gbps; uplink 200 Mbps		downlink 1.0 Gbps; uplink 200 Mbps
UMTS		downlink 42 Mbps; uplink 5.76 Mbps
Note: The above are the supported 5G modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility.

Supports 5G/4G/3G Networking

Supports 5G NSA (4G And 5G Co-Networking) And SA (5G Separate Networking); Supports 4G/3G Internet

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Connecting To PI5 Via PCIe Interface

Onboard PCIe Connector, Can Be Directly Connected To Raspberry Pi 5 PCIe Interface For 5G Networking Via 16PIN Cable

* for reference only, please refer to the Package Content for detailed part list

PCIe MHI Driver Porting

The Raspberry Pi 5 Can Load The Module Via PCIe MHI Driver
Compatible With The Latest Raspberry Pi OS And OpenWRT System

Raspberry Pi OS

OpenWRT

Networking other devices via network cable

Individually powered and sharing WIFI

Connecting To Windows/Linux Host Via USB

Onboard Type-C Port, Supports Connecting To Windows/Linux Host Via USB Cable For 5G Networking, Firmware Updating Or Debugging

Connecting to the Raspberry Pi 4B

Connecting to the PC

Supports Windows/Linux Systems Via USB Port

Comes With 5G-4IN1-PCB Antenna

Supports Top And Bottom Mounting, Easy To Install, Good Communication Effect

Install on the Bottom

Install on the Top

Onboard Power Monitoring Chip And EEPROM

For Real-Time Monitoring Voltage, Current And Power Of Module Via I2C
Supports Saving HAT+ ID And Product Information, Compatible With HAT+ Standard

How To Install

Pinout Definition

Application Scenarios

Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

Outline Dimensions

Resources

Wiki: www.waveshare.com/wiki/RM520N-GL_5G_HAT+
www.waveshare.com/wiki/RM530N-GL_5G_HAT+
www.waveshare.com/wiki/RM502Q-AE_5G_HAT+
www.waveshare.com/wiki/SIM8262E-M2_5G_HAT+

Package Contains:

Weight: 0.052 kg

RM520N-GL 5G HAT+

PCIe TO 5G HAT+ x1
5G-4IN1-PCB Antenna x1
RM520N-GL 5G module x1
Heatsink x1
16P-Cable-40mm cable x1
2x20PIN female header x1
IPEX1 to IPEX4 cable 4PCS x1
Screws pack x1

RM530N-GL 5G HAT+

PCIe TO 5G HAT+ x1
5G-4IN1-PCB Antenna x1
RM530N-GL 5G module x1
Heatsink x1
16P-Cable-40mm cable x1
2x20PIN female header x1
IPEX1 to IPEX4 cable 4PCS x1
Screws pack x1

RM502Q-AE 5G HAT+

PCIe TO 5G HAT+ x1
5G-4IN1-PCB Antenna x1
RM502Q-AE 5G module x1
Heatsink x1
16P-Cable-40mm cable x1
2x20PIN female header x1
IPEX1 to IPEX4 cable 4PCS x1
Screws pack x1

SIM8262E-M2 5G HAT+

PCIe TO 5G HAT+ x1
5G-4IN1-PCB Antenna x1
SIM8262E-M2 5G module x1
Heatsink x1
16P-Cable-40mm cable x1
2x20PIN female header x1
IPEX1 to IPEX4 cable 4PCS x1
Screws pack x1
