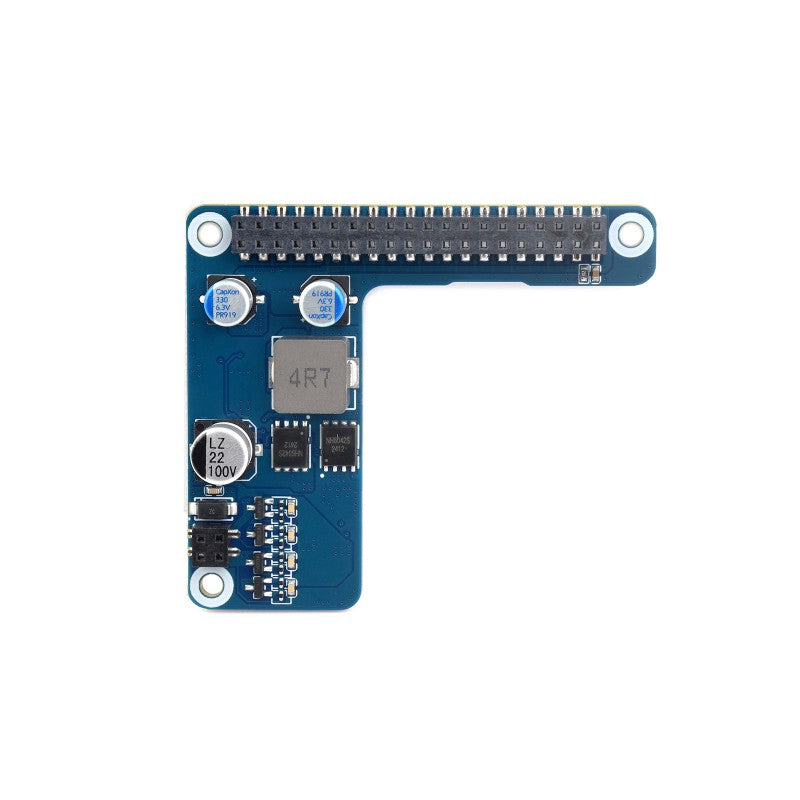

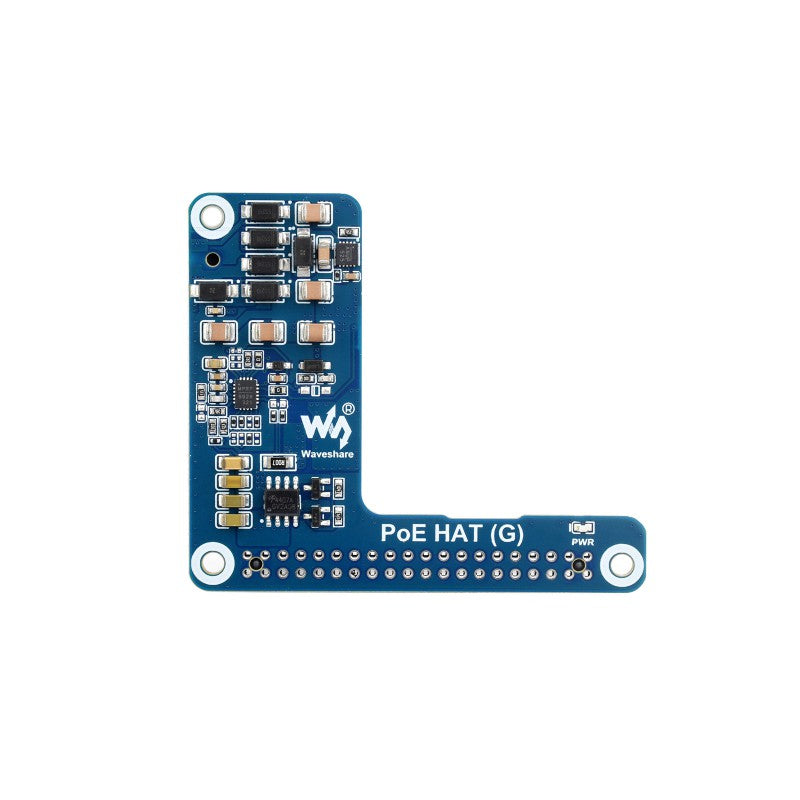

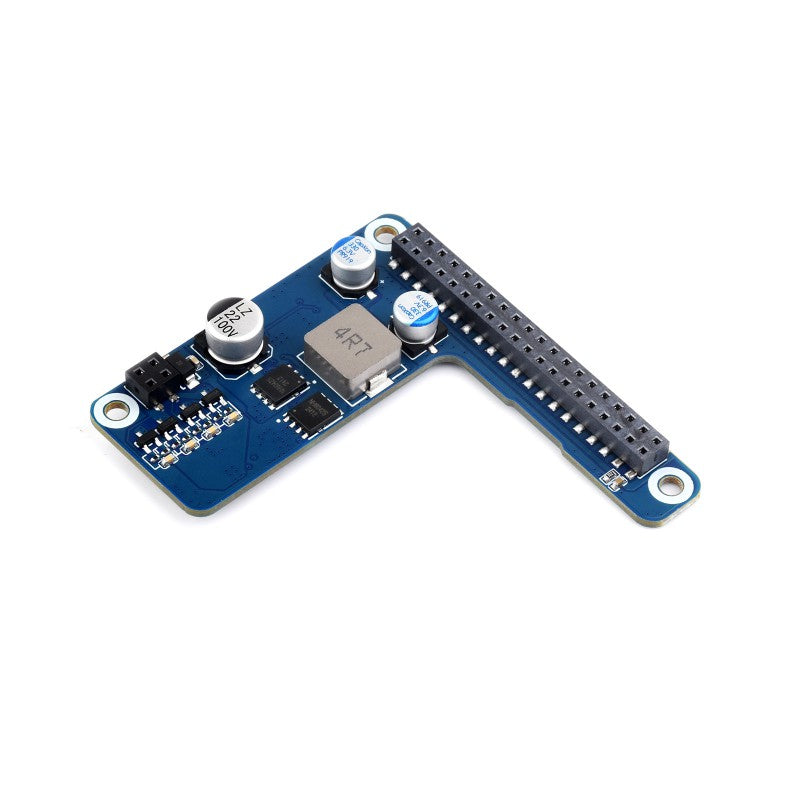

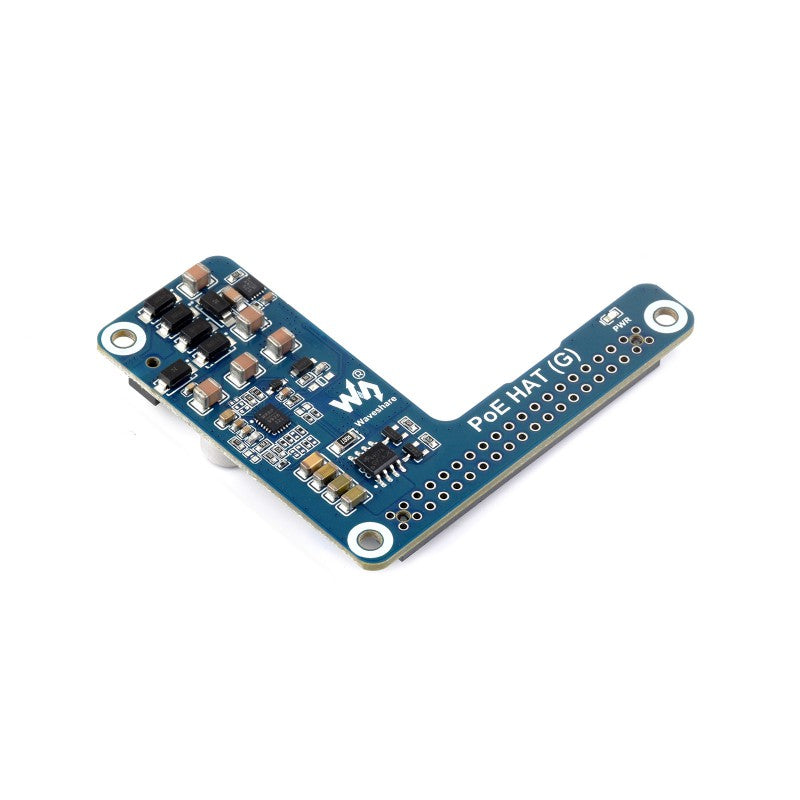

PoE HATĀ for Raspberry Pi 5
Suitable For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard
5V 5A Output, Compatible With Raspberry Pi 5 Official Case
Ā
Features
TheĀ PoE HAT (G)Ā is an IEEE 802.3af/at-compliant PoE (Power Over Ethernet) HAT forĀ Raspberry Pi 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO header
- PoE capabilityļ¼IEEE 802.3af/at-compliant
- Onboard original IC solution for more stable PoE power performance
- Adopts non-isolated switched-mode power supply (SMPS)
- Compact and easy to assemble
Ā
Specifications
| PoE HAT (G) | |
|---|---|
| PoE power input | 38V ~ 57V DC in |
| Power output | GPIO header: 5V 5A (MAX) |
| Dimensions | 56.5 Ć 64.98mm |
| Network standard | IEEEĀ 802.3af/at PoE |
Ā Ā
Suitable for Raspberry Pi 5
Standard Raspberry Pi 40PIN GPIO header, easy to assemble into the official case
Ā
Power Over Ethernet
providing both network connection and
power supply for the Raspberry Pi 5 in one cable
* for reference only, theĀ Raspberry Pi 5Ā and theĀ 120W switchĀ are NOT included.
Ā

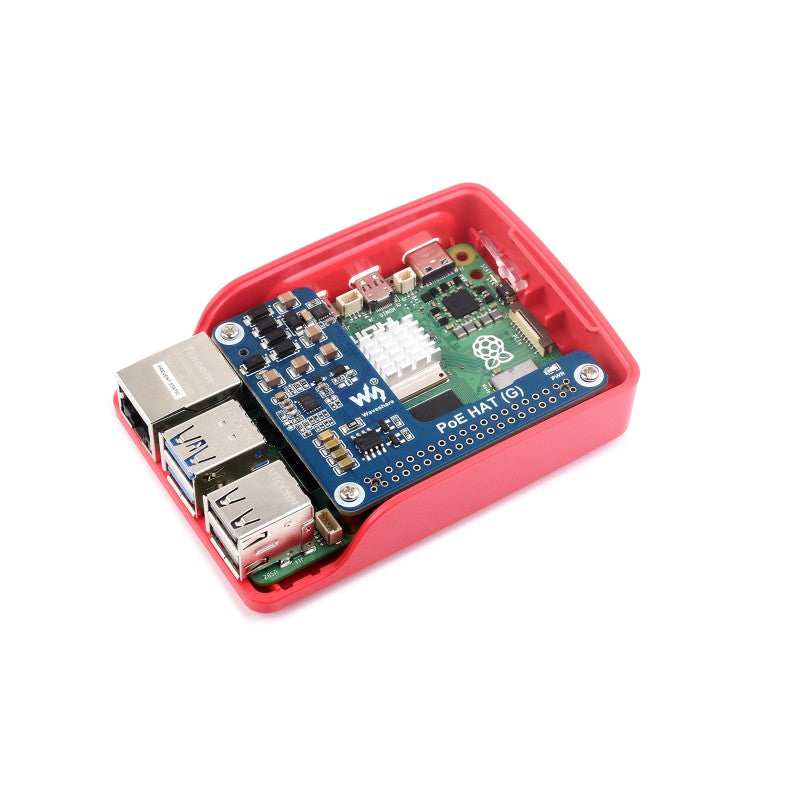

Compatible With Raspberry Pi 5 official case
Compact size Design, Can Be Directly Installed Into The Raspberry Pi 5 Case
Ā
How to Install
Ā
Outline Dimensions
Ā
Resources
WIKI:Ā www.waveshare.com/wiki/PoE_HAT_(G)
Ā
Package Contains:
Weight:Ā 0.02 kg
PoE HAT (G)
- PoE HAT (G) x1
- Screw pack x1
What is the PoE HAT G used for?
It is a PoE HAT that provides both network connection and power to a Raspberry Pi 5 when used with a PoE switch or router that supports IEEE 802.3af/at.
What are the power input and output specifications?
Power input is 38V to 57V DC. Output is 5V at up to 5A on the GPIO header.
Is it compatible with the Raspberry Pi 5 official case?
Yes, it uses the standard Raspberry Pi 40 PIN GPIO header and can be installed directly into the official Raspberry Pi 5 case.
What is included in the package?
The package includes one PoE HAT G and a screw pack. The Raspberry Pi 5 and the 120 W switch are not included.
What are the installation requirements or usage notes?
You must use a PoE router or switch that supports IEEE 802.3af/at to supply both network and power over a single Ethernet cable.
