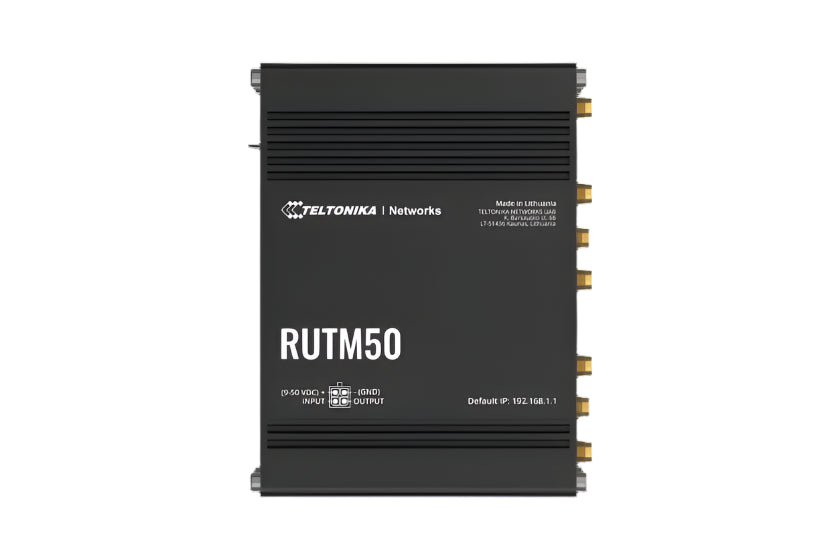

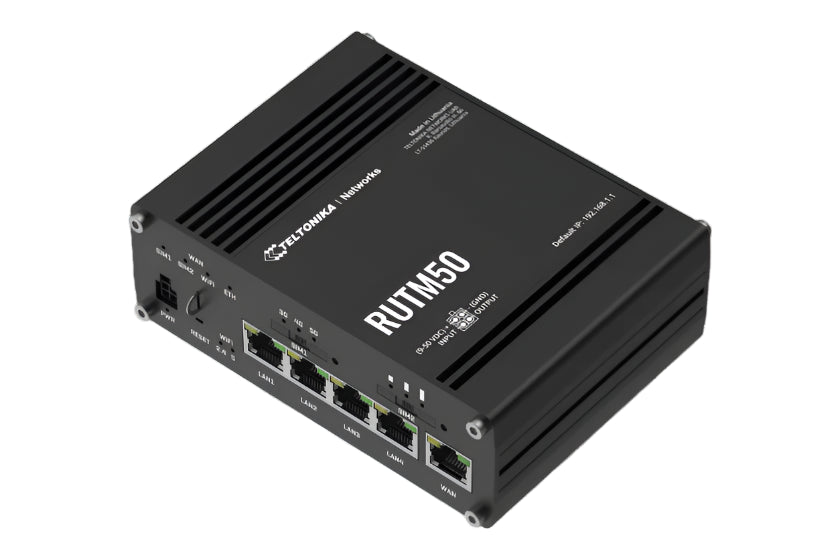

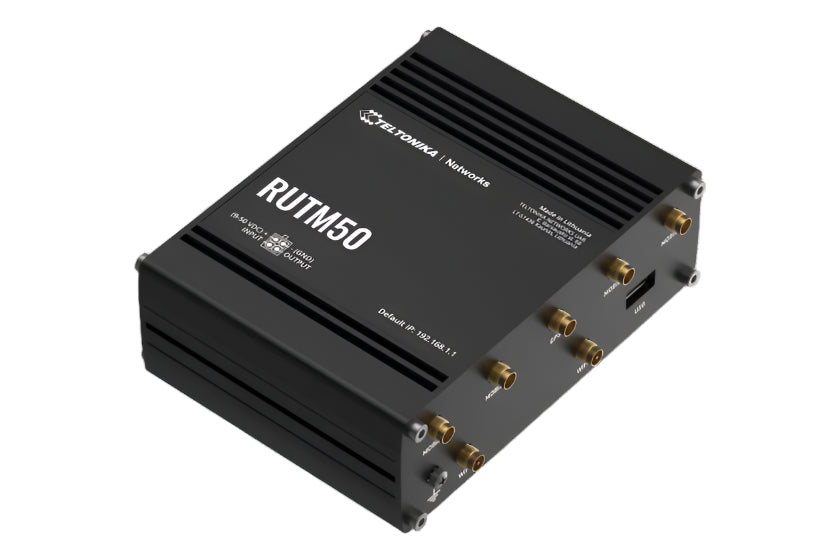

RUTM50 - Cellular 5G Router

SKU: ELC8731

₹ 92,899.99 ₹ 136,099.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
RUTM50 - Cellular 5G Router₹ 92,899.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

RUTM50 is an FCC-certified Teltonika Networks cellular 5G router for North America, with ultra-high cellular speeds of up to 3.4 Gbps. This dual SIM router has auto-failover and backup WAN and supports both SA and NSA 5G architectures. It is also backward compatible with 4G (LTE Cat 19/18), making it perfect for future-proofing your industrial networking solutions.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Details
Mobile Module 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO), 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps
3GPP Release Release 16
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM Idle Protection When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN Code Management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Framed Routing Support an IP network behind 5G UE



Wireless

Feature Details
Wireless Mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi Users Up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device



Ethernet

Port Description
WAN 1 x WAN (10/100/1000 Mbps), compliance with IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover
LAN 4 x LAN (10/100/1000 Mbps), compliance with IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover



Network

Feature Description
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP Passthrough Support H.323 and SIP-ALG protocol NAT helpers for proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page View all Firewall statistics, rules, and rule counters
Ports Management View and manage device ports, enable/disable ports, configure auto-configuration, change transmission speed, etc.
Network Topology Visual representation of the network, showing which devices are connected to each other
Hotspot Captive portal, internal/external Radius server, MAC authentication, SMS authorization, SSO authentication, landing page, custom themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards
QoS / Smart Queue Management Traffic priority by source/destination, service, protocol, or port, WMM, 802.11e
DDNS Supported >25 service providers, other providers can be manually configured
DNS over HTTPS Secure DNS resolution by routing DNS queries over HTTPS
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover
Load Balancing Balances internet traffic over multiple WAN connections
SSHFS Ability to mount remote file system via SSH protocol
VRF Support Initial support for Virtual Routing and Forwarding (VRF)
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history



Security

Feature Description
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of SSH, Web interface, CLI, and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods



VPN

Feature Description
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support
Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol



OPC UA

Feature Description
Supported modes Client, Server
Supported connection types TCP

MODBUS

Feature Description
Supported modes Server, Client
Supported connection types TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII



DATA TO SERVER

Feature Description
Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature


MQTT Gateway

Feature Description
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Description
Supported modes Station, Outstation
Supported connection TCP, USB



DLMS

Feature Description
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP
COSEM Allows to scan meter COSEM objects for automatic detection and configuration


Monitoring & Management

Feature Description
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)



IoT Platforms

Platform Description
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality


System Characteristics

Feature Description
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash



Firmware Customisation

Feature Description
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization Create custom, branded firmware and web page applications by changing colours, logos, and other elements
Package Manager Service used to install additional software on the device


Location Tracking

Feature Description
GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software TAVL, RMS
Geofencing Configurable multiple geofence zones


USB

Feature Description
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4



Input / Output

Feature Description
Input 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Events Email, RMS, SMS
I/O Juggler Allows to set certain I/O conditions to initiate event


Power

Feature Description
Connector 4-pin industrial DC power socket
Input Voltage Range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (Passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power Consumption Idle: <5 W, Max: <18 W

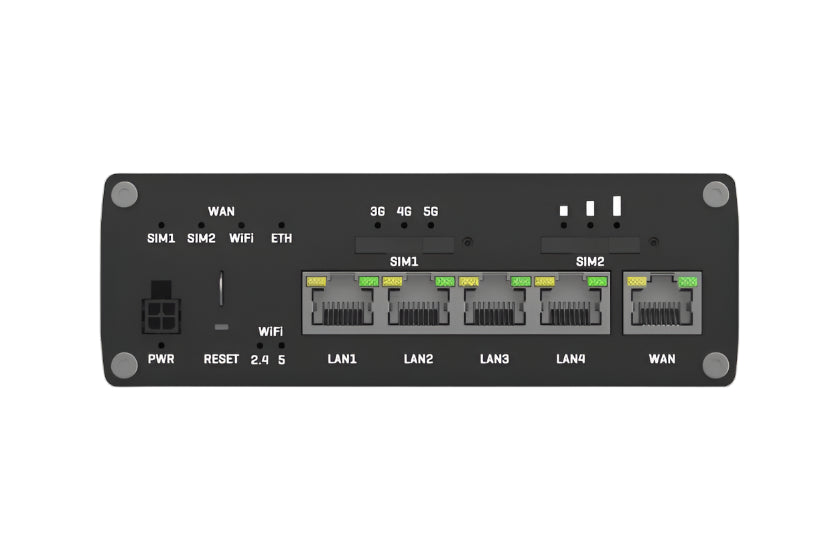

Physical Interfaces

Feature Description
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/O's 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power 1 x 4-pin power connector

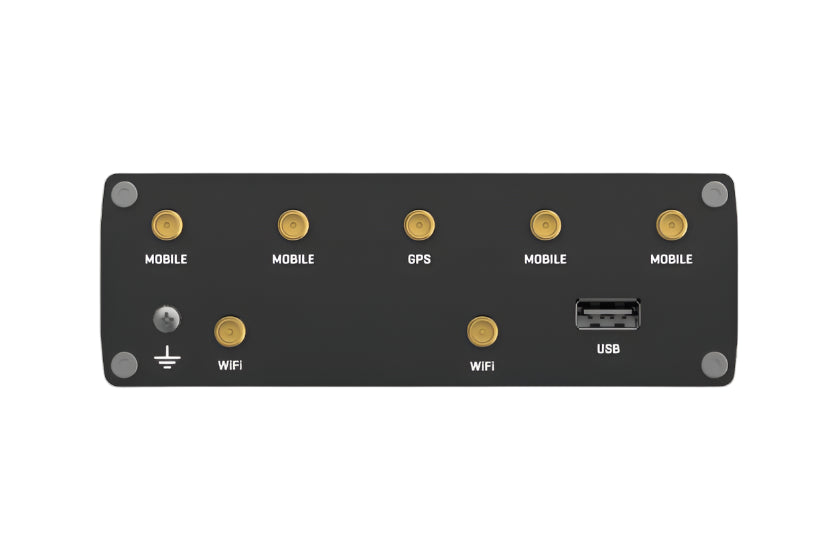

Antennas 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw



Physical Specification

Feature Description
Casing Material Anodized aluminum housing and panels
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 519 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)


Operating Environment

Feature Description
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30


Regulatory & Type Approvals

Category Description
Regulatory FCC, IC, PTCRB, UL/CSA Safety, NOM, Giteki
Operator T-Mobile, AT&T (FirstNet), Verizon

EMC Emissions & Immunity

Category Description
Standards 47 CFR Part 15 Subpart B, ICES-003: Issue 7 (October 2020)



RF Standards (Wi-Fi 2.4 GHz, 5 GHz)

Standard/Regulation Description
47 CFR Part 15 Subpart C - § 15.247 Wireless communication standards for 2.4 GHz and 5 GHz bands
47 CFR Part 15 Subpart E - § 15.407 Standards for UNII (Ultra High Frequency) bands for 5 GHz
RSS-247 Issue 2 (February 2017) Canadian radio standards for Wi-Fi operation in the 2.4 GHz and 5 GHz bands
RSS-Gen Issue 5 (April 2018) Amendment 2 (February 2021) General standards for the operation of RF devices in Canada
KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 Compliance procedures for Dynamic Frequency Selection (DFS) in 5 GHz bands
KDB 905462 D04 Operational Modes for DFS Testing New Rules v01 Operational modes for DFS testing in compliance with new rules


RF Standards (4G, 5G)

Standard/Regulation Description
47 CFR Part 2, Part 22 Subpart H, Part 24 Subpart E, Part 27 Subpart C, Part 90 Subpart R/S, Part 96 US Federal Communications Commission standards for 4G and 5G cellular communications
RSS-130 Issue 2 (February 2019) Canadian radio standards for 4G LTE operations
RSS-132 Issue 3 (January 2013) Standards for 3G and 4G networks in Canada
RSS-133 Issue 6 (January 2018) Amendment Standards for 4G LTE Advanced in Canada
RSS-139 Issue 3 (July 2015) Standards for LTE, LTE-Advanced systems in Canada
RSS-140 Issue 1 (April 2018) Standards for 5G NR (New Radio) systems in Canada
RSS-192 Issue 4 (May 2020) Standards for the 3.5 GHz band used by 5G in Canada
RSS-195 Issue 2 (April 2014) Standards for mobile stations in the 5G NR bands in Canada
RSS-197 Issue 1 (February 2010) Standards for equipment using 5G and 4G networks in Canada
RSS-199 Issue 3 (December 2016) Standards for low-power LTE in Canada
RSS-Gen Issue 5 (April 2018) Amendment 2 General standards for 4G and 5G communications
SRSP-503 Issue 7 (September 2008) Standards for 4G and 5G spectrum planning
SRSP-510 Issue 5 (February 2009) Specific planning standards for 5G deployment
SRSP-513 Issue 3 (July 2015) Standards for 5G mobile spectrum requirements
SRSP-516 Issue 1 (April 2014) Specific requirements for 5G cellular communications
SRSP-517 Issue 1 (July 2014) Spectrum requirements for 5G technologies
SRSP-518 Issue 2 (February 2019) Planning and implementation of 5G in Canada
SRSP-520 Issue 2 (November 2021) Updated guidelines for 5G network deployment



RF Exposure

Standard/Regulation Description
47 CFR - § 2.1091 US Federal Communications Commission standards for RF exposure limits
KDB 447498 D04 Interim General RF Exposure Guidance v01 Guidance for compliance with RF exposure limits during device operation
RSS-102 Issue 5 (March 2015) Amendment 1 Canadian safety standards for RF exposure limits for radio communications devices


Safety

Standard/Regulation Description
UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019) Safety standard for audio/video, information, and communication technology equipment
C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) Canadian standard for safety in audio/video, information, and communication technology equipment





Downloads

Manual & Documentation


Links

RUTM50 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTM50 USER MANUAL
CERTIFICATIONS & APPROVALS
SDK DOWNLOADS
GPL DOWNLOADS
RUTM50 3D MODELS
What 5G and 4G network support does this router offer in North America?
It supports 5G Sub-6 GHz in SA and NSA modes and is backward compatible with 4G LTE. The 5G downlink is up to 3.4 Gbps and 4G downlink is up to 1.6 Gbps with 4G uplink up to 200 Mbps.
How does the dual SIM auto switch feature work?
The router has two SIM slots with a SIM switch feature that automatically switches to the secondary SIM in cases such as weak signal, data limit, roaming, or no network, and includes SIM idle protection.
What is included in the standard package for this model?
The standard package includes the RUTM50 router, 18 W power supply, four mobile antennas, two Wi Fi antennas, a GNSS antenna, an ethernet cable, a SIM adapter kit, and a Quick Start Guide. Contents may vary by order code.
What are the wireless and security features for client devices?
It uses 802.11 b/g/n/ac Wave 2 (Wi Fi 5) with up to 867 Mbps and MU MIMO. Security options include WPA2 Enterprise, WPA2 PSK, WPA EAP, WPA3 SAE, WPA3 EAP, OWE, PMF, and related features.
What are the operating environment and regulatory specifications?
The device operates from minus 40 C to 75 C and has an IP30 rating. Regulatory approvals include FCC, IC, PTCRB, UL/CSA, NOM, and Giteki.
A
Admin
Welcome to the discussion thread for RUTM50 - Cellular 5G Router
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUTM50)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

RUTM50 is an FCC-certified Teltonika Networks cellular 5G router for North America, with ultra-high cellular speeds of up to 3.4 Gbps. This dual SIM router has auto-failover and backup WAN and supports both SA and NSA 5G architectures. It is also backward compatible with 4G (LTE Cat 19/18), making it perfect for future-proofing your industrial networking solutions.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Details
Mobile Module 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO), 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps
3GPP Release Release 16
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM Idle Protection When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN Code Management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Framed Routing Support an IP network behind 5G UE



Wireless

Feature Details
Wireless Mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi Users Up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device



Ethernet

Port Description
WAN 1 x WAN (10/100/1000 Mbps), compliance with IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover
LAN 4 x LAN (10/100/1000 Mbps), compliance with IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover



Network

Feature Description
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP Passthrough Support H.323 and SIP-ALG protocol NAT helpers for proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page View all Firewall statistics, rules, and rule counters
Ports Management View and manage device ports, enable/disable ports, configure auto-configuration, change transmission speed, etc.
Network Topology Visual representation of the network, showing which devices are connected to each other
Hotspot Captive portal, internal/external Radius server, MAC authentication, SMS authorization, SSO authentication, landing page, custom themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards
QoS / Smart Queue Management Traffic priority by source/destination, service, protocol, or port, WMM, 802.11e
DDNS Supported >25 service providers, other providers can be manually configured
DNS over HTTPS Secure DNS resolution by routing DNS queries over HTTPS
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover
Load Balancing Balances internet traffic over multiple WAN connections
SSHFS Ability to mount remote file system via SSH protocol
VRF Support Initial support for Virtual Routing and Forwarding (VRF)
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history



Security

Feature Description
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of SSH, Web interface, CLI, and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods



VPN

Feature Description
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support
Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol



OPC UA

Feature Description
Supported modes Client, Server
Supported connection types TCP

MODBUS

Feature Description
Supported modes Server, Client
Supported connection types TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII



DATA TO SERVER

Feature Description
Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature


MQTT Gateway

Feature Description
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Description
Supported modes Station, Outstation
Supported connection TCP, USB



DLMS

Feature Description
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP
COSEM Allows to scan meter COSEM objects for automatic detection and configuration


Monitoring & Management

Feature Description
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)



IoT Platforms

Platform Description
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality


System Characteristics

Feature Description
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash



Firmware Customisation

Feature Description
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization Create custom, branded firmware and web page applications by changing colours, logos, and other elements
Package Manager Service used to install additional software on the device


Location Tracking

Feature Description
GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software TAVL, RMS
Geofencing Configurable multiple geofence zones


USB

Feature Description
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4



Input / Output

Feature Description
Input 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Events Email, RMS, SMS
I/O Juggler Allows to set certain I/O conditions to initiate event


Power

Feature Description
Connector 4-pin industrial DC power socket
Input Voltage Range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (Passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power Consumption Idle: <5 W, Max: <18 W


Physical Interfaces

Feature Description
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/O's 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power 1 x 4-pin power connector
Antennas 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw



Physical Specification

Feature Description
Casing Material Anodized aluminum housing and panels
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 519 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)


Operating Environment

Feature Description
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30


Regulatory & Type Approvals

Category Description
Regulatory FCC, IC, PTCRB, UL/CSA Safety, NOM, Giteki
Operator T-Mobile, AT&T (FirstNet), Verizon

EMC Emissions & Immunity

Category Description
Standards 47 CFR Part 15 Subpart B, ICES-003: Issue 7 (October 2020)



RF Standards (Wi-Fi 2.4 GHz, 5 GHz)

Standard/Regulation Description
47 CFR Part 15 Subpart C - § 15.247 Wireless communication standards for 2.4 GHz and 5 GHz bands
47 CFR Part 15 Subpart E - § 15.407 Standards for UNII (Ultra High Frequency) bands for 5 GHz
RSS-247 Issue 2 (February 2017) Canadian radio standards for Wi-Fi operation in the 2.4 GHz and 5 GHz bands
RSS-Gen Issue 5 (April 2018) Amendment 2 (February 2021) General standards for the operation of RF devices in Canada
KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 Compliance procedures for Dynamic Frequency Selection (DFS) in 5 GHz bands
KDB 905462 D04 Operational Modes for DFS Testing New Rules v01 Operational modes for DFS testing in compliance with new rules


RF Standards (4G, 5G)

Standard/Regulation Description
47 CFR Part 2, Part 22 Subpart H, Part 24 Subpart E, Part 27 Subpart C, Part 90 Subpart R/S, Part 96 US Federal Communications Commission standards for 4G and 5G cellular communications
RSS-130 Issue 2 (February 2019) Canadian radio standards for 4G LTE operations
RSS-132 Issue 3 (January 2013) Standards for 3G and 4G networks in Canada
RSS-133 Issue 6 (January 2018) Amendment Standards for 4G LTE Advanced in Canada
RSS-139 Issue 3 (July 2015) Standards for LTE, LTE-Advanced systems in Canada
RSS-140 Issue 1 (April 2018) Standards for 5G NR (New Radio) systems in Canada
RSS-192 Issue 4 (May 2020) Standards for the 3.5 GHz band used by 5G in Canada
RSS-195 Issue 2 (April 2014) Standards for mobile stations in the 5G NR bands in Canada
RSS-197 Issue 1 (February 2010) Standards for equipment using 5G and 4G networks in Canada
RSS-199 Issue 3 (December 2016) Standards for low-power LTE in Canada
RSS-Gen Issue 5 (April 2018) Amendment 2 General standards for 4G and 5G communications
SRSP-503 Issue 7 (September 2008) Standards for 4G and 5G spectrum planning
SRSP-510 Issue 5 (February 2009) Specific planning standards for 5G deployment
SRSP-513 Issue 3 (July 2015) Standards for 5G mobile spectrum requirements
SRSP-516 Issue 1 (April 2014) Specific requirements for 5G cellular communications
SRSP-517 Issue 1 (July 2014) Spectrum requirements for 5G technologies
SRSP-518 Issue 2 (February 2019) Planning and implementation of 5G in Canada
SRSP-520 Issue 2 (November 2021) Updated guidelines for 5G network deployment



RF Exposure

Standard/Regulation Description
47 CFR - § 2.1091 US Federal Communications Commission standards for RF exposure limits
KDB 447498 D04 Interim General RF Exposure Guidance v01 Guidance for compliance with RF exposure limits during device operation
RSS-102 Issue 5 (March 2015) Amendment 1 Canadian safety standards for RF exposure limits for radio communications devices


Safety

Standard/Regulation Description
UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019) Safety standard for audio/video, information, and communication technology equipment
C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) Canadian standard for safety in audio/video, information, and communication technology equipment





Downloads

Manual & Documentation


Links

RUTM50 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTM50 USER MANUAL
CERTIFICATIONS & APPROVALS
SDK DOWNLOADS
GPL DOWNLOADS
RUTM50 3D MODELS
FAQ
What 5G and 4G network support does this router offer in North America?
It supports 5G Sub-6 GHz in SA and NSA modes and is backward compatible with 4G LTE. The 5G downlink is up to 3.4 Gbps and 4G downlink is up to 1.6 Gbps with 4G uplink up to 200 Mbps.
How does the dual SIM auto switch feature work?
The router has two SIM slots with a SIM switch feature that automatically switches to the secondary SIM in cases such as weak signal, data limit, roaming, or no network, and includes SIM idle protection.
What is included in the standard package for this model?
The standard package includes the RUTM50 router, 18 W power supply, four mobile antennas, two Wi Fi antennas, a GNSS antenna, an ethernet cable, a SIM adapter kit, and a Quick Start Guide. Contents may vary by order code.
What are the wireless and security features for client devices?
It uses 802.11 b/g/n/ac Wave 2 (Wi Fi 5) with up to 867 Mbps and MU MIMO. Security options include WPA2 Enterprise, WPA2 PSK, WPA EAP, WPA3 SAE, WPA3 EAP, OWE, PMF, and related features.
What are the operating environment and regulatory specifications?
The device operates from minus 40 C to 75 C and has an IP30 rating. Regulatory approvals include FCC, IC, PTCRB, UL/CSA, NOM, and Giteki.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUTM50 - Cellular 5G Router
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Similar Products

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUTM50)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Scheduling widget

Related products

Related products

0106-14

Waldom Electonics

0106-14

₹ 2,623.53
