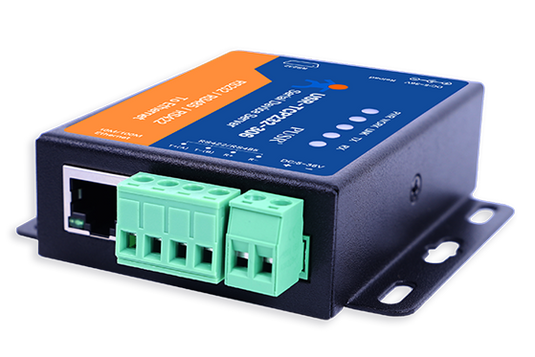

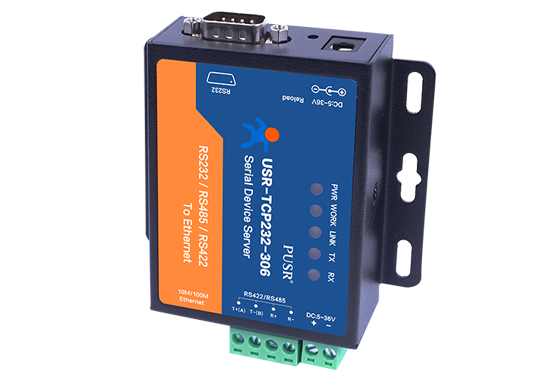

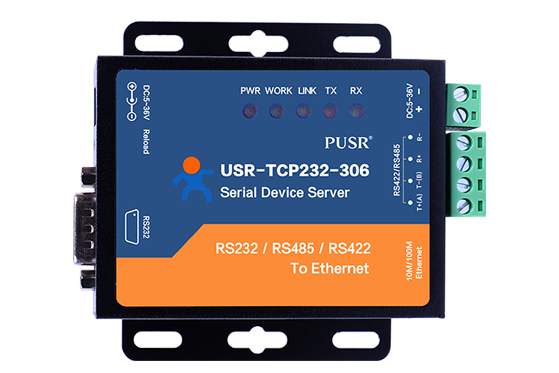

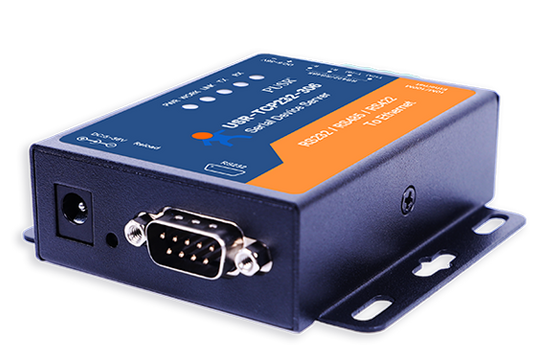

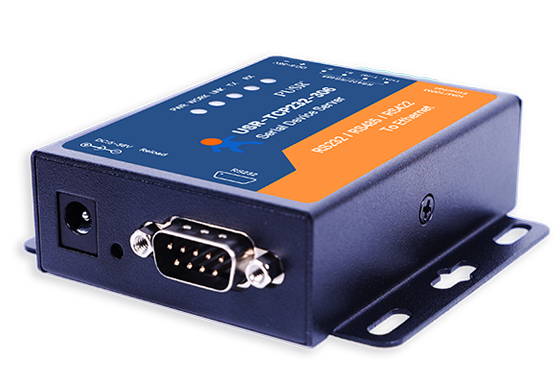

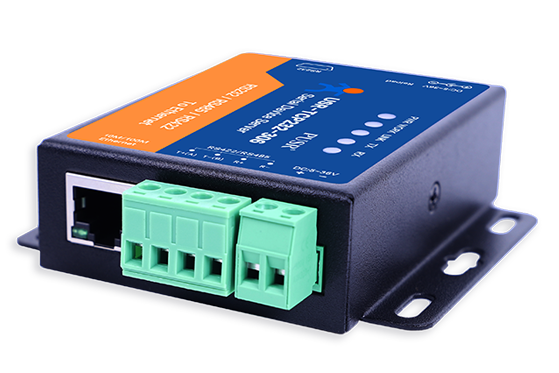

Ethernet to serial converters USR-TCP232-306 support both interfaces RS232 and RS485, but Ethernet to serial converters USR-TCP232-306 can only use one interface at one time. Simple configuration and easy to use.
Ā
Ā
Connect to PLC, SCADA system or userās
private server to achieve local or remote motoring.
Multi-Host Modbus Polling
Modbus RTU to Modbus TCP
Ā
Ā
Multi-user Access
Ā
Multi-device Management
Ā
Virtual-COM Software
This feature can infinitely extend the serial cable,
allowing communication to no longer
be limited by distance.
Ā
Point-to-Point Communication
Using this method, it is possible to achieve
data communication between two serial devices.
Heartbeat Packet
Server can detect abnormal disconnection from the client
using this feature (306 as an TCP client)
Ā
Customized RFC2217
Users can dynamically modify the baud rate, stop bit,
data bits and parity bits of the TCP232-306 by sending
PUSR customized protocol over the network.
Ā
Registration Packet
The server can identify different clients by using
registration packets.
Ā
Ā
Intelligent Transportation
By connecting the traffic lights to serial device server, the controlĀ center can collect and process traffic data on-site through Ethernet,
and the collected data can also provide accurate quantitative basis forĀ traffic command and dispatch and city traffic rules.
Ā
Unattended Weighing
Connecting the serial server to the gate, it is convenient for the controlĀ center to remotely control the gate switch through Ethernet.
Multiple serial servers can be used to connect other serial cameras,Ā weighing instruments, LED displays, FID card readers,
vehicle induction coils, ticket printers and other peripherals,Ā enriching more application scenarios.
Ā
Ā
1x USR-TCP232-306
Ā
**Power Adapter is not included in the box.
Please use this link to add it to your cart: 12V 1A (12W) Power Adapter
Ā
Ā
| Feature | USR-TCP232-302 | USR-TCP232-304 | USR-TCP232-306 |
|---|---|---|---|
| Processor | ARM Cortex-M0, 48MHz | ARM Cortex-M0, 48MHz | ARM Cortex-M0, 48MHz |
| Power Input | DC: 5.0ļ½7.0 V, Connector: DC 5.5*2.1 mm | DC: 5.0ļ½7.0 V, Connector: DC 5.5*2.1 mm | DC: 5.0ļ½36.0 V, Connector: 5.5*2.1 mm & 2 pin terminal block |
| Consumption | 150mA@5V | 150mA@5V | 116mA@5V, 53mA@12V |
| Ethernet Port | 1 x RJ45, 10/100Mbps, auto MDI/MDIX | 1 x RJ45, 10/100Mbps, auto MDI/MDIX | 1 x RJ45, 10/100Mbps, auto MDI/MDIX |
| Serial Port | RS232 | RS485 | RS232/485/422 (Not work at the same time) |
| Baud Rate | 600~230.4 Kbps | 600~230.4 Kbps | 600~230.4 Kbps |
| Data Bits | 5, 6, 7, 8 | 5, 6, 7, 8 | 5, 6, 7, 8 |
| Stop Bit | 1, 2 | 1, 2 | 1, 2 |
| Parity Bit | None, Odd, Even, Mark, Space | None, Odd, Even, Mark, Space | None, Odd, Even, Mark, Space |
| Serial Packeting | Packeting Time: Four-byte sending time, Packeting Length: 400 Bytes | Packeting Time: Four-byte sending time, Packeting Length: 400 Bytes | Packeting Time: Four-byte sending time, Packeting Length: 400 Bytes |
| Serial Packet Cache | Receive: 2KBytes | Receive: 2KBytes | Receive: 2KBytes |
| Reload Button | ā | ā | ā |
| Dimension (L*W*H) | 66.3*70.0*25.0 mm | 73.2*70.0*25.0 mm | 98.0Ć86.0Ć25.0 mm |
| Installation | Wall Mounting | Wall Mounting | Wall Mounting |
| Operating Temp | -25~75ā | -25~75ā | -25~75ā |
| Storage Temp | -40~105ā | -40~105ā | -40~105ā |
| Operating Humidity | 5%~95% RH (non-condensing) | 5%~95% RH (non-condensing) | 5%~95% RH (non-condensing) |
| Storage Humidity | 5%~95% RH (non-condensing) | 5%~95% RH (non-condensing) | 5%~95% RH (non-condensing) |
| Indicators | None | None | PWR, WORK, LINK, TX, RX |
| Network Protocol | IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS | IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS | IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS |
| IP Mode | DHCP, STATIC IP | DHCP, STATIC IP | DHCP, STATIC IP |
| DNS Service | ā | ā | ā |
| Config Method | AT Command, Built-in webpage, Config Software, Config Protocol | AT Command, Built-in webpage, Config Software, Config Protocol | AT Command, Built-in webpage, Config Software, Config Protocol |
| Work Mode | TCP Server/TCP Client/UDP Server/UDP Client/Httpd Client | TCP Server/TCP Client/UDP Server/UDP Client/Httpd Client | TCP Server/TCP Client/UDP Server/UDP Client/Httpd Client |
| Modbus Gateway | Modbus RTU to Modbus TCP, Multi-host Modbus Polling | Modbus RTU to Modbus TCP, Multi-host Modbus Polling | Modbus RTU to Modbus TCP, Multi-host Modbus Polling |
| User-Defined Webpage | ā | ā | ā |
| TCP Server | 16 clients | 16 clients | 16 clients |
| Network Packet Cache | Send: 6K Bytes, receive: 4K Bytes | Send: 6K Bytes, receive: 4K Bytes | Send: 6K Bytes, Receive: 4K Bytes |
| Additional Features | RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart | RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart | RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart |
| EMC Level | IEC61000, Level 3 (Surge, ESD, EFT) | IEC61000, Level 3 (Surge, ESD, EFT) | IEC61000, Level 3 (Surge, ESD, EFT) |
| Certificate | CE | CE | CE |
Ā
Ā
Documents
| [User Manual] USR-TCP232-306-User-Manual_V1.0.1.01 | Download >> |
| [User Manual] USR-TCP232-306 Quick Start Guide | Download >> |
| [User Manual] USR-TCP232-302/304/306_User-Manual | Download >> |
| [Specification] USR-TCP232-302-304-306-spec-V1.0.0 | Download >> |
| [Certificate] ROHS2.0-Certificates-For-Serial-Ethernet | Download >> |
| [Certificate] M0 Series CE FCC ROHS WEEE Certificate 302/304/306/T2/S2 | Download >> |
| [CE Certificate] USR-TCP232-30X-CE-Certificate | Download >> |
| [CE Certificates] CE-certificates-serial-to-ethernet-module | Download >> |
| [AT Command] USR-M0-AT-Command-Set_V1.0.1 USR-TCP232-302/304/306/S2/T2 | Download >> |
Ā
Utilities
| [Setup Software] USR-M0 V2.2.6.1.exe | Download >> |
| [PC Test Software] USR-TCP232-Test-V1.3 | Download >> |
| [Virtual COM Software]USR-VCOM_V5.0.4_Setup | Download >> |
Ā
Development Files
| [Socket Demo] Socket_Demo.zip | Download >> |
| [Built-in Webpage] USR-TCP232-304 Software_of_upgrading_built-in_webpage | Download >> |
| [Built-in Webpage Source Code] built-in_webpage_source_code (V4020) | Download >> |
Ā
1x USR-TCP232-306
**Power Adapter is not included in the box.
Please use this link to add it to your cart: 12V 1A (12W) Power Adapter
Ā
