Ethernet Switch/Business - USR-SG1005
Need Support? Click Here
Free Delivery Above ₹999

Best seller

PUSR

Ethernet Switch/Business - USR-SG1005

SKU: ELC8511

₹ 1,549.99

Out of stock

📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
Ethernet Switch/Business - USR-SG1005₹ 1,549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

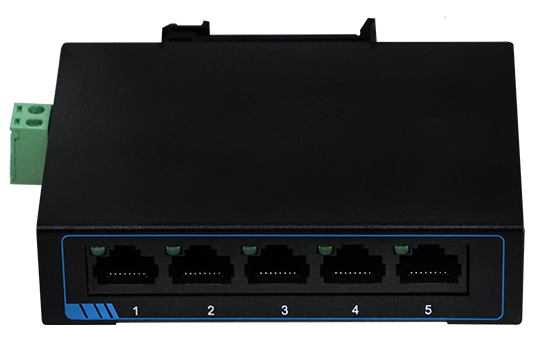

USR-SG1005

5-port Gigabit Ethernet Unmanaged Switch

SG1005 is a 5-port 10/100/1000Mbps unmanaged ethernet switch. The product combines store-and-forward technology and dynamic memory allocation together to ensure effective allocation to each port.



SG1005 | 5-port Gigabit Ethernet Unmanaged Switch

Multi-scenario Layer 2 switch, Energy-efficient Ethernet, Phoenix type connector

SG1005 is a 5-port 10/100/1000Mbps unmanaged ethernet switch. The product combines store-and-forward technology and dynamic memory allocation together to ensure effective allocation to each port. Flow control ensures that nodes can avoid packet loss as much as possible when transmitting & receiving. The product is compatible with both 10Base-T, 100Base-TX and 1000Base-T standards, the port rate automatically adapts to 10/100/1000Mbps. The product shell is made of frosted iron which makes it pressure-resistant, wear-resistant and explosion-proof, also meets the requirement of wide-temperature range operating. Featured with highly integrated and compact design, lightweight, easy to use, plug-and-play and supporting desktop, wall-mounted and DIN rail installations, the product is suitable for small & medium-sized offices, home and quasi-industrial uses.



Plug and play

Plug and play, no configuration required


Supports Auto MDI/MDIX

All Eth ports support Auto MDI/MDIX and rate Auto-negotiation, simplifying network setup and maintenance.



Complies with IEEE802.3az standard

Supports IEEE 802.3az Energy-efficient Ethernet to reduce energy consumption at both ends of the network when internet or ethernet activities are idle.



Iron casing

Iron casing shields electromagnetic interference and dissipates heat better than the plastic cases.



Product details

The device supports DC-jack and terminal block connector for power supply. DC-jack power supply is faster while terminal block connector is more robust for specific scenarios. And the indicator light can directly tell the user the operating status of the equipment, making it easier for users to locate problems.



Dimensions

USR-SG1005: 100*31*77mm



Quasi-industrial design

Exquisite industrial structure design supports various installation methods such as desktop, wall-mounted and DIN rail for different installation conditions





PARAMETER

Model

USR-SF1005

USR-SF1008

USR-SG1005

USR-SG1008
Data Transfer Rate 10/100M
Auto Negotiation and Auto MDI/MDIX RJ45		 10/100M
Auto Negotiation and Auto MDI/MDIX RJ45		 10/100/1000M
Auto Negotiation and Auto MDI/MDIX RJ45		 10/100/1000M
Auto Negotiation and Auto MDI/MDIX RJ45
Number of Ports 5 8 5 8
Switching Modes Store and Forward Store and Forward Store and Forward Store and Forward
Switching Capacity 1.0G 1.6G 10G 16G
Packet Forwarding Rate 10Mbps: 14880pps
100Mbps: 148800pps		 10Mbps: 14880pps
100Mbps: 148800pps		 10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps		 10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
MAC Address Table 2K 2K 2K 2K
Network Media (Cable) 10Base-T: UTP Category 3, 5 cable
100Base-TX: UTP Category 5 cable		 10Base-T: UTP Category 3, 5 cable
100Base-TX: UTP Category 5 cable		 10Base-T: UTP Category 3, 5 cable
100Base-TX: UTP Category 5 cable

 10Base-T: UTP Category 3, 5 cable
100Base-TX: UTP Category 5 cable
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab
LED Port: Link/Act Indicator
100M Link/ACT: Green
POWER: Red		 Port: Link/Act Indicator
100M Link/ACT: Green
POWER: Red		 Port: Link/Act Indicator
1000M Link/ACT: Green
POWER: Red		 Port: Link/Act Indicator
1000M Link/ACT: Green
POWER: Red
Mounting 35mm DIN Rail Mounting 35mm DIN Rail Mounting 35mm DIN Rail Mounting 35mm DIN Rail Mounting
Dimensions 100*77*31mm 140*90*31mm 100*77*31mm 140*90*31mm
Certifications CE, ROHS, FCC, WEEE CE, ROHS, FCC, WEEE CE, ROHS, FCC, WEEE CE, ROHS, FCC, WEEE
Operating environment Operating temperature: -5℃~45℃
Storage temperature: -10℃~70℃
Operating humidity: 10%~90% RH non-condensing
Storage humidity: 5%~90% RH non-condensing		 Operating temperature: -5℃~45℃
Storage temperature: -10℃~70℃
Operating humidity: 10%~90% RH non-condensing
Storage humidity: 5%~90% RH non-condensing		 Operating temperature: -5℃~45℃
Storage temperature: -10℃~70℃
Operating humidity: 10%~90% RH non-condensing
Storage humidity: 5%~90% RH non-condensing		 Operating temperature: -5℃~45℃
Storage temperature: -10℃~70℃
Operating humidity: 10%~90% RH non-condensing
Storage humidity: 5%~90% RH non-condensing
Power & Consumption Input: DC12V /0.5A, Consumption: <3W Input: DC12V /0.5A, Consumption: <3W Input: DC12V /0.5A, Consumption: <4W Input: DC12V /0.5A, Consumption: <4W
Accessories Power adapter (Optional), Terminal Block, Quick Start Guide Power adapter (Optional), Terminal Block, Quick Start Guide Power adapter (Optional), Terminal Block, Quick Start Guide Power adapter (Optional), Terminal Block, Quick Start Guide



DOWNLOAD

 [Specification] 5/8 port commercial switch-spec-en-V1.0.0 Download >>



PACKAGE CONTENT

USR-SG1005 x1
12V 1A Power Adapter x1



VIDEO

What ports and speeds does the switch support?
It provides 5 RJ45 ports that auto negotiate to 10 100 or 1000 Mbps and auto MDI/MDIX. It uses store and forward technology and supports flow control to minimize packet loss.
Is it plug and play and easy to set up?
Yes, it is plug and play with no configuration required. All Ethernet ports support Auto MDI/MDIX and auto negotiation.
What mounting options and physical design does it have?
The device uses a frosted iron case for durability and supports desktop wall mounting and 35 mm DIN rail installation.
How is the switch powered and what is its power consumption?
Power can be supplied via a DC jack or a terminal block connector, and typical consumption is under 4 W.
What standards and energy saving features does it support?
It complies with IEEE 802.3 802.3u 802.3x and 802.3az and supports Energy efficient Ethernet to reduce idle power usage.
A
Admin
Welcome to the discussion thread for Ethernet Switch/Business - USR-SG1005
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here
