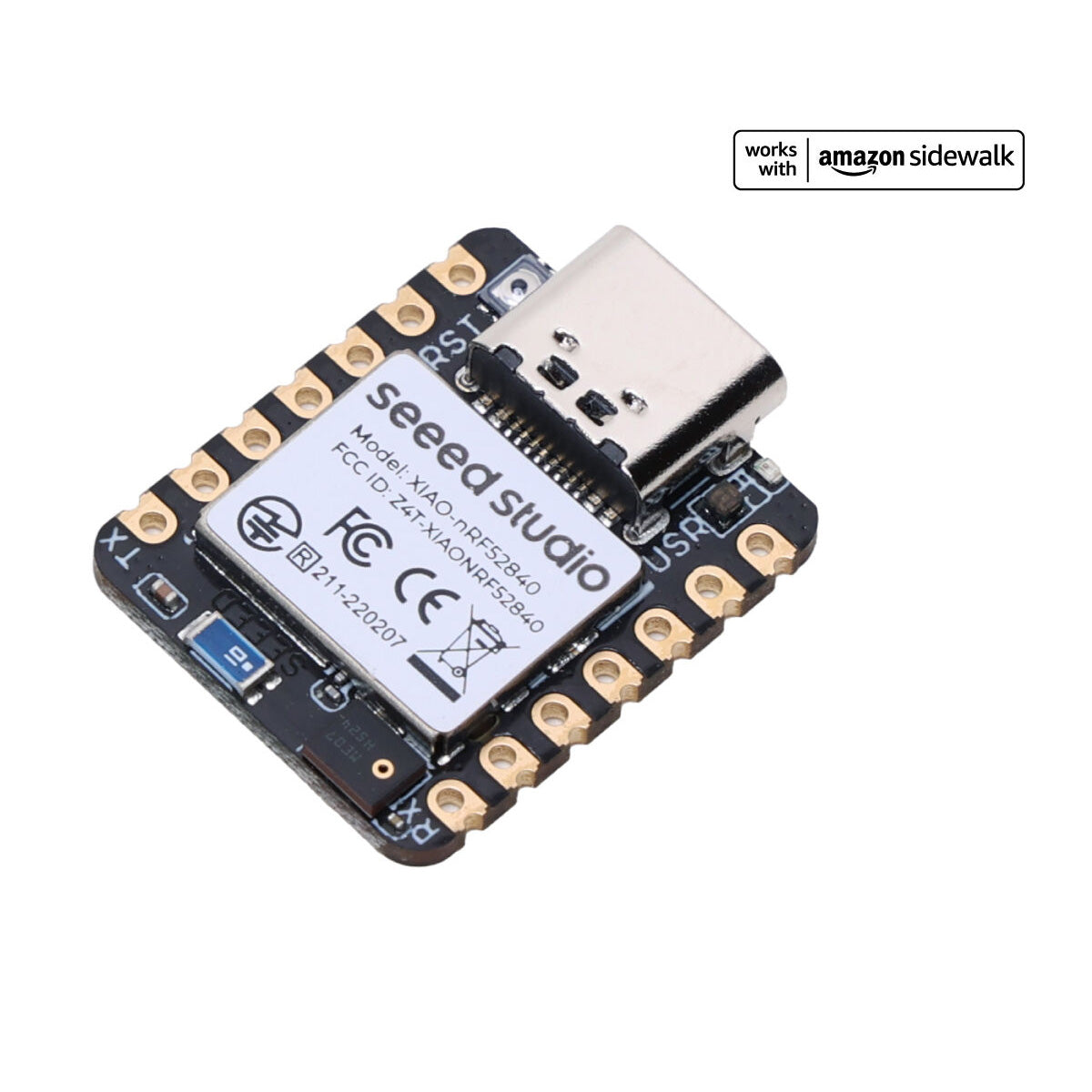

Seeed Studio XIAO nRF52840 Sense - TinyML/TensorFlow Lite

Seeed Studio XIAO nRF52840 Sense is carrying Bluetooth 5.0 wireless capability and is able to operate with low power consumption. Featuring onboard IMU and PDM, it can be your best tool for embedded Machine Learning projects.

Seeed Studio XIAO nRF52840 Sense is carrying Bluetooth 5.0 wireless capability and is able to operate with low power consumption. Featuring onboard IMU and PDM, it can be your best tool for embedded Machine Learning projects.

Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant".

Features

• Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython
• Wireless Capabilities: Implement Bluetooth 5.0, BLE functions with onboard antenna, also provide NFC connectivity
• Elaborate Power Design: Provide ultra-low power consumption as 5 μA in deep sleep mode while supporting lithium battery charge management
• Advanced onboard Functionality: Assemble additional digital microphone and 6-axis IMU in the tiny board for embedded Machine Learning applications

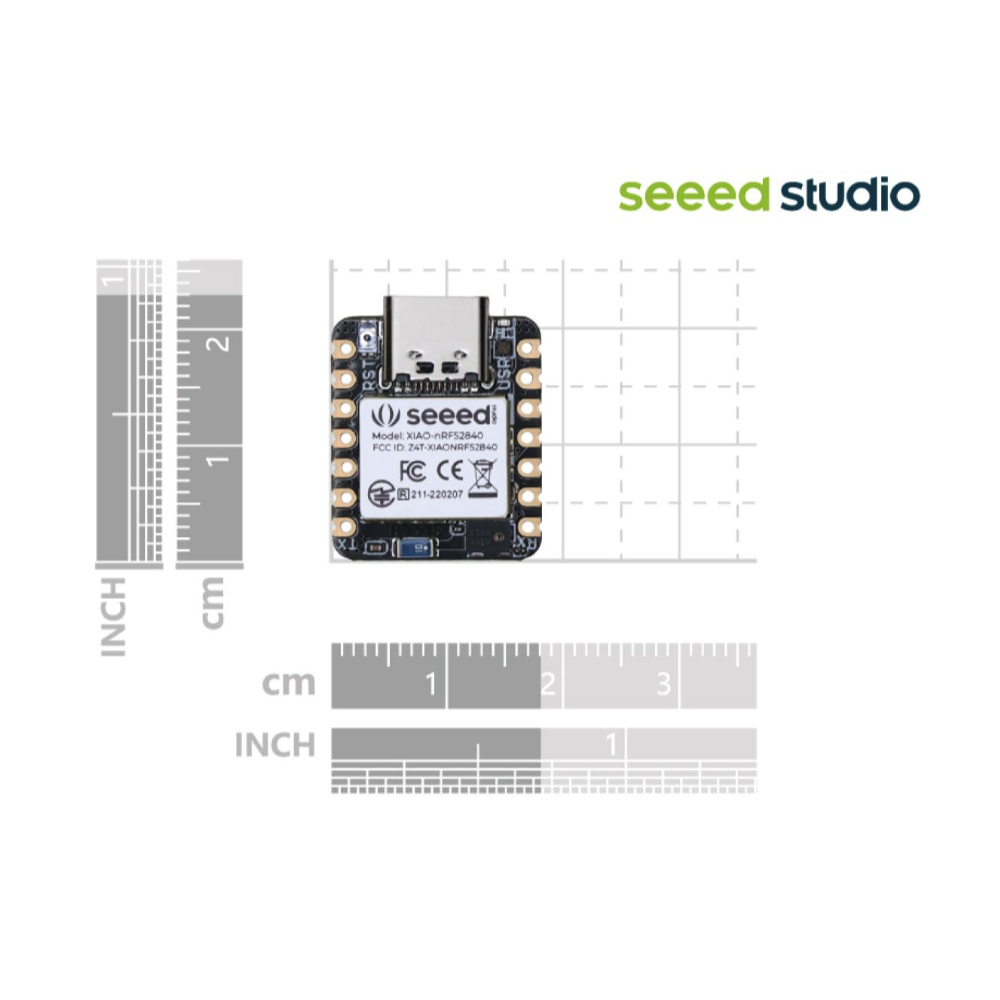

• Thumb-sized Design: 21 x 17.5mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices

Seeed Studio XIAO nRF52840 Sense has an ultra-low power consumption of only 5 μA in the deep sleep mode, the embedded BQ25101 chip supports battery charge management which prolongs its use time. Moreover, Seeed Studio XIAO nRF52840 Sense supports the USB Type-C interface which can supply power and download code. It also has rich On-chip Memory of 1 MB flash and 256 kB RAM, and an Onboard Memory of 2 MB QSPI flash. There are 11 digital i/o that can be used as PWM pins and 6 analog i/o that can be used as ADC pins. It supports UART, IIC, and SPI all three common serial ports. 1 Reset button, 1 3-in-one LED, 1 Charge LED, and 1 Bluetooth antenna are on board, allowing developers to debug their code very easily.

As the advanced yet smaller version of the Seeed Studio XIAO nRF52840, it carries two extra onboard sensors. One of them is a digital microphone created through Pulse Density Modulation(PDM) module on the nRF52840 chip. It can receive audio data in real-time which allows it can be used for audio recognition. The board can receive audio data through the MSM261D3526H1CPM microphone. The other one is 6-axis Inertial Measurement Unit(IMU) which can be applied in TinyML projects like gesture recognition.

The powerful performance makes it perfect for TinyML AIoT projects requiring gesture/voice recognition, and the tiny size allows it to be used in wearable devices and Internet of Things projects, not just for prototypes but the mass production. Furthermore, Seeed Studio XIAO nRF52840 Sense is friendly to the communities for its strong software compatibilities, which supports Arduino, Micropython, and CircuitPython. Except for the software, flexible I/O allows it to speak to almost any external device.

Specification

Application

• Small and flexible wearable device
• Wifi/Bluetooth controlled wireless connection project
• Embedded Machine Learning Project
• IoT and TinyML AI applications
• Great for mini Arduino projects

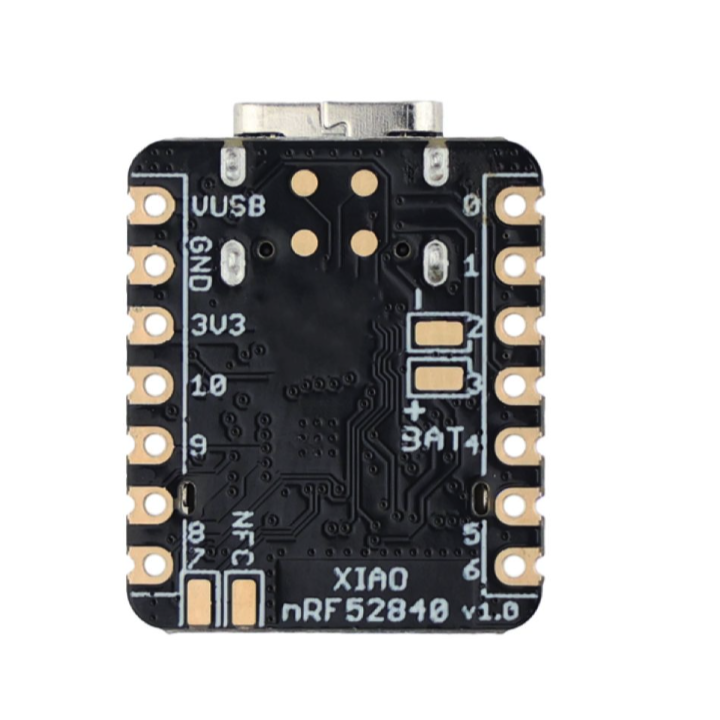

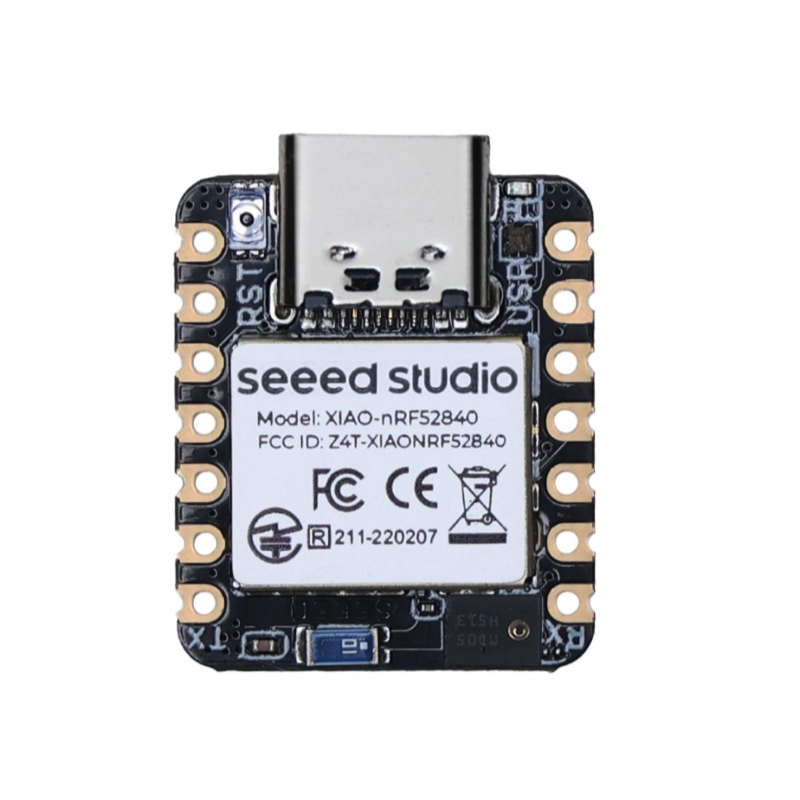

Hardware Pinout

Attention: All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.

Part List

• BQ25101 Datasheet
• ST LSM6DS3TR Datasheet
• mic-MSM261D3526H1CPM
• Nano BLE MCU-nRF52840 PS v1.1

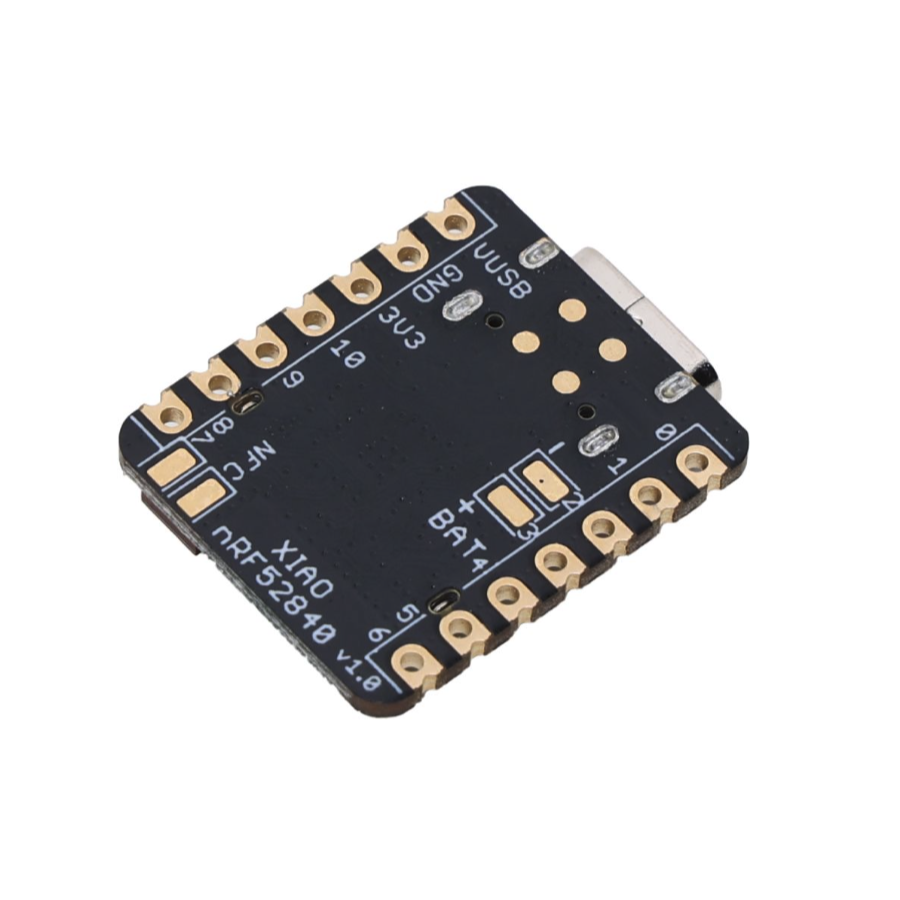

• Bottom-pad-positioning
• Flash_P25Q16H-UXH-IR_Datasheet
• Seeed Studio XIAO nRF52840 BLE Communication Distance Test Report
• Seeed Studio XIAO nRF52840 CE | FCC | MIC
• TinyML Case Studies
• XIAO Reference Design
• 3D Printing "Case" Studies
