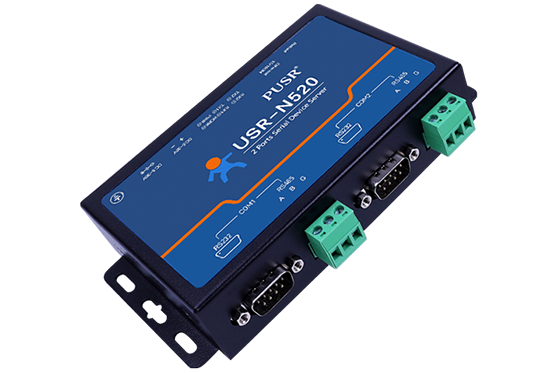

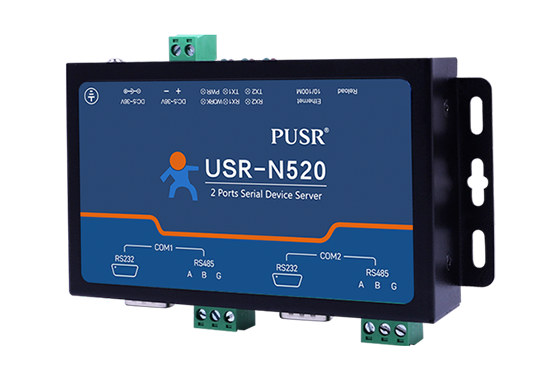

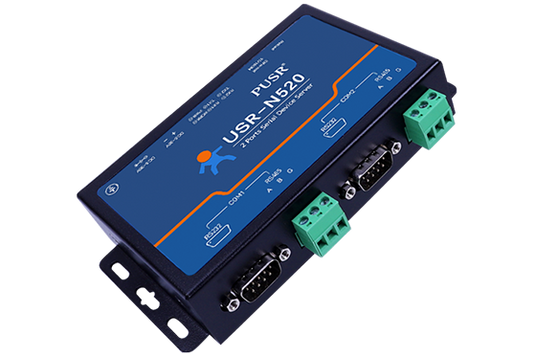

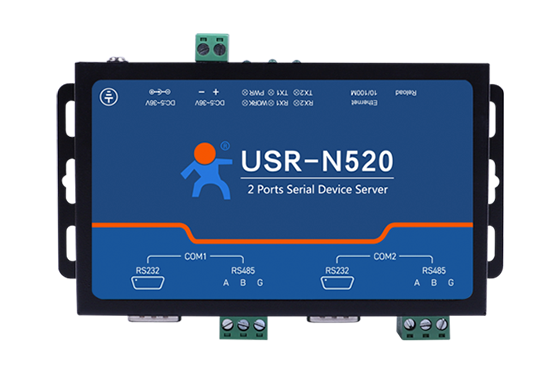

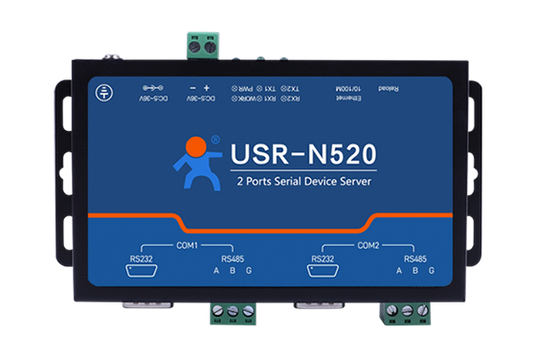

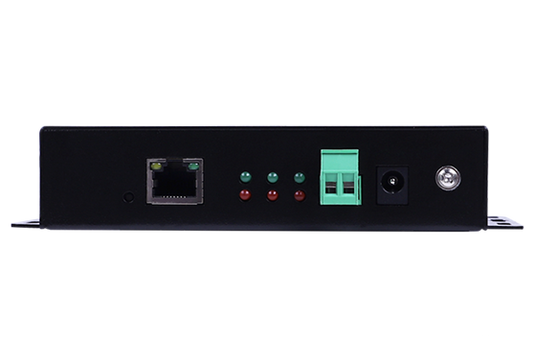

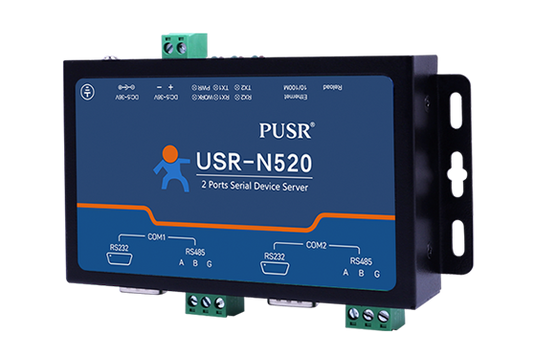

USR-N520
2 Ports Serial to Ethernet Converter
2-port serial to Ethernet servers USR-N520 can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.
Basic Function of Serial to Ethernet Servers
Industrial Hardware Design
Industrial solution TI cortex-M4
Watch dog
Hardware watchdog design, never crash in 24 hours
Serial Ports
Baud rate: 600bps～230.4Kbps
Hardware flow control: RTS/CTS
Software flow control: XON/XOFF
Serial data can be divided into frames flexibly

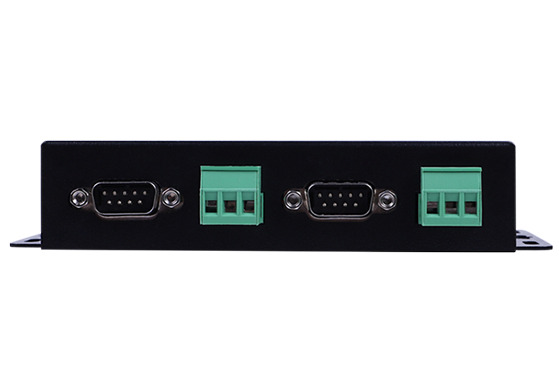

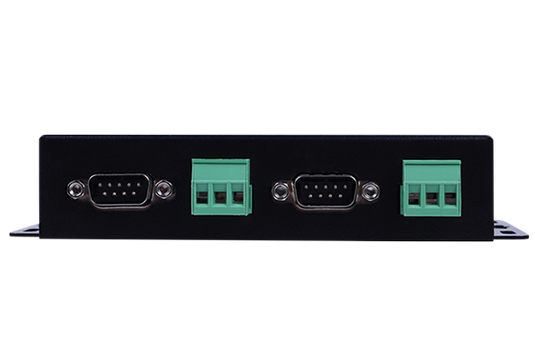

Serial Port Switching Among RS232/RS485/RS422
Power supply supports Anti-reverse
Wide voltage: 5~36V
Function Structure
Work mode
TCP Server
Serial to Ethernet servers USR-N520 listens on the setting port
and waits for a TCP client connection.
The data which the serial ports sent out transparently
transmit to all connected TCP clients via USR-N520.
TCP client mode
Serial to Ethernet servers USR-N520 initiates a TCP connection to the set IP address.
If the connection fails, USR-N520 will keep trying to reconnect until it succeeds.
Once the connection is successful, the data will be transparently
transmitted between PC and serial device in bi-directional.
UDP mode
Serial to Ethernet servers USR-N520 will transmit serial data from serial device to
target network device by UDP connection.
USR-N520 will listen to port and transmit all received data to serial device.
httpsD Client
Supports https Client mode which can transmit serial data to the https server in https format (GET/POST).
WebSocket
Supports WebSocket Sever，
Built Websocket link with devices by Websocket of webpage HTML5
Data transmission between built-in webpage and serial port in bi-directional
Custom webpage and websocket are acceptable
Achieves the functions of displaying data in real-time
Features
Socket B function
Serial to Ethernet servers USR-N520 supports the secondary network link, which can send data to two servers.
Serial & Network Heartbeat Packet
Network Heartbeat Packet: Serial server maintains the normal connection with the server by sending heartbeat packet regularly. Serial Heartbeat Packet: Serial server informs serial device is active, can be applied in actively catching sensor data.
Support modbus gateway
More function
Customize webpage, synchronized baud rate, net printing, registration package, cloud
Application
PARAMETER
| System Information | Details |
|---|---|
| Processor | Cortex-M4 |
| Basic Frequency | 120MHz |
| Flash | 512K byte |

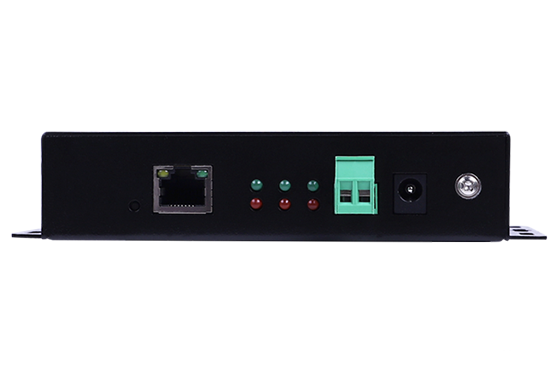

| Ethernet | |
| Port Number | 1 |
| Interface Standard | RJ45 |
| Rate | 10/100 Mbps MDI/MDIX, auto switch between cross and direct connection |
| Protection | 2KV electromagnetism isolation, shell insulation blocking |
| Network Protocol | IP, TCP, UDP, DHCP, DNS, https, ARP, ICMP, Websocket, httpsD Client |
| Receive Buffer | Max 16k bytes buffer |
| Serial | |
| Port Number | 2 (RS232/485/422*2), 2 serial ports can simultaneously work at different working modes. |
| Interface Standard | RS-232: TX/RX/RTS/CTS, RS-485: A+/B-, RS422: TX+/TX-/RX+/RX- |
| Data Bits | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Check Bit | None, Even, Odd, Space, Mark |
| Baud Rate | 600 bps ~ 230K bps |
| Flow Control | RTS/CTS/Xon/Xoff |
| Buffer | Send and receive 2k bytes respectively |
| Protection | ESD protection, anti-surge |
| SocketA | |
| Transparent Transmission Mode | TCP Server/TCP Client/UDP Server/UDP Client |
| Supported Function | Networking printing, Modbus Gateway, USR-Cloud, self-defined registration package, self-defined network and serial heartbeat package |
| SocketB | |
| Mode | TCP Client/UDP Client |
| Software | |
| Virtual Serial (USR-VCOM) | Windows 2000 or higher (32 bit/64 bit) |
| Configuration | Built-in webpage, computer set-up software, serial command |
| Basic Parameters | |
| Size | 150 x 79 x 30 mm |
| Operating Temp. | -40 ~ 85°C |
| Storage Temp. | -45 ~ 105°C, 5 ~ 95% RH |
| Input Voltage | DC 5 ~ 36V |
| Working Current | 95mA (aver) @ 5V, 45mA (aver) @ 12V |
| Power | <1W |
| More | |
| Certificate | CE, FCC, ROHS, KCC and WEEE pending |
| Warranty | 2 years |
| Accessory | serial line, cable, converter |
**Power Adapter is not included in the box.
Please use this link to add it to your cart: 12V 1A (12W) Power Adapter
