4G HAT FOR RASPBERRY PI

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600G-H, Global BandĀ

Ā

Features

  • Connected via pogo pin or MicroUSB connector
    • Dedicated pogo pin for Raspberry Pi Zero/Zero W
    • MicroUSB connector for other Raspberry Pi boards or PC
  • Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
  • USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
  • SIM card slot, supports 1.8V/3V SIM card
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi)

Ā

Specifications

FREQUENCY BAND
LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Satellite systems GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Audio feature Supports echo cancellation
Supports noise reduction
OTHER
Power supply 5V
Operating temperature -30Ā°C ~ 80Ā°C
Storage temperature -45Ā°C ~ 90Ā°C
Dimensions 65.00 Ɨ 32.00mm

Ā

Suitable For Raspberry Pi / PC

Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable
General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC

Ā

Global Band 4G / 3G / 2G Support

Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Ā

USB HUB Feature

Onboard USB HUB Chip With USB2.0/1.1 Compliant,
Providing 2x USB-A Connector And 1x USB Solder Pad

Ā

GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station Positioning

Ā

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands,
With Onboard Audio Jack

Ā

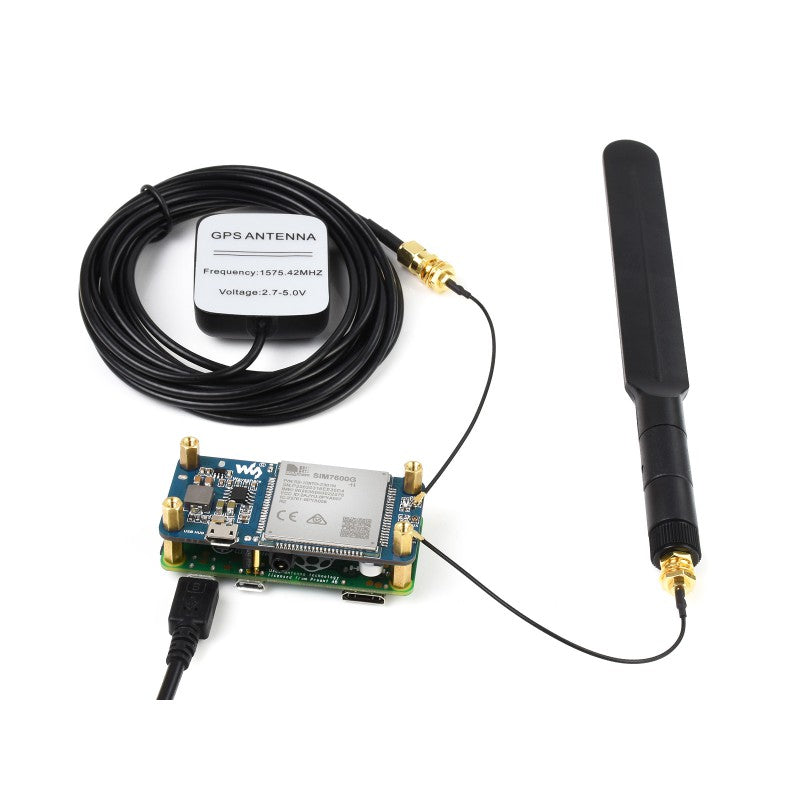

Application Example

Ā

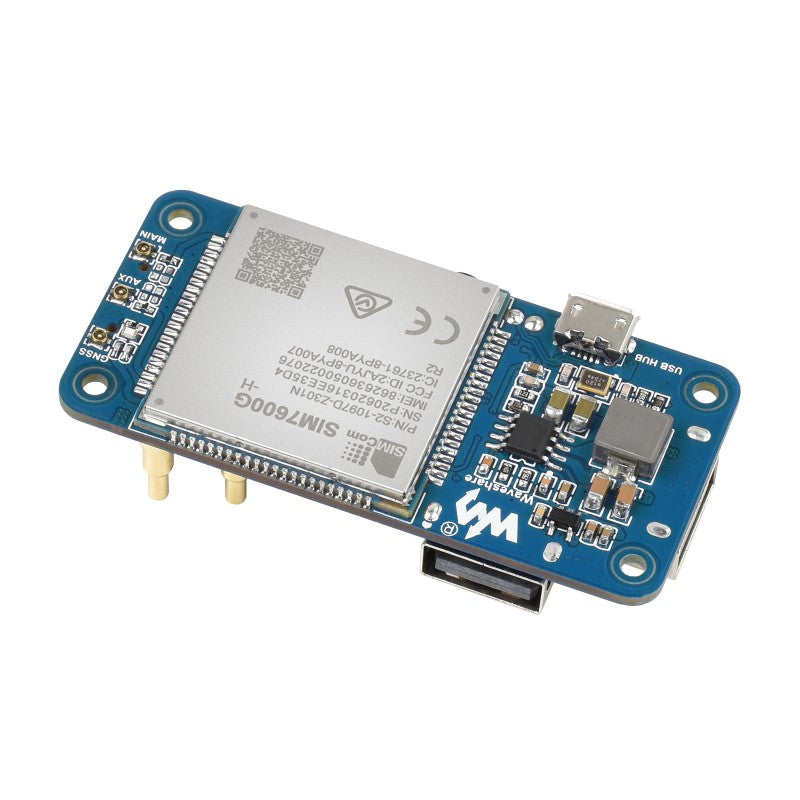

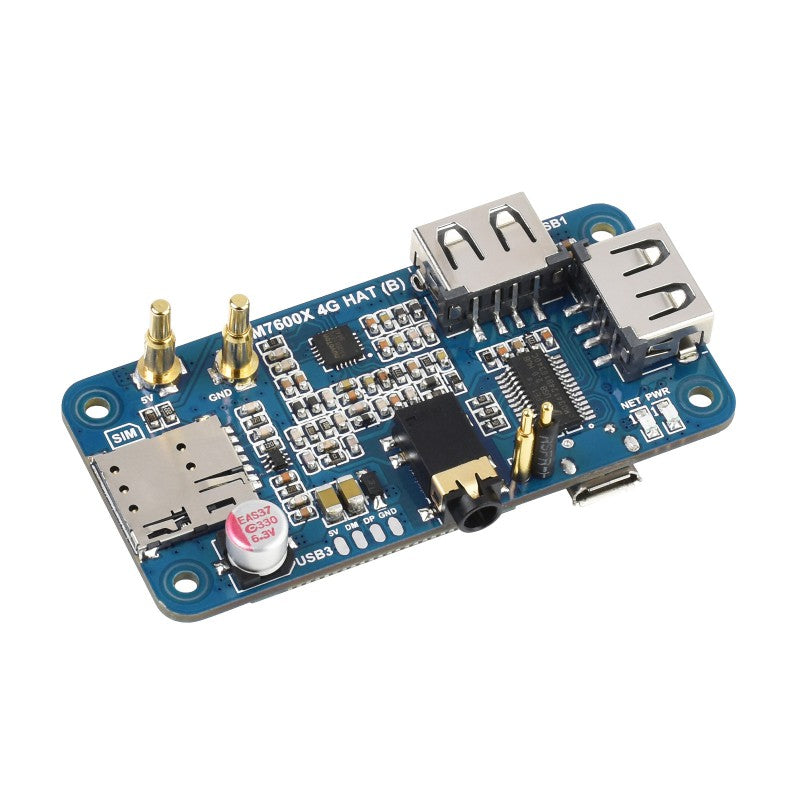

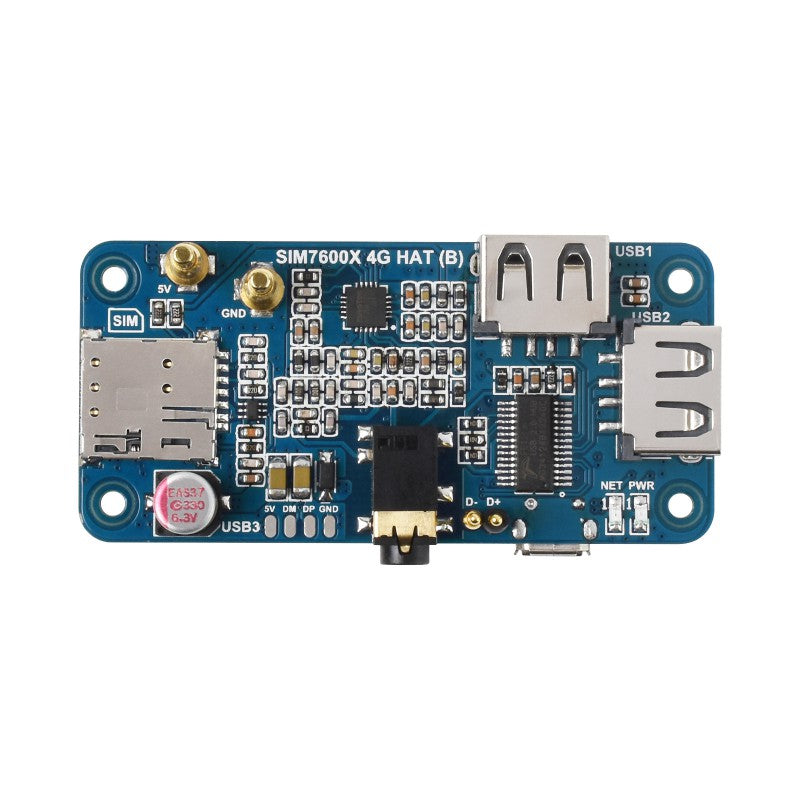

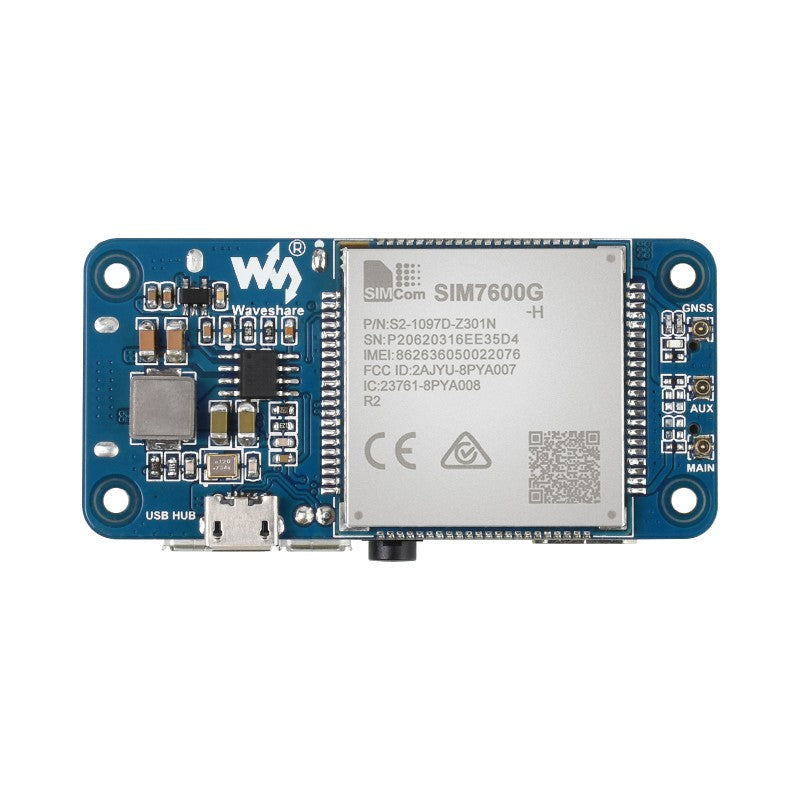

What's On Board

  1. SIM7600G-H
  2. FE1.1S USB HUB chip
  3. NAU8810 audio decoder
  4. MP1482 power chip
  5. RT9193-33 voltage translator
  6. USB HUB input
    D+/D- pogo pin: for Raspberry Pi Zero/Zero W
    MicroUSB connector: for other Raspberry Pi boards or PC
  7. Pogo pin power supply
    5V: connects to 5V pin of Zero/Zero W, up to 2A current
    GND: connects to GND pin of Zero/Zero W
  1. USB extended ports
    USB1~USB2: USB-A connectors
    USB3: solder pad
  2. SIM card slot
    supports 1.8V/3V SIM card
  3. 3.5mm earphone/mic jack
  4. MAIN antenna connector
  5. AUX auxiliary antenna connector
  6. GNSS antenna connector
  7. Power indicator
  8. Network status indicator

Ā

Outline Dimensions

Ā

Resources

WIKI: SIM7600G-H_4G_HAT_(B)

Ā

Package Contains:

Weight: 0.162 kg

  1. SIM7600G-H 4G HAT (B) x1
  2. LTE Antenna x1
  3. GPS AntennaĀ x1
  4. USB-A to micro-B cable x1
  5. Screws pack x1
12345
What platforms and connection options are supported by the SIM7600G-H 4G HAT for Raspberry Pi?
It connects to Raspberry Pi via a dedicated pogo pin for Pi Zero and Zero W, or via a MicroUSB connector for other Pi boards or a PC. The board also includes an onboard USB HUB providing USB extension and 4G network access.
Which networks and GNSS features are supported?
LTE Cat-4 4G with global bands, plus 3G and 2G networks are supported. GNSS positioning covers GPS, Beidou, GLONASS, GALILEO, QZSS and LBS base station positioning.
What is included in the package and what resources are provided?
The package includes the SIM7600G-H 4G HAT, LTE and GPS antennas, a USB A to micro B cable, screws, and it comes with development resources and a manual with Raspberry Pi examples.
How is the device powered and what are its operating conditions?
It is powered with 5V supply. For Raspberry Pi Zero and Zero W, use the dedicated pogo pin power connection up to 2A. The operating temperature range is -30C to 80C and storage -45C to 90C.
How can I control and what features are supported?
The module is controlled via AT commands as defined by 3GPP TS 27.007 and 27.005, plus V.25TER. It supports dial up, telephone calls, SMS, TCP, UDP, DTMF, HTTP and FTP, and has SIM toolkit support.
A
Admin
Welcome to the discussion thread for SIM7600G-H 4G HAT (B) for Raspberry Pi, LTE Cat-4 4G / 3G / 2G
Feel free to ask questions, share tips or report issues.

Discover More In:

GPS, GSM, RFID ā†’ IOT Modules ā†’ Raspberry Pi ā†’

Category: View similar items (SIM7600G-H)
