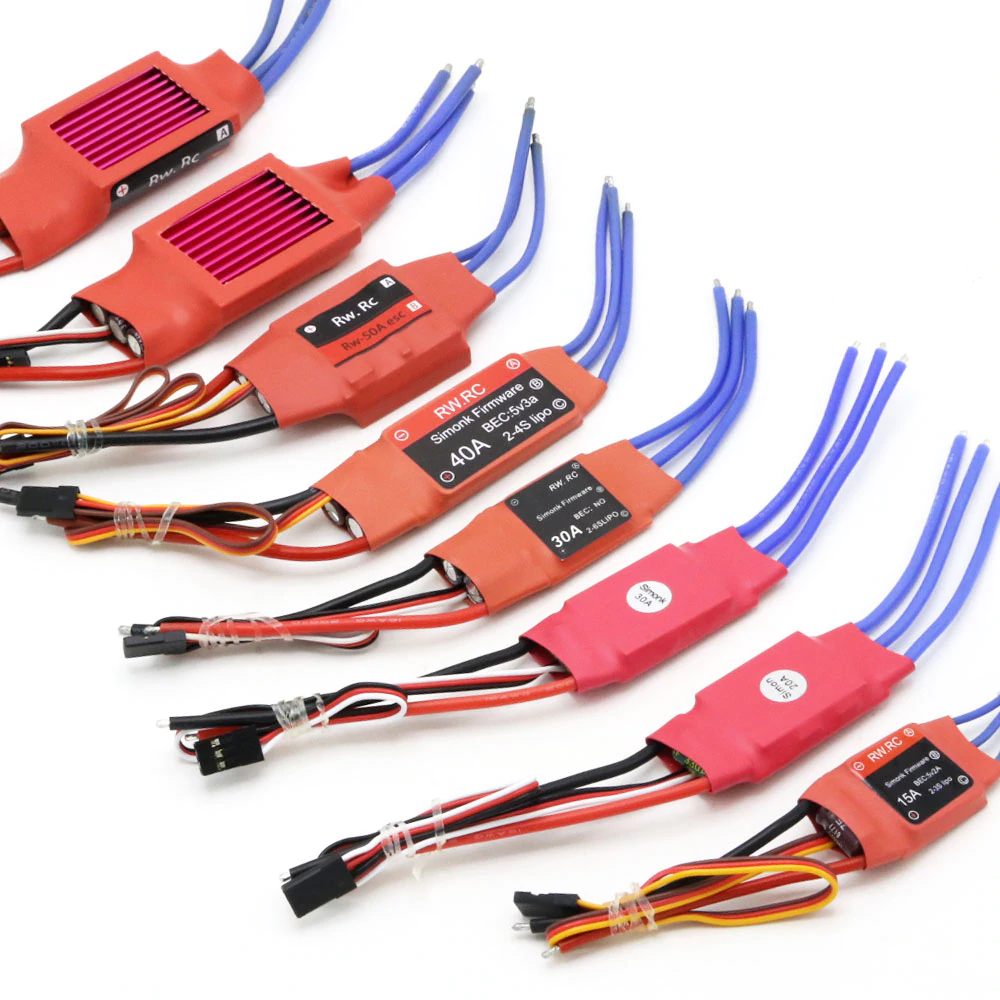

Simonk ESC

SKU: DRO5001

Regular price ₹ 649.99
Sale price ₹ 649.99 Regular price ₹ 899.00
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
Title:
This is a pre order item. We will ship it when it comes in stock.

Flashed with the famous SimonK OpenSource Firmware for super-fast throttle response, which makes your quad more responsive and "locked in". Suited for quads up to 2.5kg, octos up to 5kg. The ESCs do not overheat, burn or lock out - unline many other ESCs flashed with the SimonK firmware. The ESC motor leads are reduced to simple bullet connectors, this allows for quick and clean installation inside your multi rotor. Compatible with 2S to 3S battery

Specifications

simonk10A (2-3S):

Weight: 10 g
Size: 23.5x15x 6.1
Input voltage: (2-3 s Lixx).
Drive current: 10A (Max: 13 A/10S)
BEC Input :3V1A
Compatible signal frequency:30Hz - 499Hz


Simonk12A ( 2-3S ):

Weight:12g
Size:28*20*6.1
Input voltage:2-3S Lixx
Drive current:12A (Max:14A/10S)
BEC Input:5V2A
Compatible signal frequency: 30Hz - 499Hz

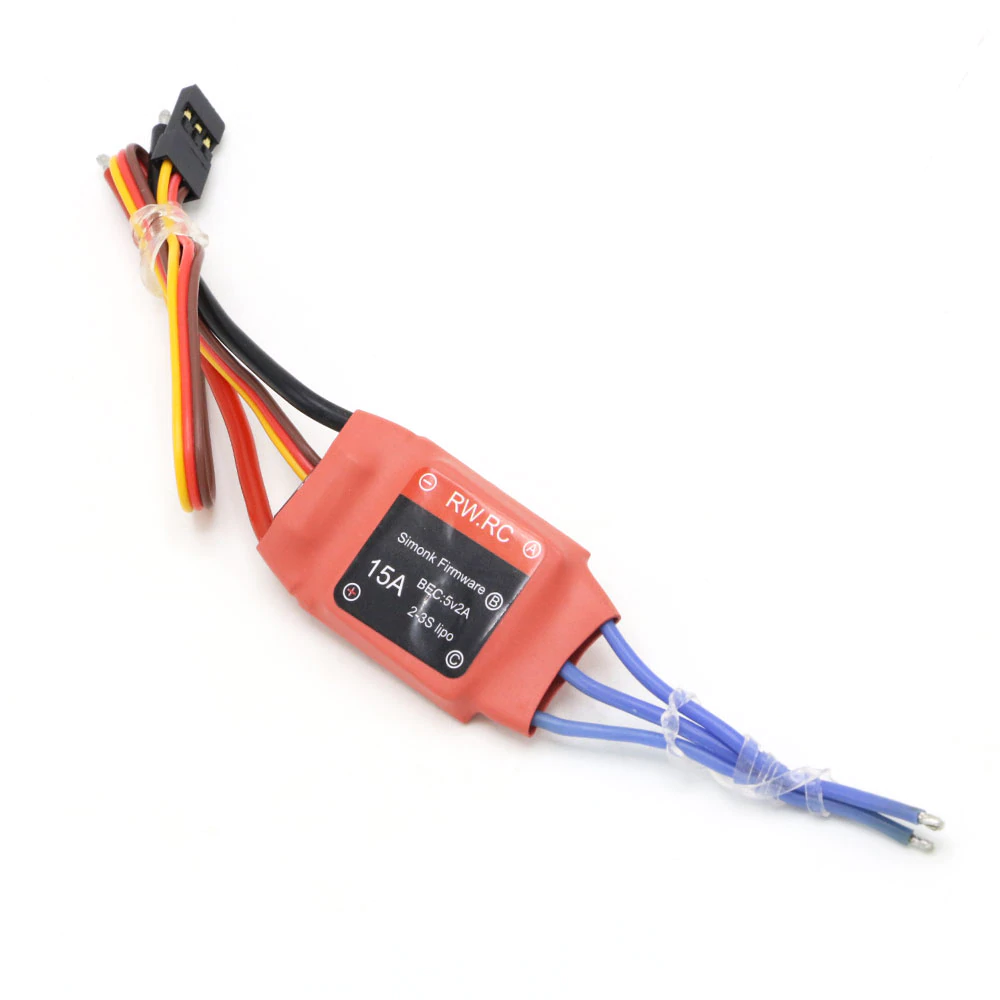

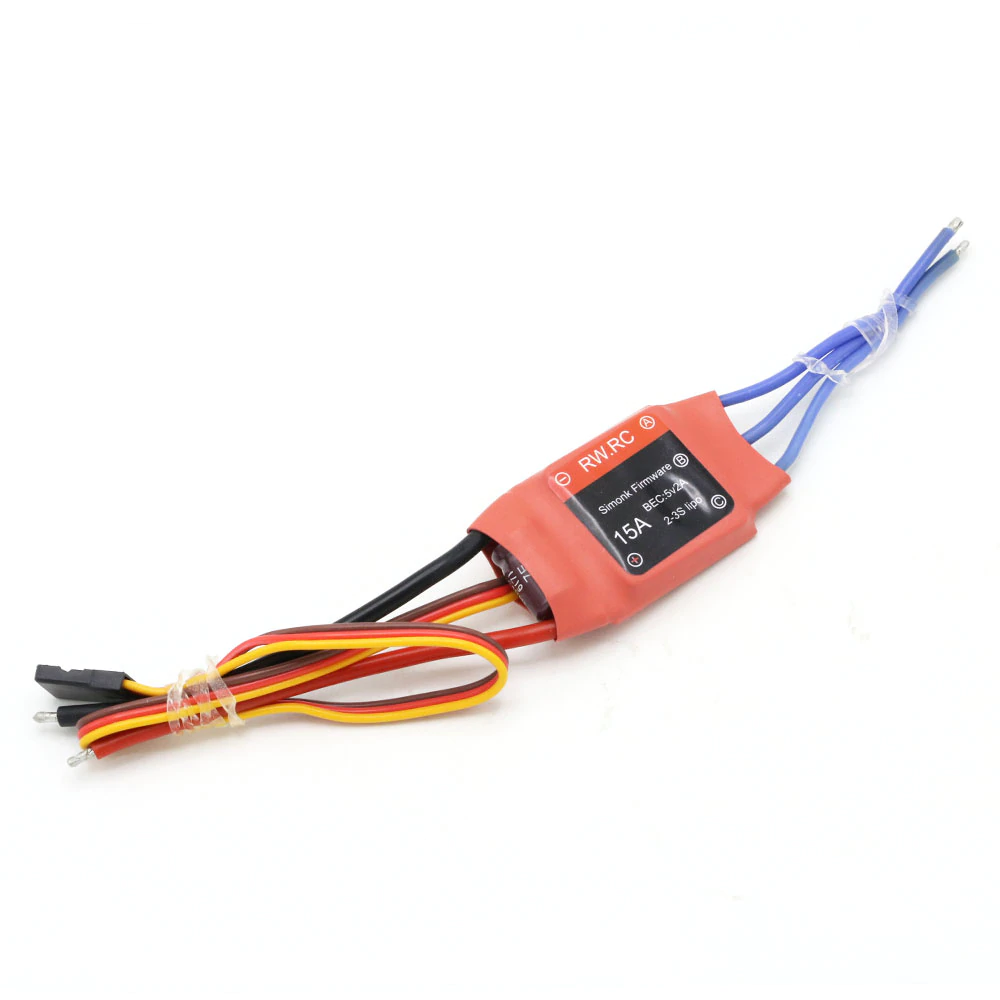

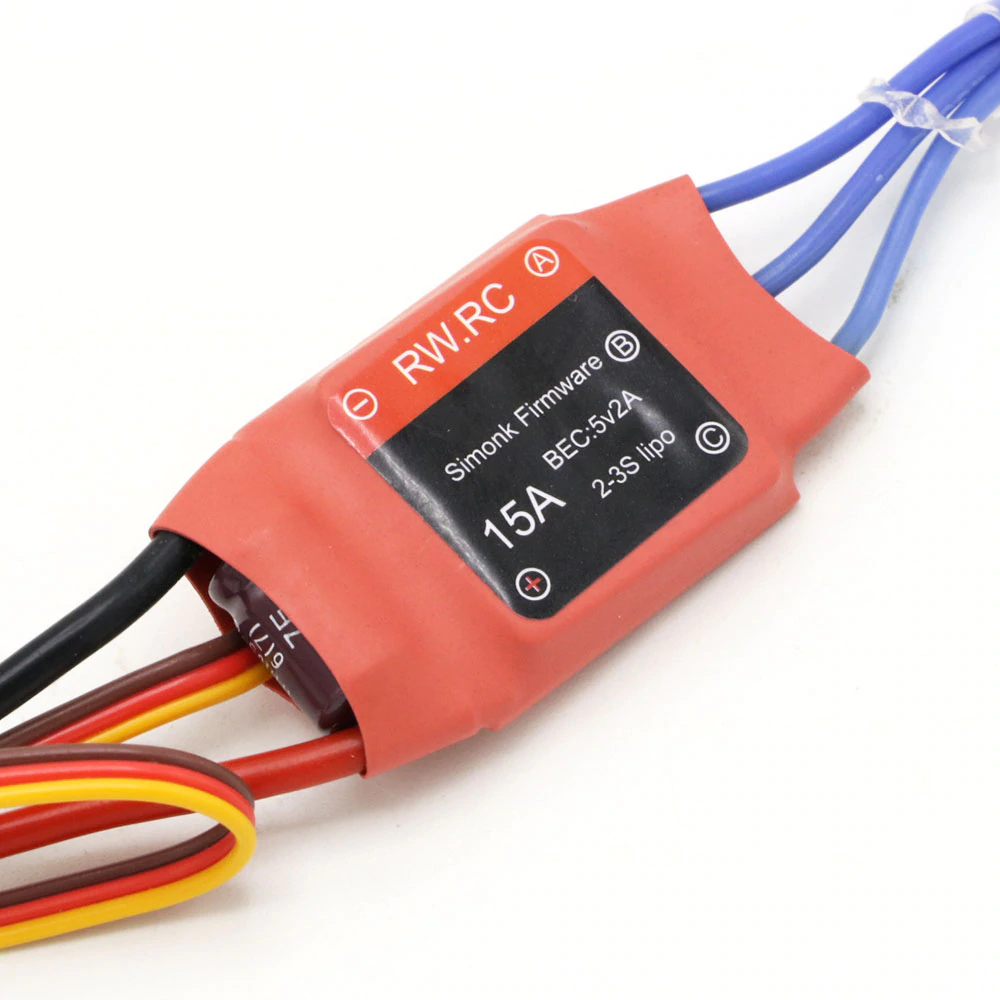

simonk15A (2-3S):

Weight:15g
Size:50*22*8
Input voltage:2-3S Lixx
Drive current:15A (Max:25A/10S)
BEC Input:5V2A
Compatible signal frequency: 30Hz - 499Hz

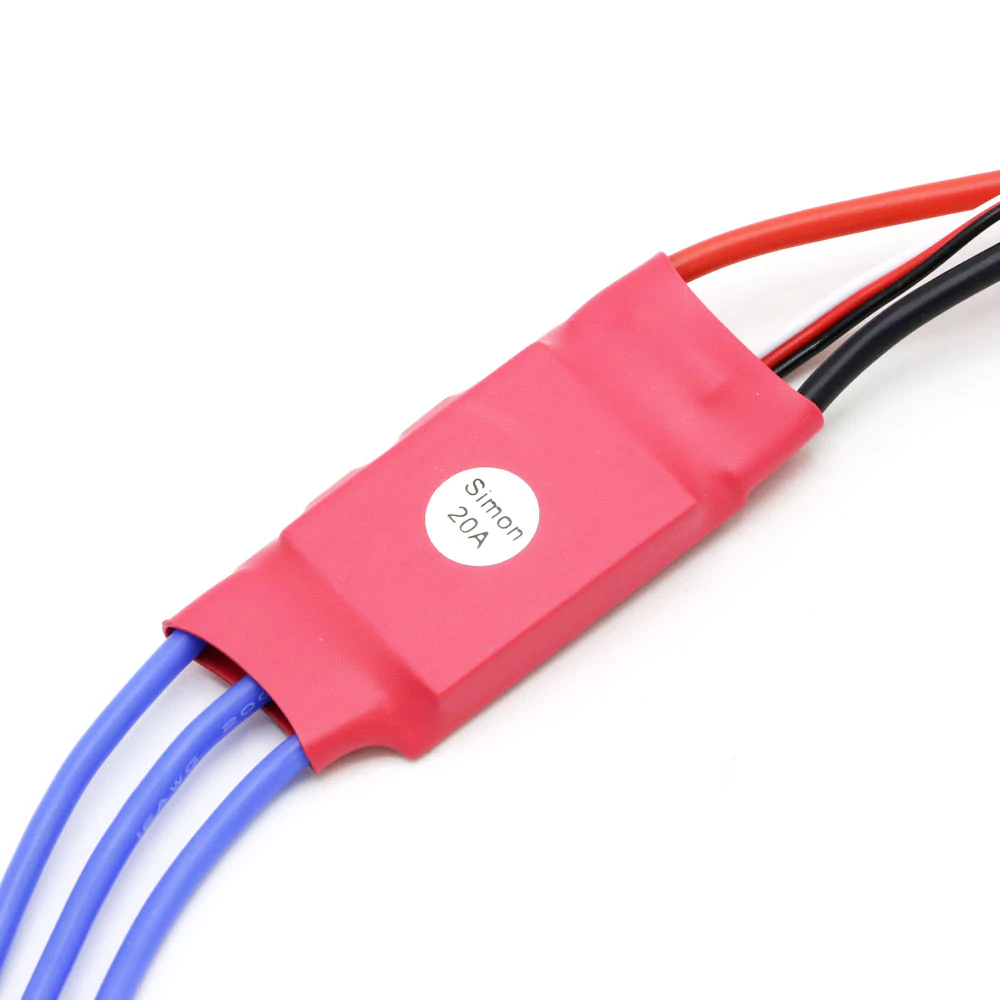

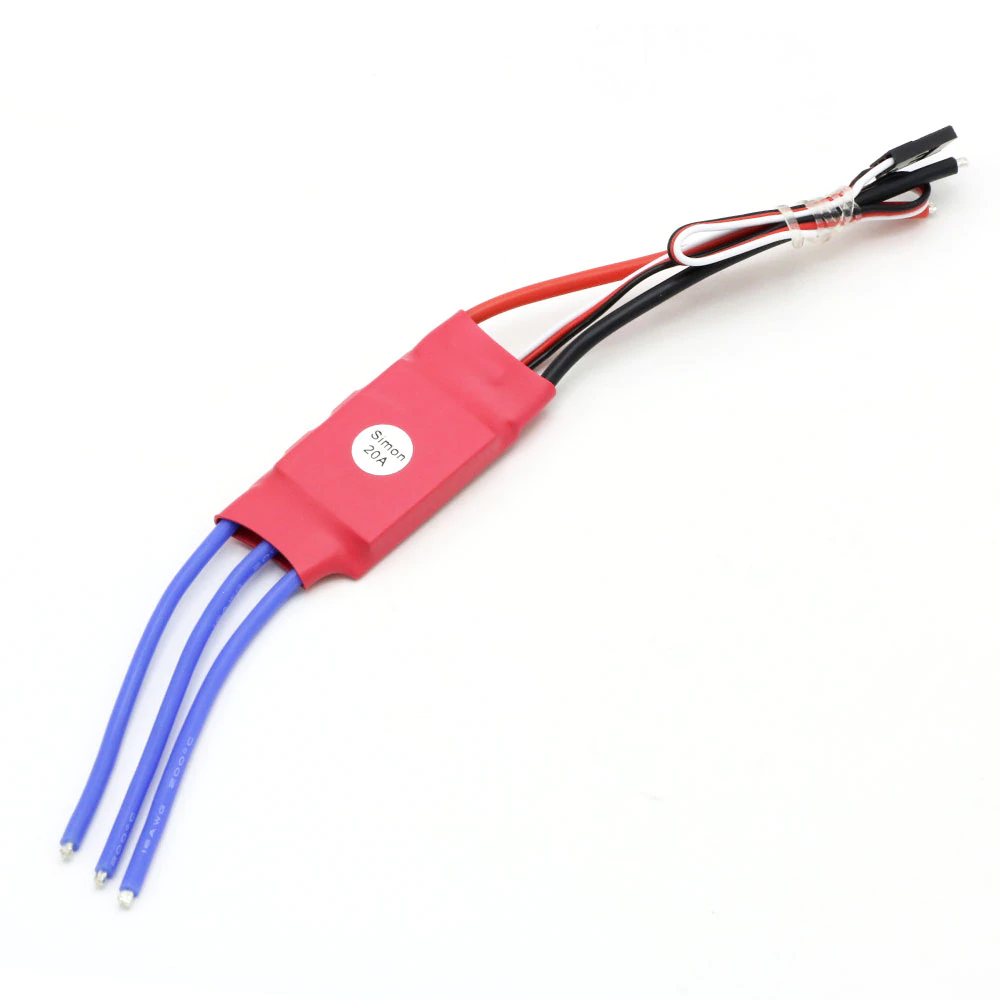

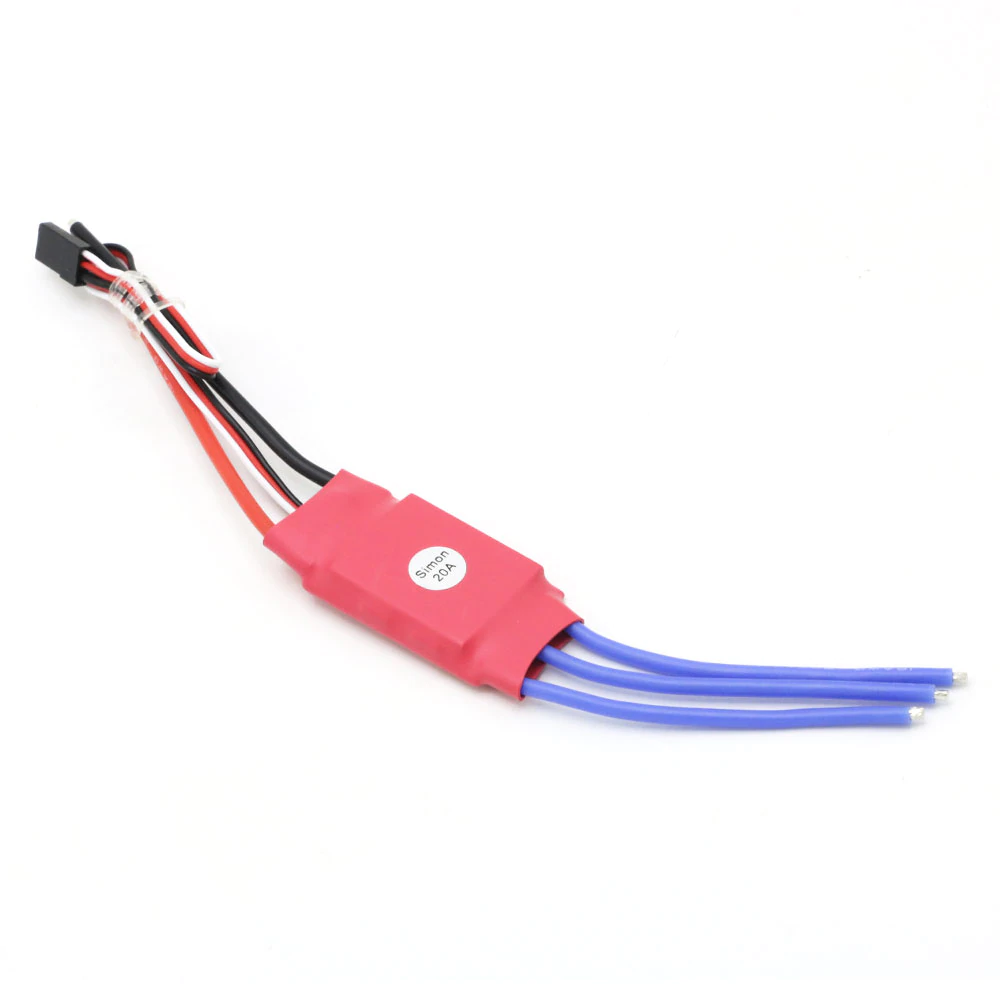

simonk20A (2-3S):

Cont Current: 20A
Burst Current: 28A
BEC Model: Linear mode
BEC Output: 5V3A
Li-ion/Li0poly:2-3S,or Ni-MH/Ni-Cd:4-12NIMH
Weight: 21g
Size: 32*24*7mm

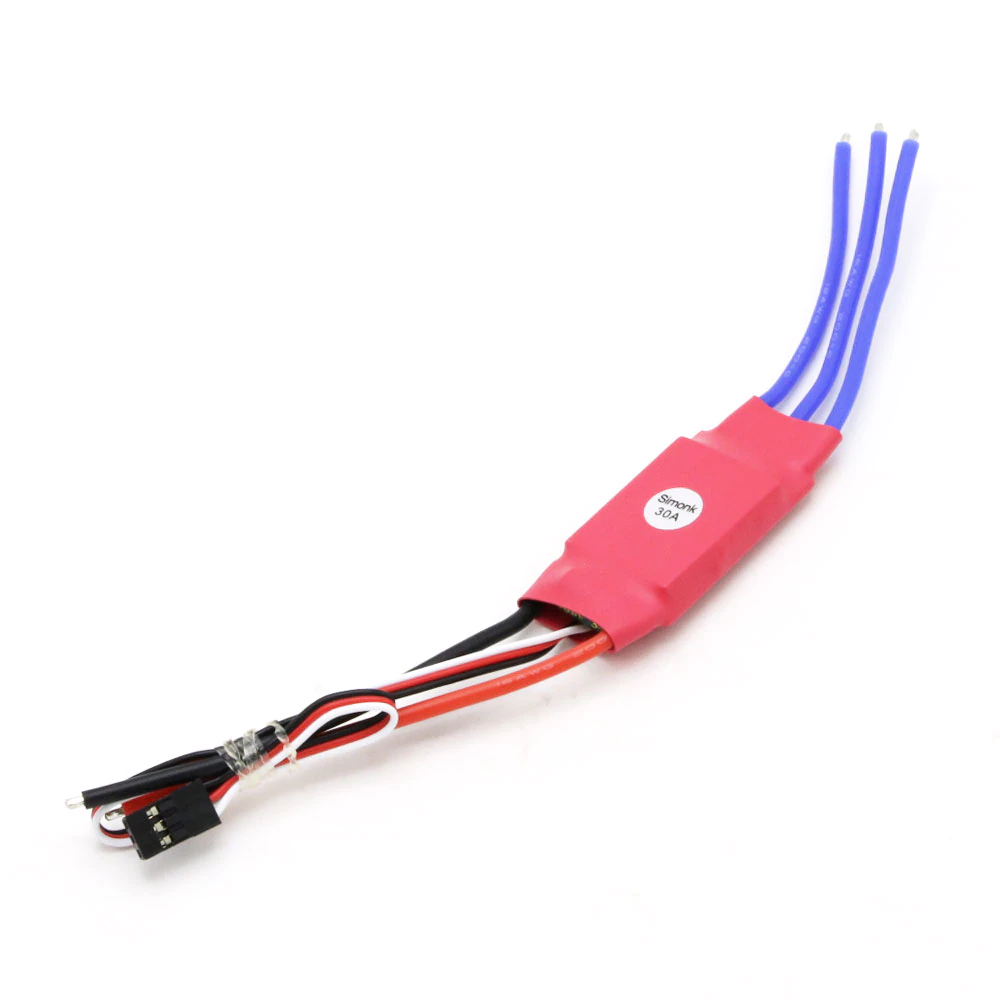

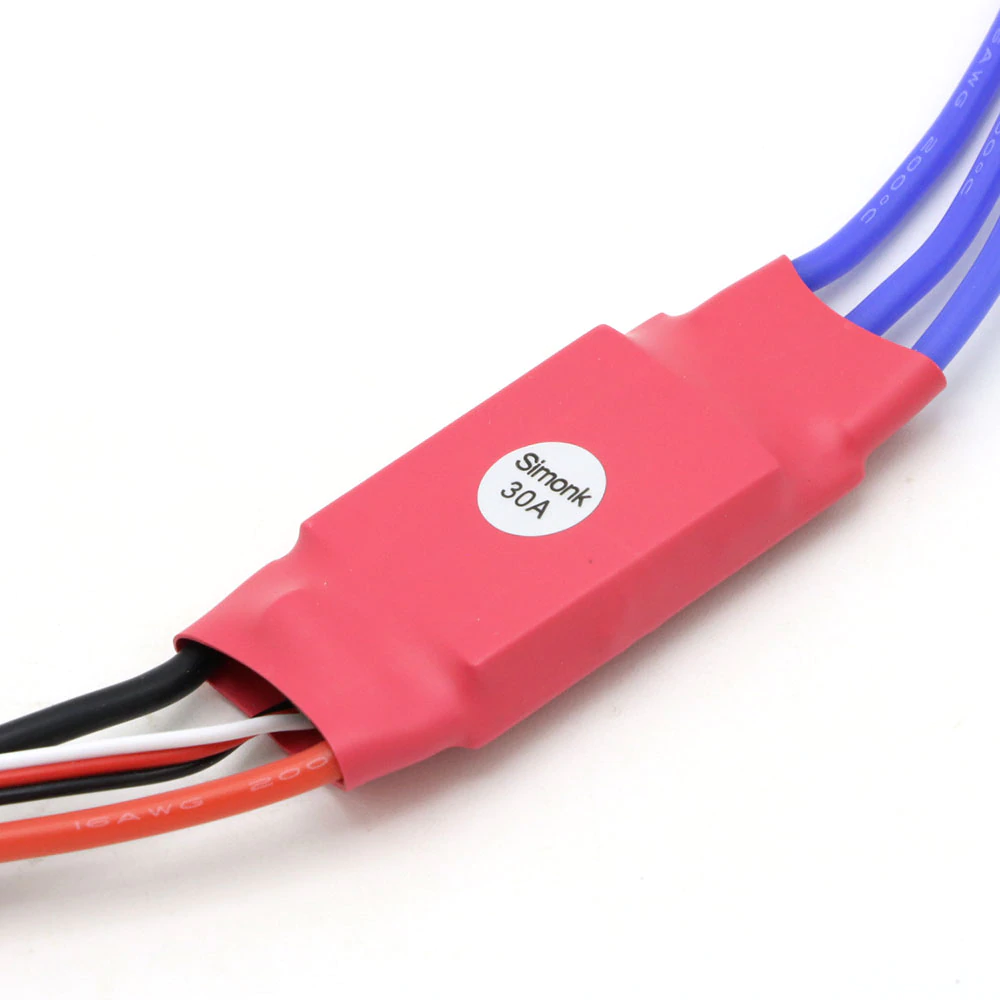

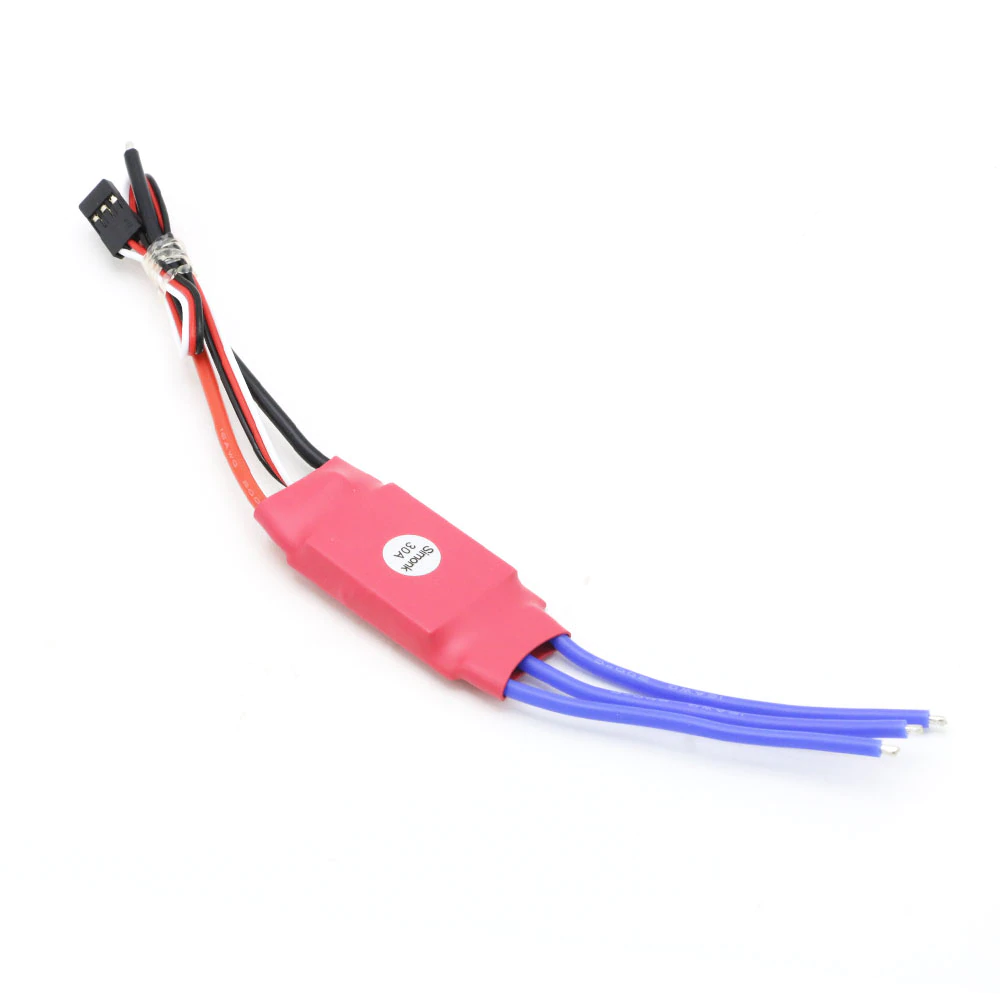

simonk30A(2-4S):

Max cont. current: 30A
Peak current: 40A (10s)
Voltage: 2-3S lixx,
BEC: 5V/3A
Size: 50x23x8mm
Weight: ~28g

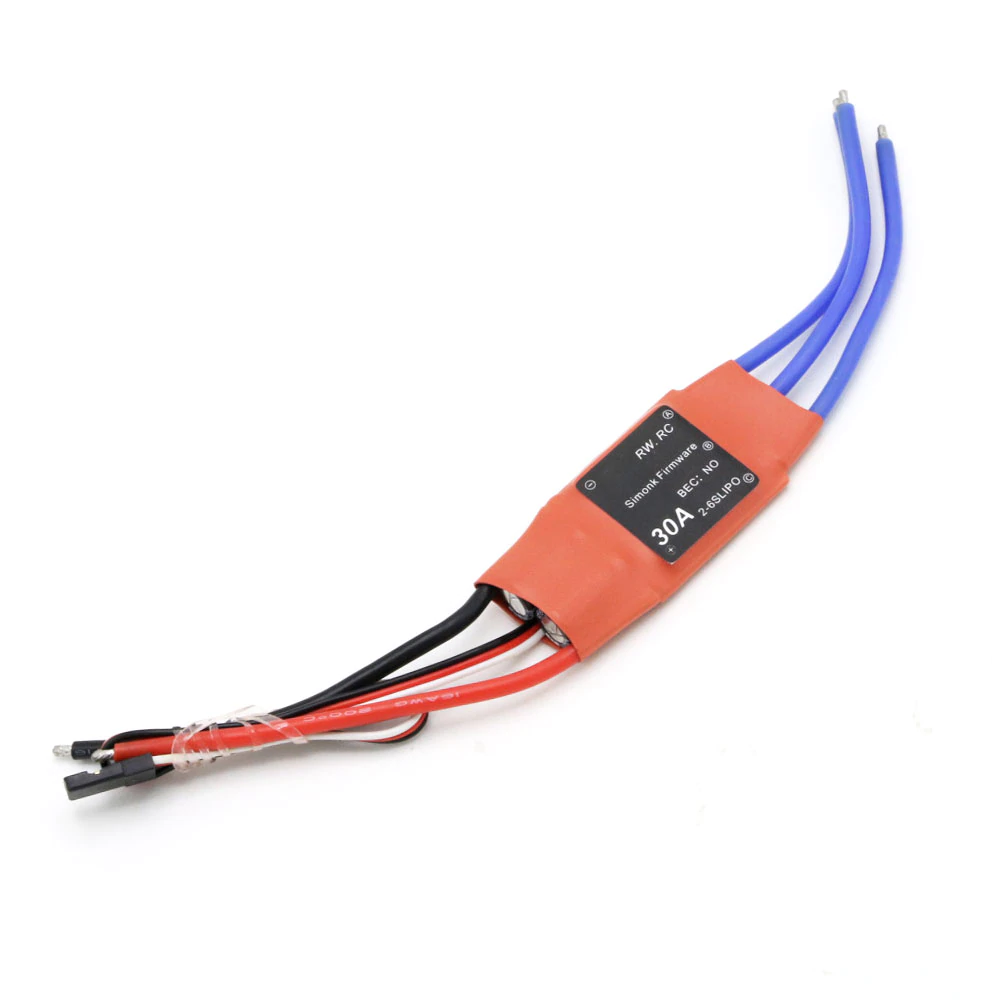

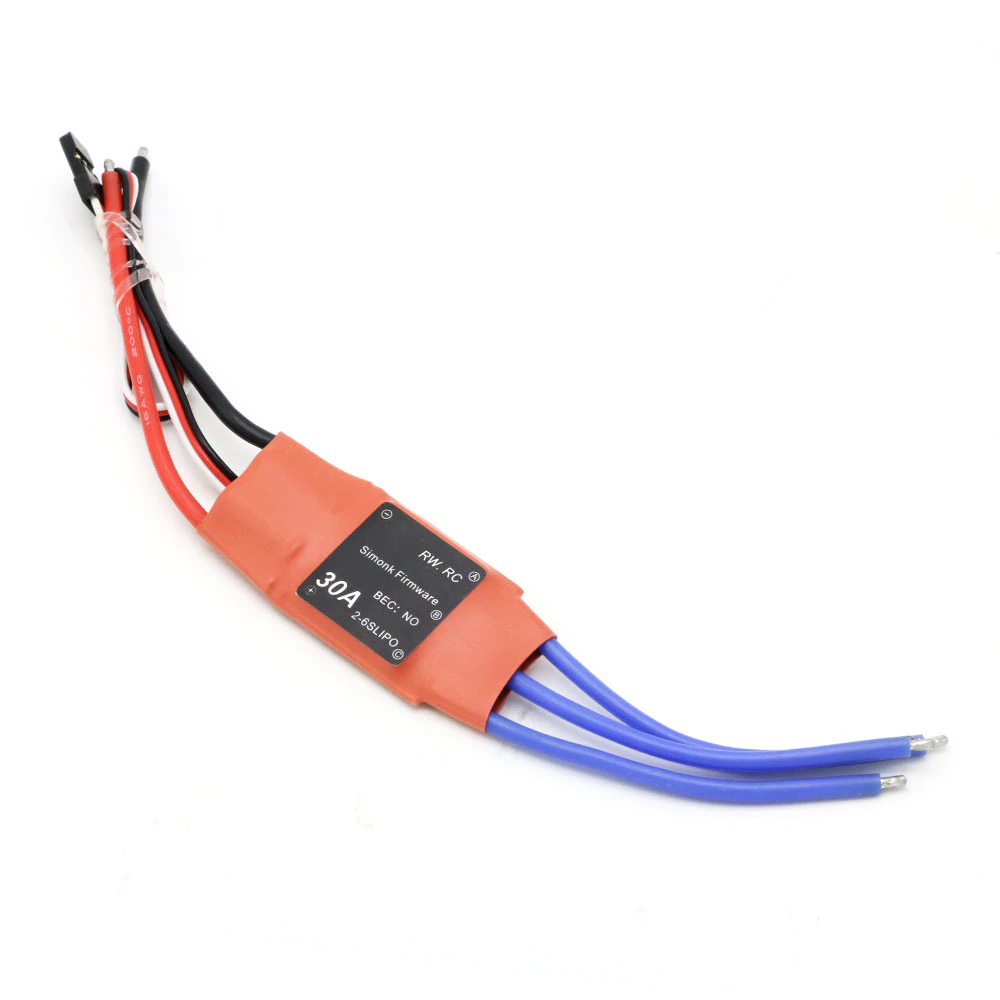

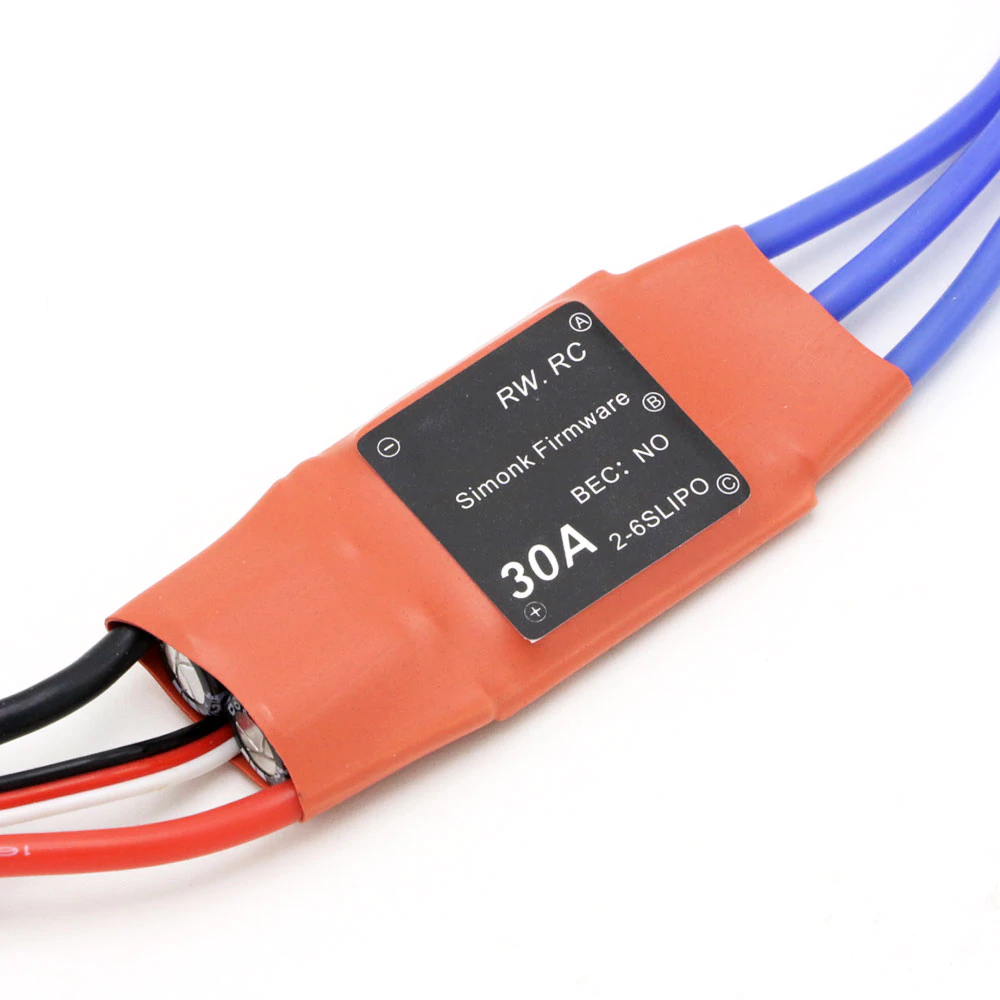

simonk30A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)

Weight:25g
Size:50*23*8
Input voltage: (3-6S Lixx)
Drive current:30A (Max:40A/10S)
BEC Input : NO
Compatible signal frequency: 30Hz - 500Hz

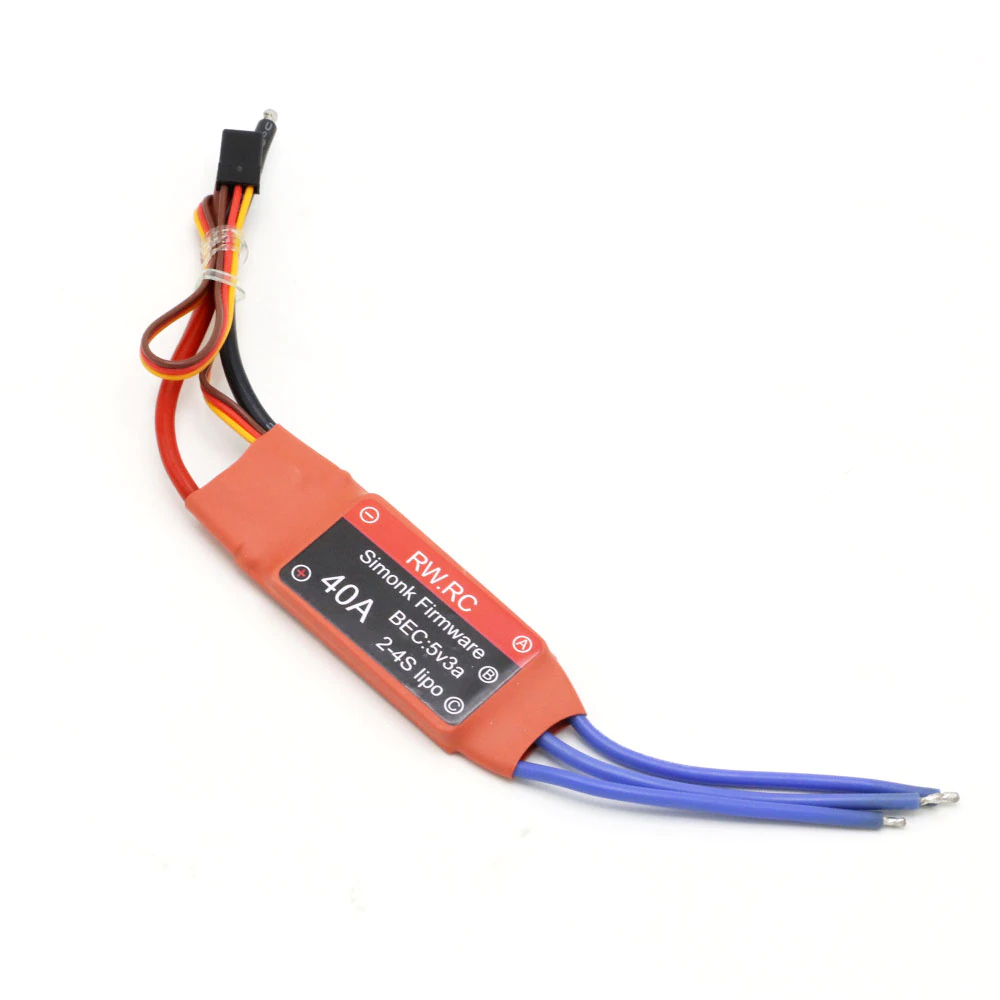

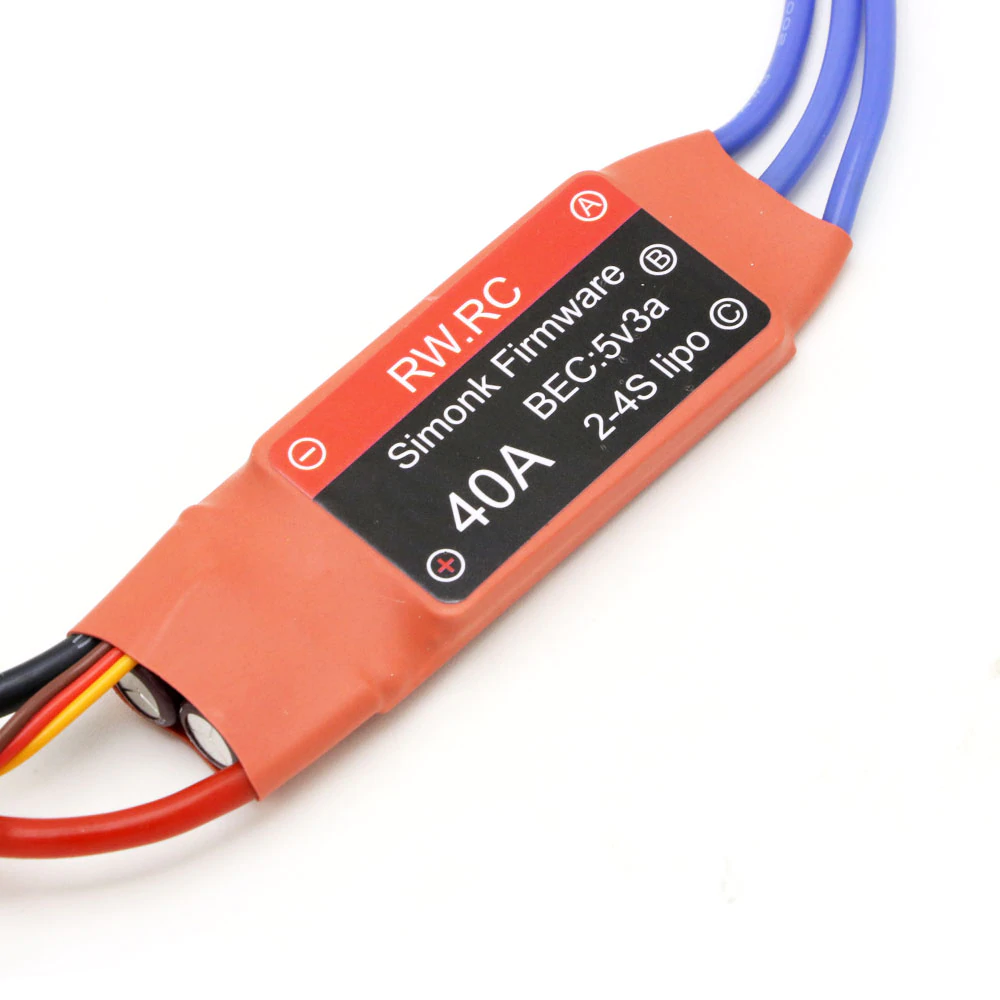

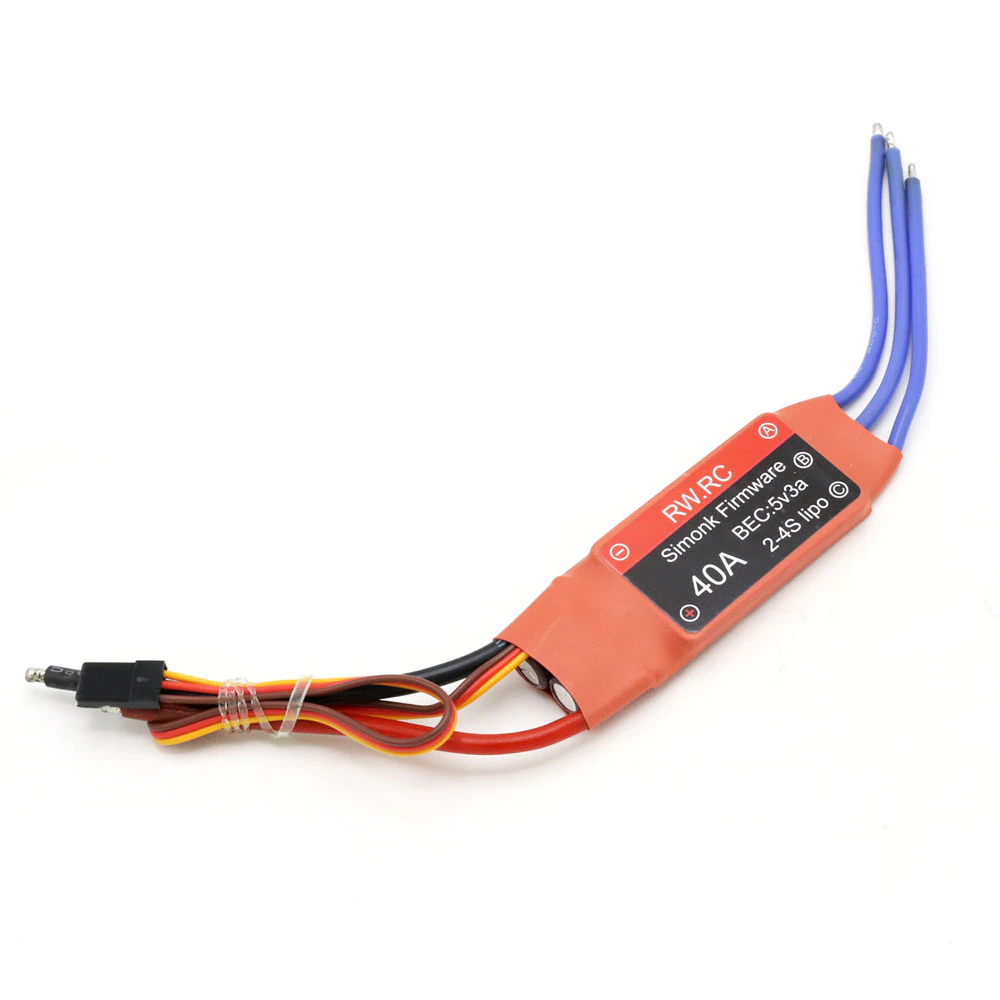

simonk40A(2-4S):

Weight:35g
Size:68*25*8MM
Input voltage:2-4S
Drive current:40A (Max:50A/10S)
BEC Input: 5V 3A
Compatible signal frequency: 30Hz - 500Hz

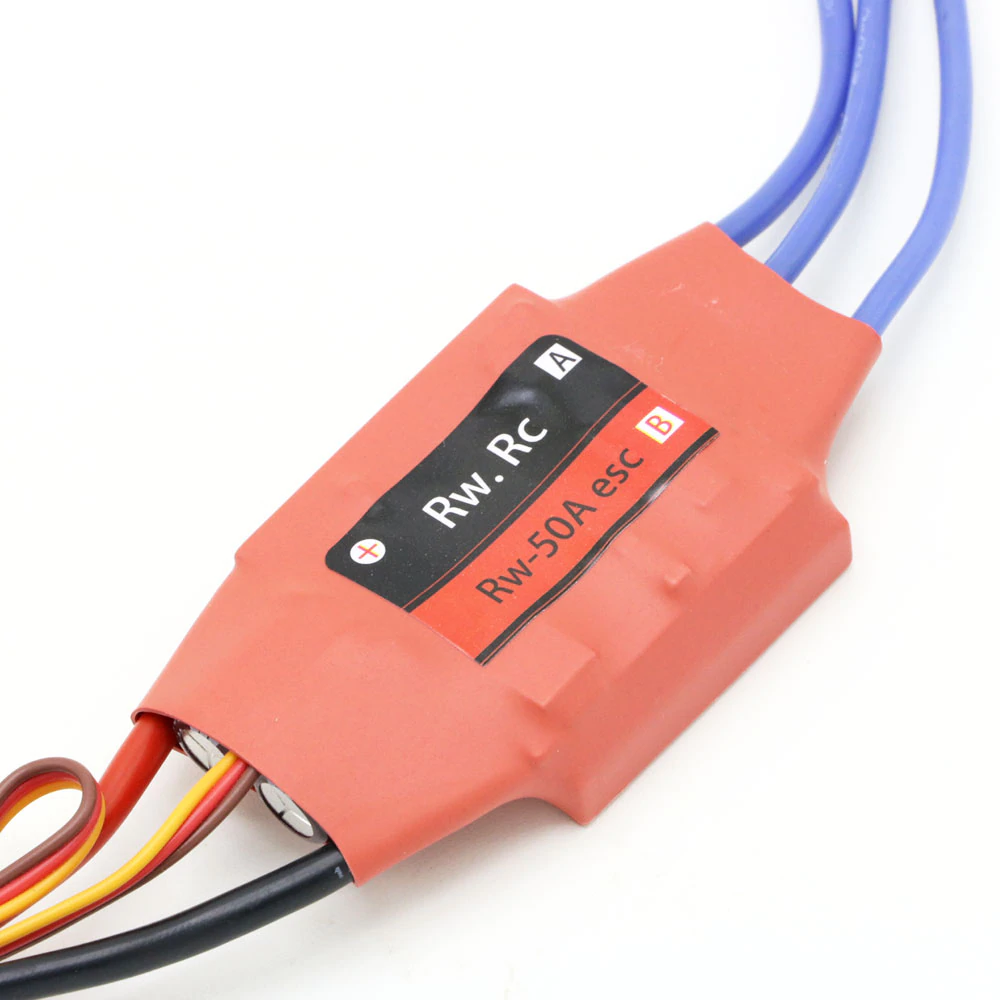

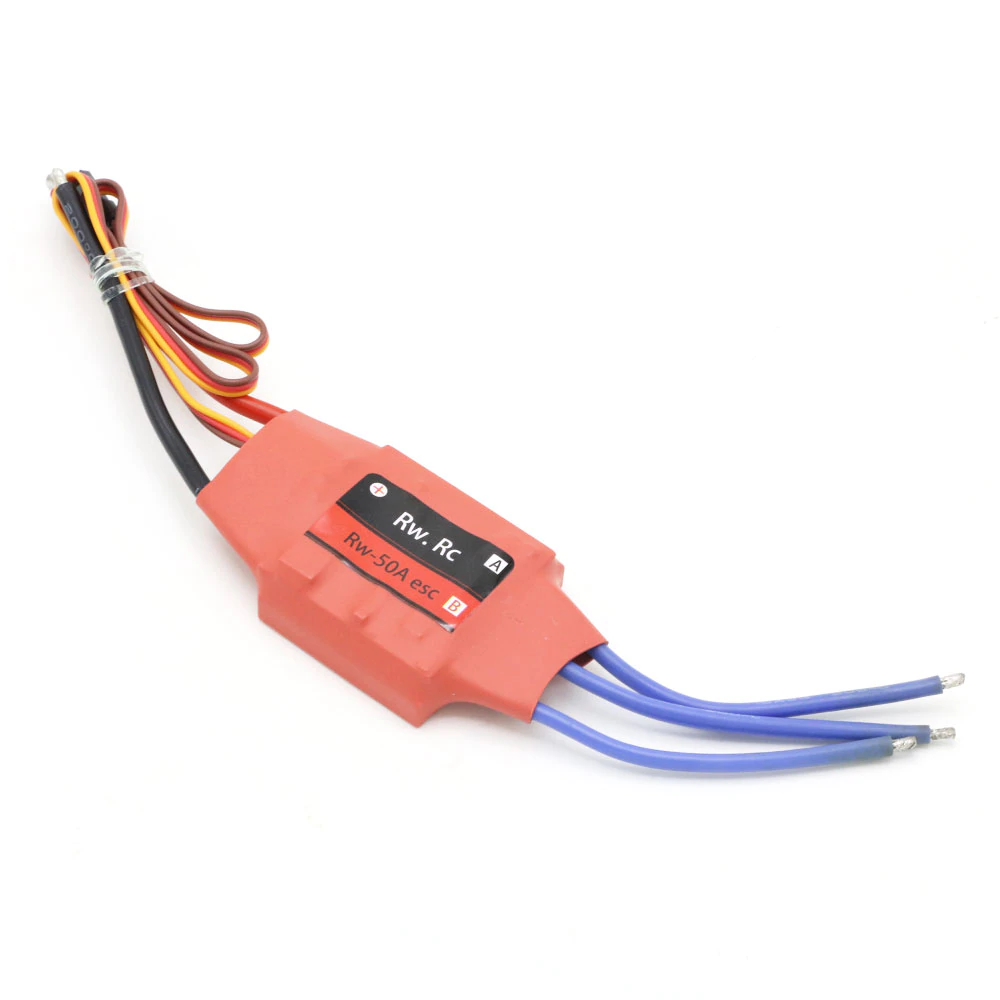

simonk50A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)

Weight:48g
Size:53*32*10
Input voltage: (2-6S Lixx)
Drive current:50A (Max:60A/10S)
BEC Input : NO
Compatible signal frequency: 30Hz - 500Hz

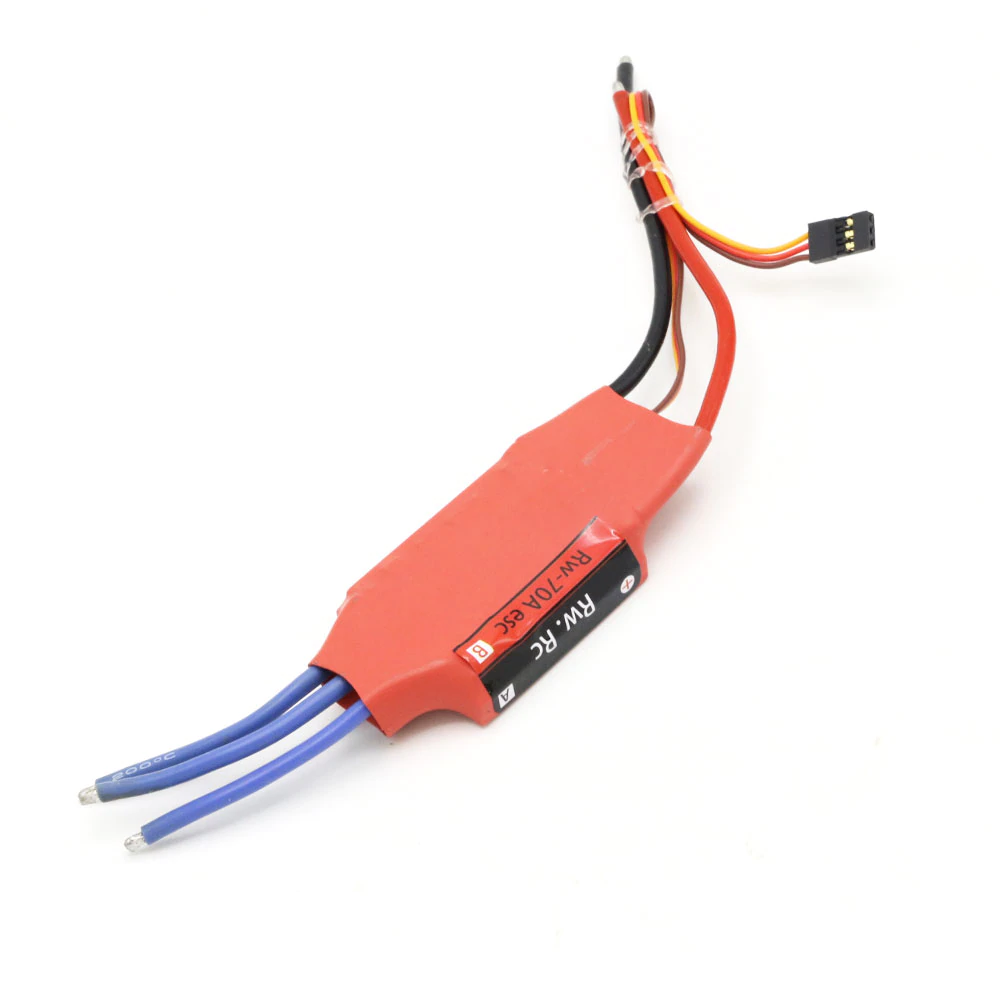

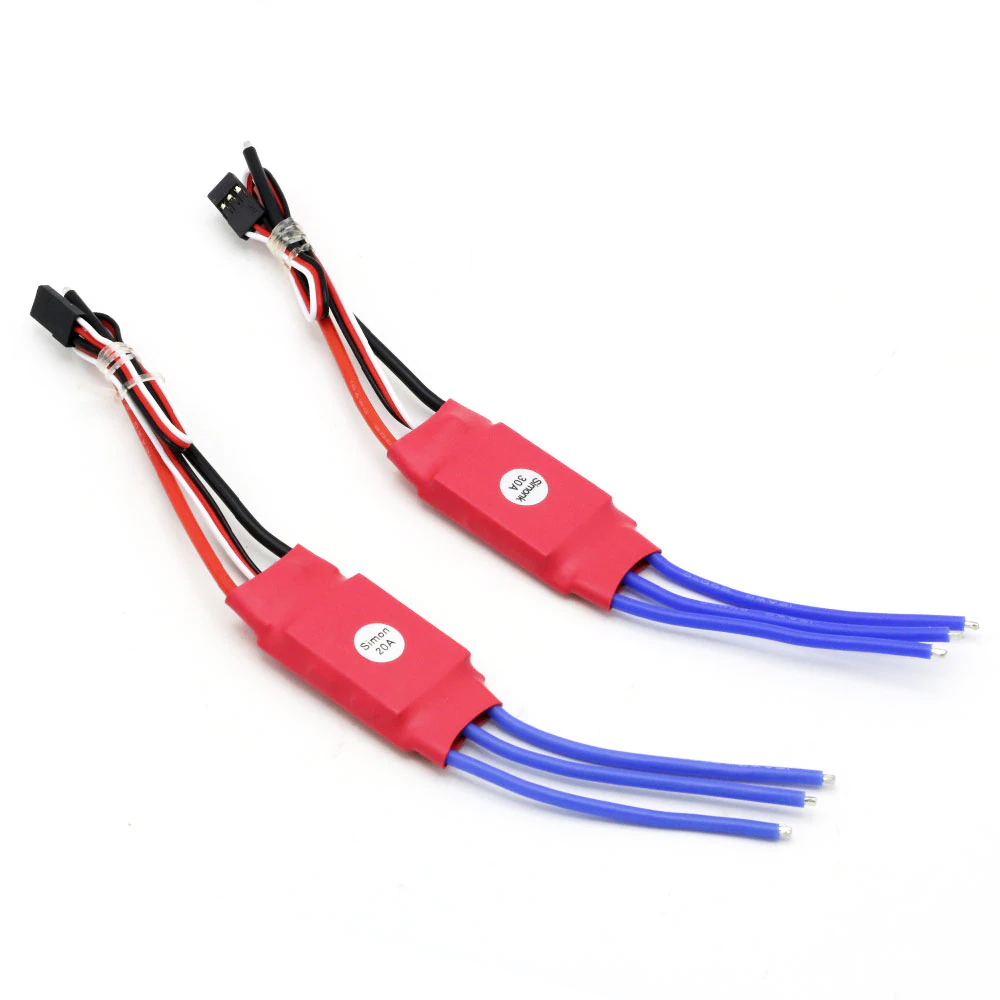

simonk70A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)

Weight:70G
Size:78*38*15MM
Input voltage: (2-6S Lixx)
Drive current:50A (Max:85A/10S)
BEC Input : NO
Compatible signal frequency: 30Hz - 500Hz

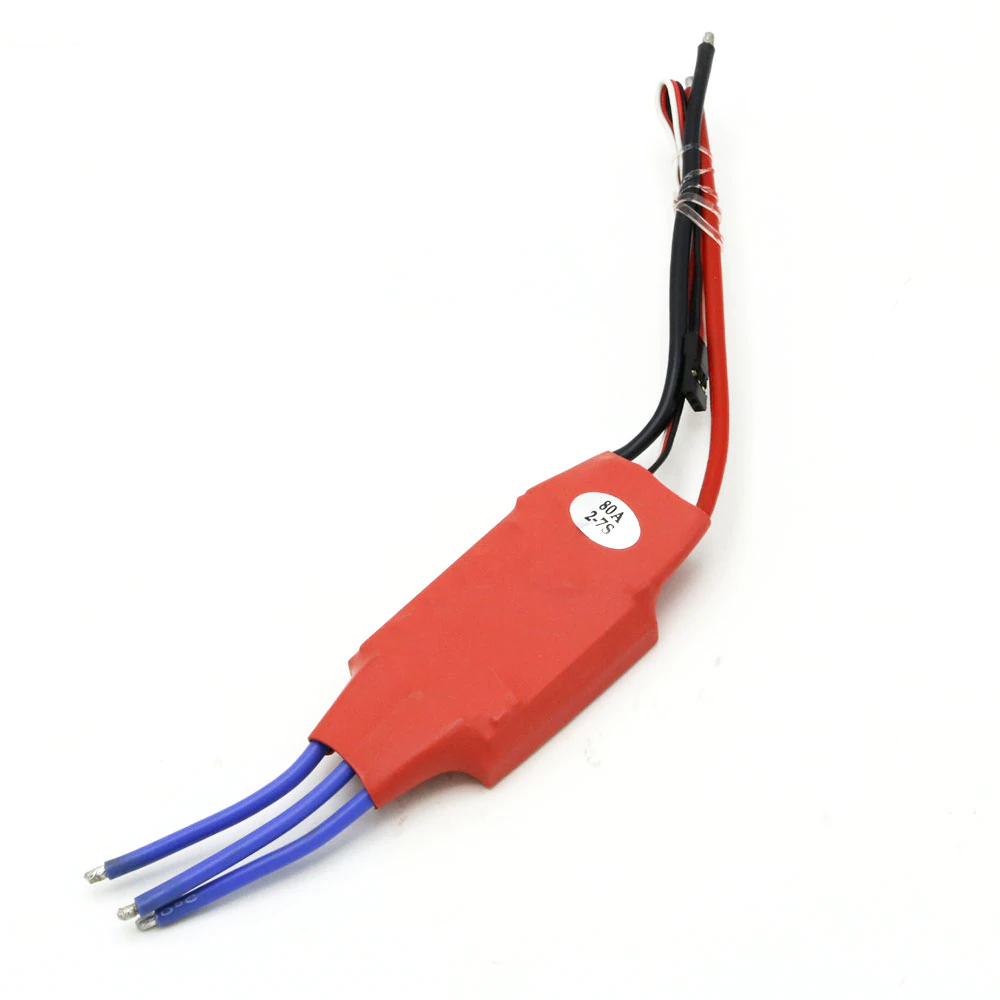

simonk80A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)

Weight:75g
Size:78*38*15MM
Input voltage: (2-6S Lixx)
Drive current:50A (Max:90A/10S)
BEC Input : NO
Compatible signal frequency: 30Hz - 500Hz
