SN-48B Ratcheting Crimping Tool for Dupont, JST, and Open Barrel Terminals

SKU: TOL2018

ā‚¹ 2,399.99 ā‚¹ 3,499.99

In stock | Ready to ship

Select variant

Only Crimping Tool
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
SN-48B Ratcheting Crimping Tool for Dupont, JST, and Open Barrel TerminalsOnly Crimping Toolā‚¹ 2,399.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

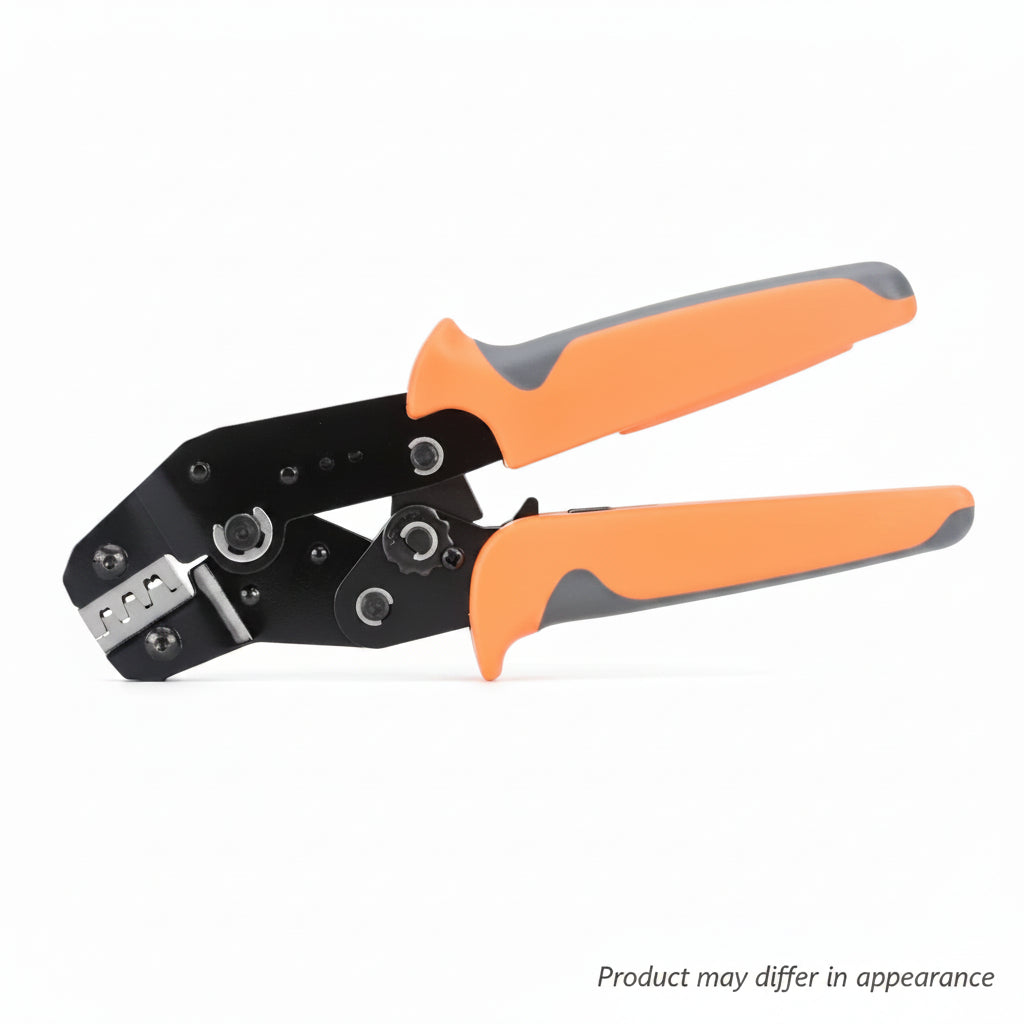

The SN-48B Ratcheting Crimping Tool is a professional-grade hand tool designed for precise and reliable crimping of open-barrel terminals commonly used in electronics, robotics, automotive wiring, industrial control systems, and DIY projects.

Featuring a high-precision ratcheting mechanism, the SN-48B ensures consistent crimping pressure for secure electrical connections while reducing operator fatigue. The hardened steel jaws provide long service life and accurate terminal compression, making it suitable for both hobbyists and professionals.

Compatible with a wide range of open-barrel connectors including Dupont, JST, Molex-style, and other similar crimp terminals, the SN-48B delivers clean and repeatable crimps without damaging the terminal or conductor.

The ergonomic non-slip handles provide a comfortable grip for extended use, while the quick-release ratchet mechanism allows easy operation and improved efficiency during cable assembly work.

Ā

Key Features

  • Suitable for open-barrel and stamped terminals
  • Crimping range: 0.5ā€“1.5mmĀ²
  • Wire compatibility: 20ā€“16 AWG
  • Precision ratcheting mechanism for uniform crimps
  • Hardened steel crimping dies
  • Ergonomic anti-slip handles
  • Quick-release safety mechanism
  • Ideal for Dupont, JST, Molex-style, and similar connectors
  • Suitable for electronics, robotics, automotive, and industrial applications

Ā

Specifications

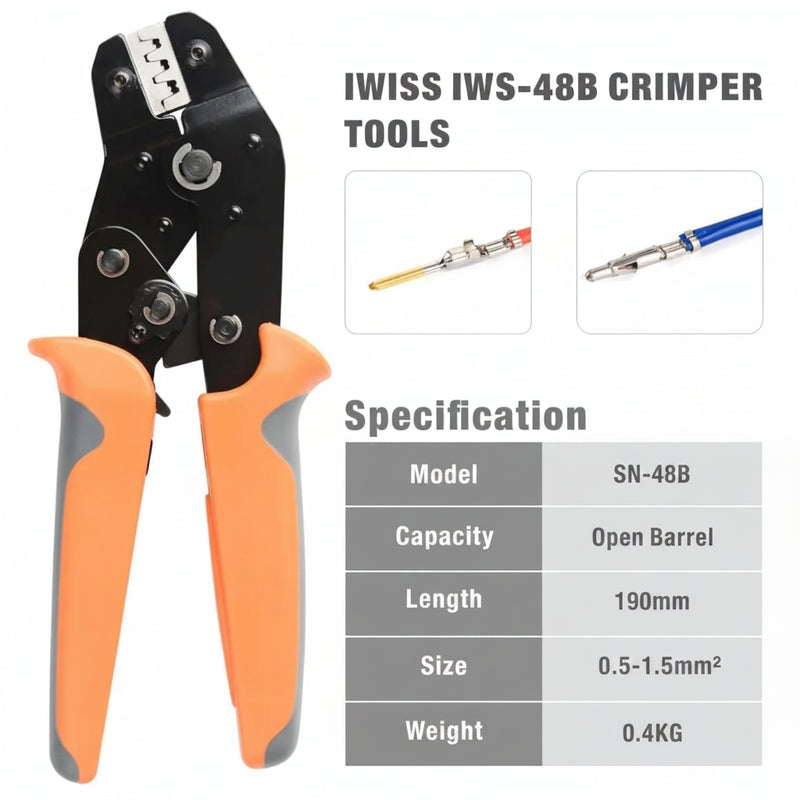

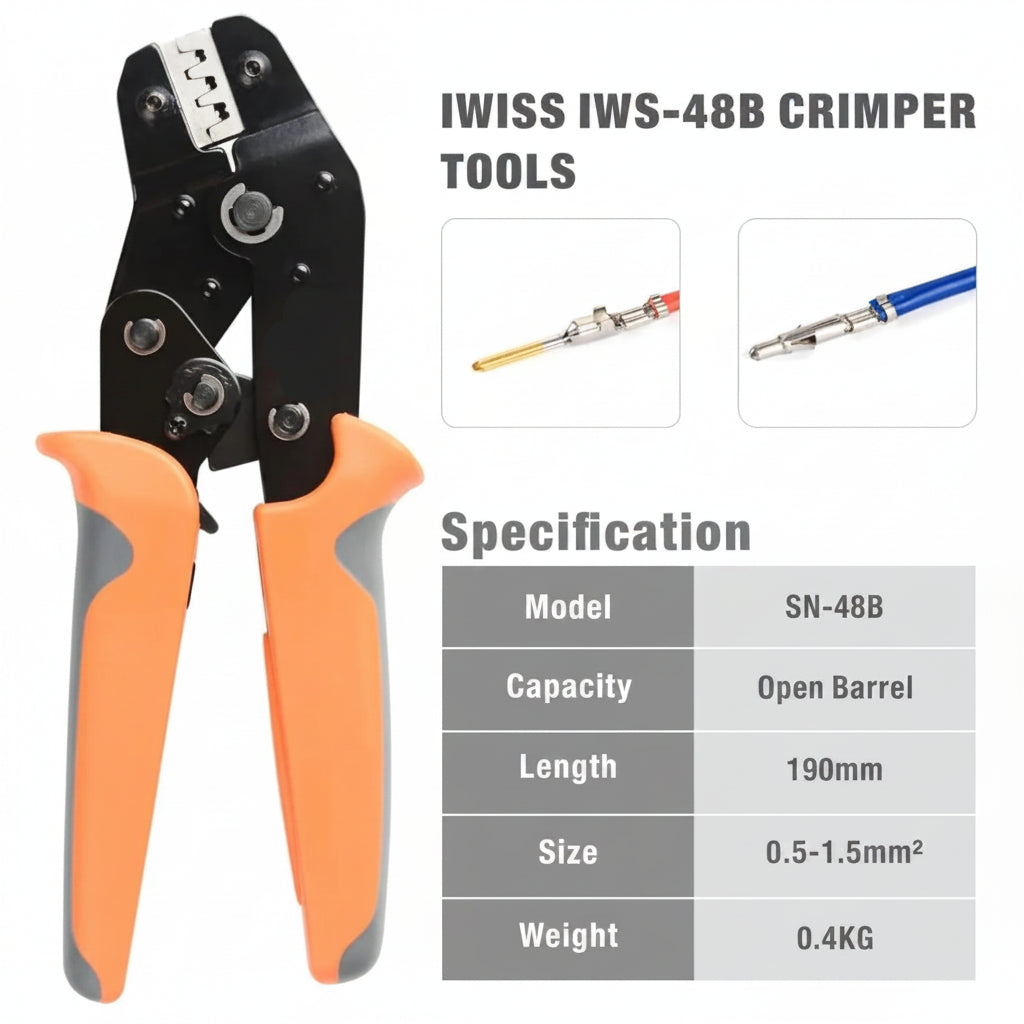

  • Model: SN-48B
  • Crimping Capacity: 0.5ā€“1.5mmĀ²
  • Wire Size: 20ā€“16 AWG
  • Crimp Type: Open Barrel Terminals
  • Mechanism: Ratcheting
  • Jaw Material: Hardened Steel
  • Handle Type: Ergonomic Non-Slip Grip
  • Applications: Electronics, Robotics, Automotive Wiring, Industrial Control Systems, DIY Projects
What terminals and wire sizes does this tool support crimping?

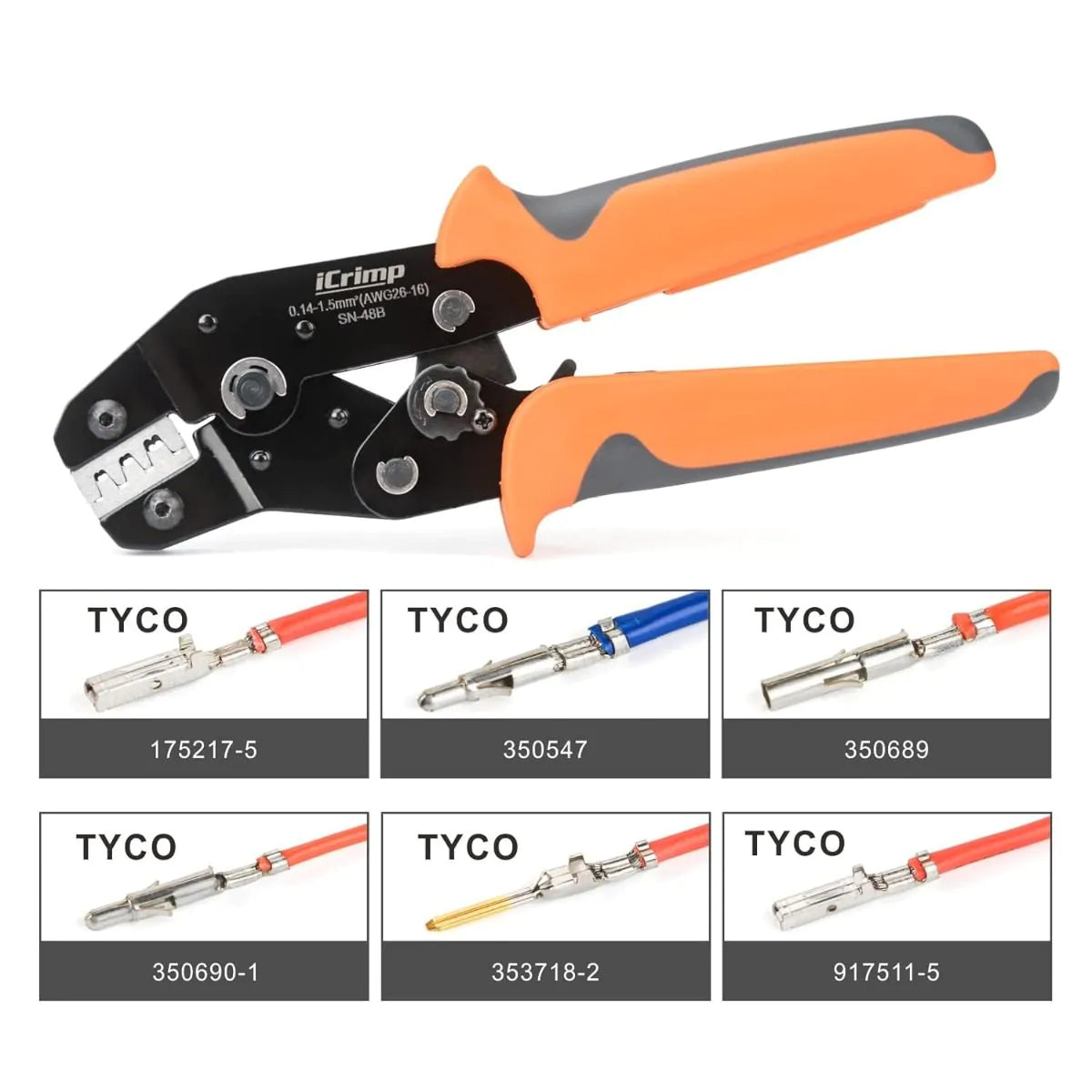

It can crimp 24-16 AWG non insulated open barrel terminals and wire splices, including 2.5mm 2.54mm 2.8mm 3.96mm 4.8mm and 6.3mm pitch open barrel terminals from JST Dupont Molex Amon Amphenol and similar brands.
How many crimp stations does it have and what is their action?

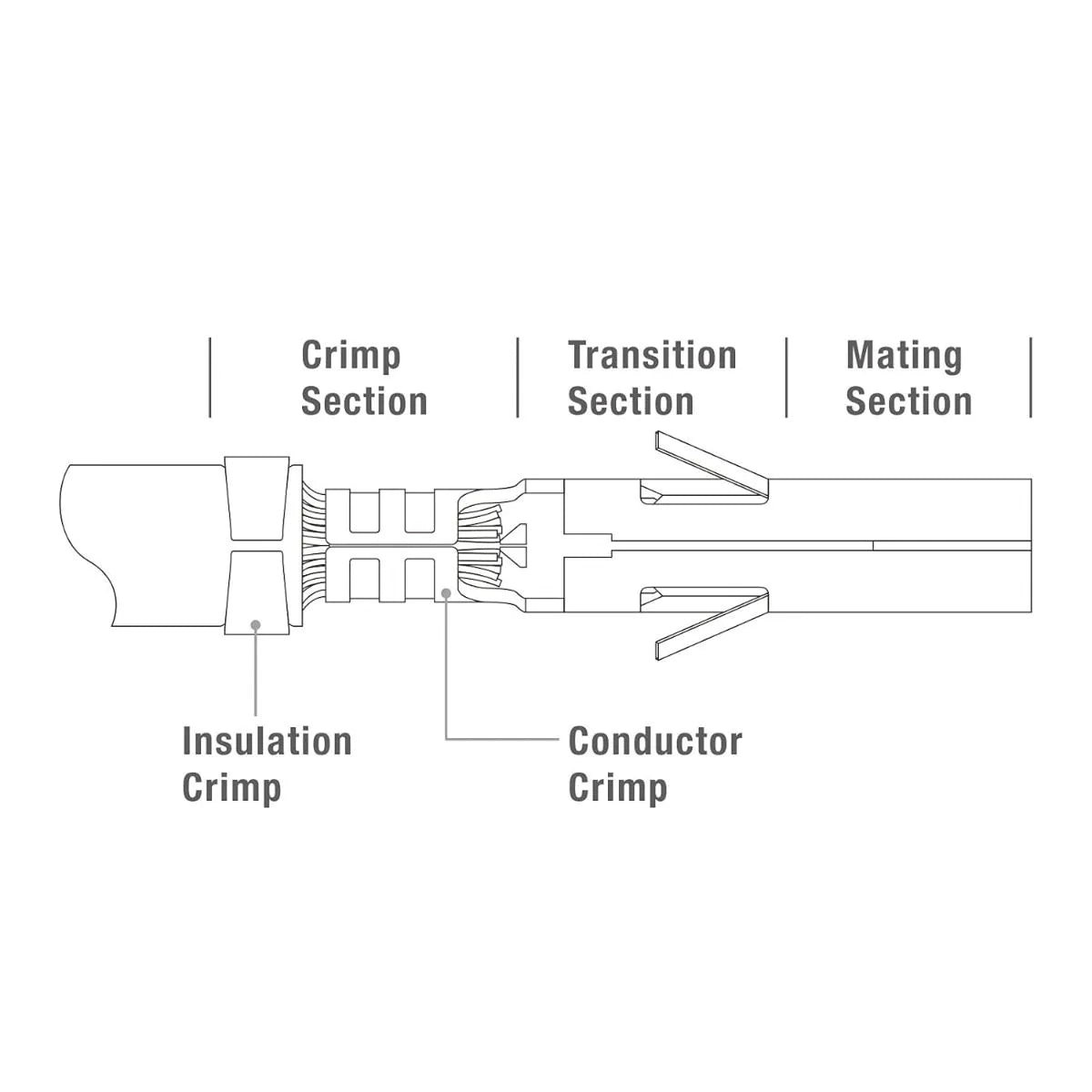

It features 4 double crimp stations that simultaneously crimp the wire and insulation in one action.
How does the ratcheting mechanism ensure a proper crimp?

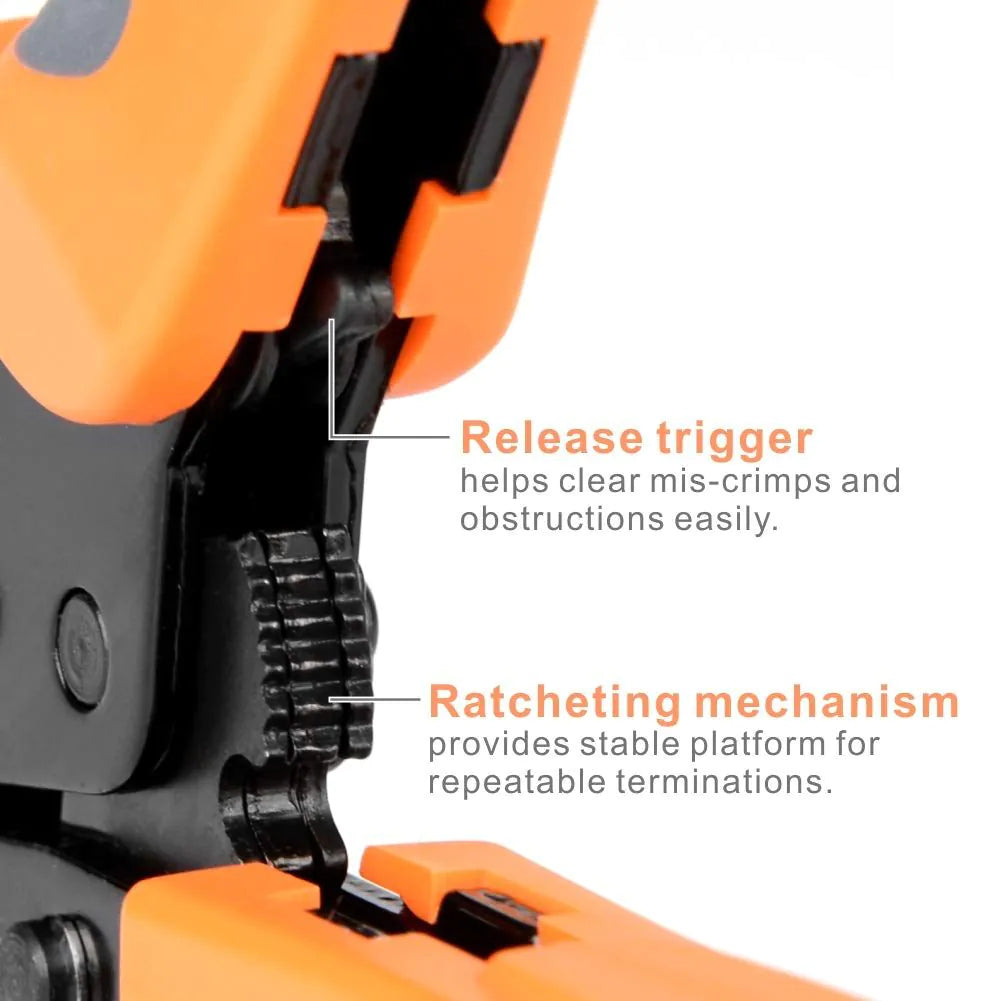

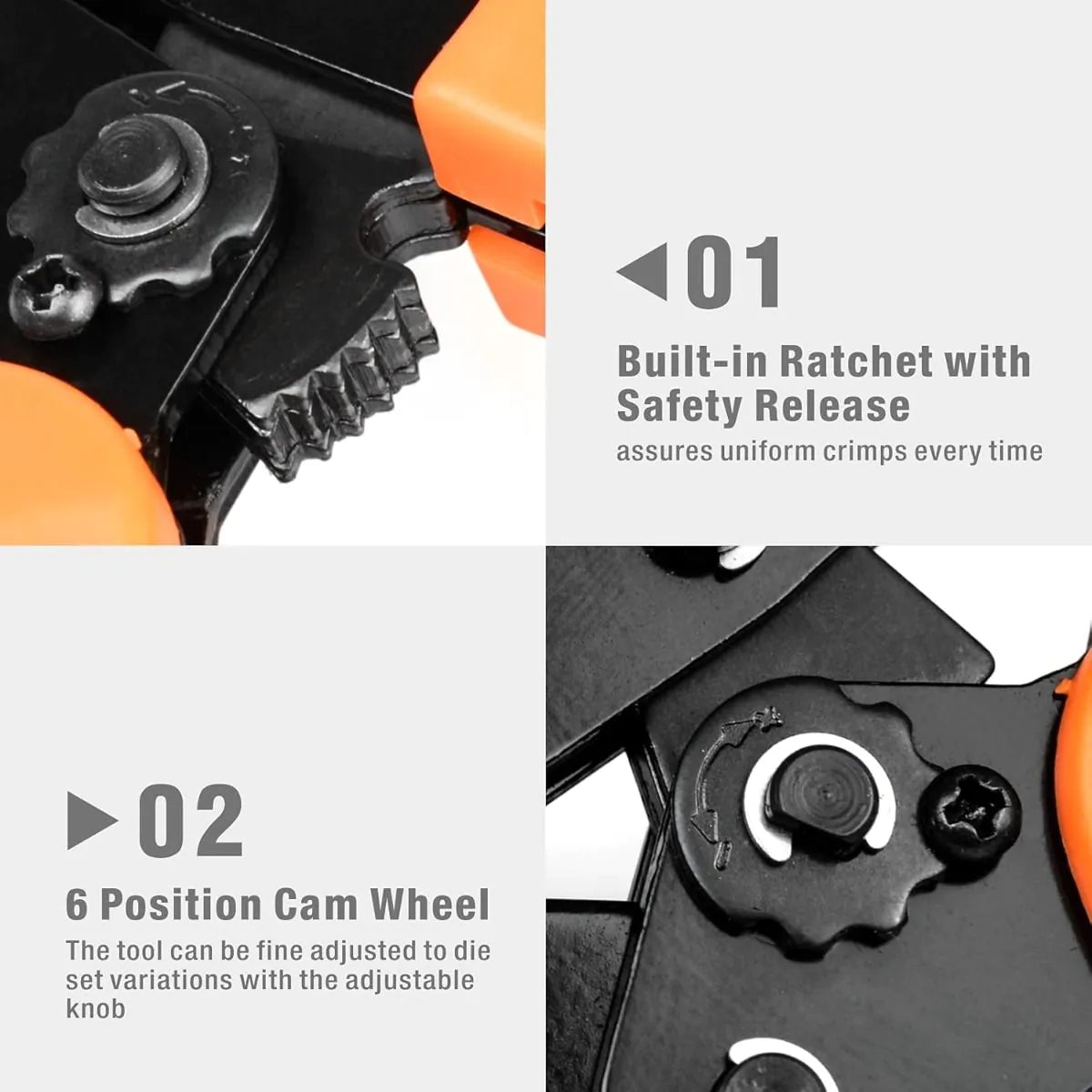

The tool will not disengage until a uniform crimp is completed or the quick release lever is triggered.
What maintenance and storage steps are recommended?
Wipe the dies with a clean soft cloth, remove debris with a soft brush, keep handles closed when not in use, and store in a clean dry area.
How should I inspect the dies for wear and when should I replace the tool?
Regular visual inspection is advised to check for flattened chipped worn or broken areas; if damage or abnormal wear is evident, replace the tool.
