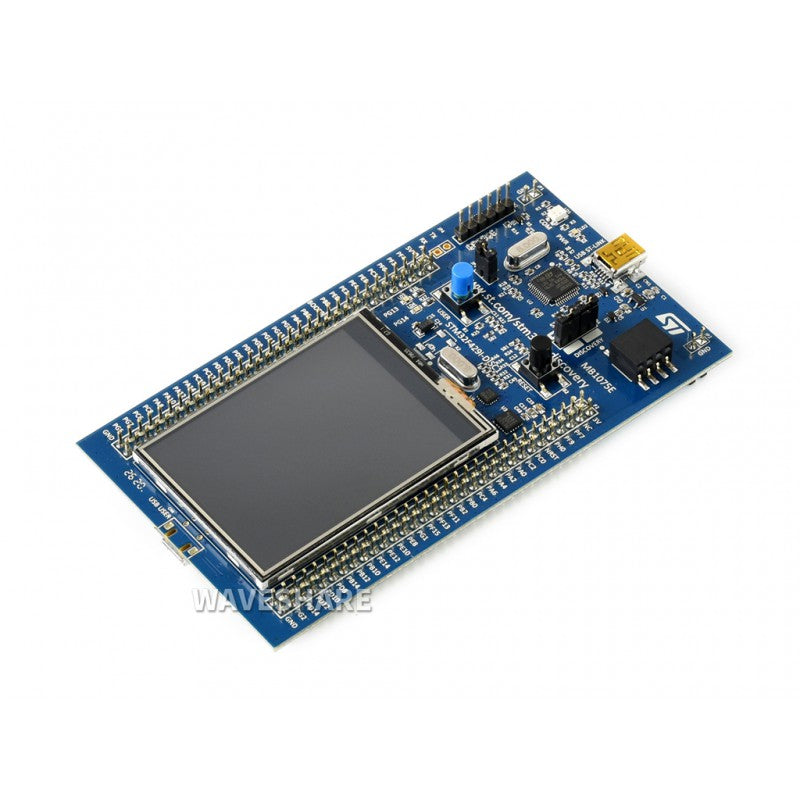

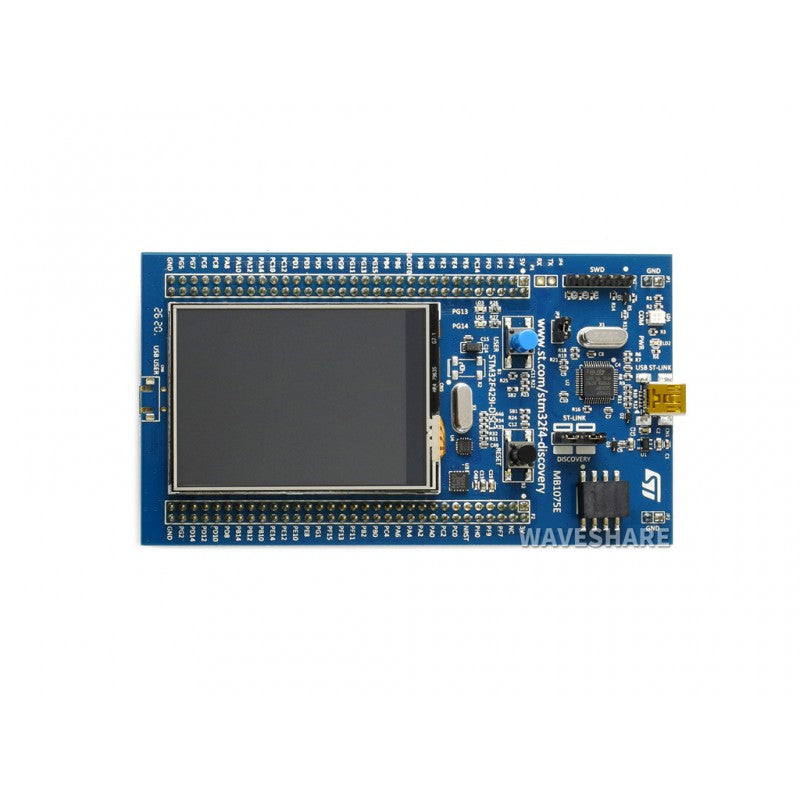

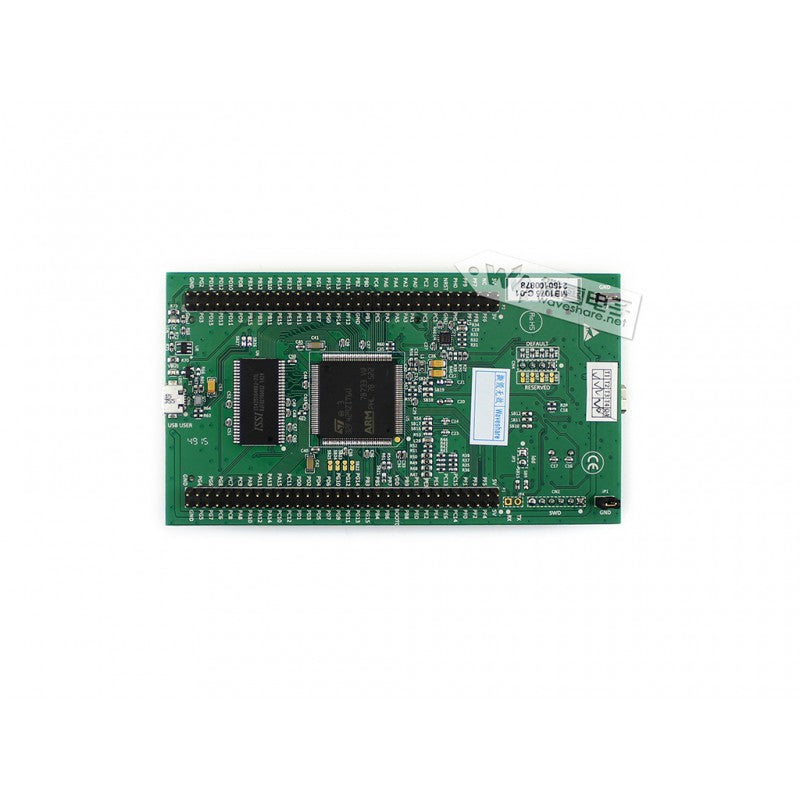

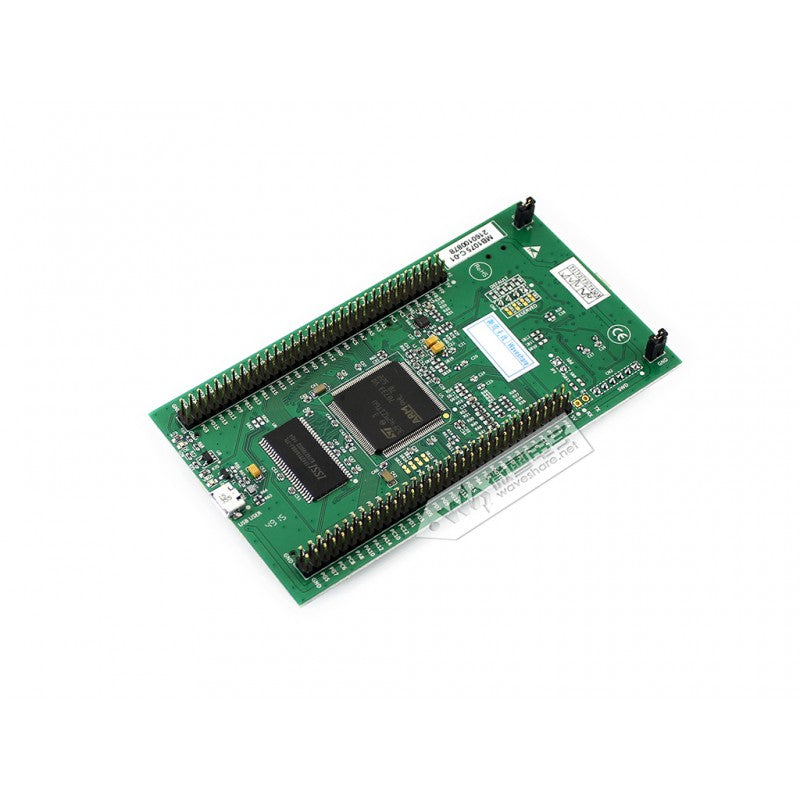

32F429IDISCOVERY, Discovery Kit With STM32F429ZI MCU
The STM32F429 Discovery kit (32F429IDISCOVERY) allows users to easily develop applications with the STM32F429 high-performance MCUs with ARM®Cortex®-M4 core.
It includes an ST-LINK/V2-B embedded debug tool, a 2.4" QVGA TFT LCD, an external 64-Mbit SDRAM, an ST MEMS gyroscope, a USB OTG micro-AB connector, LEDs and push-buttons.
Key Features
STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
On-board ST-LINK/V2-B
mbed™ -enabled (mbed.org)
USB functions:
debug port
virtual COM port
mass storage
Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
2.4" QVGA TFT LCD
64-Mbit SDRAM
L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
Six LEDs:
LD1 (red/green) for USB communication
LD2 (red) for 3.3 V power-on
Two user LEDs: LD3 (green), LD4 (red)
Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
Two push-buttons (user and reset)
USB OTG with micro-AB connector
Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage
