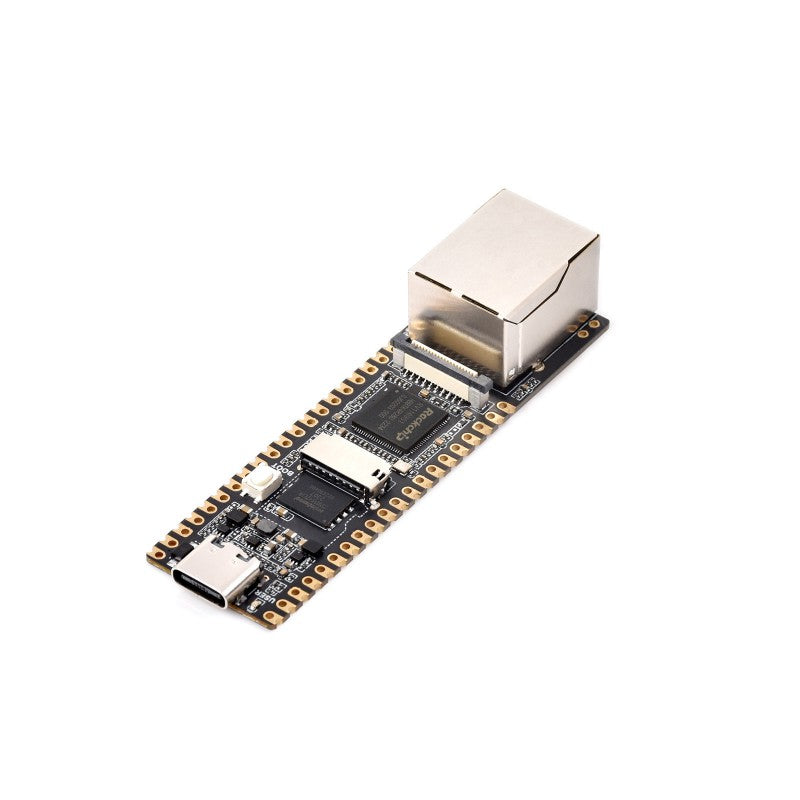

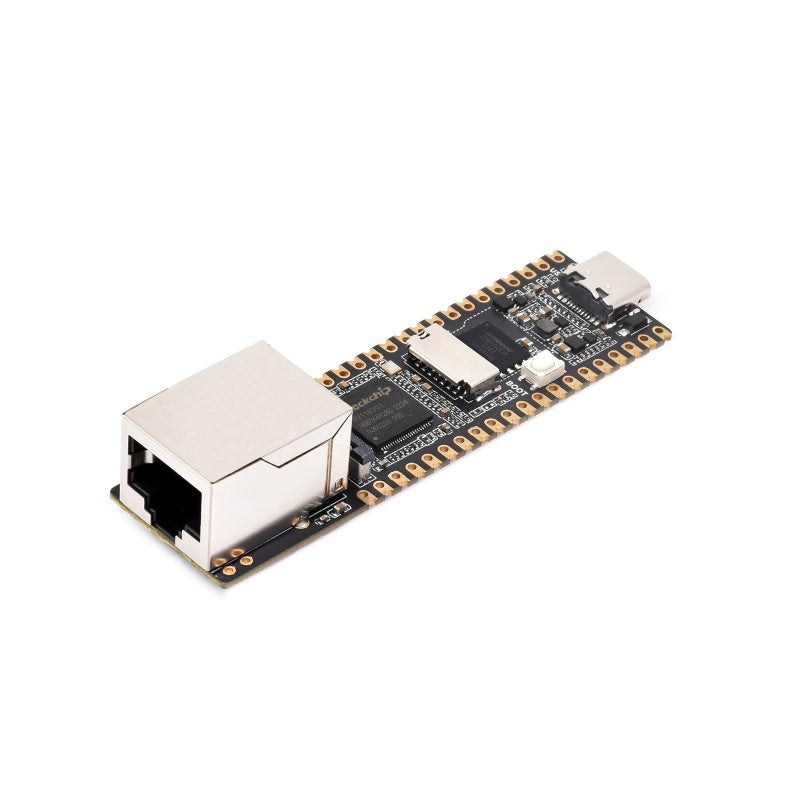

LuckFox Pico Plus RV1103 Linux Micro Development Board

Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port





Specifications

Processor Cortex A7@1.2GHz + RISC-V
NPU 0.5TOPS, supports int4, int8 and int16
ISP Input 4M @30fps (Max)
Memory 64MB DDR2
USB USB 2.0 Host/Device
Camera MIPI CSI 2-lane
GPIO 25 × GPIO pins
Ethernet port 10/100M Ethernet controller and embedded PHY
Default Storage SPI NAND FLASH (128MB)



Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
  • Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
  • Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
  • Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
  • Integrated with built-in POR, audio codec and MAC PHY



Easier To Develop

Integrates TF Card Slot, Camera Interface And Ethernet Port



SLC NAND FLASH

For A Better User Experience

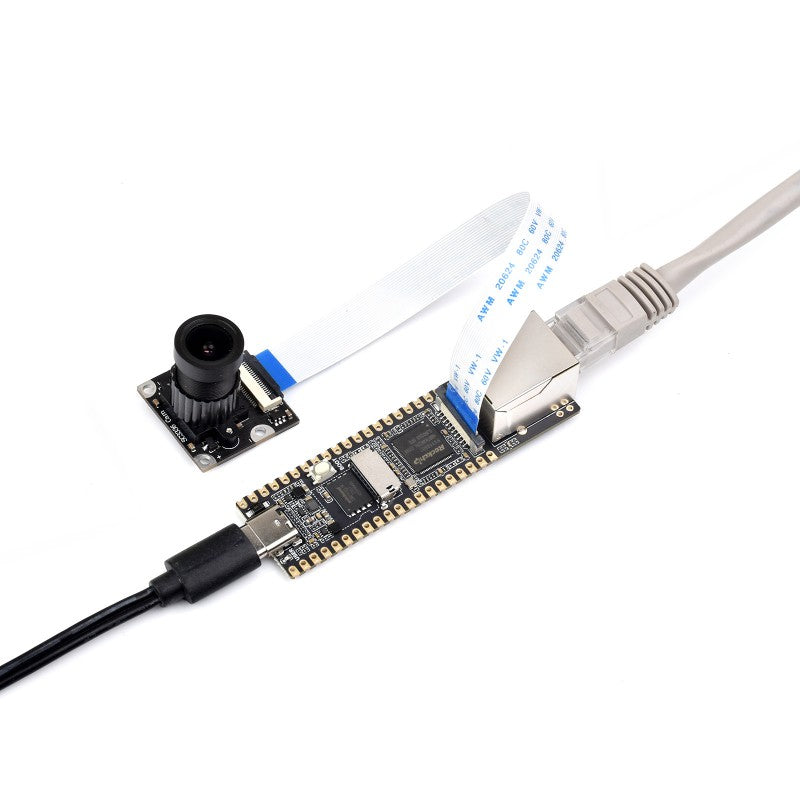

Application Example



Suitable For More Application Examples

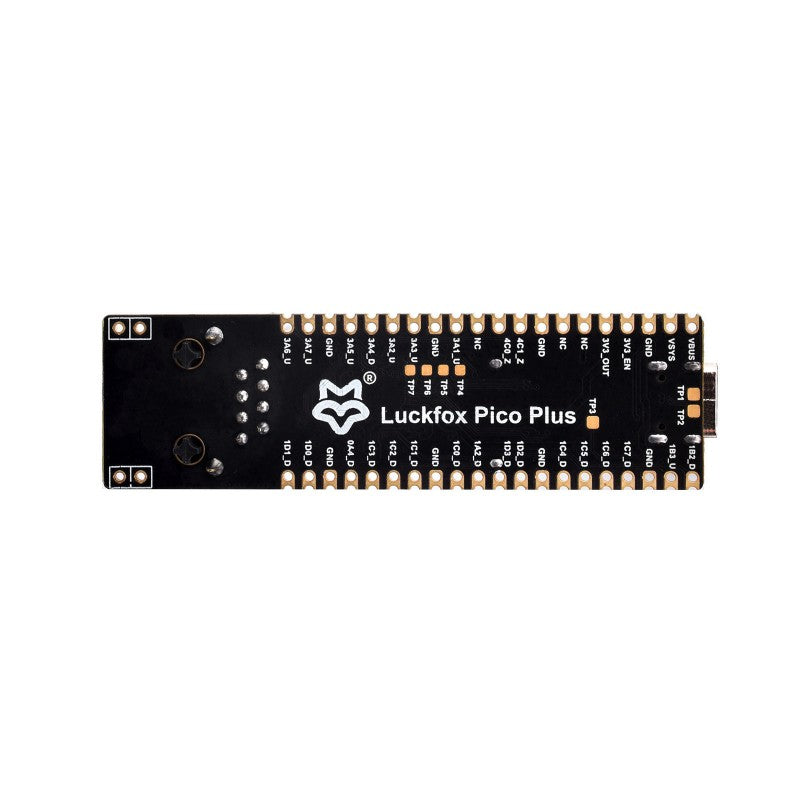

Pin Definition

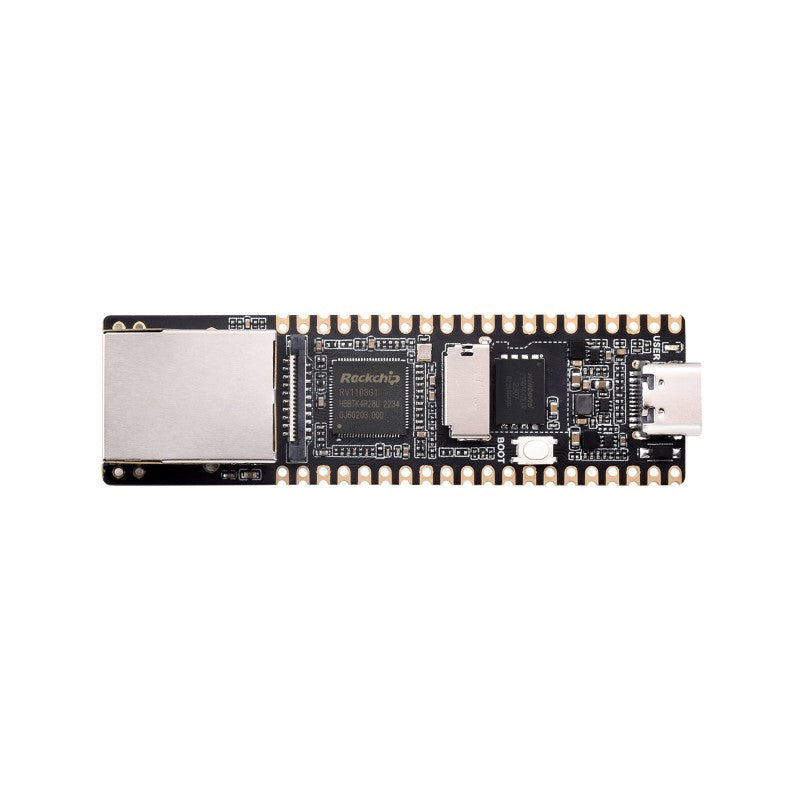

What's On Board

  1. USB Type-C connector
    for power supply and program burning
  2. ACT-LED
  3. TF card slot
  4. BOOT button
    Press it when powering on to enter download mode
  5. W25N01KV
    128MB SLC NAND FLASH
  6. RV1103
    Vision processor SoC with built-in ARM Cortex-A7 core
  7. CSI camera interface
    MIPI CSI 2-lane
  8. RJ45 Ethernet port
  9. GPIO header
  10. USB test pads
    TP1: USB_N
    TP2: USB_P
  11. USB detection test pad
  12. Microphone test pads
    TP4: LINEOUT
    TP5: MIC1P
    TP6: MIC0P
    TP7: MICBIAS


Outline Dimensions




Resources

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start/



Package Contains:

Weight: 0.013 kg

Luckfox Pico Plus

Luckfox Pico Plus x1

Luckfox Pico Plus
What processors and AI features are included?
It combines an ARM Cortex-A7 32-bit core at 1.2 GHz with a built in Rockchip 4th generation NPU. The NPU supports int4 and int8 and can reach 0.5 TOPS with int8 and up to 1.0 TOPS with int4, and it includes a built in ISP 3.2 that supports 4 MP at 30 fps.
What memory and storage options are provided?
It has 64 MB of DDR2 RAM and default 128 MB SPI NAND flash storage. A TF card slot provides expandable storage if needed.
What connectivity and interfaces are available on the board?
The board provides a 10/100 Ethernet port with embedded PHY, USB 2.0 host and device, and a USB Type C port for power and program burning. It also includes a MIPI CSI camera interface (2 lane) and 25 GPIO pins.
How do I boot and program the device?
A BOOT button allows entering download mode when powering on. The board supports fast start up and can load an AI model library during power up, with USB C used for power and programming.
What are typical use cases for this board?
It is suitable for embedded and edge AI vision projects, offering CPU, NPU and ISP alongside a camera interface and encoding features for tasks such as face recognition and high definition image processing.
