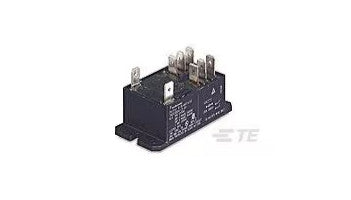

TE CONNECTIVITY / POTTER-BRUMFIELD T92P11A22-240 General Purpose Relay
The TE CONNECTIVITY / POTTER-BRUMFIELD T92P11A22-240 is a high-performance general purpose power relay designed for reliable switching in AC applications. This monostable relay features a 2 Form C DPDT-CO contact configuration with a contact rating of 30 A at 240 VAC, making it suitable for a wide range of industrial and automation uses.
Product Features
Relay & Contactor Type: General Purpose Power Relay
Configuration: 2 Form C DPDT-CO
Contact Current Rating: 30 A
Coil Voltage: 240 VAC
Magnetic System: Monostable
Electrical Characteristics:
Contact Limiting Making, Continuous, and Breaking Current: 40 A
Initial Dielectric Between Open Contacts: 1500 Vrms
Initial Dielectric Between Adjacent Contacts: 1500 Vrms
Coil Current: 0.017 A
Mechanical Features:
Quick Connect Terminals
Panel Mount with Flange and Mounting Slots
Product Dimensions: 68.58 mm x 34.54 mm x 26.42 mm
For more detailed specifications and technical support, please refer to the datasheet linked above. The datasheet was not processed; please search the internet for the part number for more details.
