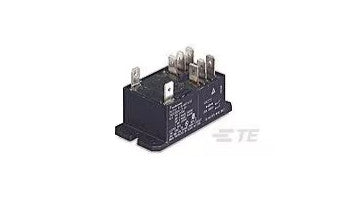

The TE CONNECTIVITY / POTTER-BRUMFIELD Part Number T92S7D12-24 is a high-performance general purpose power relay designed for reliable switching applications. Manufactured in China (COO: CN), this relay features a robust construction suitable for various industrial and electronic systems.
Key Features
Type: General Purpose Power Relay, DC, Monostable
Configuration: 2 Form A DPST-NO contacts
Contact Rating: 30 A
Coil Voltage: 24 VDC
Contact Current Limiting: 40 A (making, continuous, breaking)
Insulation: Initial dielectric between open contacts and adjacent contacts rated at 1500 Vrms
Coil Current: 0.071 A
Environmental Resistance: Flux resistant, capable of wave soldering up to 260°C
Package Type: Tray
RoHS Compliant: Yes
ECCN: EAR99
UOM: Each (EA)
Technical Specifications
Parameter
Details
Contact Material
Silver Cadmium Oxide
Contact Resistance
Initial Resistance: 1000 MΩ
Insulation Resistance
Between Contacts & Coil: 4000 Vrms
Mechanical Dimensions
Width: 34.54 mm, Length: 52.32 mm, Height: 30.73 mm
Operating Temperature Range
-55°C to 85°C
Environmental Category
RTII
Compliance & Certifications
EU RoHS Directive 2011/65/EU Compliant with Exemptions
EU ELV Directive 2000/53/EC Not Yet Reviewed
China RoHS 2 Directive
Restricted Materials: Cadmium oxide (4.57%) in part
For detailed compliance information, please refer to the product datasheet.
