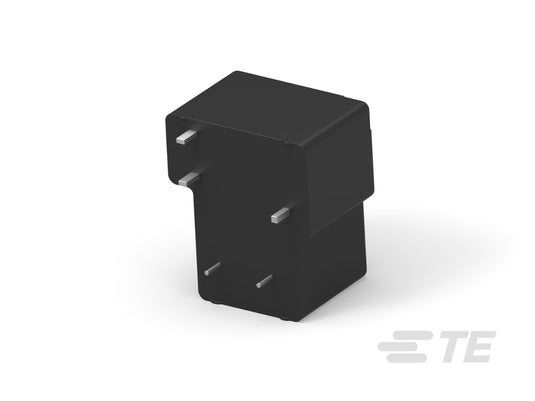

TE CONNECTIVITY / POTTER-BRUMFIELD T9AS5D12-12 General Purpose Relays SPDT PC MOUNT 12VDC
Introducing the TE CONNECTIVITY / POTTER-BRUMFIELD T9AS5D12-12, a reliable general-purpose power relay designed for various electronic applications. This SPDT (Single Pole Double Throw) relay features a compact PCB mount package and is rated for 20 A contact current, making it suitable for switching high-current loads.
Product Features
Type: General Purpose Power Relay
Configuration: 1 Form C SPDT-CO
Contact Rating: 20 A
Coil Voltage: 12 VDC
Monostable magnetic system for reliable switching
Board mount design with solder pins for easy integration
UL Coil Insulation Class F
Solder process capable up to 260°C
RoHS compliant
Electrical and Mechanical Specifications
Contact Characteristics
Specification
Contact Arrangement
1 Form C SPDT-CO
Contact Current Rating
20 A
Contact Voltage Rating
277 VAC (max)
Contact Resistance
Initial Resistance: 1000 MΩ
Dielectric Between Contacts
1500 Vrms
Dielectric Between Contacts & Coil
2500 Vrms
Coil & Mechanical
Specification
Coil Resistance
144 Ω
Coil Power Rating
1 W
Dimensions (W x L x H)
27.43 mm x 32.51 mm x 20.4 mm
Product Weight
26 g
Environmental & Compliance
Operating Temperature Range: -55°C to 85°C
Packaging: Box & Tray, Bundle
RoHS, EU ELV, China RoHS 2 compliant
Solder process capable up to 260°C
Additional Information
Part Number: T9AS5D12-12
Manufacturer: TE CONNECTIVITY / POTTER-BRUMFIELD
COO: CN
UOM: EA
ECCN: EAR99
Package Type: TRAY
Datasheet: Download Datasheet
For more detailed specifications, visit the product page on TE.com or consult the datasheet linked above. The datasheet was not processed; please search the internet for the part number for more details.
